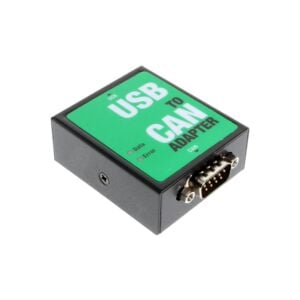

Single Port USB to CAN Bus 3FT Adapter Support Windows 10

Part # CG-1PRTCANB
$72.99
If you’re an engineer and involved in vehicle design, industrial automation, or other micro-chip related industry, we have an adapter for you. The 1 port CAN Bus adapter does not need external power running from the computer’s USB port. It has an onboard firmware update utility and other features that can help in your design.

Compatibility

Single Port USB to CAN Bus 3FT Adapter Support Windows 10

Part #CG-1PRTCANB
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$72.99

Compatibility

Overview

CAN Bus Adapter for Micro-controllers and Devices

Since 1983, the CAN Bus protocol has been aiding in various industrial applications. Industries and applications such as automotive, aviation, building automation and medical equipment have benefited from its use. Coolgear is now carrying CAN Bus adapters compliant with USB 2.0 standards in both metal and plastic casings.

The CG-1PRTCANB CAN Bus adapter uses the Bosch C_CAN module as its controller and ARM Cortex-M0 32-bit micro-controller for its chipset. It's many features include LED activity and ESD protection among others. See below for a full list of features and specifications of this adapter.

Can Bus Adapter Features

  • Adds one CAN bus port on your computer by connecting to a USB port
  • Provides DC +5V and DC +12V power for external devices
  • Powered by USB port, no external power adapter required
  • LEDs indicate initialization and CAN bus status
  • Installs as a standard Windows COM port
  • Supported CAN modes: Standard, Listen, Echo
  • Can be controlled over serial port using ASCII commands
  • Easy to use API provided along with sample source codes and GUI sample programs
  • Easy plug and play installation and CAN bus device connection
  • CAN bus speed up to 1Mbps
  • 512 bytes transmit/receive FIFO buffer for high speed data throughput
  • Supports CAN 2.0A and CAN 2.0B protocols
  • Designed by ARM Cortex-M0 32-bit micro-controller and the USB to UART chip
  • Drivers provided for Windows and Linux OS

Specifications

  • Supports USB 1.1, 2.o, and 3.0
  • Supports CAN 2.0A and CAN 2.0B
  • CAN Bus speed: 5kbps to 1Mbps for transmit & receive
  • CAN Bus Mode: Standard mode: normal operation on CAN bus Listen mode: passive receiving of CAN Frames Echo mode: transmitter also receives sent frames (for testing purposes)
  • Controller: Bosch C_CAN module
  • Signals: CAN_H, CAN_L, CAN_GND, CAN_V+
  • OS Driver Support: Windows 7, 8, 8.1, 10, Server 2003 to Server 2016
  • Tools: Monitoring CANHacker, Titan CAN Test
  • API Library: Supports C/C++, C#, VB.NET, VB6, Python and LabVIEW
  • Item Dimensions: 77mm × 41mm × 24mm (L × W × H)
  • 3ft. attached cable
  • Item Weight: .220lbs.

Power Specifications

  • Power Input: Power supplied via USB (5V) connector No external power needed
  • Power Output: 5V 100mA/12V 50mA through pin 1 & 9 of DB9 and pin 4 of terminal block
  • Power Consumption: Max. 100mA@5VDC (no external devices), Max. 480mA@5VDC (when providing DC power for external devices).

Environmental Specifications

  • Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -20°C to 75°C (-4°F to 167°F)
  • Operating Humidity: 5% to 95% RH
  • Safety Approvals: CE, FCC

Package Contents

  • Single port CAN Bus Adapter
  • Driver Disc
READ MORE

Specifications

Manufacturer: Coolgear Warranty: 1 year Availability: Limited Stock
Barcode: 045079161139 Ship Weight: 0.34 lbs Condition: New
Part Number: CG-1PRTCANB Color: Black Size: 77 x 41 x 24mm (LxWxH)

Specifications

Manufacturer: Coolgear
Barcode: 045079161139
Part Number: CG-1PRTCANB
Warranty: 1 year
Ship Weight: 0.34 lbs
Color: Black
Availability: Limited Stock
Condition: New
Size: 77 x 41 x 24mm (LxWxH)
