4 Port Industrial USB 3.2 Gen 2 Type-C Hub w/ Screw-Locking Ports & Status LEDs

Part # CG-4PG2MHUB
$142.95

Status: Available

Industrial Grade | +7~48V DC Input | Surface Mountable | 10 Gbps | Screw Lock

  • Super Fast Speeds: This USB hub is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, high speed and full speed which enables it to be compatible with USB 3.2 Gen 1 / 2.0 / 1.1.
  • Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 4-port hub is perfect for workstations installations in offices, labs, warehouses, and other industrial applications.
  • Check Your Ports’ Status: Quickly check the status of each port individually with built in LED indicators.
  • Upstream: 1 USB port, Type C connector, Screw-lock type
  • Downstream: 2 USB ports, Type C connectors, Screw-lock type &  2 USB ports, Type A connectors, Screw-lock type
  • Power Connector: 2-Pin Terminal Block
  • LED Indicators: 4 LEDs for each downstream port to indicate the current bus
  • Mounting Options: Wall, Surface, & DIN Rail

Product Documentation & Drivers

4 Port Industrial USB 3.2 Gen 2 Type-C Hub w/ Screw-Locking Ports & Status LEDs

Part # CG-4PG2MHUB
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$142.95

Documentation

Introduction:

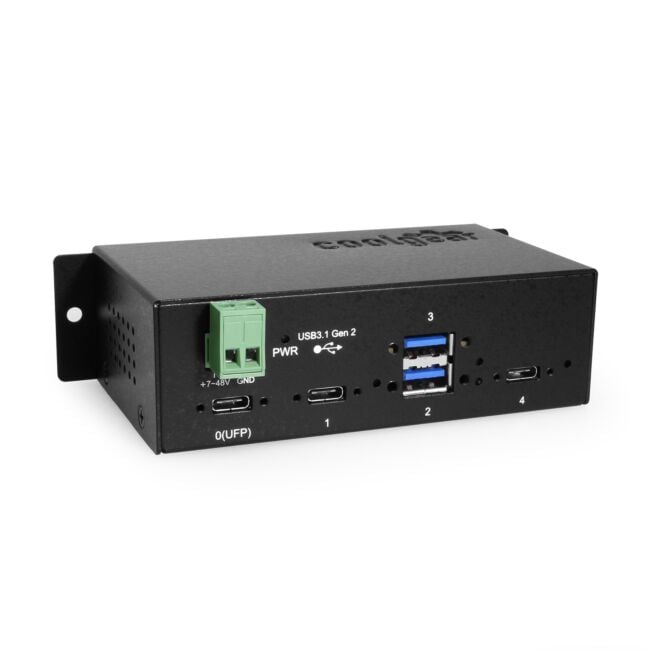

The Coolgear CG-4PG2MHUB 4 port USB 3.2 Type-C 10Gbps industrial metal hub includes DIN Rail and surface mounting Kit. This hub supports USB 3.2 Super-Speed Plus (10Gbps data transfer) with (2) USB Type-A female and (2) USB female Type-C downstream ports. It uses USB C for upstream data transmission to the computer.

The CG-4PG2MHUB USB 3.2 Type-C hub uses a 2-pin Phoenix connector for input power of +7 - 48V DC for the downstream ports (power supply is sold separately). It is backward compatible with 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates. The DIN Rail Clip is secured to the back of the hub for Din Rail mounting.

Note: This hub, although it supports battery charging spec1.2, does not have PD (power delivery) functionality.

Features:

  • Compliant with USB 3.2 Gen2 Specifications.
  • Rigid wall and DIN Rail mountable metal case.
  • Provides 4 (2 USB-C female and 2 female USB-A) Downstream facing USB 3.2 Ports.
  • Supports 10Gbps(Super-Speed Plus), 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates.
  • Multi Transaction Translators (TT) per Hub
  • Support USB Battery Charging: SDP, CDP and DCP modes.
  • Item Dimensions: 5.23in(L) x 2.42in(W) x 1.43in(H) (133.0 x 61.5 x 36.3mm).

Environmental Specifications

  • Operating Temp: o to 70°C (32 to 158°F)
  • Operating Humidity: 5 to 95% RH

LED Status Descriptions

  • Off = No USB device detected.
  • Slow Blinking = USB 2.0 mode.
  • Quick Blinking = USB 3.1 Gen1 mode.
  • Steady On = USB 3.1 Gen2 mode.

Package Contents:

  • USB 3.1 Gen2 4 Port Hub

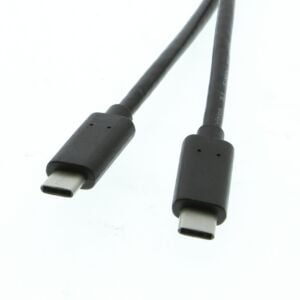

  • 3ft. USB-C Male to Male Gen2 Cable
  • Wall Mounting Plate w/screws
  • Din Rail Clip w/screws
  • Paper installation manual

*Surface Mounting screws not included

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: CoolgearWarranty: 1 YearAvailability: Available
Barcode: 045079161016Ship Weight: 1.16Condition: New
Part Number: CG-4PG2MHUBColor: BlackLength/Size: --
USB Spec: USB 3.2 Gen 2Max Data Rate: 10 GbpsInput Voltage: 7 ~ 48V DC
Upstream Port: USB 3.2G1 / 3.0 Type-C FemaleDownstream Port(s): 2x Type A USB 3.2 G2
2x Type C USB 3.2 G2
Screw Lock
Compatible:
Yes

Specifications

Manufacturer: Coolgear
Barcode: 045079161016
Part Number: CG-4PG2MHUB
Warranty: 1 Year
Ship Weight: 1.16
Color: Black
Availability: Available
Condition: New
USB Spec: USB 3.2 Gen 2
Max Data Rate: 10 Gbps
Input Voltage: 7 ~ 48V DC
Upstream Port: USB 3.2G1 / 3.0 Type-C Female
Downstream Port(s): 2x Type A USB 3.2 G2
2x Type C USB 3.2 G2
Screw Lock
Compatible:
Yes
