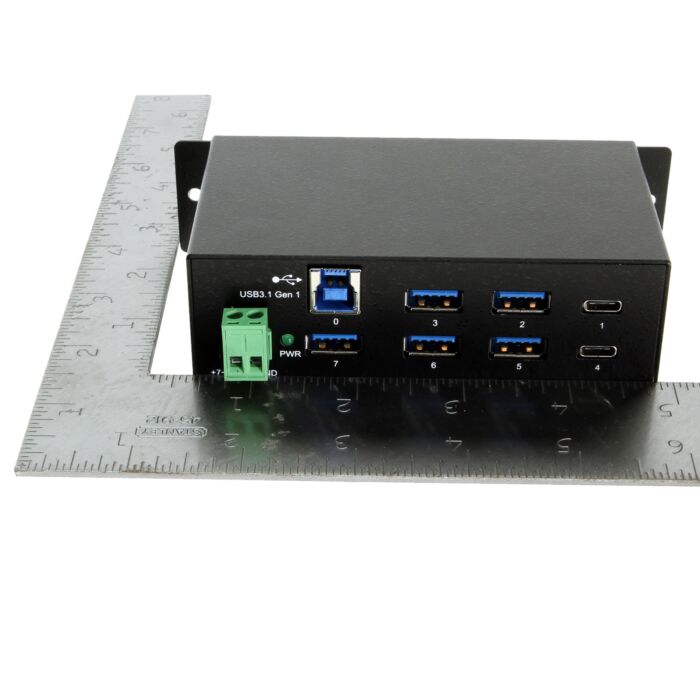

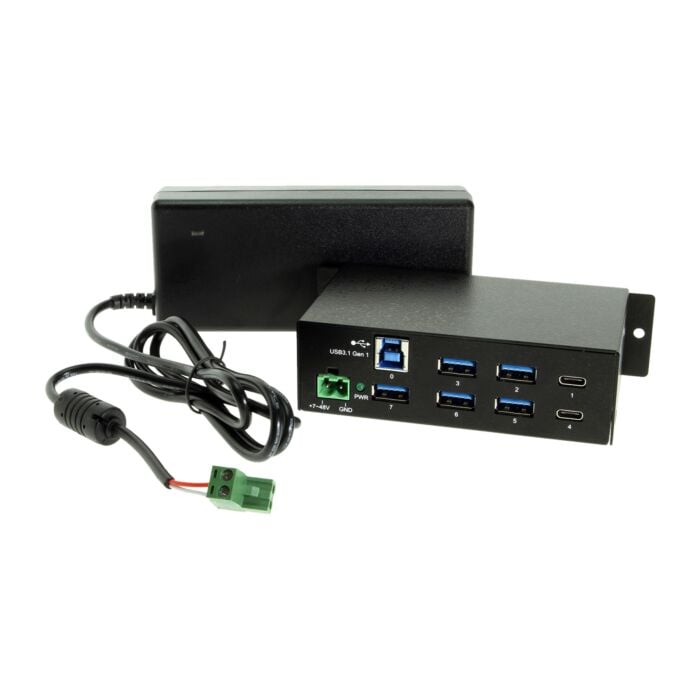

USB Type-C 7 Port Hub with 2 USB-C and 5 USB-A with DIN Rail Clip and Power Adapter

Part # CG-7PU312C-PS
$119.99
New 7-Port USB-C hub compliant with USB 3.1 Gen1 specifications compliant includes the external power adapter, DIN-Rail mounting kit, and surface mounting bracket. Incorporates 5 USB-A and 2 USB-C Downstream ports and 1 USB-A host to B device Upstream port for super-speed data transmission, is backward compatible with USB 2.0/1.1 applications.

USB Type-C 7 Port Hub with 2 USB-C and 5 USB-A with DIN Rail Clip and Power Adapter

Part #CG-7PU312C-PS
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$119.99

Overview

New USB-C Hub - 2x USB-C Ports and 5x USB-A w/Power Adapter

CoolGear's new USB-C 7 Port Hub that is USB3.1 Gen1 specifications compliant, includes a metal constructed chassis and multiple mounting options. This USB-C Hub is an excellent choice for your USB 3.1 Gen1 applications, it delivers up to 5Gbps and provides 7 downstream facing ports with 2 USB-C and 5 USB-A connectors.

The surge protected USB-C hub is backward compatible with USB 2.0/1.1 using its RISC-like USB controller, it provides a unique self-power mode to work with wide range (+7 ~ 48V DC) input DC power from its terminal block (power adapter included). It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP).

USB-C Hub Features & Specifications

  • Provides 7 USB3.1 Gen 1 Downstream Facing Ports (with 2 USB-C and 5 USB-A Connectors) which manage up to 5Gbps
  • Compliant with USB 3.1 Gen 1 Specifications
  • Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
  • Full-Featured USB-C Port Enables Reversible Plug Orientation and Cable Direction
  • Supports 15KV ESD Surge Protection for Each Port.

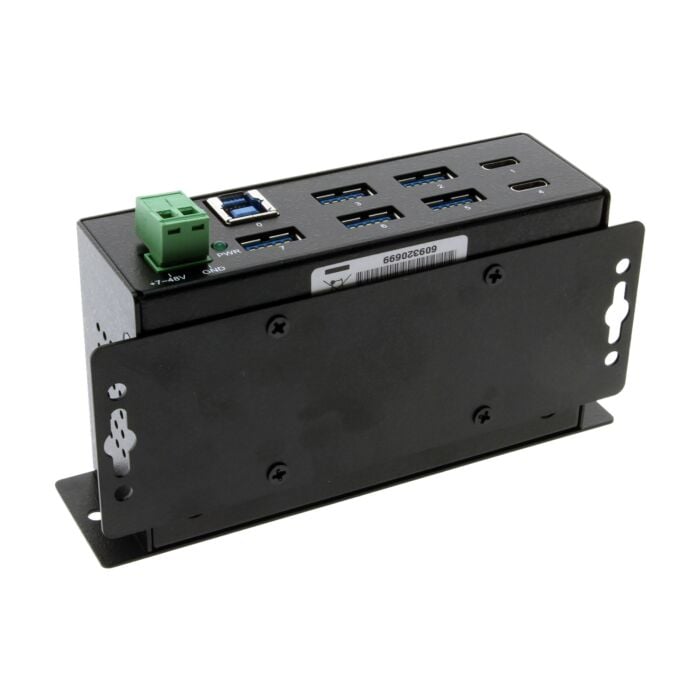

  • Includes a Mounting bracket for flat surface mounting i.e. under desk, on walls or tech bench
  • Supports Multi Transaction Translators per Hub
  • Supports Wide Range Input (+7~48V DC) Self-power Mode from the Terminal Blocks
  • Supports a 2-pin Terminal Block Connector for external power input from AC adapter (included)
  • Form Factor: 5.23inch(L) x 2.42inch(W) x 1.43inch(H) (13.30x6.15x3.63 cm)

Environmental Info

  • Operating Temp.: 0 to 55°C (32 to 131°F)
  • Storage Temp: -20 to 85°C (-4 to 185°F)
  • Operating Humidity: 5 to 95% RH

Supported Devices

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, DVD drive, joystick, virtual reality helmet, modem, PBX and many more USB devices

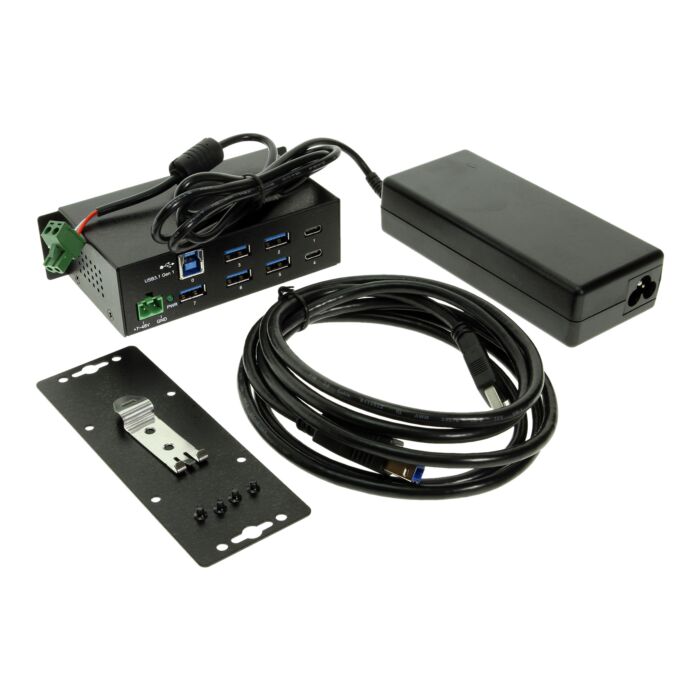

Package Contents

  • 1x 7 port USB-C hub with DIN-Rail mounting kit

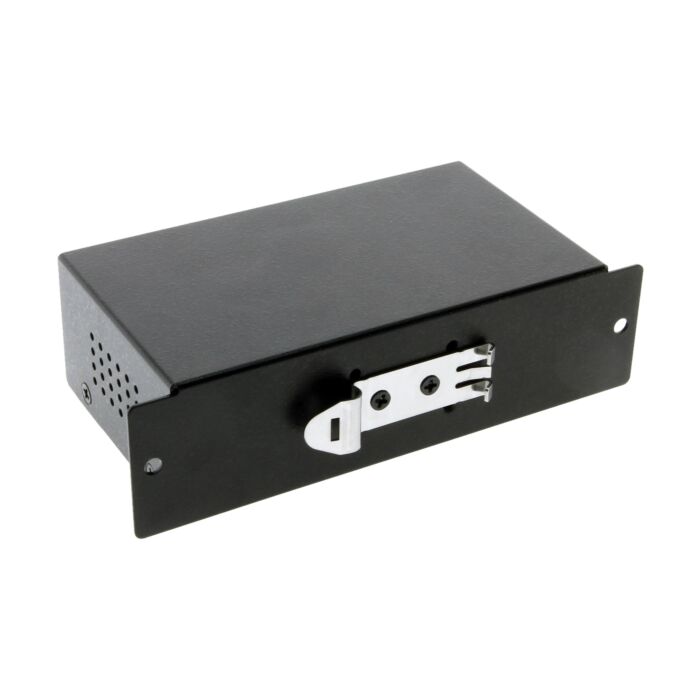

  • 1x DIN-Rail Clip with screws
  • 1x Mounting Bracket with screws
  • 6ft. USB-A to B USB 3.0 cable
  • 12V 6A power adapter
READ MORE

Specifications

Manufacturer: CoolGear Warranty: 1 year Availability: Limited Stock
Barcode: 045079158788 Ship Weight: 2.12 lbs Condition: New
Part Number: CG-7PU312C-PS Color: Black Size: --

Specifications

Manufacturer: CoolGear
Barcode: 045079158788
Part Number: CG-7PU312C-PS
Warranty: 1 year
Ship Weight: 2.12 lbs
Color: Black
Availability: Limited Stock
Condition: New
Size: --
