Metal 7-Port USB 2.0 Powered Hub for PC-MAC with Power Adapter

Part # USBG-7U2ML
Product Rating:
(36 reviews)
$64.99

Status: Available

Designed to provide quick and easy access to seven Type-A downstream ports for connecting USB peripherals, devices, or other USB hubs. A single type "B" upstream port connects the USBG-7u2ml to the host computer or another USB hub, enabling up to 127 devices.

Product Documentation & Drivers

Metal 7-Port USB 2.0 Powered Hub for PC-MAC with Power Adapter

Part # USBG-7U2ML
Product Rating:
4.8 out of 5 stars
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$64.99

Documentation

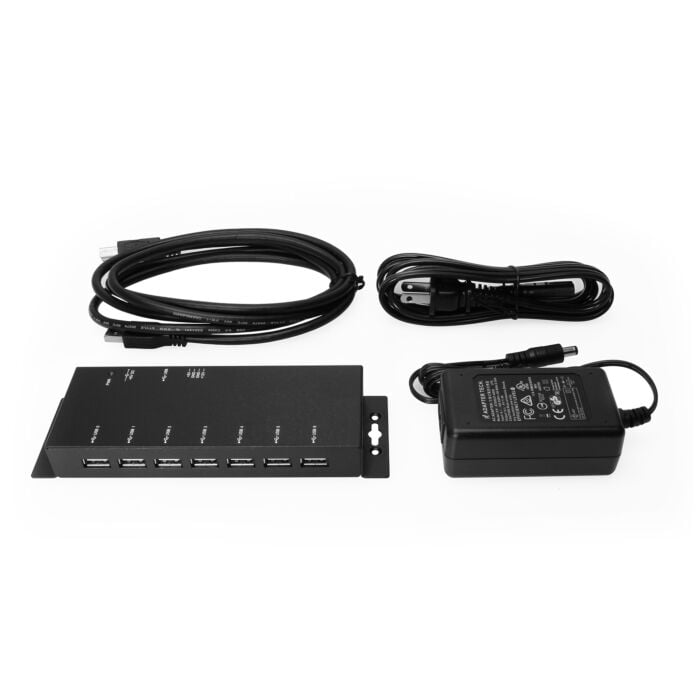

Industrial USB Hub with 7 Ports feature a rugged metal enclosure. Ships Complete with 6ft USB 2.0 A to B Cable, 4Amp 5VDC Power Supply and User Guide.

The USBG-7u2ml 2.0 is a Hi-Speed USB 2.0 7-port hub that is backward compatible with USB 1.0 and 1.1. It provides an out of the box industry standard that allows connection of up to seven USB peripherals or devices to your USB ready PC or Mac.

Manufacturer : USBGear

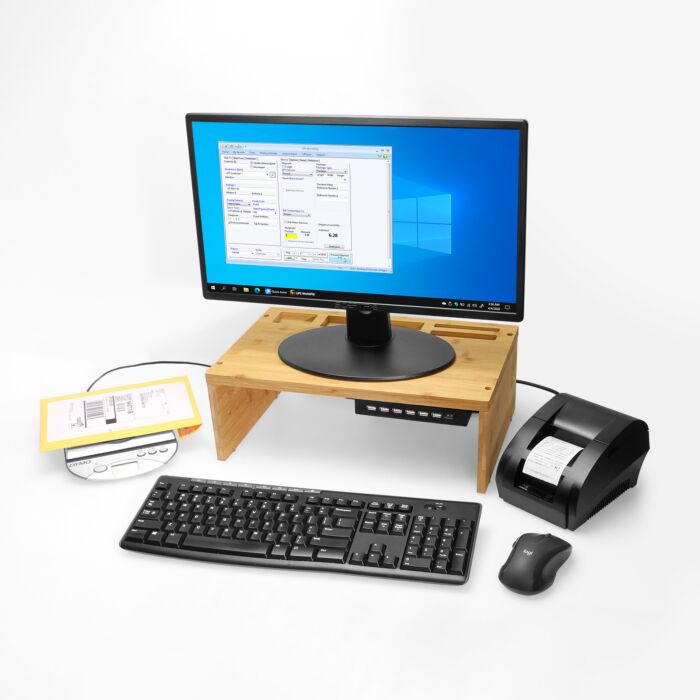

The USBG-7u2ml is targeted at PC and Mac Industrial Application users that are expanding the number of USB ports on their system.

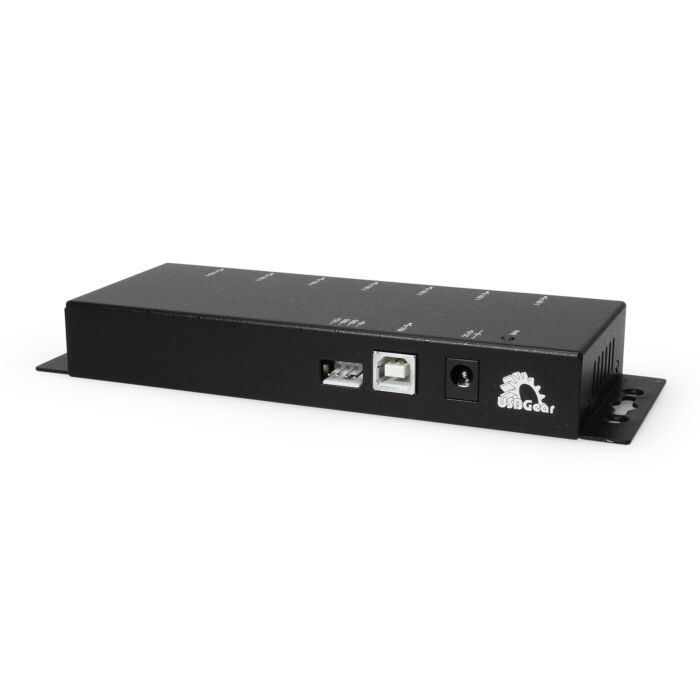

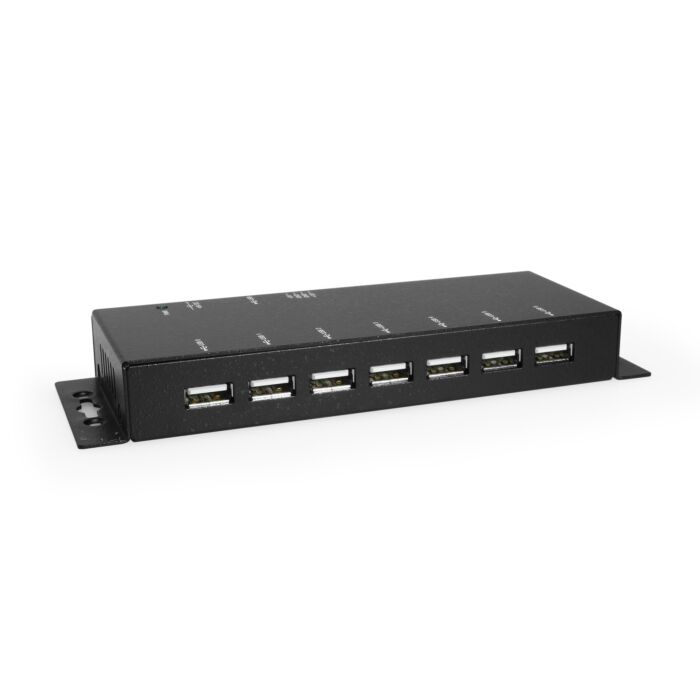

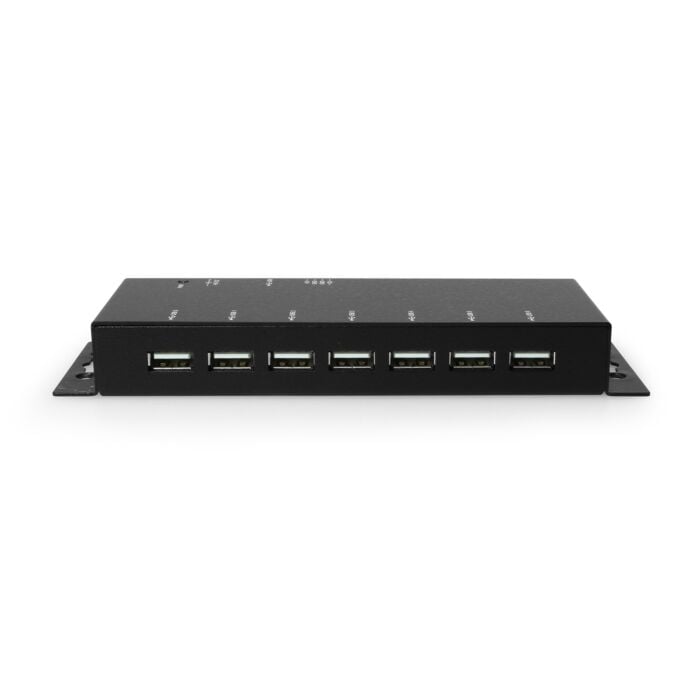

Designed to provide quick and easy access, the USBG-7u2ml provides seven type "A" downstream ports for connecting USB peripherals, devices, or other USB hubs. A single type "B" upstream port connects the USBG-7u2ml to the host computer or another USB hub, enabling up to 127 devices to be connected by cascading multiple hubs. Configured directly by the operating system, the hub operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems.

As a standard USB hub, theUSBG-7u2ml buffers USB data from any attached peripheral in compliance with USB specifications to provide an invisible extension of the USB bus. Supporting both low speed (1.5Mbps and 12Mbps) and Hispeed (480Mbps) devices, each port creates a bridge between the peripheral and host computer.

Diagnostic LEDs provide port status for each port and power status. The USBG-7u2ml includes a Quick Install Guide, a 3-foot Hi-Speed USB 2.0 certified A to B cable, and an 110/220 AC power supply.

  • Compliant with USB Specification Revision 2.0
  • Supports High-speed and or Full-speed Packet
  • Protocol Sequencer for Endpoint 0/1
  • Provides 7 Downstream Facing Ports
  • Supports 480Mbps, 12Mbps and 1.5Mbps Speed
  • One Transaction Translator per Hub
  • Supports 4 Concurrent Non-periodic Transactions
  • Supports Self-powered and Bus-powered Mode
  • Supports Downstream Port Status with LED
  • Dimensions: 6.013in(L) (7.013 w/flange) x 2.350in(W) x .908(H)
  • Hub Weight: .612 lbs

*Surface Mounting screws not included

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: CoolgearWarranty: 1 YearAvailability: Available
Barcode: 729440625139Ship Weight: 2.00Condition: New
Part Number: USBG-7U2MLColor: BlackLength/Size: --
USB Spec: USB 2.0Max Data Rate: 480 MbpsInput Voltage: 5V DC
Upstream Port: USB 2.0 Type-B FemaleDownstream Port(s): 7x Type A USB 2.0 Screw Lock
Compatible:
No

Specifications

Manufacturer: Coolgear
Barcode: 729440625139
Part Number: USBG-7U2ML
Warranty: 1 Year
Ship Weight: 2.00
Color: Black
Availability: Available
Condition: New
USB Spec: USB 2.0
Max Data Rate: 480 Mbps
Input Voltage: 5V DC
Upstream Port: USB 2.0 Type-B Female
Downstream Port(s): 7x Type A USB 2.0
Screw Lock
Compatible:
No

User Reviews

Product Rating:
(36 reviews)
4.8 out of 5 stars

LAST 4 REVIEWS

VIEW ALL REVIEWS
Product Rating:
5 out of 5 stars
Utilitarian, compatible, high quality USB hub

By: George Beckstein on 11/10/2020

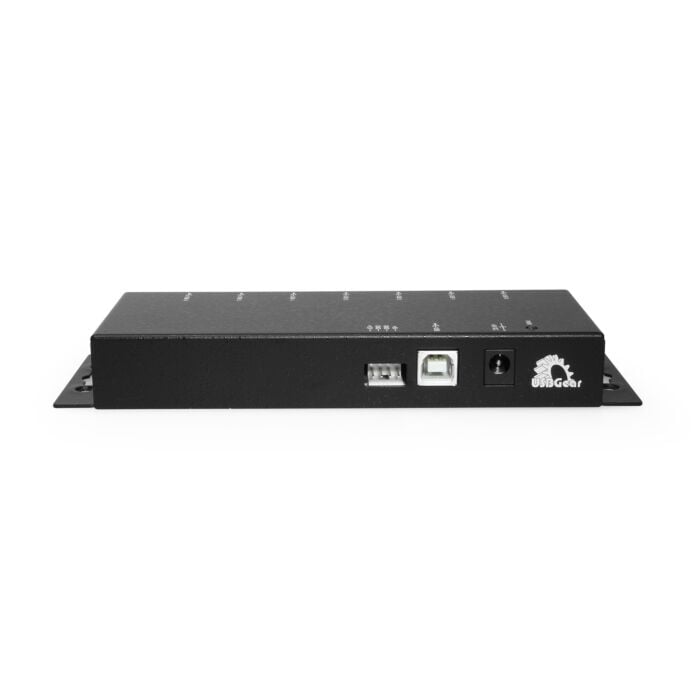

Great quality, love the utilitarian look. It integrates well into my desk as a custom installation and does not draw attention to itself — it’s a USB hub not a decoration.Easy to mount out of the way due to its low profile AND the fact that the upstream USB port and DC power port are on the back side of the hub. With other hubs you’ll always have the upstream cable sticking out the front. Not ideal for flush-mounting to the edge of your desktop.I bought the USB 3.0 version because I had the same hub with USB 2.0. The older USB 2.0 version did not work properly with my thunderbolt dock (running a Dell XPS15 9570 and Dell TB16 dock). It would crash the whole USB bus on the dock after less than a minute of being connected, even after updating all the firmwares and drivers. The TB16 just doesn’t like the USB hub chips inside the USB 2.0 version. ??‍♂️The USB 3.0 version has cured this problem and given me many more built in ports on my electronics workbench! The added bandwidth of USB 3.0 is a nice plus.The price is relatively high for a USB hub, but this product makes up for it in being one of the only “low key” USB hubs available, with a metal chassis that is mountable, and it comes with a 12V/3A (36W) power supply that can provide some serious power to a number of connected USB devices. Further, most hubs will cheap out and include an unusably-short, poorly made USB cable. The cable provided with this one is sturdy, well built, and is 6ft long — long enough to run under and across my workbench to my dock from the opposite corner.Perfect. I plan to be using this hub for decades to come (or as long as USB 3.0 type A stays relevant)!
Product Rating:
4.3 out of 5 stars
USB2 Hub is Good, But the USB3 Hub Is Bad!

By: Tien on 08/27/2020

This USB2 hub is pretty good! I ended up ordering the second one! I think USBGEAR should look into the USB3 hub (it said on the metallic cover: USB 3.1 Gen 1, but its paper box said USB 3.0! I use the name that I have ordered!). I have ordered this hub, but it doesn’t recognize my USB2 or USB3 hard drives (HDD). It recognizes my SSD drive and my USB2 mouse and USB2 keyboard that I have bought recently. My laptop doesn’t boot up if the external 2-pin power supply has been corrected. If I disconnect the power supply, my laptop will boot!
Product Rating:
4.3 out of 5 stars
Good Product

By: big D on 07/01/2019

Good product, nice packaging. The Power in should be isolated from the USB ports so that the host is not supplying power to multiple downstream devices.
Product Rating:
5 out of 5 stars
Finally a hub that will let me connect Arduino's!

By: R. Gilmore on 09/03/2018

I really like that the case is metal, so I'm sure it will stand up to some knocks.It's been hard to find a hub that will work with Arduino's. So I am very happy that they connect flawlessly.
