Dual Port USB to Serial RS-232 DB-9 Adapter Cable FTDI Chip

Dual Port USB to Serial RS-232 DB-9 Adapter Cable FTDI Chip


More Pictures:   View More Item Images FOR XC-232-C if Available!

Similar Items:

 USBG-232FT-1...Dual Port DB-9 USB Serial Ultra MINI Adapter with Cable RS-232 X 2..$32.98




Have Questions? Our Tech Guys Can Help!
Support Center Hours: 9AM EST - 4:30 PM EST Monday - Friday Only!


GET Pre-Sale Help FOR Item XC-232-C



Manufacturer: VSCOM
Barcode: 729440626846
Part Number: XC-232-C
Warranty: ONE YEAR
In Stock: Yes
Ship Weight: 1 lbs.
COLOR BLUE
Size: 3ft Cable
Platform:
Compatability:

Our Price: $39.98
Qty:
Quantity Discount(s)
6 or more: $38.77
12 or more: $36.19
AVAILABLE TO SHIP SAME DAY!
Product Videos on YouTube
User Reviews by ReviewGear.com
Product Rating: Product User Rating provided by ReviewGear

Pros: Easy installation, Works with Vista and Windows 7.

Product Description


Converts a USB port into a 9-pin x2 male RS-232 serial port capable of speeds up to 920,000 bps.

The USB Serial Adapter is designed to make serial port expansion quick and simple.

Features & Specifications:

Installed as a standard Windows COM ports, Full RS-232 modem control signals, RS-232 data signals; TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND

USB cable of 3 feet (.8 meters) included

Powered by USB port

Supports Windows 98/SE, ME/ 2000 and XP Certified Drivers for VISTA and VISTA 64-Bit

The USB Serial Adapter provides instant connectivity with modems, ISDN TAs, PDS, handheld & pocket PCs, digital cameras, POS, serial printers, etc. It is suitable for remote access, retail and industrial applications, data collection and other applications requiring a High speed and or LOW serial communications port.



FEATURES


    Adds two RS-232 ports to your USB port.
    RS-232 data & signals: TX, RX, RTS, CTS, DTR, DSR, DCD, RI, and GND.
    Supports 300 to 920,000 baud (auto-sensing and self-adjusting)
    Supports Windows Vista/XP/Server2003/2000/98 (32-bit), Vista/XP/Server2003 (64-bit), Win CE, Mac 8.6/9.x/10.x, and Linux.
    Supports remote wakeup and power management.
    Plug and play (hot-pluggable, data format auto-sensing and self-adjusting).
    Port-powered, no external power required.
    No IRQs required, no IRQ conflicts.

  SPECIFICATIONS



Compatibility:

USB 2.0 (backward compatible) and EIA/TIA RS-232C standards

Power Source:

Port power from USB port

Current Consumption: Under 100mA
Output Power on Pin 3: About -9VDC

Baud Rates:

300 to 920,000bps (auto-sensing and self-adjusting)

Distance:

USB side: 10ft (3m); RS-232 side: 16ft (5m)

Connectors:

USB side: Type A Female; RS-232 side: 2x DB-9 Male

LEDs:

2x TX, 2x RX and 1x Power

Dimensions (H x W x D):

0.9 x 2.8 x 3.5 in (24 x 72 x 88 mm) (excluding cable)

Cable Length: 3 ft

Weight:

3.1 oz

Operating Temperature:

32ºF to 95ºF (0ºC to 35ºC)

Operating Humidity: Up to 90% RH (no condensation)

  PIN ASSIGNMENT

RS-232 Side (DB-9 Male Connector / DTE):
Pin Function Description
1 DCD Data Carrier Detect
2 RX Receive Data
3 TX Transmit Data
4 DTR Data Terminal Ready
5 GND Ground (Signal)
6 DSR Data Set Ready
7 RTS Request to Send
8 CTS Clear to Send
9 RI Ring Indicator


DB-9 / DB-25 CONVERSION TABLE (DTE)


DB-9 Pin Assignment: 1 2 3 4 5 6 7 8 9
DB-25 Pin Assignment: 8 3 2 20 7 6 4 5 22
Function: DCD RX TX DTR GND DSR RTS CTS RI

Important Technical Information:
Item Uses FTDI Chip. Windows XP Has Built In Drivers for this Device, True Plug-&-Play for XP and Vista!

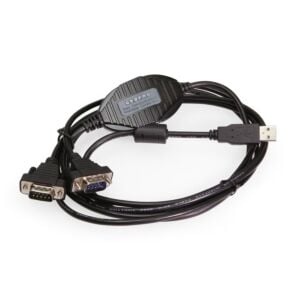

Dual Port USB to Serial RS-232 DB-9 Adapter Cable FTDI Chip

Dual Port USB to Serial RS-232 DB-9 Adapter Cable FTDI Chip - Image A
