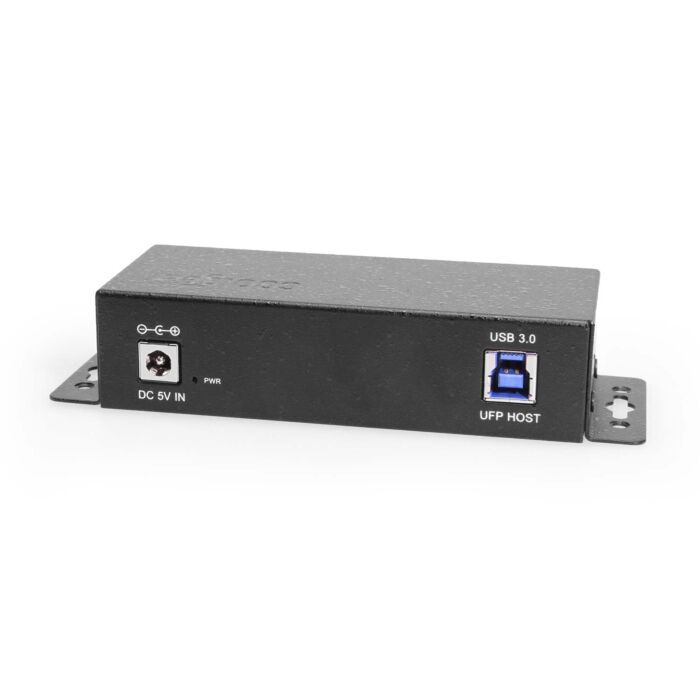

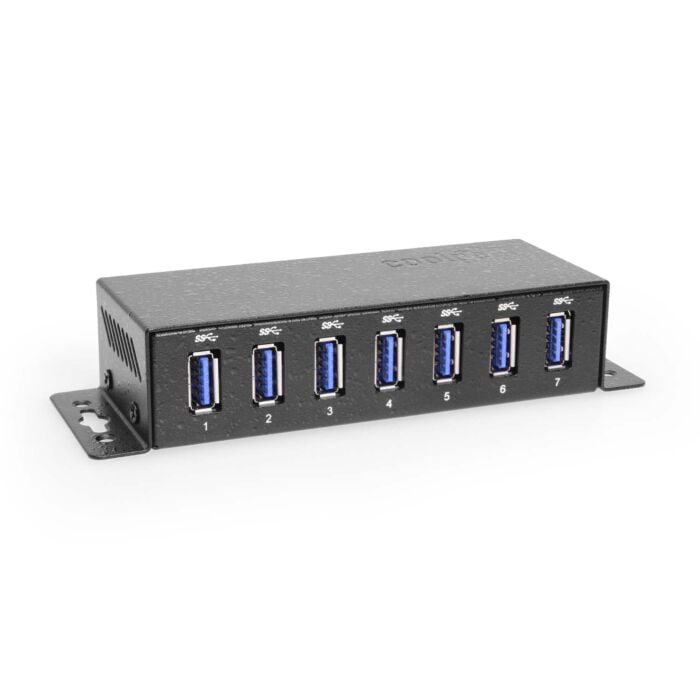

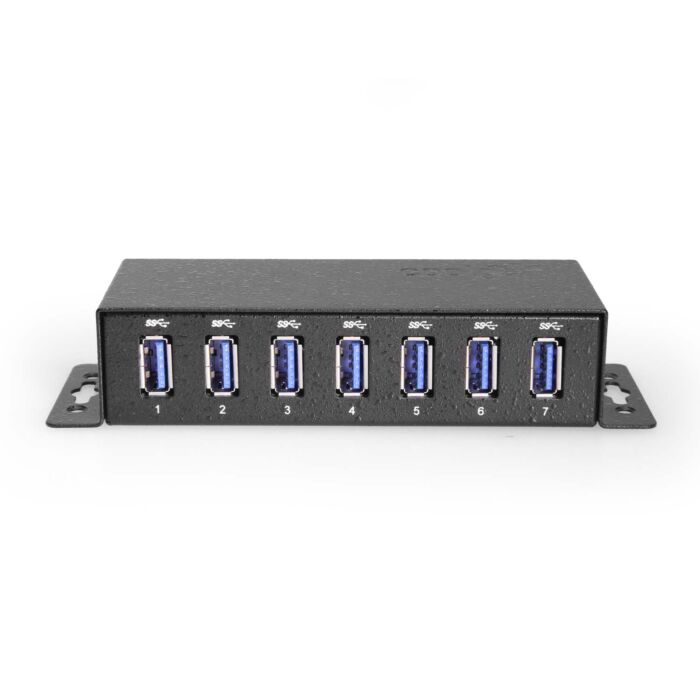

7 Port USB 3.2 Gen 1 Mini Powered Hub w/ ESD Surge Protection & Power Adapter

Part # CG-U3MINI7PH
$52.99

Status: Not in stock - Backorder Allowed

Volume Pricing

Qty: 1+
$52.99

Qty: 10+
$50.85

Industrial Grade | +5V DC Input | Surge Protection | Surface Mountable | 5 Gbps

  • Protect Your Equipment: The 7-port hub  features 15kV ESD surge protection to keep your connected peripherals safe from harm.
  • Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Small-Scale Quality: Housed in a compact steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
  • Upstream: 1 USB port, Type B connector
  • Downstream: 7 USB ports, Type A connectors
  • Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
  • Mounting Options: Wall & Surface

Compatibility

Product Documentation & Drivers

7 Port USB 3.2 Gen 1 Mini Powered Hub w/ ESD Surge Protection & Power Adapter

Part # CG-U3MINI7PH
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$52.99

Volume Pricing

Qty: 1+
$52.99

Qty: 10+
$50.85

Compatibility

Documentation

Introduction:

USB 3.2 Gen 1 powered hub with industrial-grade chassis and surface mounting flanges. The CG-U3MINI7PH is a 5V DC input, generation 1 USB 3.2 Gen 1 hub with ESD and Surge protection. This USB 3.2 Gen 1 Hub will support fast charging for Apple and Samsung Galaxy devices. Each port is protected individually to help keep your peripherals safe. The USB 3.2 Gen 1 Hub uses a GL 3510 chip, each port is on an individual circuit to maintain high current and protection. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.

Features:

  • Compliant with USB 3.2 Gen 1 Specification
  • Upstream port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
  • Downstream ports support SS, HS, FS, and Low-Speed (LS) traffic
  • 1 control pipe and 1 interrupt pipe
  • Backward compatible to USB specification Revision 2.0/1.1
  • Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
  • Downstream ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
  • Downstream devices can be charged while upstream VBUS is not present, which can be applied on wall charger applications
  • Upstream port is capable of charging and data communicating simultaneously for portable devices supporting ACA-Dock or proprietary charging protocols
  • Compatible with Windows 7, 8,10,11, Linux and Mac OS X

Specifications:

  • Chip: GL3510
  • USB 3.2 Gen 1 Gen Compliant
  • Supports High Speed and Full Speed transmit and Receive
  • Complies with USB-IF battery charging specification rev1.2
  • Automatic switching between self-powered and bus-powered modes
  • Item Dimensions: 4.61"(L 5.57" w/ears) x 1.85(W) x 1.16(H)
  • Item Weight: .56 lbs. (5.2 oz)

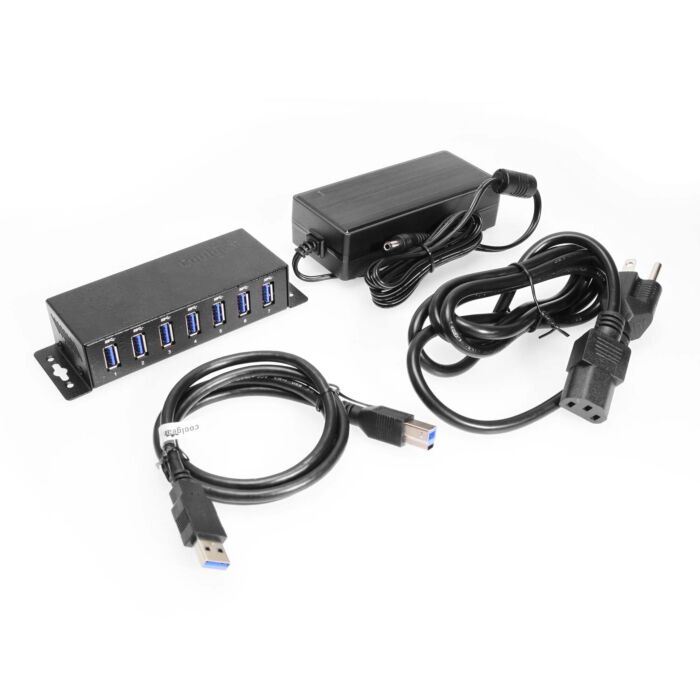

Package Contents:

  • USB 3.2 Gen 1 7-Port Hub
  • 6 Amp 5V DC Mini-Switching Power Adapter
  • 3ft. USB A to B Cable for Hub

*Surface Mounting screws not included.

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: CoolgearWarranty: 1 YearAvailability:
Barcode: 045079163706Ship Weight: 0.95Condition: New
Part Number: CG-U3MINI7PHColor: BlackLength/Size: --
USB Spec: USB 3.2 Gen 1Max Data Rate: 5 GbpsInput Voltage: 5V DC
Upstream Port: USB 3.2G1 / 3.0 Type-B FemaleDownstream Port(s): 7x Type A USB 3.2 G1 / 3.0Screw Lock
Compatible:
No

Specifications

Manufacturer: Coolgear
Barcode: 045079163706
Part Number: CG-U3MINI7PH
Warranty: 1 Year
Ship Weight: 0.95
Color: Black
Availability:
Condition: New
USB Spec: USB 3.2 Gen 1
Max Data Rate: 5 Gbps
Input Voltage: 5V DC
Upstream Port: USB 3.2G1 / 3.0 Type-B Female
Downstream Port(s): 7x Type A USB 3.2 G1 / 3.0
Screw Lock
Compatible:
No
