USB 3.2 Gen 1 High Speed Isolation Adapter w/Screw Locking USB-B Port

Part # CG-USB30ISO
$219.99

Status: Not in stock - Backorder Allowed

The CG-USB30ISO is a USB 3.2 Gen 1 Super-Speed Isolation Adapter that complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and offers up to a 5Gbps data rate. Since USB is the most popular external port for the devices to connect to PCs, the CG-USB30ISO provides an ideal solution to isolate your USB ports immediately and save your investments.

Product Documentation & Drivers

USB 3.2 Gen 1 High Speed Isolation Adapter w/Screw Locking USB-B Port

Part # CG-USB30ISO
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$219.99

Documentation

Product Description

The CG-USB30ISO is a USB 3.2 Gen 1 Super-Speed Isolation Adapter that complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1 and offers up to a 5Gbps data rate. It provides 1 downstream facing port with a standard Type-A USB 3.2 Gen 1 connector for your USB 3.x, USB 2.0 and USB 1.1 Devices.

With its 3KVrms isolation controller, its downstream port works backwardly compatible with USB 1.1, USB 2.0 and USB3.x compliant devices. However, it is designed for USB 3.x hosts only, this isolation adapter does NOT support USB 2.0 or USB 1.1 hosts.

The CG-USB30ISO offers a bus-powered mode without the need for an external AC power adapter, perfect for USB devices requiring light power consumption. Plug & Play! An external DC jack port is offered if you need more power on the downstream port.

Since USB is the most popular external port for the devices to connect to PCs, the CG-USB30ISO provides an ideal solution to isolate your USB ports immediately and save your investments.

Features

  • Compliant with USB3.2 Gen 1 (USB3.0) Super-Speed
  • Host: USB 3.2 Gen 1 or Above (Not USB 2.0 or below host compliant)
  • Provides 1 Type-B Upstream Facing Port
  • Provides 1 Type-A Downstream Facing Port
  • 3,000Vrms Isolation Between Upstream and Downstream Domains
  • Screw-Lock USB Mechanism
  • Supports Wall and Optional DIN RAIL Mounting Kits
  • Up to 5Gbps Super-Speed Data Rate
  • Supports Self-powered and Bus-powered Mode
  • Built-in Power LED Indicator
  • DC Jack for Downstream USB Bus Power

Specifications

Upstream USB port:
For USB3.2 Gen 1 (USB3.0) or above Hosts

Downstream USB port:
Provides 1 Type-A USB downstream port which manages up to 5Gbps data rate:

  • Supports USB 3.2 Gen 1 Super-speed Devices
  • 3,000Vrms (AC) Isolation
  • Super-speed (5Gbps), High-speed (480Mbps), Full-speed (12Mbps) and Low-speed (1.5Mbps) Data Rate Automatically
  • Screw-Locking USB Mechanism
  • Self-powered (downstream port domain) and Bus-powered Modes
  • DC Jack to Improve Downstream Domain USB Bus Power
  • Wall Mounting and Optional DIN RAIL Mounting Kits
  • Power LED Indicator

USB Devices:

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, pen drives, virtual reality helmets, modem, PBX and many more

I/O Hardware:

  • 1x External USB1.1/2.0/3.x Type-A connector and 1 Type-B Upstream (only supports USB3.x) connector.

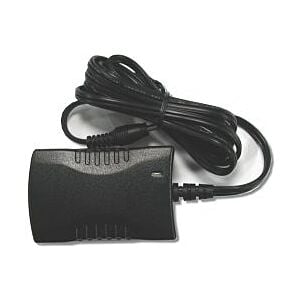

  • 1x DC Jack for optional external power input from AC adapter

Environmental:

  • Operating Temp.: 0 to 55°C (32 to 131°F)
  • Storage Temp: -20 to 85°C (-4 to 185°F)
  • Operating Humidity: 5 to 95% RH

Form Factor:

3.24”(L)x1.74”(W)x0.87”(H) (8.23 x 4.42 x 2.22 cm)
