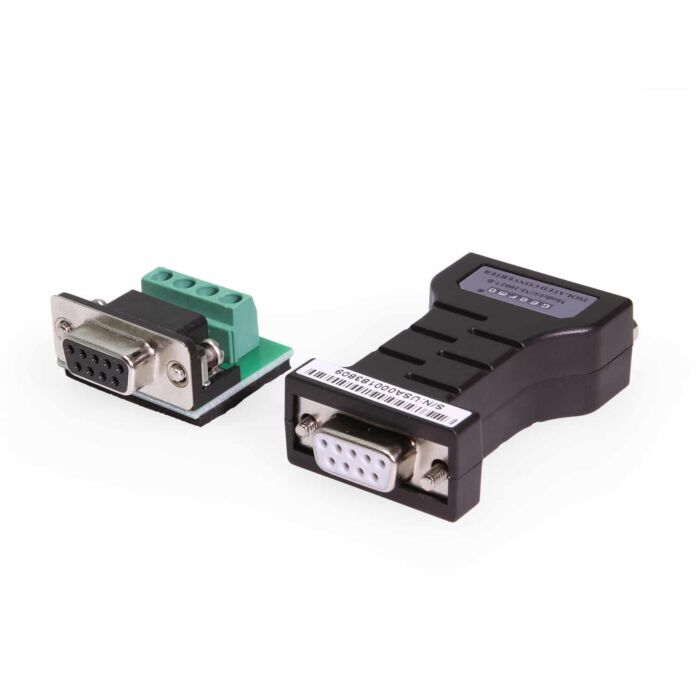

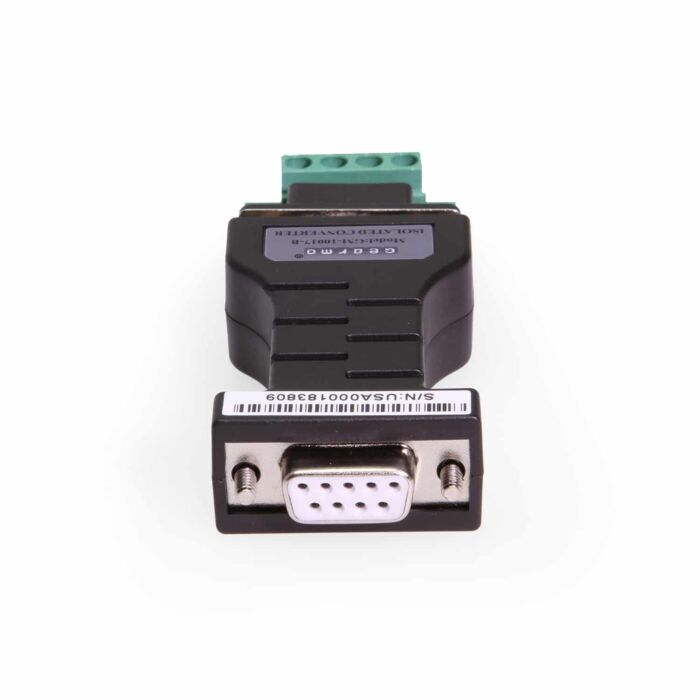

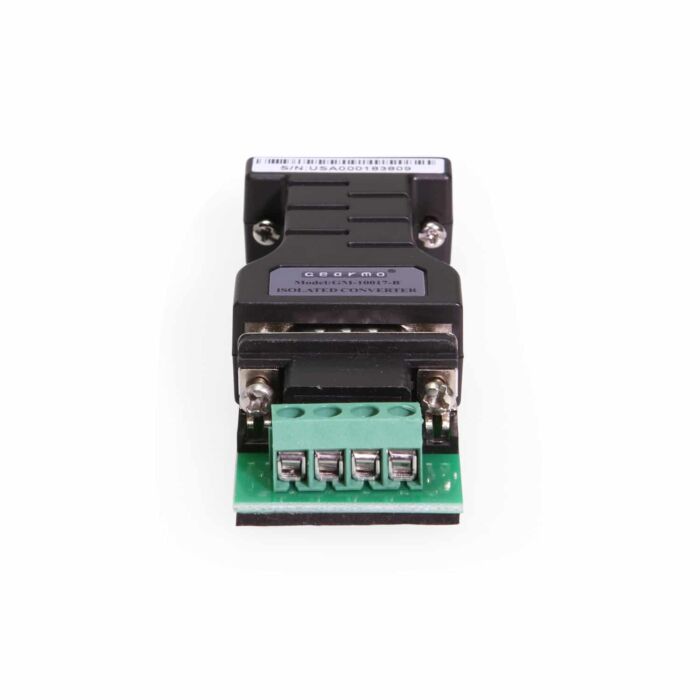

RS-232 to RS-485 Converter with Isolation 2,500Vrms

Part # GM-10017-B
$18.99

Volume Pricing

Qty: 1+
$18.99

Qty: 6+
$17.66

The GM-1004E-B converts RS-232 signals into balanced differential RS-485 signals. The converter is designed to protect the RS-485 port; with its advanced TVS’s (TRANSIENT VOLTAGE SUPPRESSOR).

  • Transmission media: twisted-pair or shielded cable
  • Isolation: Isolated voltage 2,500Vrms  500VDC non-stop

RS-232 to RS-485 Converter with Isolation 2,500Vrms

Part # GM-10017-B
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$18.99

Volume Pricing

Qty: 1+
$18.99

Qty: 6+
$17.66

GM-10017-B is a port-powered converter with optoelectronic isolation. It complies with RS-232C and RS-485 standards; it converts RS-232 signal to a balanced differential RS-422 or RS-485 signal. The built-in optoelectronic isolator can withstand up to 2,500Vrm isolated voltage; the fast instant voltage restraint is designed to protect the RS-485 interface; it adopts advanced TVS (TRANSIENT VOLTAGE SUPPRESSOR) instant voltage restraint; normally, TVS tube is in high impedance state; but when both sides of TVS tube suffer from high power voltage spikes, the voltage restraint will quickly lower the impedance from both sides, and absorb the large current; with this, the voltage on both sides are at a fixed value, which protects the component of circuit damage. This voltage restraint provides 600W on each wire with lightning and ESD protection, surge, and instant overvoltage protection on circuit; the tiny interelectrode capacitance ensures high-speed transmission for RS-485 ports. RS-232 port connects with RS-232C standard port by DB9 female connector; RS-485 adopts DB9 male connector as output. This converter has built-in zero delay auto receiving and transmitting conversion with unique auto I/O circuit control data flow direction without any handshake signal (RTS, DTR); there is no need for a jumper wire setting for half-duplex (RS-485) mode, its just plug & play.

GM-10017-B optoelectronic isolated port-powered converter provides a connection for point to point, and point to multipoint communication. For point to multipoint mode, each converter is allowed to connect 32 RS-485 devices with supported baud rate up to 300-115.2Kbps.



Features:

  • Standards: RS-232C, RS-485 EIA/TIA
  • Connector: RS-232 DB9 female, RS-485 DB9 male
  • Protection: RS-232 ±15KV ESD protection, RS-485 each line 600W lightning, surge protection
  • Isolation: Isolated voltage 2,500Vrms  500VDC non-stop
  • Working mode: Asynchronous half-duplex
  • Transmission media: Twisted-pair or shielded cable
  • Transmission rate: 38,400bps  to 300m; 9,600bps to 1.2Km
  • Dimension: 63×33×17mm
  • Operating temperature: -25℃ to 70℃
  • Relative humidity: 5% to 95%

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Please be as detailed as possible with your description. The more complete your information is the faster we can return an answer

Specifications

Manufacturer: GearmoWarranty: --Availability: Limited Stock
Barcode: 045079162624Ship Weight: 0.07Condition: New
Part Number: GM-10017-BColor: BlackLength/Size: --

Specifications

Manufacturer: Gearmo
Barcode: 045079162624
Part Number: GM-10017-B
Warranty: --
Ship Weight: 0.07
Color: Black
Availability: Limited Stock
Availability: Limited Stock
Condition: New
