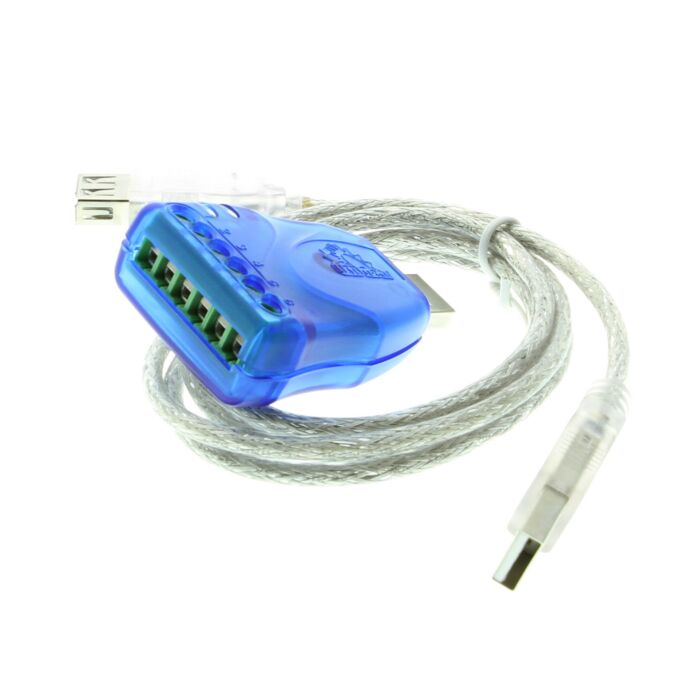

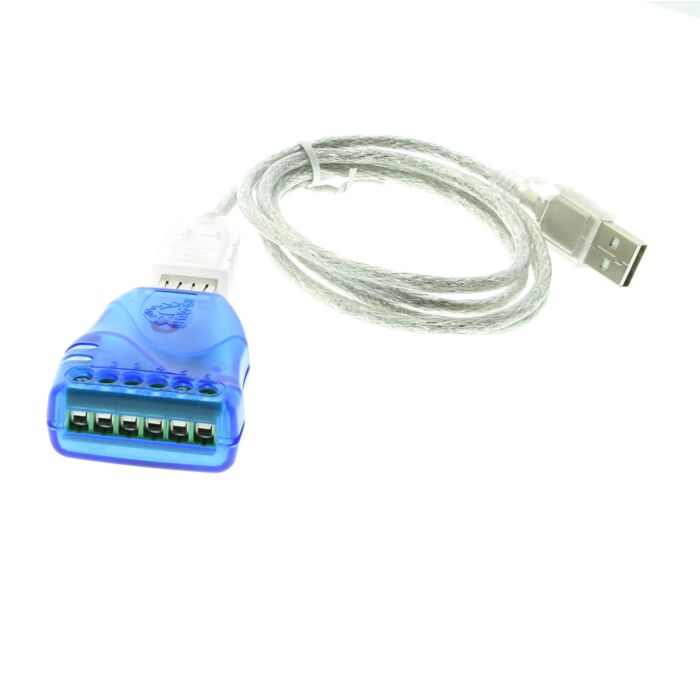

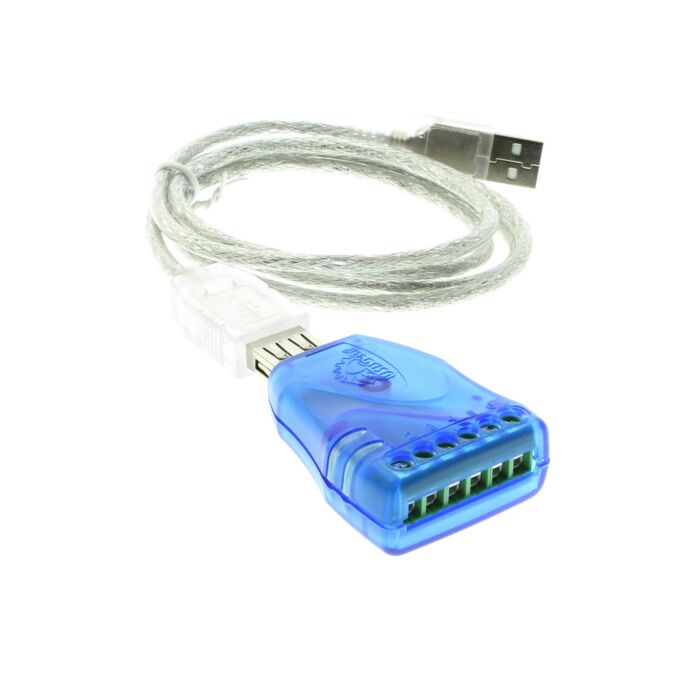

USB to Terminal Wire RS422 RS485 Mini FTDI Plug-in Adapter

Part # USBG-422MINI
$32.95

Status: Low stock, please call or email for status

Volume Pricing

Qty: 1+
$32.95

Qty: 6+
$32.46

Qty: 12+
$32.21

Qty: 24+
$31.80

Qty: 48+
$31.55

Qty: 99+
$30.97

The USBG-422MINI is a surge and static protected Mini USB to RS-422/485 Plug-in Adapter using terminal wire connection. The USB to Industrial Single RS-422/485 Plug-in Adapter is designed to make port expansion easy.

Compatibility

Product Documentation & Drivers

USB to Terminal Wire RS422 RS485 Mini FTDI Plug-in Adapter

Part # USBG-422MINI
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$32.95

Volume Pricing

Qty: 1+
$32.95

Qty: 6+
$32.46

Qty: 12+
$32.21

Qty: 24+
$31.80

Qty: 48+
$31.55

Qty: 99+
$30.97

Compatibility

Documentation

The USBG-422MINI is a surge and static protected Mini USB to RS-422/485 Plug-in Adapter using terminal wire connection. The USB to Industrial Single RS-422/485 Plug-in Adapter is designed to make industrial communication port expansion quick and simple. Connecting to a USB port on your computer or USB Hub, the USBG-422MINI instantly adds an industrial RS-422/485 communication port to your system.

COM Port Applications

Plugging the USBG-422MINI to the USB port, this Plug-in adapter is automatically detected and installed. There are no IRQ & COM port conflicts, since the port doesn't require any additional IRQ, DMA, memory as resources on the system. The RS-422/485 port functions as native Windows COM port, and it is compatible with Windows serial communication applications.

The USB Industrial USBG-422MINI I/O Adapter provides instant connectivity to RS-422/485 communication device for factory automation equipment, multi-drop data collection devices, barcode readers, time clocks, scales, data entry terminals, PC-to-PC long distance communications and serial communication in harsh environments. The USB Industrial I/O provides industrial solution for applications requiring single node or multi-drop communications over short and long distance.

Features

  • Adds a high speed RS-422 / 485 serial port via USB connection
  • 256 bytes receive buffer for high speed data throughput
  • 128 bytes transmit buffer for high speed data throughput
  • Requires no IRQ, DMA, I/O port
  • Data rates: 300 bps to 1M bps

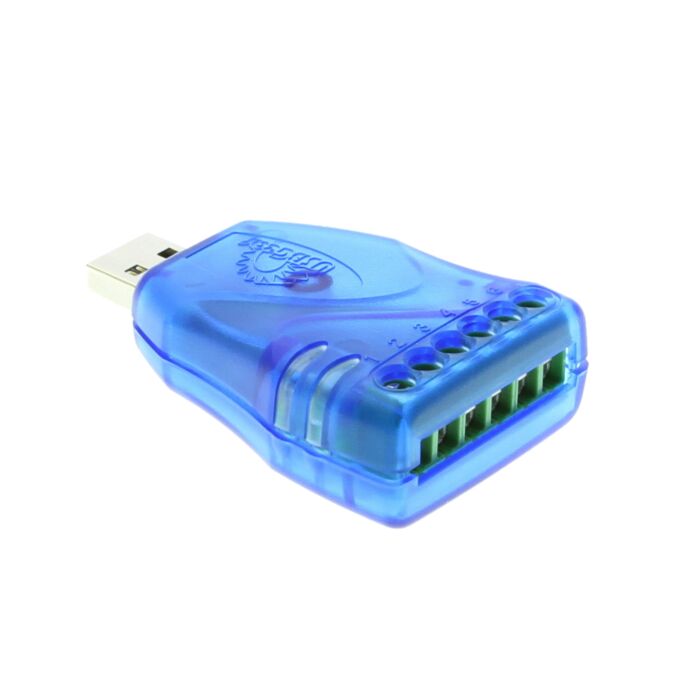

  • Connector: one 6-pin terminal block connector
  • Auto transmit buffer control for 2-wire RS-485 half-duplex operation
  • RS-422 (4 wire) data signals: TxD-, TxD+, RxD+, RxD-, GND
  • RS-485 (4 wire) data signals: TxD-, TxD+, RxD+, RxD-, GND
  • RS-485 (2 wire) data signals: data-, data+ GND
  • Monitor LEDs of TxD, RxD indicating port status
  • Easy operating mode configuration and setting
  • Provides 15KV ESD protection and 600W surge protection for all serial signals
  • FTDI virtual COM port drivers provided for Windows 8, 7, Vista, Server 2012, 2008, 2003, XP, 2000
  • Linux kernel 2.4 and up built-in support. No driver installation required.
  • Wide ambient temperature operation 0°C to 60°C (32°F to 140°F)
  • CE, FCC approval

RS-422 / 485 full duplex mode pin-out of the terminal block connector

Pin Number Pin Type Description
1 Output TxD- Transmit Data, negative polarity
2 Output TxD+ Transmit Data, positive polarity
3 Input RxD+ Receive Data, positive polarity
4 Input RxD- Receive Data, negative polarity
5 Power VCC DC +5V
6 Ground GND Signal Ground

RS-422/485 full duplex pin-out for terminal block connector

Pin Number Pin Type Description
1 Out / In Data- Transmit / Receive Data, negative polarity
2 Out / In Data+ Transmit / Receive Data, positive polarity
5 Power VCC DC +5V
6 Ground GND Signal Ground

RS-485 half duplex mode pin-out of the DB-9 Male connector.

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: USBGearWarranty: 1 YearAvailability: Limited Stock
Barcode: 736983901668Ship Weight: 0.26Condition: New
Part Number: USBG-422MINIColor: BlueLength/Size: in
Port Count: 1Port Type: 6-pin TerminalInput Voltage: Unspecified or N/A
Temperature(Op): 0C ~ 55CESD Protection: 15kvSerial Modes: RS422, RS485
LEDs: TX/RXIsolation: --Chip: FTDI FT232RL, SP485RE

Specifications

Manufacturer: USBGear
Barcode: 736983901668
Part Number: USBG-422MINI
Warranty: 1 Year
Ship Weight: 0.26
Color: Blue
Availability: Limited Stock
Condition: New
Port Count: 1
Port Type: 6-pin Terminal
Input Voltage: Unspecified or N/A
Temperature(Op): 0C ~ 55C
ESD Protection: 15kv
Isolation: --
Serial Modes: RS422, RS485
LEDs: TX/RX
Chip: FTDI FT232RL, SP485RE
