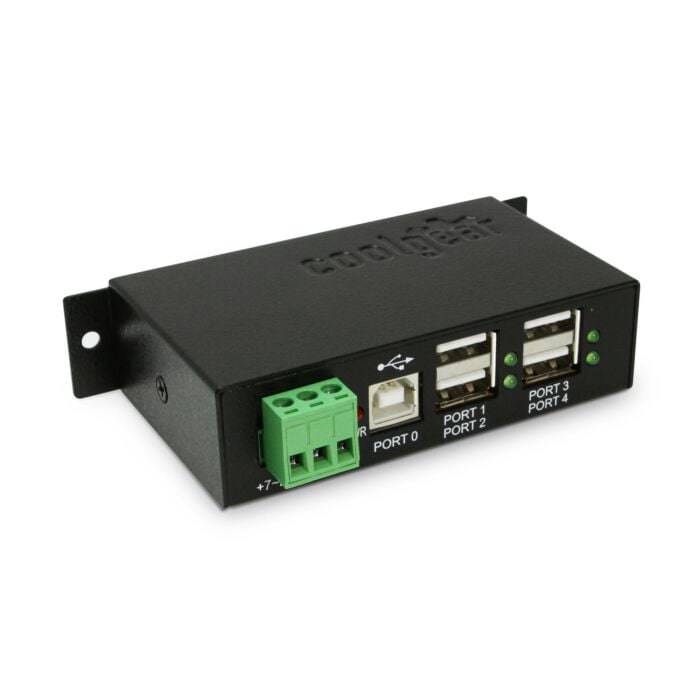

4-Port Industrial USB 2.0 Powered Variable Voltage Input Hub

Industrial USB Hub with 4 Ports feature a rugged metal enclosure.

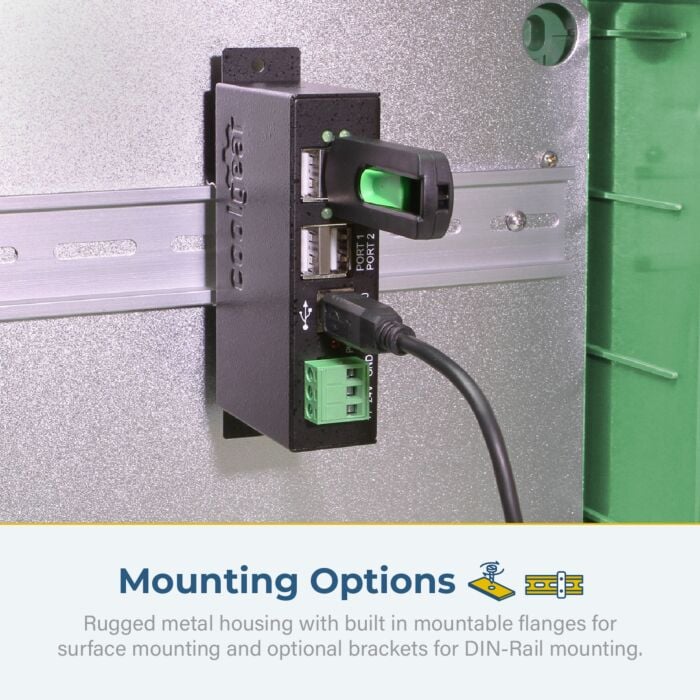

4-port hub, you can wall-mount or install onto a DIN rail for convenient access to the ports. This four port industrialgear(TM) hub can be bus powered or self powered with a three wire terminal block connector (7-24V). AC adapter is not Included but can be purchased separately for $15 or so.

The USB 2.0 hub is a Hi-Speed USB 2.0 4-port hub that is backward compatible with USB 1.0 and 1.1. It provides an out of the box industry standard that allows connection of up to four USB peripherals or devices to your USB ready PC or Mac.

The USBG-4U2ML is targeted at PC and Mac Industrial Application users that are expanding the number of USB ports on their system.

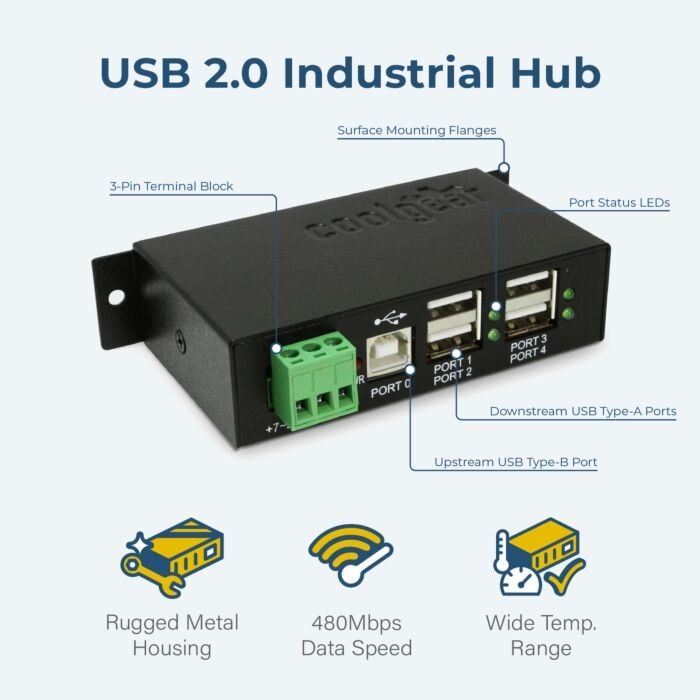

Designed to provide quick and easy access, the USBG-4U2ML provides four type "A" downstream ports for connecting USB peripherals, devices, or other USB hubs. A single type "B" upstream port connects the USBG-4U2ML to the host computer or another USB hub, enabling up to 127 devices to be connected by cascading multiple hubs. Configured directly by the operating system, the USBG-4U2ML operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems.

As a standard USB hub, the USBG-4U2ML buffers USB data from any attached peripheral in compliance with USB specifications to provide an invisible extension of the USB bus. Supporting both low speed (1.5Mbps and 12Mbps) and Hi-speed (480Mbps) devices, each port creates a bridge between the peripheral and host computer.

Diagnostic LEDs provide port status for each port and power status. The USBG-4U2ML includes a Quick Install Guide, a 6-foot Hi-Speed USB 2.0 certified A to B cable, power plug for OPTIONAL 110/220 AC power supply.

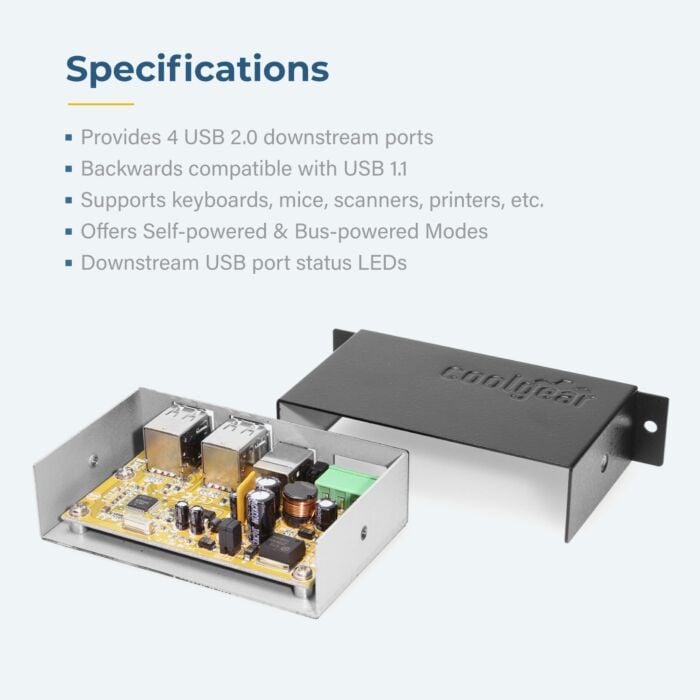

Features

• Compliant with USB Specification Revision 2.0
• Built-in Terminus FE2.1 USB2.0 Hub Controller
• Supports High-speed and or Full-speed Packet
• Protocol Sequencer for Endpoint 0/1
• Provides 4 Downstream Facing Ports
• Supports 480Mbps, 12Mbps and 1.5Mbps Speed
• One Transaction Translator per Hub and
• Supports 4 Concurrent Non-periodic Transactions
• Supports Self-powered and Bus-powered Mode
• Supports Downstream Port Status with LED
• Provides 4 USB downstream ports which managing up to 480Mbps:
• Compliant with USB Specifications 2.0
• High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
• Provides 4 Downstream Facing Ports
• Supports 480Mbps, 12Mbps and 1.5Mbps Speed
• One Transaction Translator per Hub and Supports 4 Concurrent Non-periodic Transactions
• Supports Self-powered and Bus-powered Mode
• Supports Downstream Port Status with LED USB Devices Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices I/O Hardware
• Supports 4 external USB2.0 Type-A connectors and 1 Type-B Upstream connector.
• Supports a 3-pin Terminal Block Connector for external power input from AC adapter
• 3.72in(L)x2.26(W)x1.03in(H) (11.45×5.73×2.63 cm)(length with ears 4.50in)
• Hub Weight: 0.45 lbs.
• OS Support: Works with Windows 7, 8, 10, 11, Linux and Mac OS 10.X

Environmental:

• Operating Temp.: 0 to 55C (32 to 131 F)
• Storage Temp: -20 to 85C (-4 to 185 F)
• Operating Humidity: 5 to 95% RH

Form Factor:

• 3.72 in. (L) x 2.26 in. (W) x 1.03 in. (H) (11.45 × 5.73 × 2.63 cm) (length with ears 4.50 in.)
• Hub Weight: 0.45 lbs.

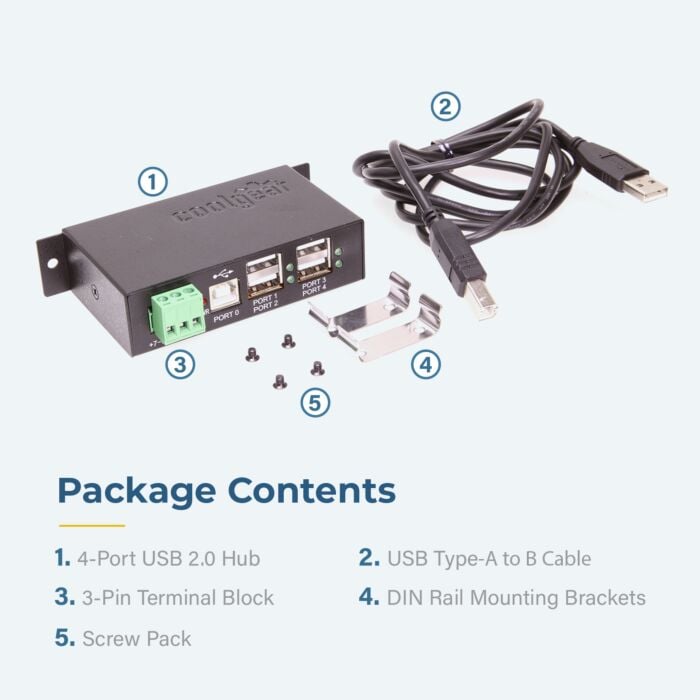

Package Contents:

• Industrial 4-Port USB 2.0 Powered Hub
• 6-foot Hi-Speed USB 2.0 certified A to B cable

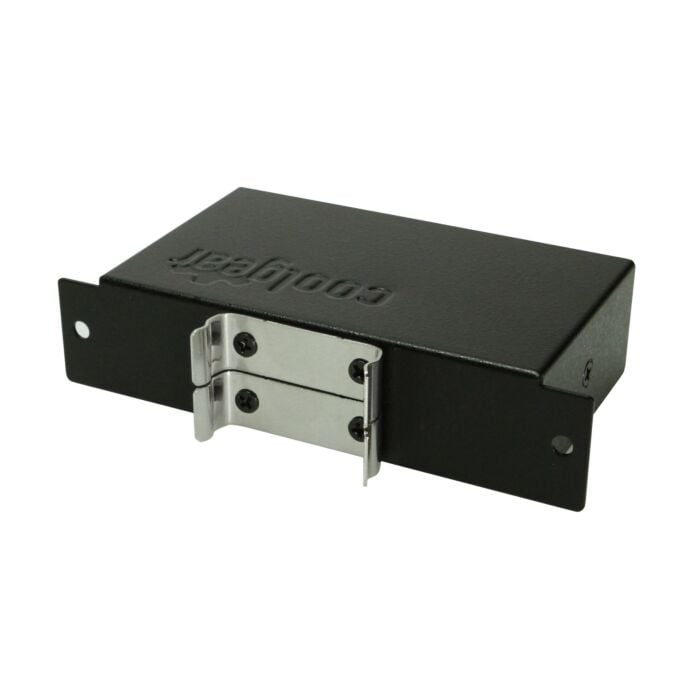

• Din Rail clips and screws
• 3 pin Phoenix connector

*Surface Mounting screws not included

Alternate PN#: USB-12VHUB
