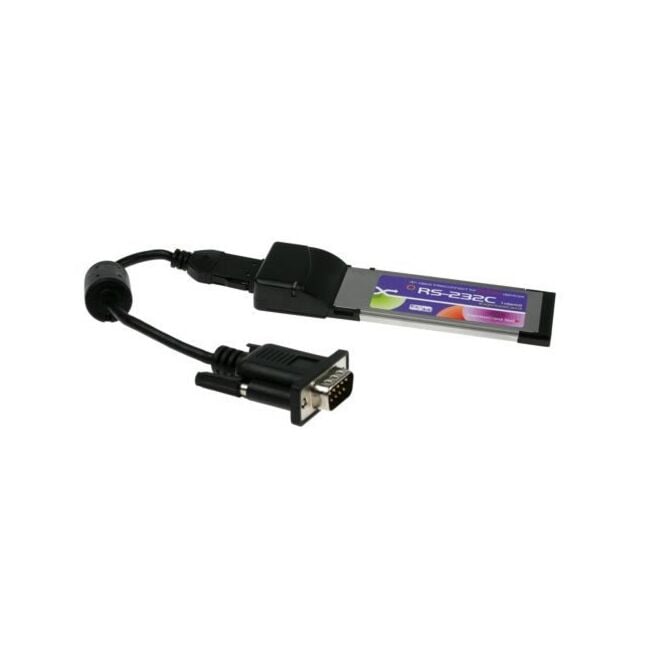

One Port RS-232 ExpressCard DB-9 Dongle for New Laptops

Part # SS-AS1RS
$79.78

Bulk Pricing

Qty: 1+
$79.78

Qty: 6+
$77.78

Qty: 12+
$75.12

RS-232 express card single port serial COM interface for notebooks, PDA's, Cell Phones and more. Fully Compatible with 16C550-type Devices.

Compatibility

One Port RS-232 ExpressCard DB-9 Dongle for New Laptops

Part #SS-AS1RS
Product Image
  • Product Image Thumbnail
$79.78

Bulk Pricing

Qty: 1+
$79.78

Qty: 6+
$77.78

Qty: 12+
$75.12

Compatibility

Overview

SS-AS1RS 1S RS232 Express Card One Port RS-232 ExpressCard DB-9 Dongle All New SerialGear(TM) ExpressCard adapter 34mm

  • Full ExpressCard/34mm Compliant, up to 250MB/sec
  • Express Card Advanced Error Reporting Capability Including ECRC Support
  • 1 Fully 16C950 High performance UART channel
  • UARTs Fully Compatible with 16C550-type Devices
  • Baud Rate up to 921.6Kbps
  • 128-byte deep FIFO per transmitter and receiver
  • Detection of Bad Data in the Receiver FIFO
  • 9-bit Data Framing, as well as 5,6,7 and 8 bits
  • Automated in-band flow control using programmable Xon/Xoff in both directions
  • Automated out-of-band flow control using CTS#RTS# and/or DSR#DTR#
  • Complete Software Supports for 98, Me, Windows 2000, XP, Vista and Linux

INTRODUCTION

The SS-AS1RS provides a reliable solution for Notebook PC to connect serial peripherals such as GPS receivers, serial printers/plotters, barcode scanners, digital cameras, PDAs, Cell Phones and fax/modems over its new Express Card Slots.

The Express Card provides a scalable, high-speed, serial I/O bus that maintains backward compatibility with CardBus applications and drivers. Its architecture defines a high-performance, point-to-point, scalable, serial bus at speed of 250Mbytes/sec.

The  SS-AS1RS is compact in size and low power requirements to support the major serial portable devices. The UART is the newest generation of the 16C950. It equipped a 128-byte deep data FIFO and auto-flow control features to speed up the data transfer to 921.6Kbps without the under-run and over-run problems.

The SS-AS1RS is ideal for a wide variety of applications including field data collection, industrial control and monitoring. With its complete hardware and complete driver support, the SS-AS1RS is an ideal upgrade to support all UART-serial-compatible devices for the rapidly changing Notebook computer to preserve user¡¦s investment in serial interface.

SPECIFICATIONS

  • System For Systems with at least one 34mm or 54mm Express Card Slot, bandwidth 250Mbytes/sec Express Card Fully Express Card Standard, Release 1.0 compliant. Serial Port One DB9-Male UART Serial port, the key benefits are:
  • 16C950 UART compatible, 128-byte deep FIFOs per Transmitter and Receiver
  • Up to 921.6Kbps baud rate.
  • Automated in band flow control using programmable Xon/Xoff in both directions
  • Automated out-of-band flow control using CTS#RTS# and/or DSR#DTR# I/O Hardware
  • One DB9-Male RS232C Serial Port Connector with 15pin-to DB9M cable
  • One 26-pin Express Card Connector for Notebooks OS Support Windows 98, ME, XP, 2000
  • Form Factor 4.41" x 1.34" (11.20cm x 3.40cm)

New Drivers for Windows :

READ MORE

Specifications

Manufacturer: CABLEMAX Warranty: One Year Availability: In Stock
Barcode: 729440626624 Ship Weight: 1.00 lbs Condition: New
Part Number: SS-AS1RS Color: Silver Size: EXPRESS

Specifications

Manufacturer: CABLEMAX
Barcode: 729440626624
Part Number: SS-AS1RS
Warranty: One Year
Ship Weight: 1.00 lbs
Color: Silver
Availability: In Stock
Condition: New
Size: EXPRESS
