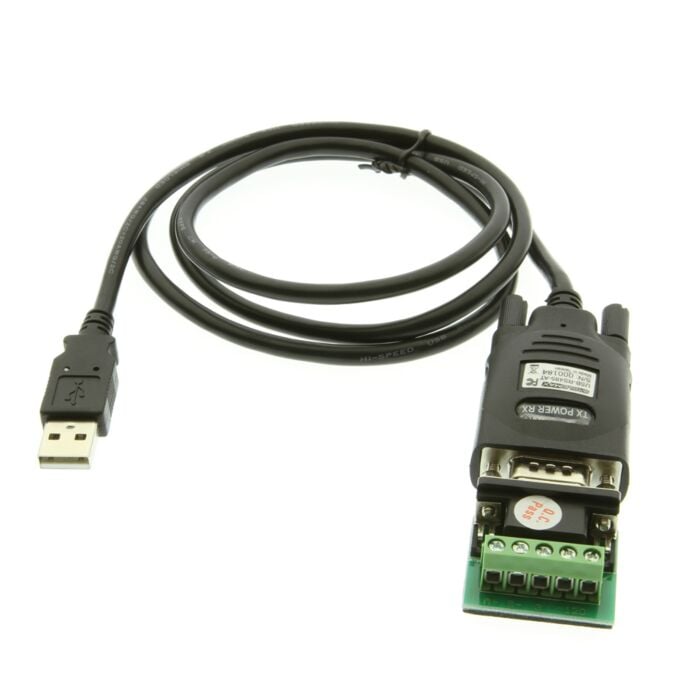

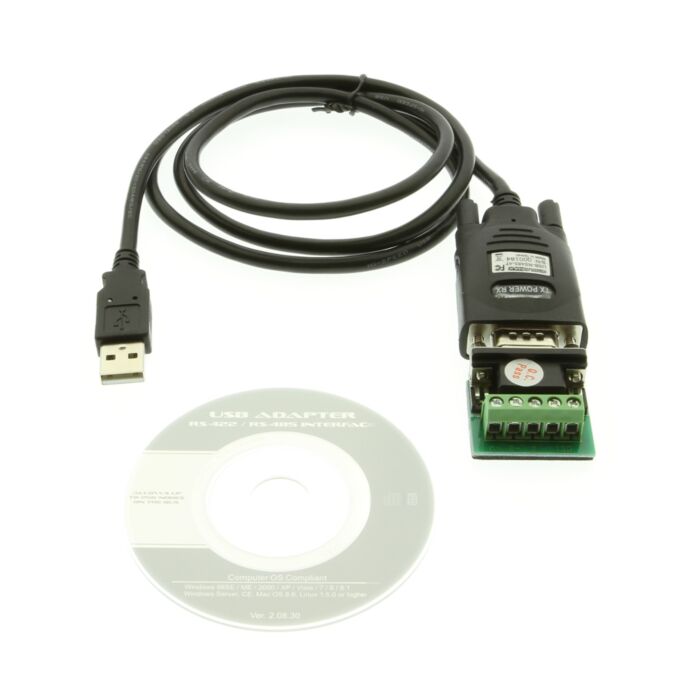

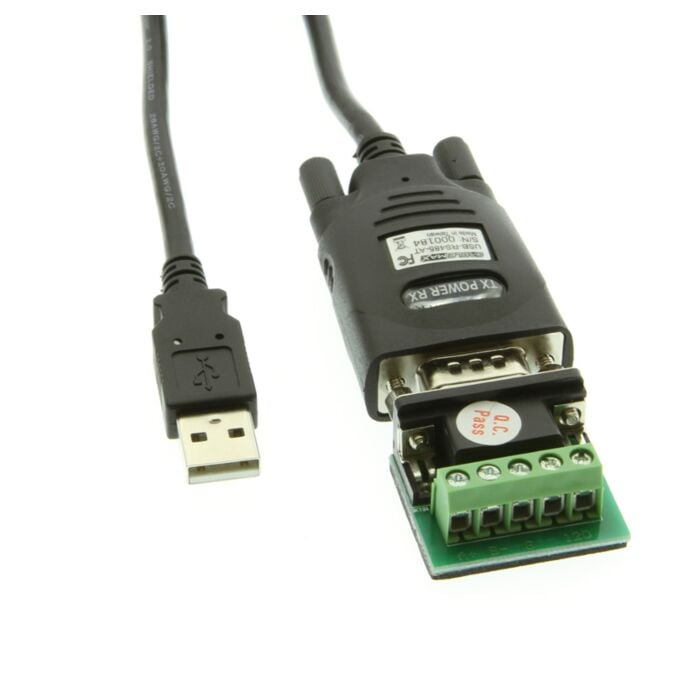

USB to RS-485 Adapter W/Terminal Block Changer FTDI chip inside

Part # USB-RS485-AT
Product Rating:
(3 reviews)
$19.90

Status: Low stock, please call or email for status

Volume Pricing

Qty: 1+
$19.90

Qty: 6+
$19.60

Qty: 12+
$19.45

Qty: 24+
$19.20

Qty: 48+
$19.05

Qty: 99+
$18.71

Professional grade USB to RS485 Converter optimized for Windows 7/8/10 and Server 2003/2008. High-Speed and Interface compliance,USB1.1,2.0,3.0, EIA/TIA RS-485.

Compatibility

Product Documentation & Drivers

USB to RS-485 Adapter W/Terminal Block Changer FTDI chip inside

Part # USB-RS485-AT
Product Rating:
5 out of 5 stars
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$19.90

Volume Pricing

Qty: 1+
$19.90

Qty: 6+
$19.60

Qty: 12+
$19.45

Qty: 24+
$19.20

Qty: 48+
$19.05

Qty: 99+
$18.71

Compatibility

Documentation

Professional grade USB to RS485 Converter optimized for Windows 7/8/10 and Server 2003/2008. High-Speed and  Interface compliance,USB1.1,2.0,3.0, EIA/TIA RS-485 USB

USB to RS-485 Adapter W/Terminal Block Changer
USB to RS-485 adapter provides an extra Serial Com port via USB connection and can be configured to work with RS-485 peripherals such as POS and Industrial Control devices. USB Plug and Play feature supports an easy serial port expansion and requires no IRQ, DMA, or I/O port resources.
USB adapter features a full set of RS-485 data and control signals on its DB-9 or terminal block Changer. It supports data transfer rates of up to 3M Baud. No external power supply is required as USB adapter takes its power from the USB bus.
Features:

  • Full compliance with the USB Specification 2.0 & 1.1
  • Support 256 Node on the network
  • ±15kV HBM ESD Protected
  • Data transfer rates 300 to 3M Baud.
  • Supports remote wake-up and power management
  • Compatible Windows 7, 8, 10, & Windows 11. OSX & Linux.
  • Changer adapter from DB-9F to 5 Pin Terminal block

Model No.    UTS-485X + DT485C    Pin Assignment
Chip    FTDI    Pin No.    DB-9(M+F)    Pin No.    Terminal Block
Data Transfer Rates    3M Baud    1    B-    1    A+
Power Consumption    56mA    2    B+    2    B-
LED    3    3    Non    3    G
Environment

  • Operating Temp:    0 °C ~ 40 °C    4    Non    4    120Ω
  • Storage Temp:    -20 °C ~ 60 °C    5    GND    5
  • Humidity:    0~80% RH, Non-condensing    6    120Ω
  • Compliant:    USB spec. 2.0 / 1.1    7
  • Interface:    RS-485    8    Non
  • Connector:    Host    USB Type A Male    9    Non
  • Device:    DB-9M / DB-9F to Terminal Block
  • Power Mode:    Bus
  • Housing:    Plastic




Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: USBGearWarranty: 1 YearAvailability: Limited Stock
Barcode: 736983900432Ship Weight: 0.50Condition: New
Part Number: USB-RS485-ATColor: BlackLength/Size: 36 in
Port Count: 1Port Type: 5-pin Terminal, Male DB9 /W NutsInput Voltage: Unspecified or N/A
Temperature(Op): --ESD Protection: --Serial Modes: RS485
LEDs: --Isolation: --Chip: --

Specifications

Manufacturer: USBGear
Barcode: 736983900432
Part Number: USB-RS485-AT
Warranty: 1 Year
Ship Weight: 0.50
Color: Black
Availability: Limited Stock
Condition: New
Port Count: 1
Port Type: 5-pin Terminal, Male DB9 /W Nuts
Input Voltage: Unspecified or N/A
Temperature(Op): --
ESD Protection: --
Isolation: --
Serial Modes: RS485
LEDs: --
Chip: --

User Reviews

Product Rating:
(3 reviews)
5 out of 5 stars

LAST 4 REVIEWS

VIEW ALL REVIEWS
Product Rating:
5 out of 5 stars
Great device

By: Tom Spangler Sr Engineer Williamsport Electric on 02/05/2018

I used this to communicate to temperature controllers, I wired to the terminals and it worked, nice converter!
Product Rating:
NAN out of 5 stars
Great

By: Carlos on 01/16/2018

Good deal
Product Rating:
5 out of 5 stars
Easy to setup and use. Seems to be good quality for the money. I will now look to see how many years of service this provides.

By: R Dale on 08/30/2017

I purchased this to program modules used in commercial applications. Not having time to test it in advance I took it to a customer site hoping it would work. I plugged it in and inserted the disk that came with it. It seamlessly loaded the drivers and I was able to connect and finish my work. Suggestions to improve the product. Decrease the brightness of the power LED and change the color to GREEN. Increase the brightness of the TX and RX LEDs.
