16-Port Industrial USB 3.0 Up to 1.5A Charging per port

Part # USB3-16U1
Product Rating:
(3 reviews)
$324.99

Status: Available

16 Port USB 3.0 Metal Hub features 16 Type-A downstream port connectors for USB 3.0, USB 2.0, USB 1.1 devices. All ports support Sync and Charge functions simultaneously. USB ports on the hub are designed with screw lock mechanisms to support a secure connection.

Product Documentation & Drivers

16-Port Industrial USB 3.0 Up to 1.5A Charging per port

Part # USB3-16U1
Product Rating:
5 out of 5 stars
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$324.99

Documentation

Rack Mount Hub that Syncs and Charges Simultaneously

The USB3-16U1 16 Port USB 3.0 metal rack mount hub features 16 Type-A downstream port connectors for USB 3.0, USB 2.0, USB 1.1 devices. All ports support Sync and Charge functions simultaneously, standard and screw-lock type USB cables for a secure connection. The 2-pin self power input connector uses 1 pin for positive voltage and the other pin for a GND connection. The terminal block connector is used to connect strong power in order to self-power the hub (Power supply not included). The voltage can be in the range from +12V to 24V DC.

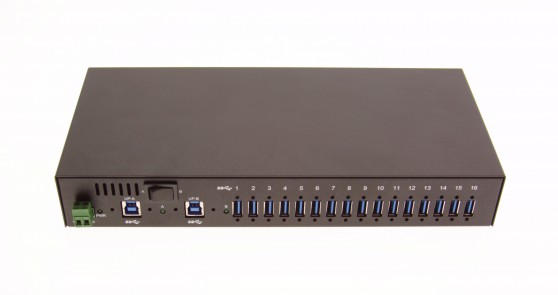

16 Port USB 3.0 Metal Hub port connection image

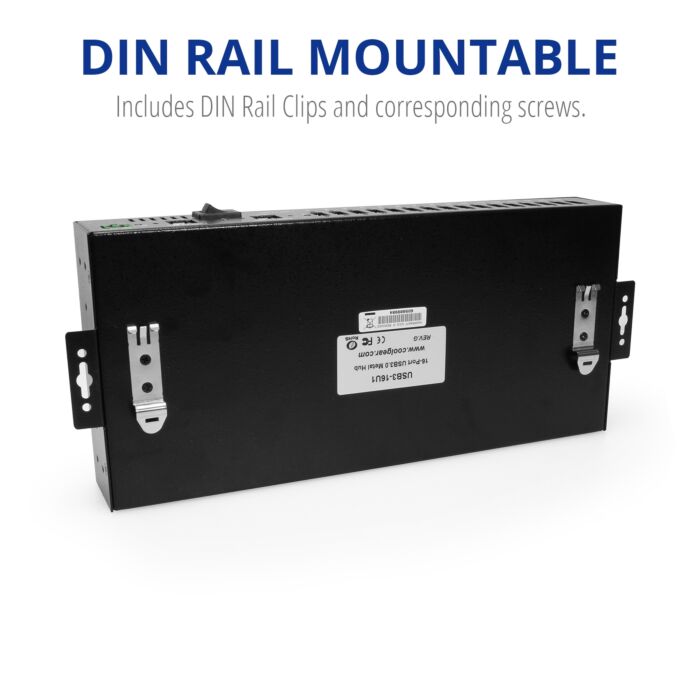

Din Rail mountable

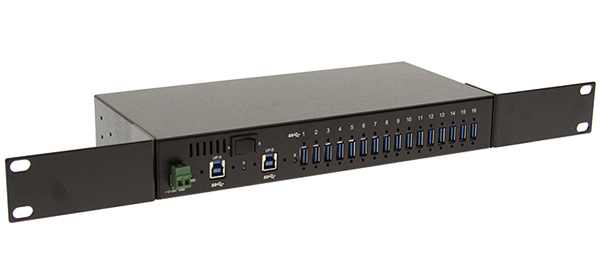

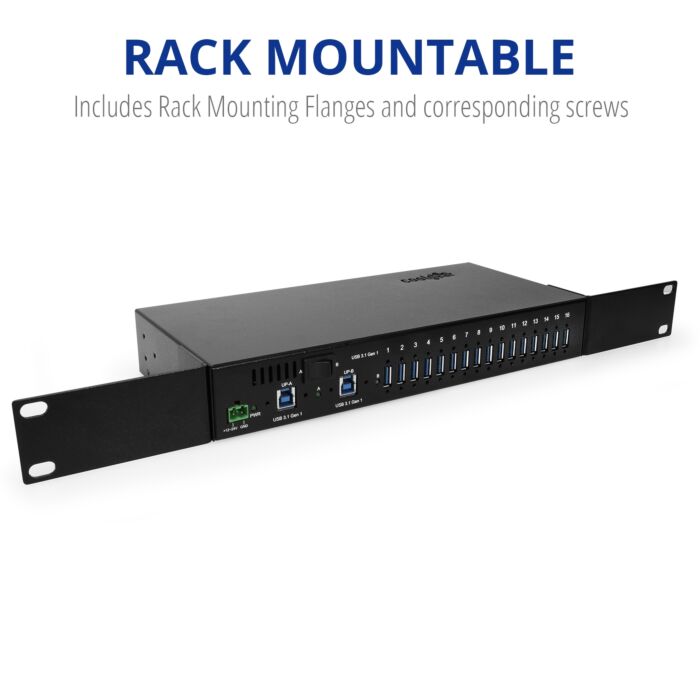

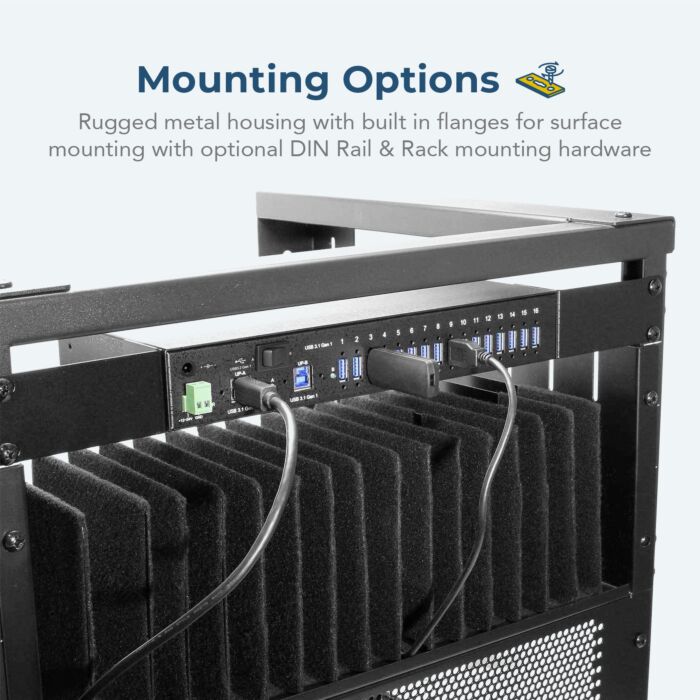

Rack Mount Mount for the USB3-16U1 Metal Hub

Rack Mount Hub Brackets

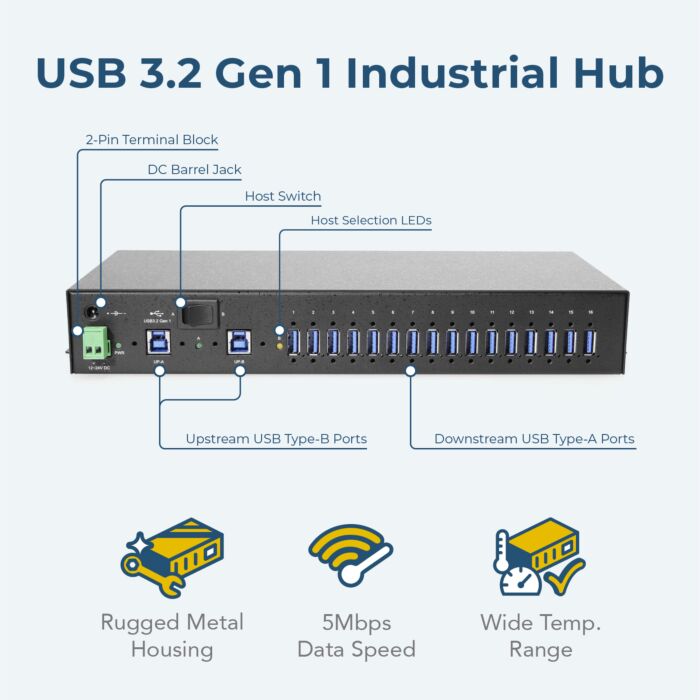

There are 2 Type-B upstream connectors on the 16 Port USB 3.0 Metal Hub that offer a selectable rocker switch. Either Port A or Port B can be used to control the downstream ports on the device. Both ports can be connected to a host or another USB 3.0 Hub. These connectors support standard and screw-lock type USB cables.

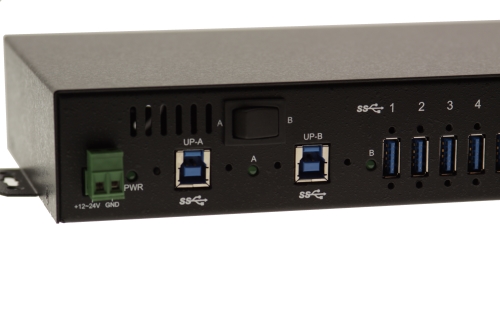

2 Type-B upstream connectors image

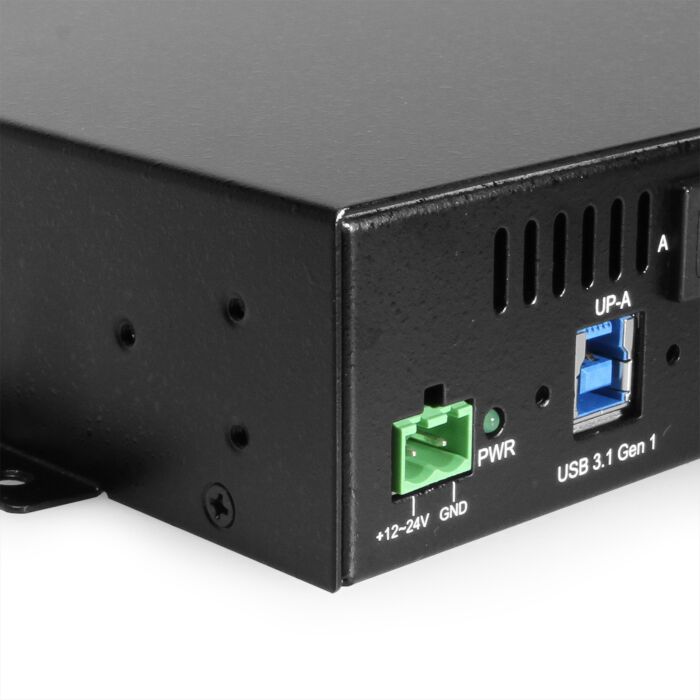

Two pin Phoenix connector and Type-B Upstream ports



16 Port USB 3.0 Rack Mount Hub Features & Specifications:

  • Compliant with USB specification Revision 3.0
  • Sync and Charges Simultaneously through Type-A ports
  • Rigid and  Rack Mountable metal case (can also be wall mounted or DIN-Rail mounted)
  • Provides 2 selectable upstream and 16 downstream USB 3.0 facing ports
  • Supports 5Gbps (super-speed), 480MBps (high-speed), 12Mbps (full-speed) and 1.5Mbps (low-speed)
  • Supports 16 Port 350 Watt Surge Protection
  • Multi Transaction Translators (TT) per hub
  • Supports USB Screw-Lock cable mechanism
  • Includes DIN-Rail mounting clips
  • Rack Mount Brackets included

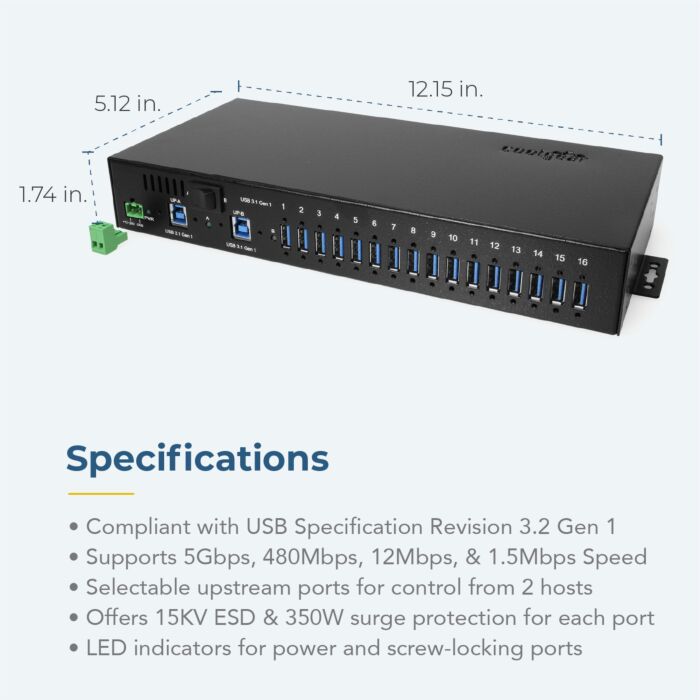

  • Item Dimensions: 12.15in(L) x5.12in(W) x1.74in(H), (30.85 x 13.02 x 4.42 cm)

OS Support:

  • Windows XP, Vista, 7, 8, 8.1, & Windows 10
  • Linux and Mac OS 10.X

Environmental

  • Operating Temperature: 0° to 55° C (32° to 131° F)
  • Operating Humidity: 5 to 95% RH

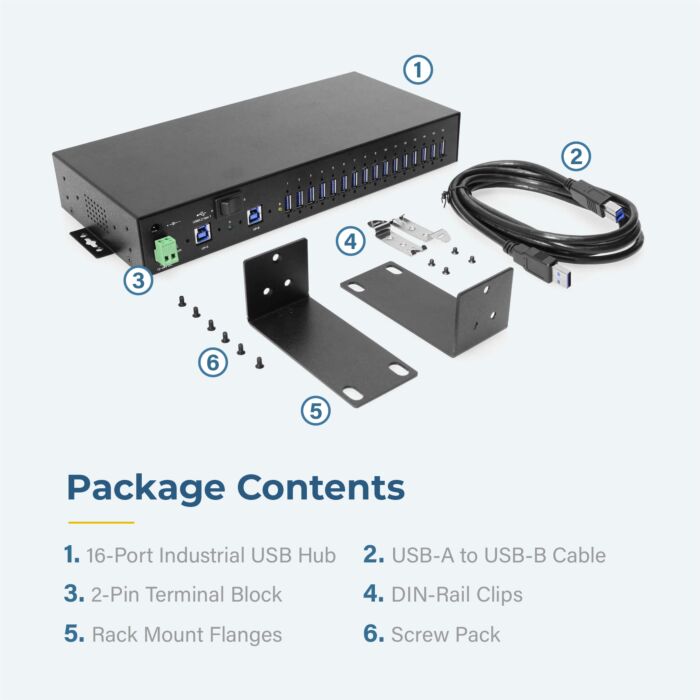

Package Contents:

  • USB3-16U1 16 Port USB 3.0 Hub (Does not include power supply)
  • 1pc. 6ft. USB 3.0 cable type "A" to "B"
  • Mounting Brackets
  • Din-Rail Clips
  • Mounting screws

*Surface Mounting screws not included

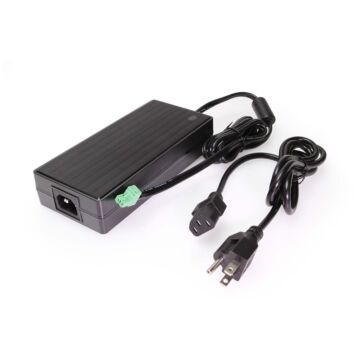

*Power Supply not included; available as an optional accessory: Model# 12V7A2P-B for low power charging. For full high capacity power charging, the PS-HC24V is needed.

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.

Specifications

Manufacturer: CoolgearWarranty: 1 YearAvailability: Available
Barcode: 729440692094Ship Weight: 4.04Condition: New
Part Number: USB3-16U1Color: BlackLength/Size: --
USB Spec: USB 3.2 Gen 1Max Data Rate: 5 GbpsInput Voltage: 7 ~ 24V DC
Upstream Port: USB 3.2G1 / 3.0 Type-B FemaleDownstream Port(s): 16x Type A USB 3.2 G1 / 3.0Screw Lock
Compatible:
No

Specifications

Manufacturer: Coolgear
Barcode: 729440692094
Part Number: USB3-16U1
Warranty: 1 Year
Ship Weight: 4.04
Color: Black
Availability: Available
Condition: New
USB Spec: USB 3.2 Gen 1
Max Data Rate: 5 Gbps
Input Voltage: 7 ~ 24V DC
Upstream Port: USB 3.2G1 / 3.0 Type-B Female
Downstream Port(s): 16x Type A USB 3.2 G1 / 3.0
Screw Lock
Compatible:
No

User Reviews

Product Rating:
(3 reviews)
5 out of 5 stars

LAST 4 REVIEWS

VIEW ALL REVIEWS
Product Rating:
5 out of 5 stars
Excellent product

By: vic on 07/27/2020

Great product! Able to handle all ports at the same time for a custom application with >10 watts per port.
Product Rating:
5 out of 5 stars
Most reliable 16 port USB hub on the market!

By: Christina on 06/14/2018

We've been using this product pretty heavily with 16 parallel 115.2 kb data streams. Our connected devices don't require any power from the ports but from what I've seen, it should be able to handle it. We have two of them in our building and at least 10 running in a different location. We've never had a problem with any of them. We ordered them directly from Coolgear and also purchased the (expensive) power supply.We've tried 5 other 8-24 port hubs from different vendors and it is the ONLY USB hub with more than 8 ports that has not died.
Product Rating:
5 out of 5 stars
Five Stars

By: james linville on 04/24/2015

excellent !
