4 Port USB 3.2 Gen 1 Powered Hub w/ ESD Surge Protection
Industrial Grade | +7~48V DC Input | Surface Mountable | DIN Rail | 5 Gbps | LED Indicators
- Protect Your Equipment: The 4-port USB 3.2 Gen 1 features 15kV ESD surge protection per port to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
- Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 4-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
- Upstream: 1 USB port, Type B connector
- Downstream: 4 USB ports, Type A connectors
- Power Connector: 2-Pin Terminal Block

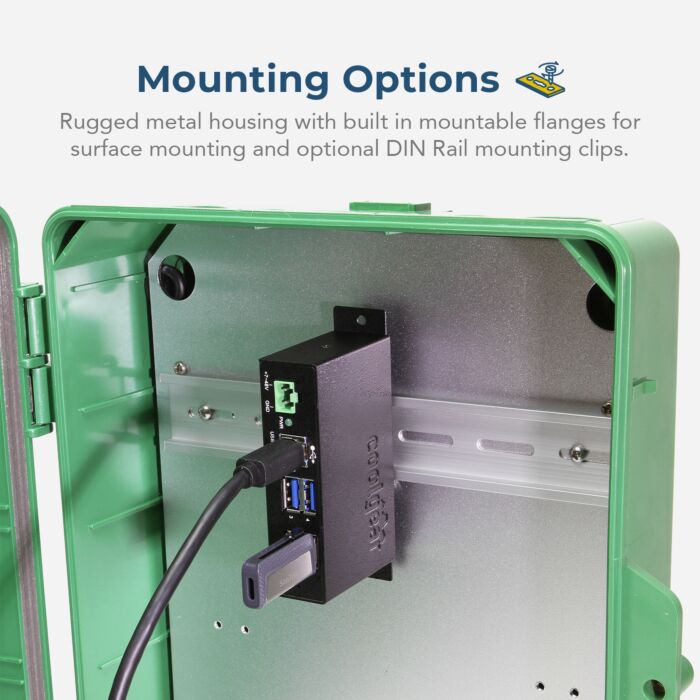

- Mounting Options: Wall, Surface, and DIN Rail
- Supply Current: 900mA USB Bus Power for Each Down-stream Port
Model Number: USBG-4U3MLR2
Documentation & Downloads
4 Port USB 3.2 Gen 1 Powered Hub w/ ESD Surge Protection
$88.29
Details
Introduction:
The Coolgear USB 3.2 Gen 1 hub is a 4 port industrial hub with a small form factor that accommodates up to 5Gbps of data transmission. It’s both surface and DIN Rail mountable with its included DIN Rail clips and screws. It supports Windows 7, 8, 8.1, 10, 11, Linux, and Mac OS10.X operating systems and supports 5 hops to cascade with other hubs.
The USB 3.2 Gen 1 4 port hub is small enough to fit in the palm of your hand yet can handle large amounts of super-speed data from its downstream ports. Each of the USB 3.2 Gen 1 ports supports the battery charging specification 1.2 for normal charging at .900mA per port. Normal charging allows the USB hub to charge low power devices that depend on charging to operate. Operating USB equipment such as printers, scanners, portable drives, virtual reality gear and others are not a problem with this USB 3.2 Gen 1 hub.
Features:
- Supports systems with USB 3.2 Gen 1, 2.0, 1.1 ports
- LED indicator for power
- Provides 4 downstream ports supporting 5Gbps data speeds
- Compliant with USB 3.2 Gen 1 specifications
- Provides 1 upstream port to the host computer
- Backward compatible with data speeds of up to 5Gbps Super-Speed, 480Mbps High-Speed, and 12Mbps Full-Speed, and 1.5Mbps Low-Speed
- BC 1.2 compliant for normal charging
- Supports 15KV ESD surge protection for each port

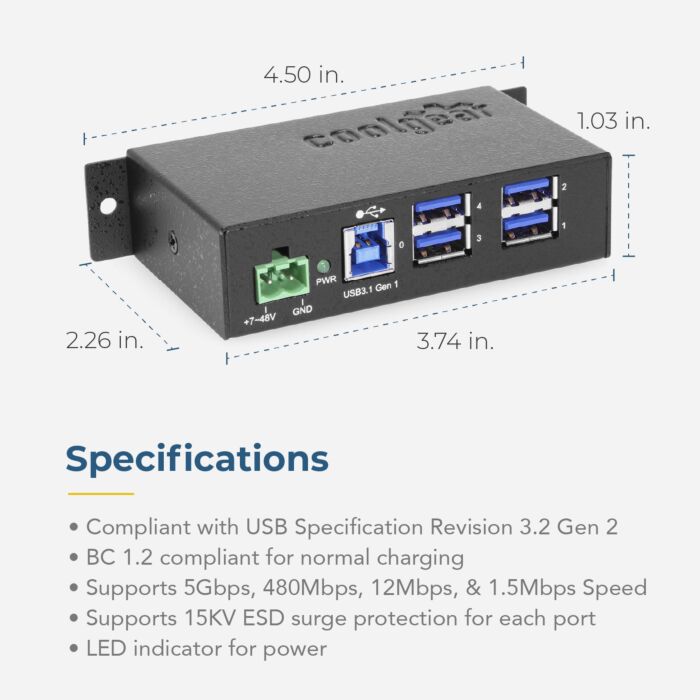

- Dimensions: 3.74in(L) x 2.26in(W) x 1.03in(H) (9.49 x 5.73 x 2.63 cm) (length with ears 4.50in)
- Hub Weight: .431 lbs.
- Multi transaction translators (TT) per hub
- Supports +7 – 48V DC wide range self-power input (power adapter sold separately)
- Supports a 2-pin Terminal Block Connector for External power input from AC adapter
Environmental Information:
- Operating Temp.: 0 – 70 C (32 to 150 F)
- Storage Temp.: -20 to 85 C (-4 to 185 F)
- Operating Humidity: 5 to 95% RH

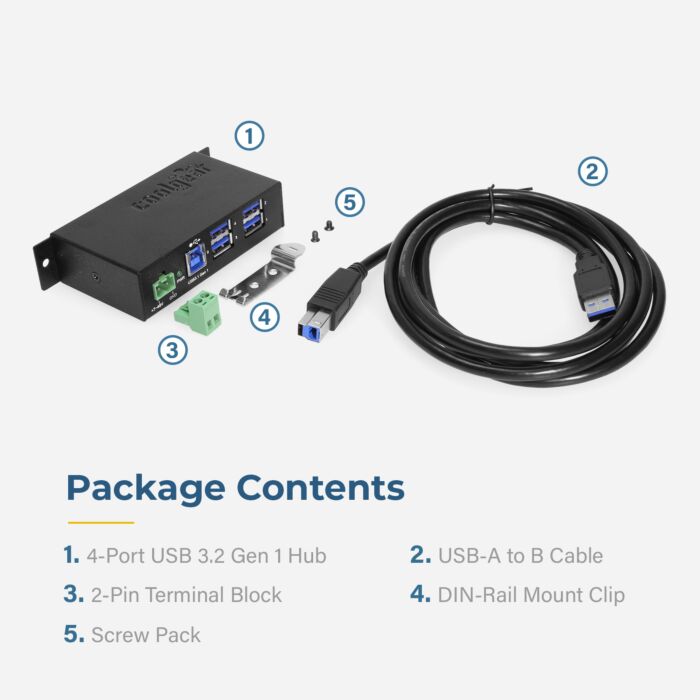

Package Contents:
- USB 3.2 Gen 1 4 Port Hub
- DIN Rail Clip and Mounting Screws
- 6ft. USB A to B USB 3.2 Gen 1 Cable
*Surface Mounting screws not included.
Technical Specifications
| UPC | 736983900173 |
|---|---|
| Manufacturer | Coolgear |
| Warranty | One Year |
| OS Support / Compatibility | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV (air), 8kV (contact) |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
