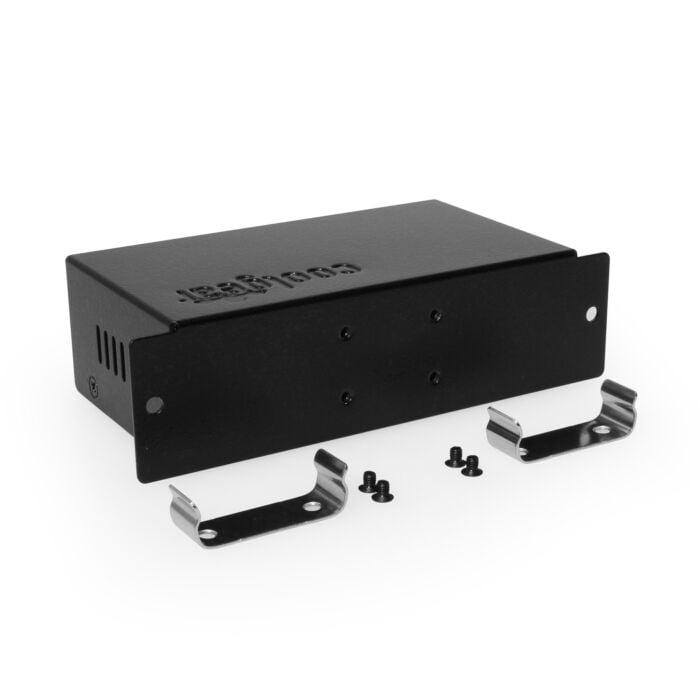

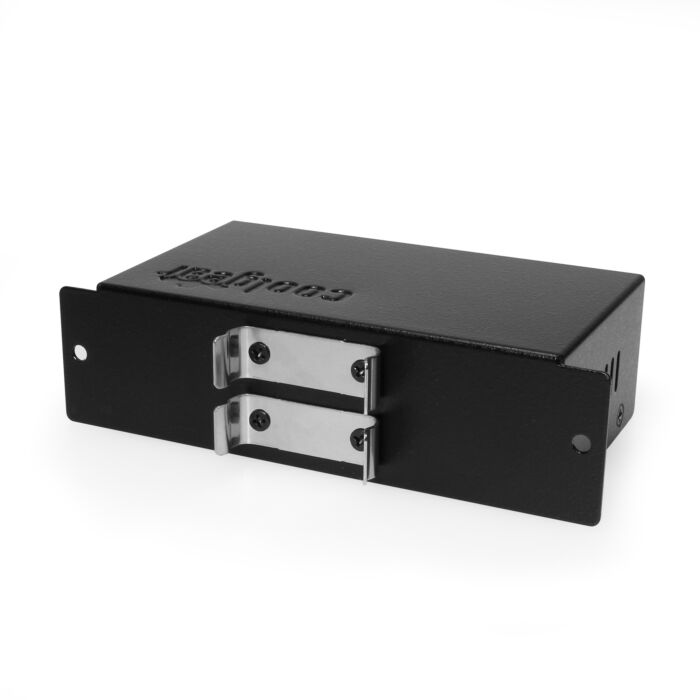

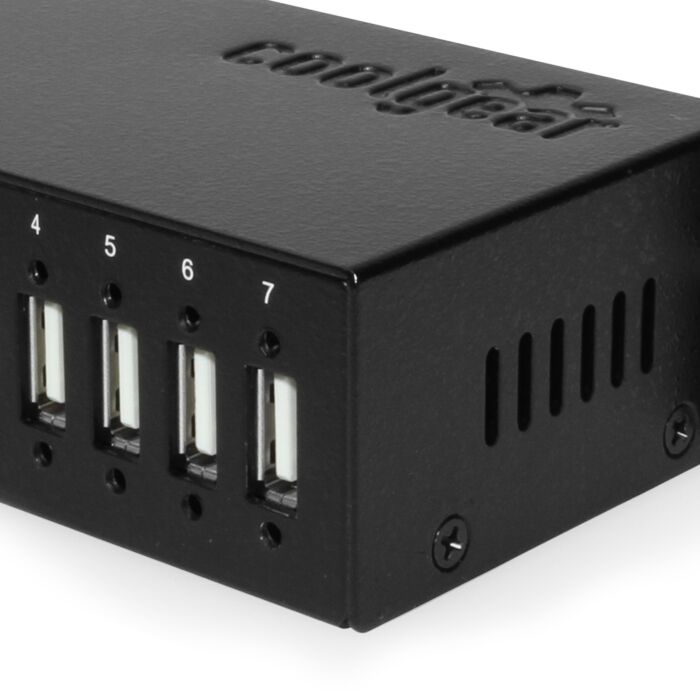

Metal 7-Port USB 2.0 Hub w/ DIN RAIL Mounting Kit Japan NEC Chip

Part # USBG-7DU2
$59.99

Bulk Pricing

Qty: 1+
$59.99

Qty: 24+
$58.89

Qty: 48+
$54.77

USB 7-port hub with USB 2.0 high-speed specifications and NEC uPD720113 USB2.0 hub controller is ideal for adding more USB ports to your system to run additional devices. The 7-port hub is Din rail mountable and can accept screw lock cables for secure connections.

Compatibility

Metal 7-Port USB 2.0 Hub w/ DIN RAIL Mounting Kit Japan NEC Chip

Part #USBG-7DU2
Product Image
  • Product Image Thumbnail
  • Product Image Thumbnail
  • Product Image Thumbnail
$59.99

Bulk Pricing

Qty: 1+
$59.99

Qty: 24+
$58.89

Qty: 48+
$54.77

Compatibility

Overview

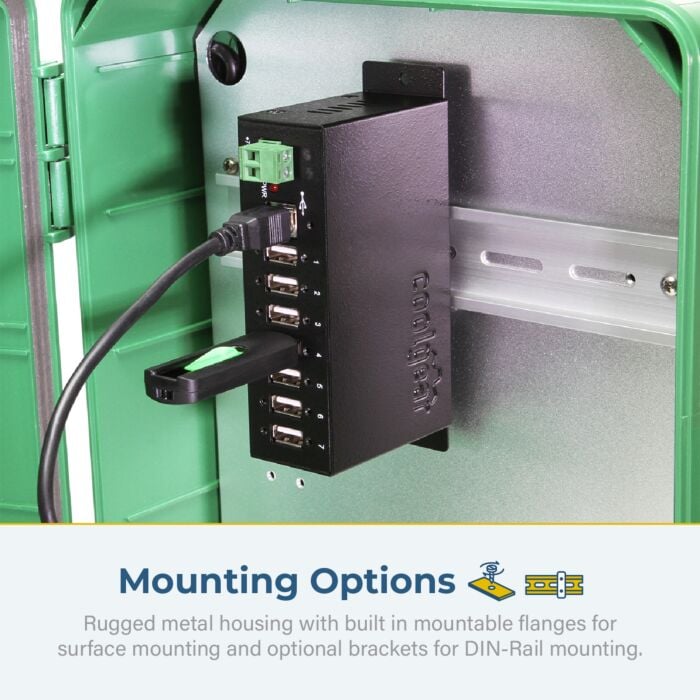

Built-in Japan made NEC USB 2.0 Hub Controller chip for tis USB hub. Metal Case Ideal for Critical Applications Compliant with USB Specification Revision 2.0. Metal Case with DIN RAIL Mounting Kit for Industrial/Critical Applications

Spec. Sheet

USER GUIDE

  • Built-in NEC uPD720113 USB2.0 Hub Controller
  • Supports High-speed and or Full-speed Packet
  • Protocol Sequencer for Endpoint 0/1
  • Provides 7 Downstream Facing Ports
  • All USB Connectors Support Screw-Lock Feature
  • Supports 480Mbps, 12Mbps and 1.5Mbps Speed
  • One Transaction Translator per Hub and
  • Supports 4 Concurrent Non-periodic Transactions
  • Supports Self-powered and Bus-powered Mode
  • Supports 2-pin Terminal Block Power Connector

The USBG-7DU2 is an USB2.0 Hub that comply with the Universal Serial Bus (USB) Specifications Revision 2.0 and work up to 480Mbps. It provides 7 downstream facing ports with standard A-type USB2.0 connectors.

With NEC uPD720113 USB2.0 controller, it works backward compatible either when any one of downstream port is connected to an USB1.1 compliant device, or when the upstream port is connected to a USB1.1 compliant host.

The USBG-7DU2 also provides an unique feature to work in the bus-powered mode without an external AC power adapter.

It's very convenient for light power consumption USB devices to work in this mode without an extra power supply. Only plug then go ahead. Besides, the external 2-pin Terminal Block Connector is used for self-powered mode if you need more power on the 7 downstream ports.

Since the USB is the most popular external port for the devices to connect to PCs, the USBG-7DU2 provides an ideal solution to expand your USB ports immediately and save your investment.

  • USB2.0 ports
  • Provides 7 USB downstream ports which managing up to 480Mbps:
  • Compliant with USB Specifications 2.0
  • High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
  • Provides 7 Downstream Facing Ports
  • All USB Connectors Support Screw-Lock Feature
  • Supports 480Mbps, 12Mbps and 1.5Mbps Speed
  • One Transaction Translator per Hub and Supports 4 Concurrent Non-periodic Transactions
  • Supports Self-powered and Bus-powered Mode
  • 2-pin Terminal Block Power Input Connector

USB Devices:

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices

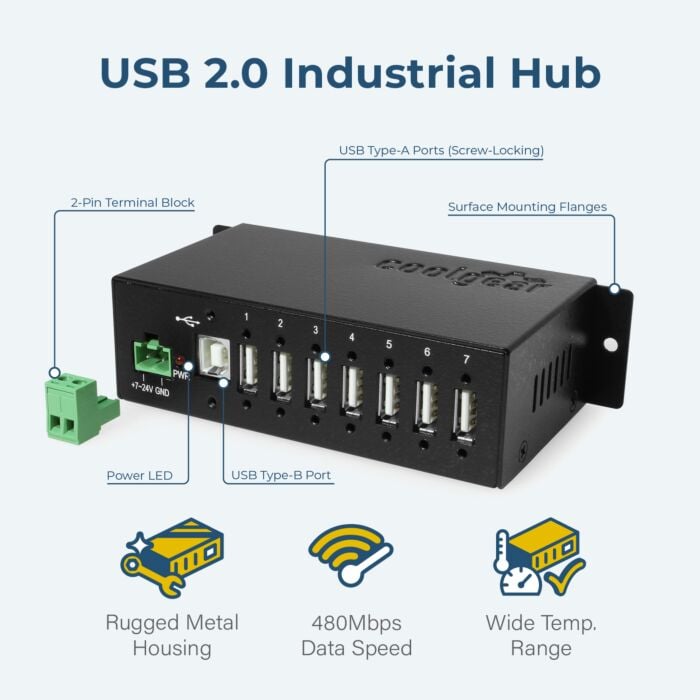

I/O Hardware:

  • Supports 7 external USB2.0 Type-A connectors and 1 Type-B Upstream connector.
  • Supports a 2-pin Terminal Block
  • Connector for external DC power input

Environmental:

  • Operating Temp.: 0 to 558C (32 to 1318F)
  • Storage Temp: -20 to 858C (-4 to 1858F)
  • Operating Humidity: 5 to 95% RH

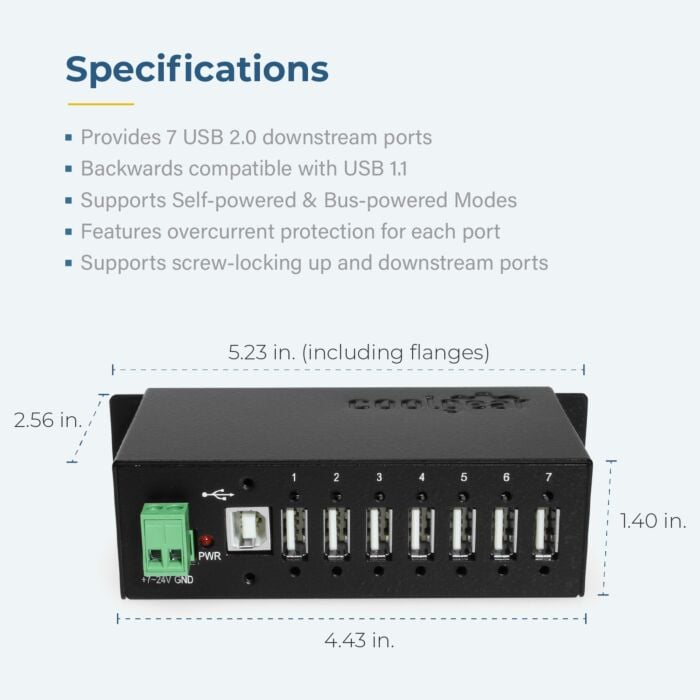

Dimensions:

  • 5.23(L)x2.42(W)x1.43(H)
  • (13.30x6.15x3.63 cm)

* Note: Power Adapter is Not Included, standard 7-26VDC Adapter will work.

READ MORE

Specifications

Manufacturer: USBGEAR Warranty: One Year Availability: In Stock
Barcode: 736983901422 Ship Weight: 1.00 lbs Condition: New
Part Number: USBG-7DU2 Color: Black Size: 6x2.35x.93

Specifications

Manufacturer: USBGEAR
Barcode: 736983901422
Part Number: USBG-7DU2
Warranty: One Year
Ship Weight: 1.00 lbs
Color: Black
Availability: In Stock
Condition: New
Size: 6x2.35x.93

Accessories

Similar Item Image

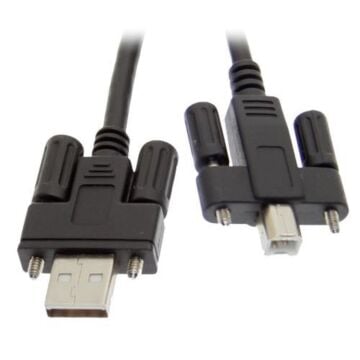

Screw Lock USB 2.0 Hi-Speed A to B Device Cable 15ft. Black
