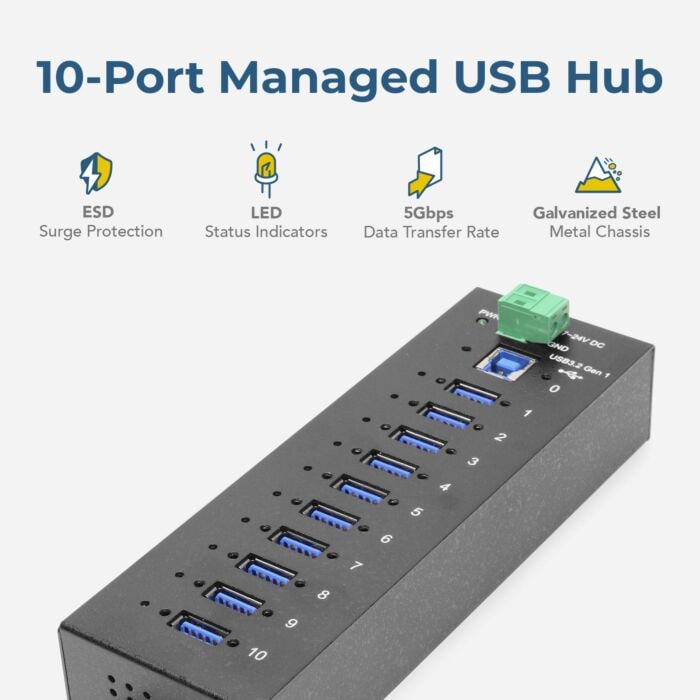

10 Port Managed Network Shareable USB 3.2 Gen 1 Hub w/ 15KV ESD Surge Protection

Add Your Review

$277.49

Advanced Protection: The 10-port USB 3.2 Gen 1 hub protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected devices will be protected.
Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.

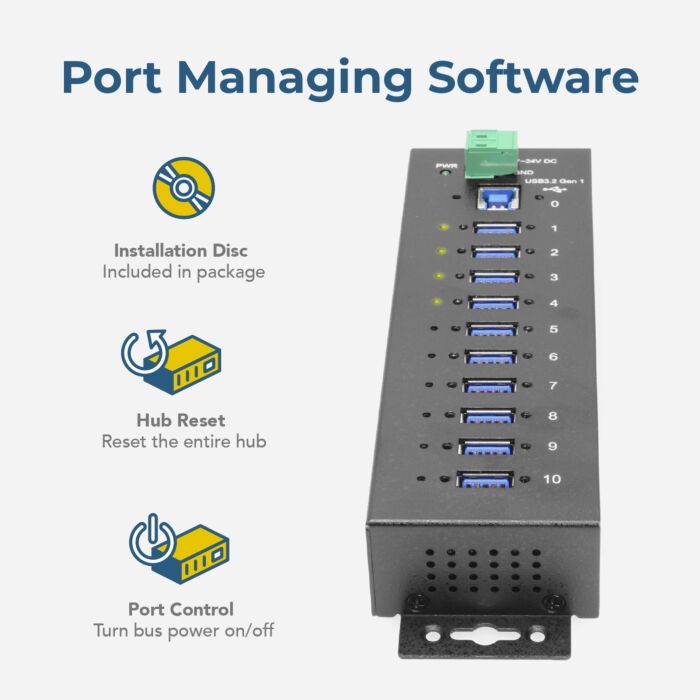

Port Management Software: Control each individual ports’ status, turn bus power on/off, and even reset the entire hub through the hub’s management software which supports Windows, Mac, and Linux operating systems

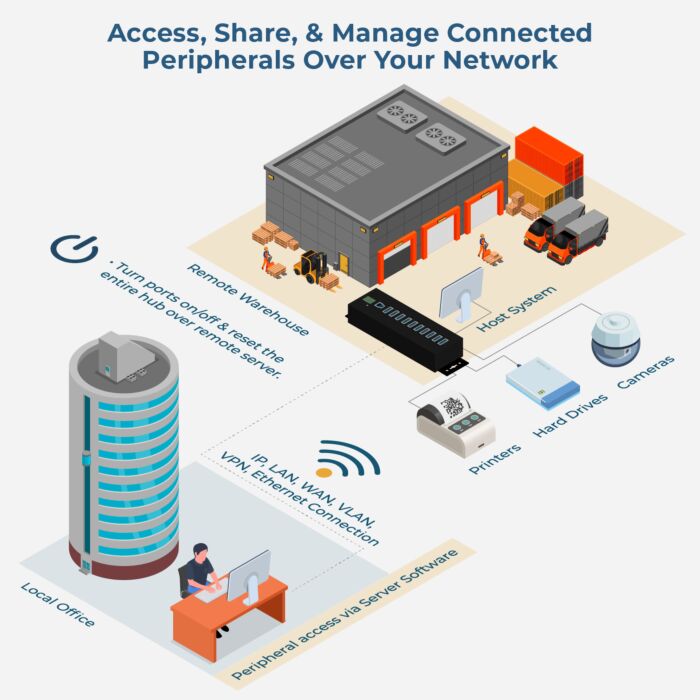

Network Sharing: Enables remote sharing of the USB ports as a server. Manage port status and more over the connected network. (Network-based remote management is supported on Windows ONLY. Direct host connection and downstream port management remain available for Windows, Linux, and macOS)

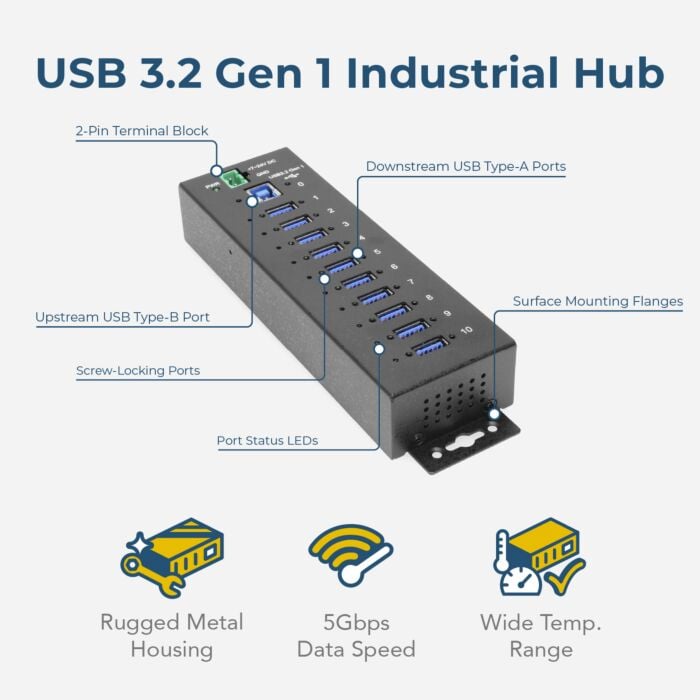

Upstream: 1 USB port, Type B connector, Screw-lock type
Downstream: 10 USB ports, Type A connectors, Screw-lock type
LED Indicators: 10 LEDs for each downstream port to indicate the current bus

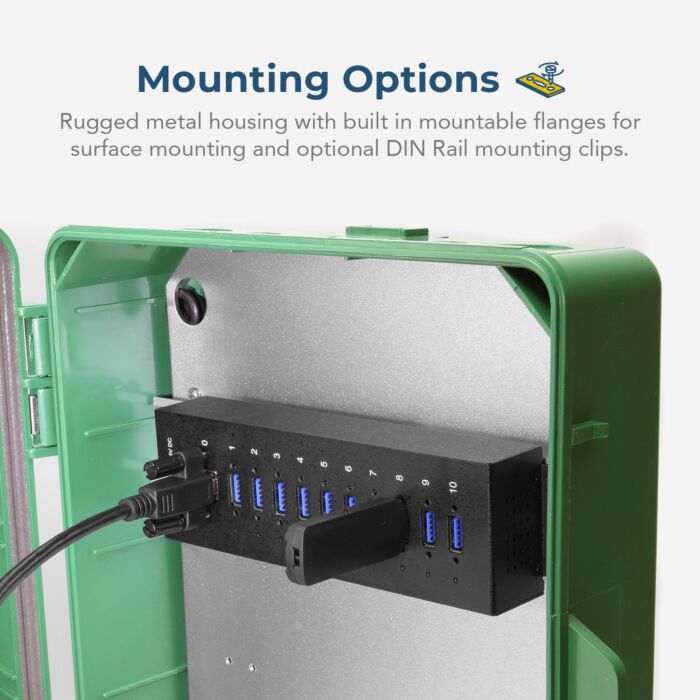

Mounting Options: Wall, Surface, and DIN Rail
Supply Current: 1.5A max. per channel

Availability: Out of stock

Notify me when this product is in stock

Model Number: CG-10PU3MGD-NT

This product is currently unavailable.

Contact our sales team for availability and lead time, or browse similar products.

Contact Sales 1-888-688-2188

Find similar products

Documentation & Downloads

Details

Introduction:

Meet the CG-10PU3MGD-NT, a feature-rich USB 3.2 Gen 1 hub designed for industrial environments that demand robust connectivity and advanced control. As part of our MDS-UH Port Management Series, this managed USB hub provides ten downstream USB 3.2 Gen 1 ports and integrates software-controlled power switching and remote port management (Network-based remote management is supported on Windows ONLY. Direct host connection and downstream port management remain available for Windows, Linux, and macOS). It’s a versatile solution for those needing high-speed data transfer, programmable port power management, and reliable performance across Windows and Linux systems.

Key Features and Benefits

10-Port USB 3.2 Gen 1 Expansion: Instantly expand your system with ten USB 3.2 Gen 1 Type-A ports, all with screw-lock connectors for secure connections in demanding setups.
High-Speed Data Transfer: Supports USB 3.2 Gen 1 speeds up to 5Gbps, and backward compatibility with USB 2.0 and USB 1.1 devices (except Port 10 which is exclusive to management utilities).
Per-Port Power Management: Enable or disable power to individual ports, or reset the entire hub using intuitive management software.
Cross-Platform Software Utilities: Includes utilities for Windows (GUI and command line), Linux (Intel x86-64 and ARM), with compatibility for C#, C++, VB, Python, and PHP integrations.
Persistent Port Configuration: Save your port power settings to onboard flash memory—automatically restored during the next power cycle.
Advanced Charging Support: Each port complies with USB Battery Charging v1.2, including SDP, CDP, and DCP profiles, and supports Apple 2.4A and Samsung charging modes.
Industrial-Grade Durability: Built with a SECC steel housing, the hub operates reliably in temperatures from 0°C to 60°C and altitudes up to 2000 meters.
Flexible Power Input: Accepts wide-range input from 7~24 VDC via a secure 2-pin terminal block.
Status Indicators: Each port features its own LED indicator for clear visibility of bus power states.

Note: The last USB port of this hub (Port 10) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

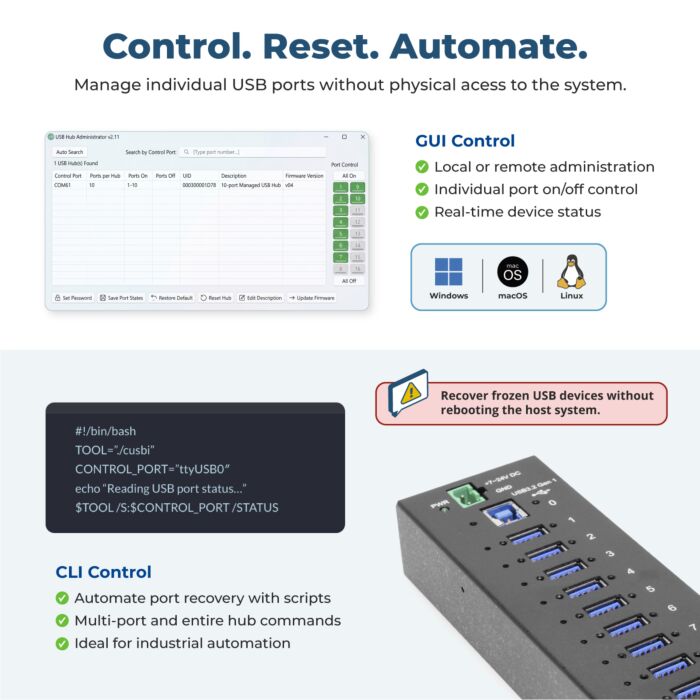

Image: Port managing software displaying the On/Off status of each port.

Watch the product video

Specifications:

USB Host

Operable with USB 3.2 Gen 1, 2, and USB2.0 host

USB Interface

Compliance: USB 3.2 Gen 1 / 2.0 / 1.1 compliant
Upstream: 1 USB port, Type B connector, Screw-lock type
Downstream: 10 USB ports, Type A connectors, Screw-lock type
LED Indicators: 10 LEDs for each downstream port to indicate the current bus power states
Speed: 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed)
Supply Current: 1.5A max. per channel

Note: The last USB port of this hub (Port 10) does NOT support USB 2.0 / 1.1 devices. It is used to communicate with managing utilities. However, it still supports USB 3.2 Gen 1 devices.

Managing Software Utilities

USBCTL: Windows GUI
CUSBC: Windows console command control utility
cusbi: intel x86-64 based Linux control utility
cusba: ARM based Linux controller utility

Physical Characteristics

Housing: SECC (galvanized steel)
Weight: (product only) 360g (0.79 lb)
Dimensions (LxWxH): 197.7x55.5x31.0 mm (7.78 x 2.18 x 1.22 in)

Environmental Limits

Operating Temperature: 0 to 60°C (32 to 140°F)
Storage Temperature: Standard Models: -20 to 75°C (-4 to 167°F)
Ambient Relative Humidity: 5 to 95% (non-condensing)
Altitude: Up to 2000 m

Power Requirements

Input Voltage: 7 to 24 VDC external power
Power Consumption: 10mA @ 12 VDC, 20mA @ 24 VDC

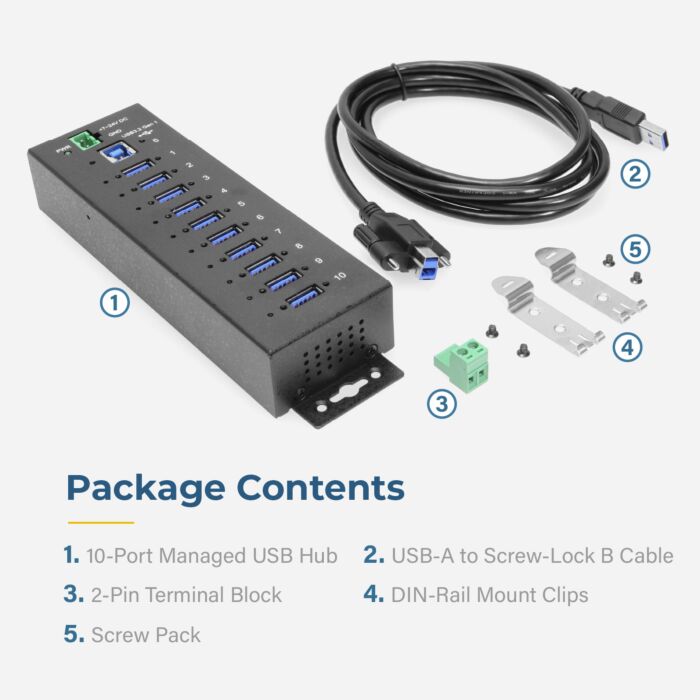

Package Contents:

10 Port Managed Network Shareable USB 3.2 Gen 1 Hub
5ft. USB-A to Screw Lock USB-B Cable
2-Pin Terminal Block
DIN Rail Clips
Screw Pack

*Surface Mounting screws not included.

Technical Specifications

UPC	045079164291
Country of Origin	Taiwan
Manufacturer	Coolgear
Warranty	One Year
Item Length (in)	7.78
Item Width (in)	2.18
Item Height (in)	1.22
Item Weight (lbs)	0.744
Connector(s)	2-Pin Terminal Block, USB 3.2/3.x Dual Screw Lock Type A Female, USB 3.2/3.x Dual Screw Lock Type B Female
LED Indicators	Port Status, Power
Downstream Port Count	10
Input Voltage	7 ~ 24V DC
OS Support / Compatibility	Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS
ESD Protection	15kV
Max Data Transfer Rate	5Gbps
Downstream Port Type	Type A
Upstream Port Count	1
Upstream Port Type	USB 3.2 Gen 1 Type B
