12-Port USB 3.2 Gen1 w/15KV ESD Surge Protection DIN Rail Mount
$175.99
Up to 5Gbps of data transfer though each port with this USB 3.2 metal hub. Set up a horizontal or DIN Rail mount with the included mounting kit and make your connections. To power all ports, the hub is self-powered with an external 7~24V DC power adapter.
Availability:
In stock
Model Number
CG-12PU31HB

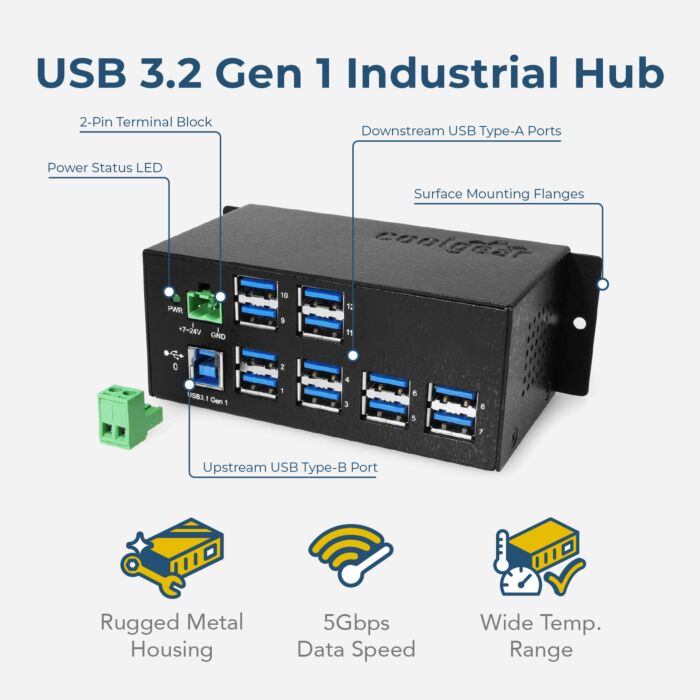

Compact 12-Port USB 3.2 Metal Hub
Coolgear's new and unique 12-Port USB 3.2 hub is a compact solution with a big purpose. Its uniquely designed shell expands your USB port usage by 12 from your USB 3.2 Gen1 host port. This is a self powered hub uses a +7~24V DC 2-pin terminal block power connector from an external power adapter (sold separately).
The 12-Port USB 3.2 hub supports up to 5Gbps of data transfer but is backward compatible with legacy USB 2.0/1.1/1.0 speeds. It can be DIN Rail or horizontally surface mounted to secure a stationary mount. This USB 3.2 hub is in compliance with USB battery charging for CDP and DCP modes. The hub supports 1.5A per port with a safety of 2A Thermal Shutdown protection.
12-Port USB 3.2 Hub Features
- Compliant with USB 3.2 Gen1 Specifications
- Rigid Wall-Mountable Metal Case
- 1 USB-B Upstream and 12 USB-A Downstream USB 3.2 Gen1 Facing Ports
- Supports 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
- Supports 15KV ESD Surge Protection for Each Port
- Multi Transaction Translators (TT) per Hub
- Support USB Battery Charging: CDP and DCP Modes

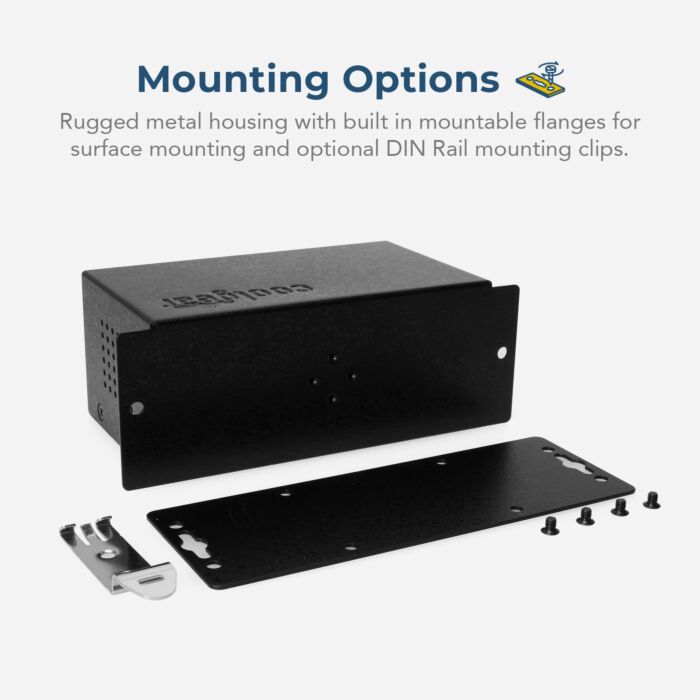

- Supports DIN RAIL Mounting Kit and Horizontal Mounting Bracket
- 1.5A per USB port with thermal shutdown at 2A per port

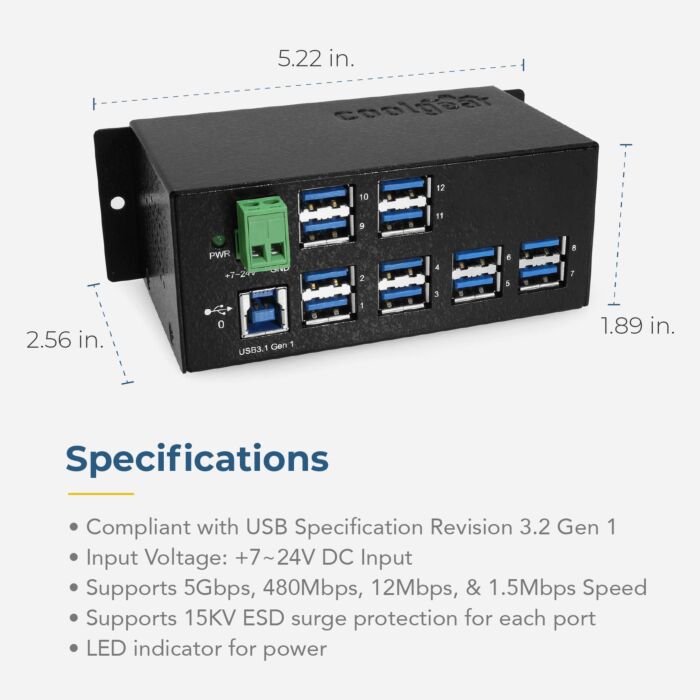

- Item Dimensions: 5.22 in(L) x 2.56 in(W) x 1.89 in(h) (132.50 x 65 x 48.2mm)

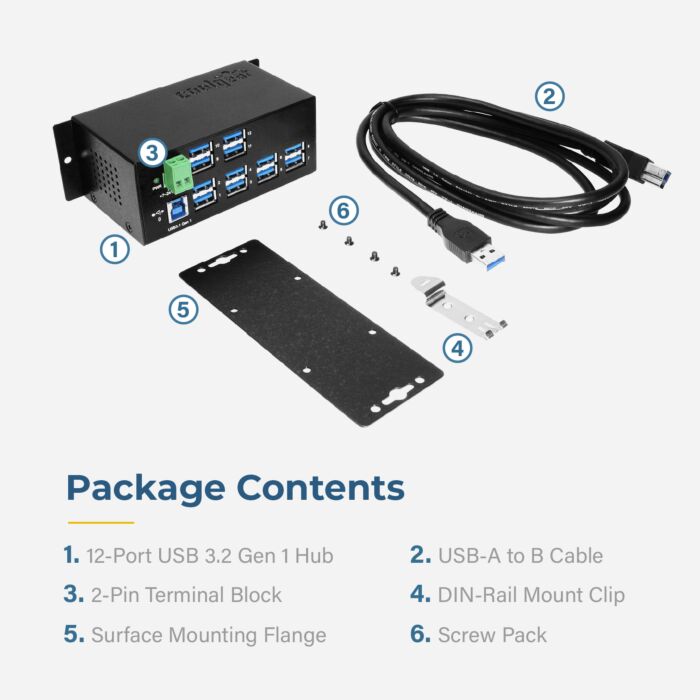

Package Contents
- 12-Port USB 3.2 Gen1 Metal Hub
- 6ft. USB-A to B USB 3.0 Cable
- Horizontal Mounting Plate w/Screws
- DIN Rail Clip
- Paper Installation Guide
*Surface Mounting screws not included
Environmental Specifications
- Operating Temperature: 0 to 55°C (32 to 131°F
- Operating Humidity: 5 to 95% RH
| Model Number | CG-12PU31HB |
|---|---|
| UPC | 045079159679 |
| Color | Black |
| Manufacturer | Coolgear |
| Warranty | 1 Year |
| OS Compatibility | OS independent - No software or drivers required |
| Item Length (in) | 5.22 |
| Item Width (in) | 2.56 |
| Item Height (in) | 1.89 |
| Item Weight (lbs) | 0.806 |
| Country of Origin | Taiwan |
| Material | Steel |
| Short Description | Up to 5Gbps of data transfer though each port with this USB 3.2 metal hub. Set up a horizontal or DIN Rail mount with the included mounting kit and make your connections. To power all ports, the hub is self-powered with an external 7~24V DC power adapter. |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2G1 / 3.0 Type-B Female |
| Downstream Port Count | 12 |
| Downstream Port Type | 12x Type A USB 3.2 G1 / 3.0 |
| Max Data Transfer Rate | 5 Gbps |
| LED Indicators | Power |
| Input Voltage | 7 ~ 24V DC |
| ESD Protection | ±15kV (air), ±8kV (contact) |
| Chip Model | GL3522 |
