16-Port USB 3.2 Gen1 w/15KV ESD Surge Protection DIN Rail Mount

Add Your Review

$232.49

Up to 5Gbps of data transfer though each port with this USB 3.1 metal hub. Set up a horizontal or DIN Rail mount with the included mounting kit and make your connections. To power all ports, the hub is self-powered with an external 7~24V DC power adapter.

Availability: In stock

Model Number: CG-16PU31H

Documentation & Downloads

16-Port USB 3.2 Gen1 w/15KV ESD Surge Protection DIN Rail Mount

$232.49

Details

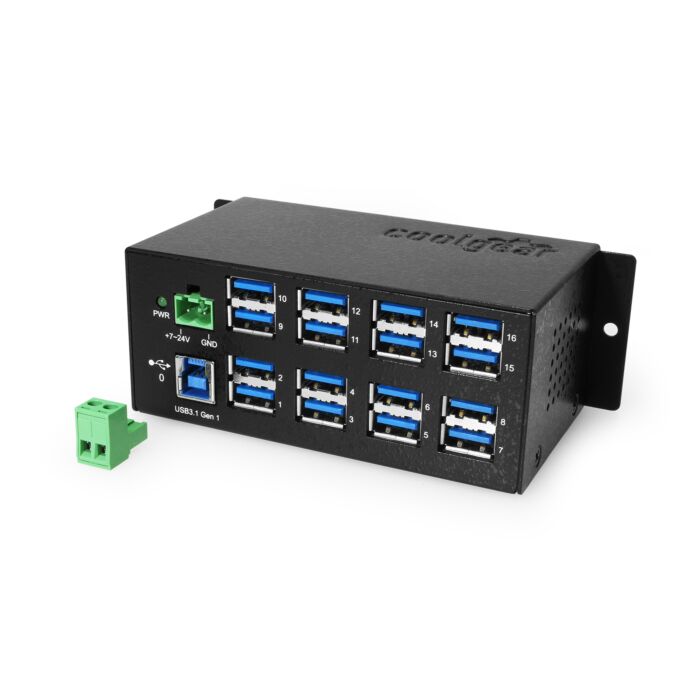

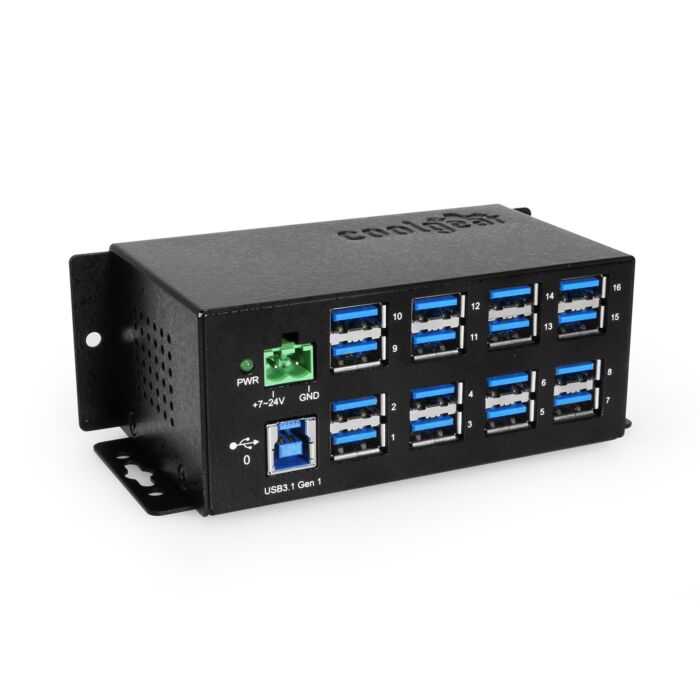

Compact 16-Port USB 3.1 Metal Hub

Coolgear's new and unique 16-Port USB 3.1 hub is a compact solution with a big purpose. Its uniquely designed shell expands your USB port usage by 16 from your USB 3.1 Gen1 host port. This is a self powered hub uses a +7~24V DC 2-pin terminal block power connector from an external power adapter (sold separately).

The 16-Port USB 3.1 hub supports up to 5Gbps of data transfer but is backward compatible with legacy USB 2.0/1.1/1.0 speeds. It can be DIN Rail or horizontally surface mounted to secure a stationary mount. This USB 3.1 hub is in compliance with USB battery charging for CDP and DCP modes. The hub supports 1.5A per port with a safety of 2A Thermal Shutdown protection.

16-Port USB 3.1 Hub Features

Compliant with USB 3.1 Gen1 Specifications
Rigid Wall-Mountable Metal Case
1 USB-B Upstream and 16 USB-A Downstream USB 3.1 Gen1 Facing Ports
Supports 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
Supports 15KV ESD Surge Protection for Each Port
Multi Transaction Translators (TT) per Hub
Support USB Battery Charging: CDP and DCP Modes
Supports DIN RAIL Mounting Kit and Horizontal Mounting Bracket
1.5A per USB port with thermal shutdown at 2A per port

OS Support:

Windows 7, 8, 10, Windows 11
Linux
Mac OS 10.X

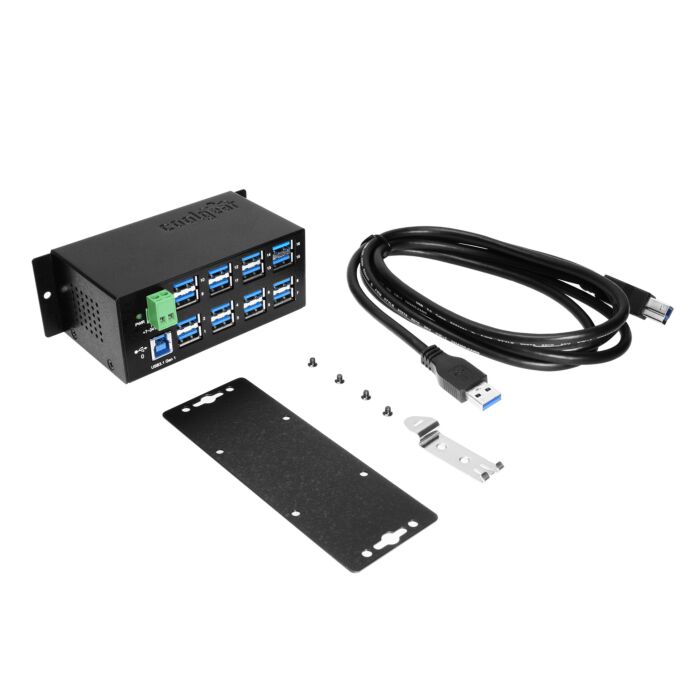

Package Contents

16-Port USB 3.1 Metal Hub
6ft. USB-A to B USB 3.0 Cable

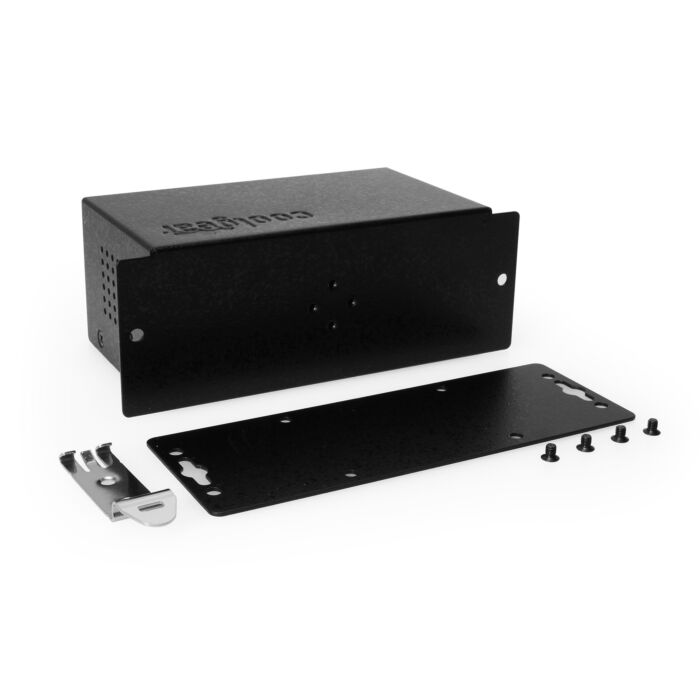

Horizontal Mounting Plate w/Screws

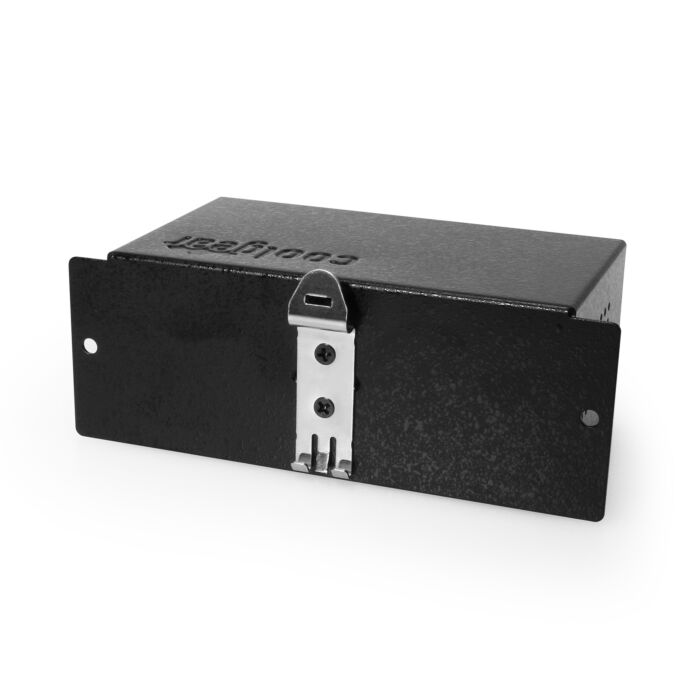

DIN Rail Clip
Paper Installation Guide

*Surface Mounting screws not included

Technical Specifications

UPC	045079159426
Country of Origin	Taiwan
Manufacturer	Coolgear
Warranty	One Year
Item Length (in)	5.22
Item Width (in)	2.56
Item Height (in)	1.89
Item Weight (lbs)	0.819
LED Indicators	Power
Downstream Port Count	16
Chip Model	GL3522
Input Voltage	7 ~ 24V DC
OS Support / Compatibility	Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS
ESD Protection	15kV (air), 8kV (contact)
Max Data Transfer Rate	5Gbps
Downstream Port Type	Type A
Upstream Port Count	1
Upstream Port Type	USB 3.2 Gen 1 Type B
