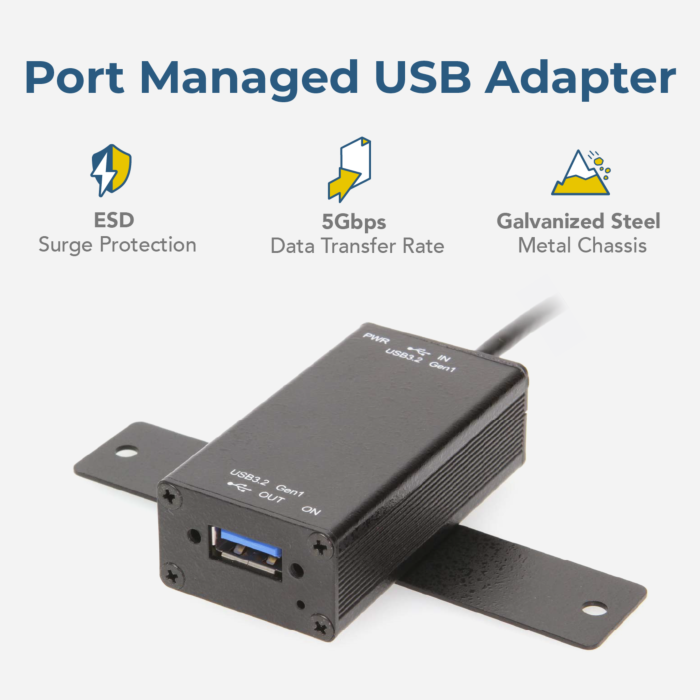

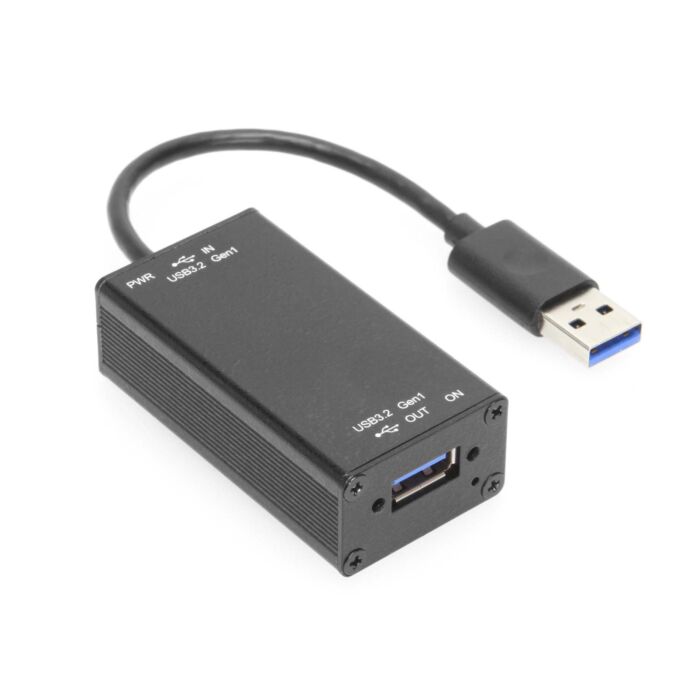

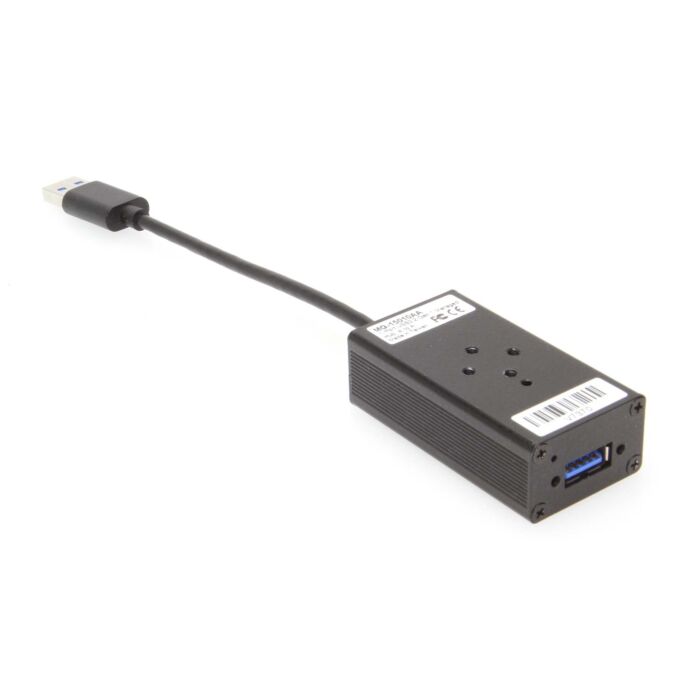

Single Port Managed USB 3.2 Gen 1 Port Adapter w/ ESD Surge Protection

$99.95

Industrial Grade | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

  • Advanced Protection: The single port USB 3.2 Gen 1 adapter protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected device will be protected.
  • Super Fast Speeds: This USB adapter is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Port Management Integration: Integrates seamlessly with existing hubs to provide enhanced control and management features. Control the port's status, turn bus power on/off, and even reset the adapter through the adapter's management software which supports Windows, Mac, and Linux operating systems

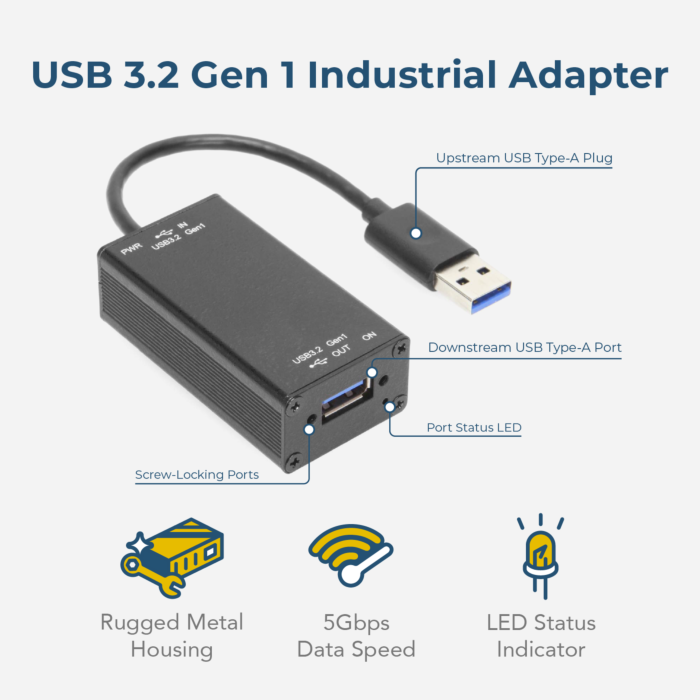

  • Upstream: 1 USB plug, Type A connector
  • Downstream: 1 USB port, Type A connector, Screw-lock type
  • LED Indicators: LEDs for upstream and downstream port to indicate the current bus

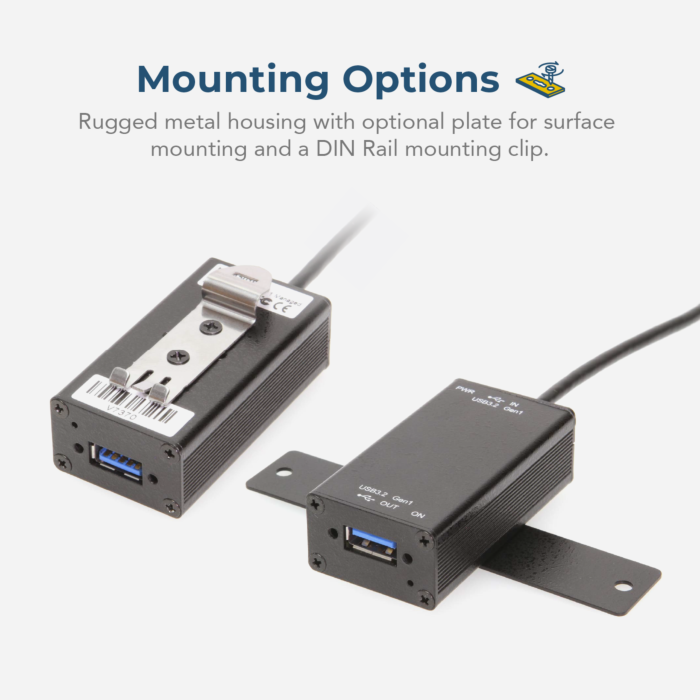

  • Mounting Options: Wall, Surface, and DIN Rail
Availability: In stock
Model Number
CG-1MGDU3A

Introduction

The CG-1MGDU3A from our MDS-UH Port Management Series is a versatile USB 3.2 Gen 1 adapter designed to bring sophisticated port managing capabilities to any USB hub setup. Unlike traditional hubs, this single-port adapter integrates seamlessly with existing hubs to provide enhanced control and management features, making it ideal for industrial applications and other demanding environments.

This adapter complies with the Universal Serial Bus (USB) Specifications Revision 3.2 Gen 1, ensuring compatibility and reliability with all USB 3.2, USB 2.0, and USB 1.1 devices. It supports data transfer rates up to 5Gbps and features 15kV of ESD protection. The single downstream USB-A port supports the USB Battery Charging Specification v1.2 (SDP, CDP, DCP) and various Vendor Specific Charging Modes, such as Apple 2.4A and Samsung.

The CG-1MGDU3A comes equipped with comprehensive management software that allows users to control the bus power of connected devices or reset the entire adapter. This software can save designated states to its flash memory, ensuring that the adapter retains its configuration upon the next power cycle. The management utilities are compatible with various operating systems, including Windows, Intel x86-64, and ARM-based Linux.

Given the ubiquity and scalability of USB as an expansion bus for modern computers, the CG-1MGDU3A is an essential tool for instantly adding value and control to your USB devices, thereby maximizing your investment.

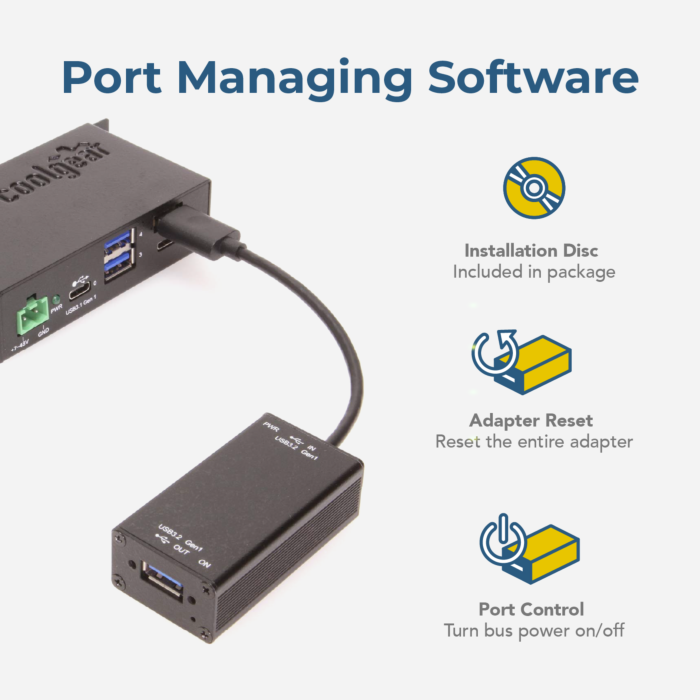

Managing Software

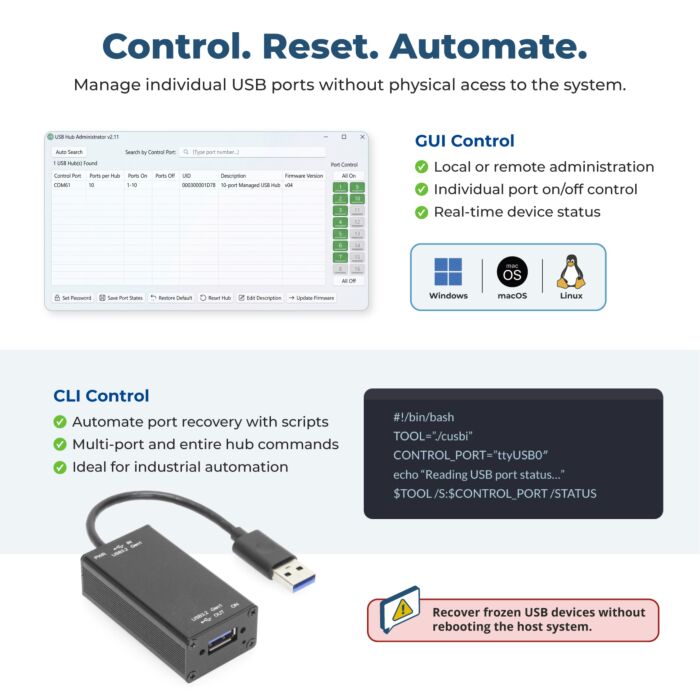

The CG-1MGDU3A software package contains several managing software utilities which support different platforms allowing better control over each individual ports' status. A GUI (Graphical User Interface) and console command prompt utilities for all major Microsoft Windows and Mac OS. It also includes utilities for different Linux versions. The utilities were written to easily operate with the applications software written with different language such as C#, C++, VB, Python or even a PHP server scripting language.

Image: Port managing software displaying the On/Off status of each port.

Features

  • Compliant with USB Specification 3.2 Gen 1
  • Metal Case, DIN Rail and wall mountable
  • Offers screw-locking port for secure connections
  • Software Manageable Bus power
  • Supports software utility for Windows, Linux, and macOS
  • Provides 1 Downstream USB 3.2 Gen 1
  • Supports 5Gbps (Super-speed), 480Mbps (High speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
  • Supports 15KV ESD Level 4 Protection
  • Supports USB Battery Charging v1.2: SDP, CDP, DCP modes
  • Supports Apple 2.4A and Samsung charging

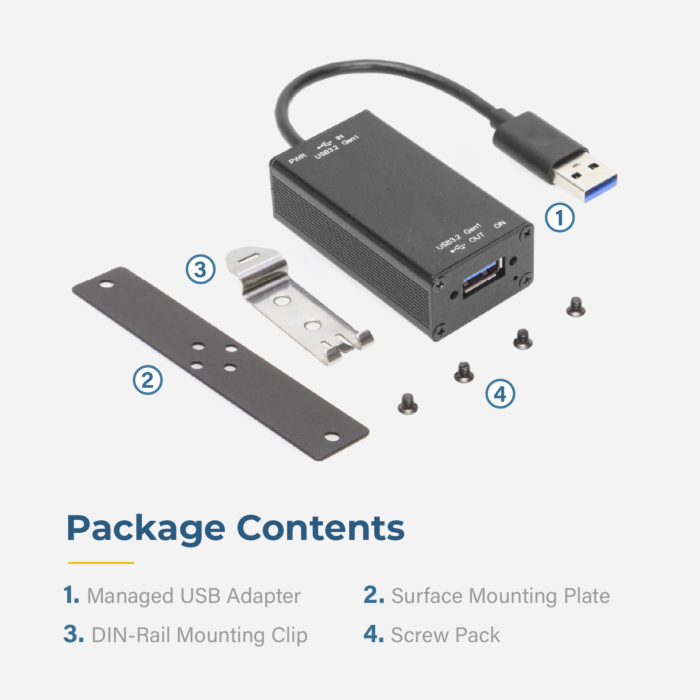

Package Contents

  • 1 Port Managed USB 3.2 Gen 1 Port Adapter
  • Management Software Disc
  • Surface Mounting Plate
  • DIN Rail Clips
  • Screw Pack

*Surface Mounting screws not included.

More Information
Model Number CG-1MGDU3A
UPC 045079164581
Color Black
Manufacturer Coolgear
Warranty 1 Year
OS Compatibility Linux, OSX 10, Windows 11, Windows 10, Windows 8, Windows 7
Country of Origin Taiwan
Material Steel
Short Description

Industrial Grade | Surface Mountable | DIN Rail | 5 Gbps | Screw Lock

  • Advanced Protection: The single port USB 3.2 Gen 1 adapter protects your device with advanced ESD protection. Built-in 15kV ESD surge protection offers you security and assurance that your connected device will be protected.
  • Super Fast Speeds: This USB adapter is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
  • Port Management Integration: Integrates seamlessly with existing hubs to provide enhanced control and management features. Control the port's status, turn bus power on/off, and even reset the adapter through the adapter's management software which supports Windows, Mac, and Linux operating systems
  • Upstream: 1 USB plug, Type A connector
  • Downstream: 1 USB port, Type A connector, Screw-lock type
  • LED Indicators: LEDs for upstream and downstream port to indicate the current bus
  • Mounting Options: Wall, Surface, and DIN Rail
Upstream Port Count 1
Upstream Port Type USB 3.2G1 / 3.0 Type-A Male
Downstream Port Count 1
Downstream Port Type 1x Type A USB 3.2 G1
Max Data Transfer Rate 5 Gbps
LED Indicators Port Status, Power
Input Voltage -
ESD Protection 15KV
Chip Model -
