USB 3.1 4 Port Mini Hub Component Board with ESD & Surge Protection
$32.95
Individual hub circuit board with ESD and Surge protection over each individual USB 3.1 port. USB 3.1 Mini 4 Port component board can be installed by itself in equipmnt or in different configurations for use. Compliant with USB 3.2 Gen1 with up to 5Gbps of data transfer speed.
Availability: Out of stock
Model Number
CG-3510S4-Board
USB 3.1 USB Hub Component Board for 4 Port Hubs

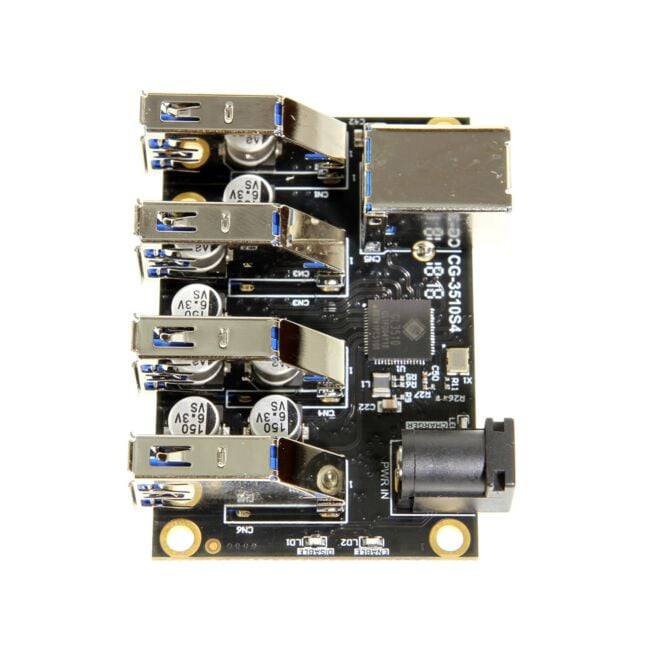

USB 3.1 4 port USB hub component board with ESD and surge protection. The Coolgear CG-3510S4-Board is a 5V DC input, generation 1 USB 3.1 hub circuit board for incorporating into equipment, assemblies, or a custom shells. It will support fast charging for Apple 1A/2.4A and Samsung Galaxy devices.

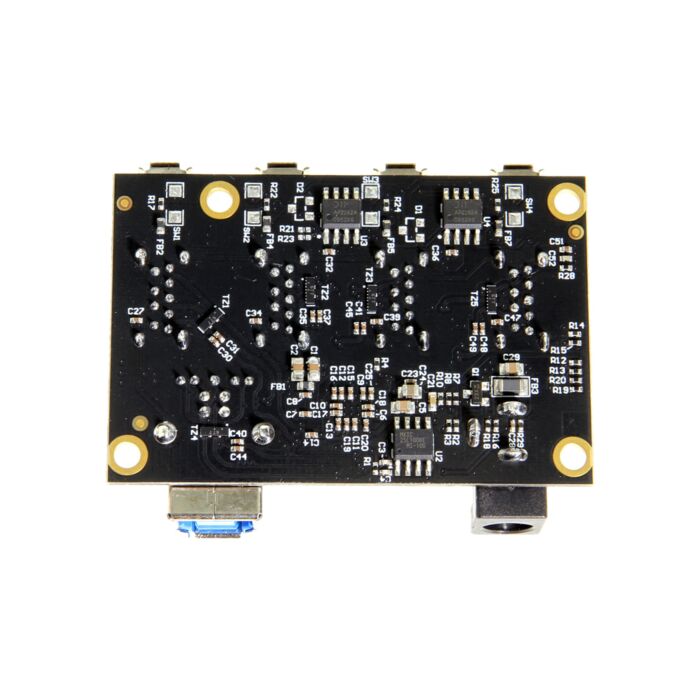

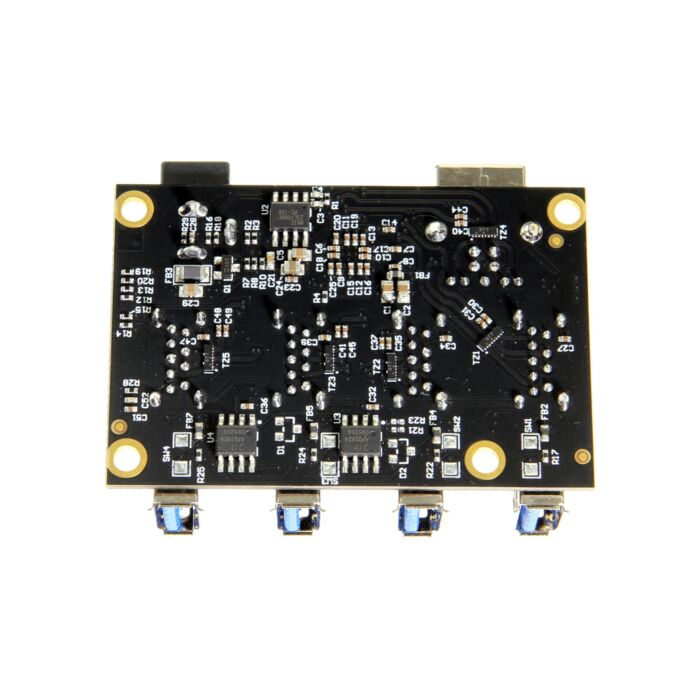

Each port is protected individually to help protect your peripheral investments. The USB 3.1 Hub component board uses a GL3510 chip. The GL3510 Hub controller chip features native fast-charging and complies with USB-IF battery charging specification rev1.2.
USB 3.1 4 Port Mini Hub Component Board Features
- Compliant with USB 3.1 Gen 1 Specification

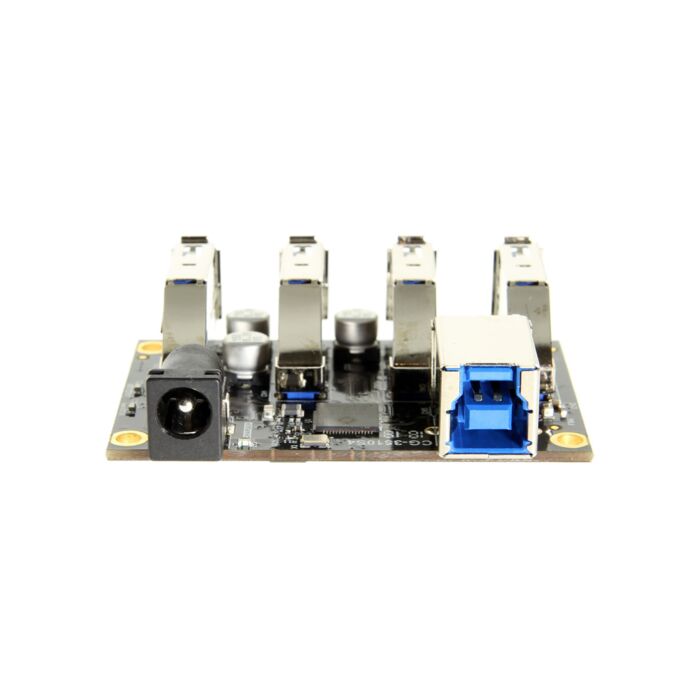

- Upstream USB Type-B port supports Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic

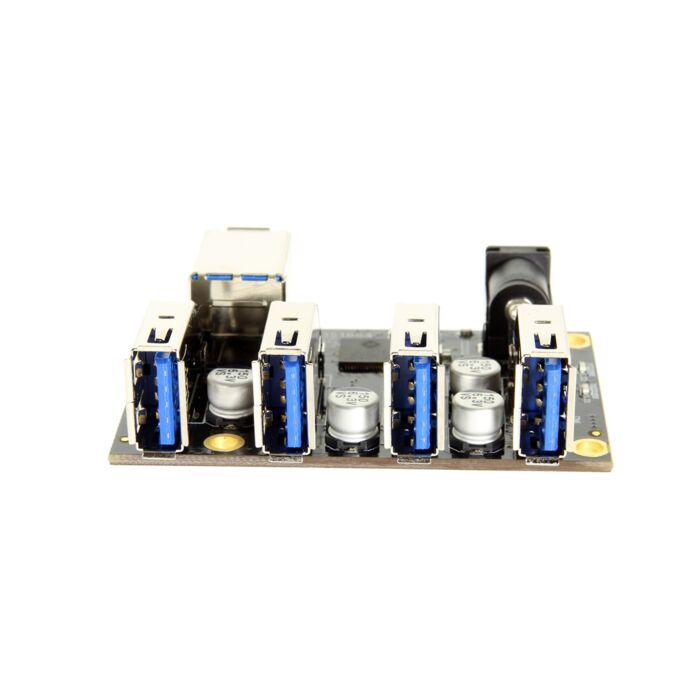

- 4 USB Type-A downstream ports support SS, H , FS, and Low-Speed (LS) traffic
- 1 control pipe and 1 interrupt pipe
- Backward compatible to USB specification Revision 2.0/1.1
- Compliant with USB Battery Charging Revision v1.2, supporting CDP, DCP, and ACA-Dock
- Downstream Type-A ports can be turned from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Port (DCP)
- Downstream devices can be charged while upstream VBUS is not present, which can be applied to charger applications
- Supporting Apple 1A/2.1A/2.4A and Samsung Galaxy devices fast-charging
Specifications
- Chip: GL3510
- USB 3.1 Gen Compliant
- Supports High Speed and Full Speed transmit and Receive
- Complies with USB-IF battery charging specification rev1.2
- Automatic switching between self-powered and bus-powered modes
- RISC-like architecture

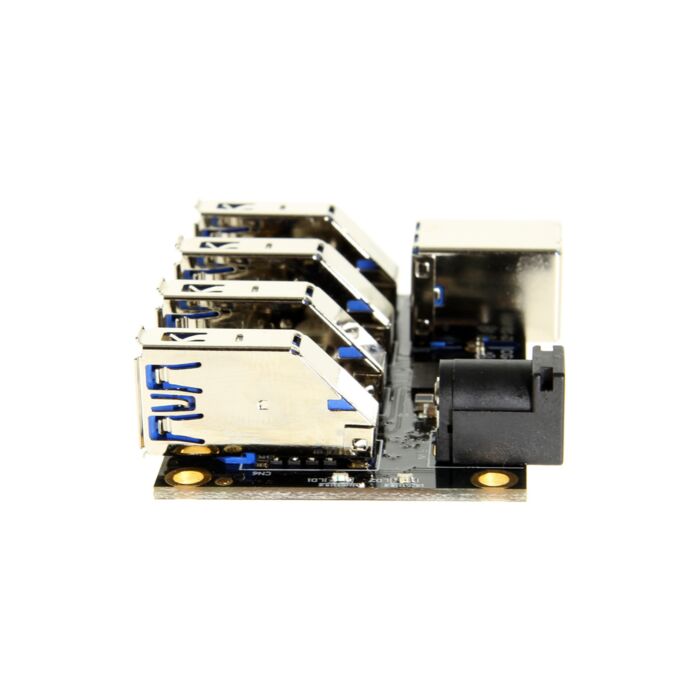

- DC Barrel: 2.5mm Inner Diameter, 5.5mm Outer Diameter, Positive Polarity on Center Pin
- Item Dimensions: 60.33mm(L) x 39.98mm(W) x 17.67mm(H to connector top)
Package Contents
- USB 3.1 4-Port Hub Component Board
| Model Number | CG-3510S4-Board |
|---|---|
| UPC | 045079160842 |
| Color | Black |
| Manufacturer | Coolgear |
| Warranty | 1 Year |
| OS Compatibility | OS independent - No software or drivers required |
| Item Length (in) | 2.38 |
| Item Width (in) | 1.57 |
| Item Height (in) | 0.7 |
| Country of Origin | China |
| Material | N/A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2G1 / 3.0 Type-B Female |
| Downstream Port Count | 4 |
| Downstream Port Type | 4x Type A USB 3.2 G1 / 3.0 |
| Max Data Transfer Rate | 5 Gbps |
| LED Indicators | Power |
| Input Voltage | 5V DC |
| ESD Protection | ±15kV (air), ±8kV (contact) |
| Chip Model | GL3510 |
