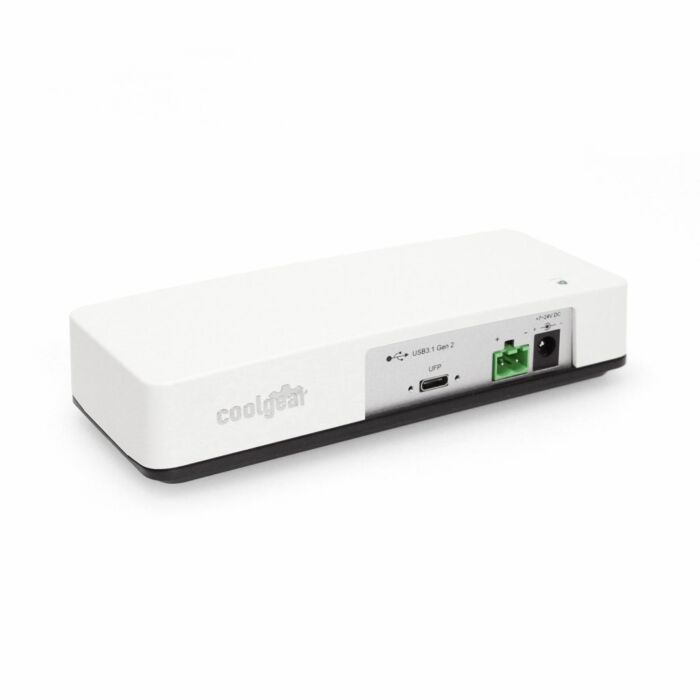

4 Port USB 3.2 Gen 2 Type-C Hub w/ Screw-Locking Ports & Status LEDs
- Super Fast Speeds: This USB hub is 3.2 Gen 2 compliant, ensuring super-fast 10Gbps data transfer speeds. It supports super speed +, high speed and full speed which enables it to be compatible with USB 3.2 Gen 1 / 2.0 / 1.1.
- Secure Connections: Each port features a screw locking for safe and secure USB connections.
- Check Your Ports’ Status: Quickly check the status of each port individually with built in LED indicators.
- Upstream: 1 USB port, Type C connector, Screw-lock type
- Downstream: 2 USB ports, Type C connectors, Screw-lock type & 2 USB ports, Type A connectors, Screw-lock type
- Power Connector: 2-Pin Terminal Block, DC Barrel 2.1mm ID × 5.5mm OD
- LED Indicators: 4 LEDs for each downstream port to indicate the current bus
- Mounting Options: Desktop, Wall, Surface & DIN Rail
Model Number: CG-4P31CHUB
Documentation & Downloads
4 Port USB 3.2 Gen 2 Type-C Hub w/ Screw-Locking Ports & Status LEDs
$141.29
Details
4 Port USB 3.2 Gen 2 Type-C Hub
The CG-4P31CHUB USB 3.2 Gen 2 Type-C Hub is a light weight hub with a DIN Rail Mounting Kit. This hub supports USB 3.2 Gen 2 Super-Speed Plus (10Gbps data transfer) with (2) USB Type-A female and (2) USB female Type-C downstream ports.

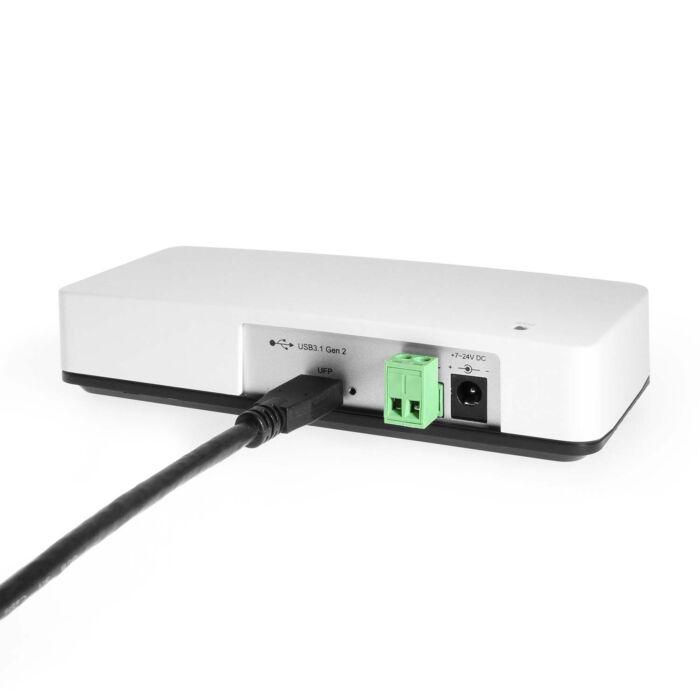

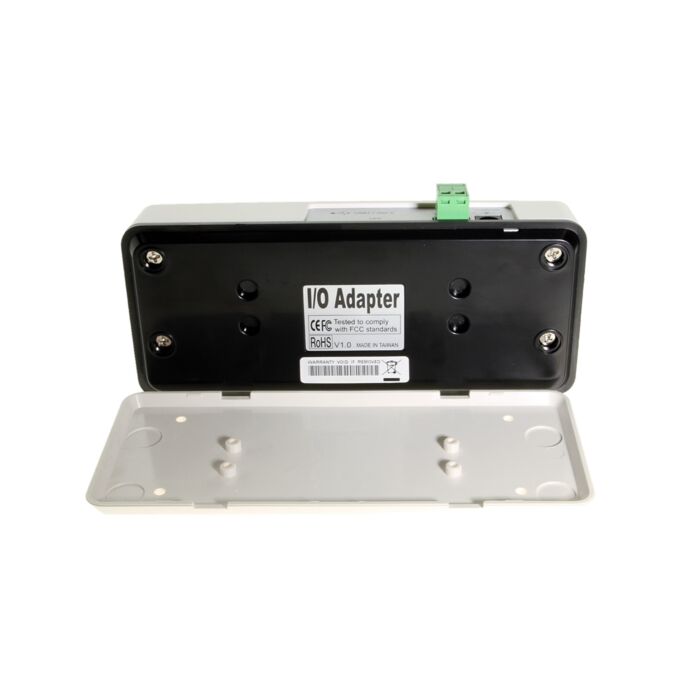

The CG-4P31CHUB USB 3.2 Gen 2 Type-C Hub uses a 2-pin terminal block connection for input power of +7 - 24V DC for the downstream facing ports (power supply is included). It is backward compatible with 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates. The plastic Mounting plate for the DIN Rail Clips snaps on to the bottom of the hub for secure mounting. Upstream information is carried with the USB-C connection on the back panel of the hub.
4 Port Type-C USB 3.1 Gen2 Hub Features
- Compliant with USB 3.1 Gen 2 Specifications
- Rigid plastic Wall and DIN Rail Mounting Case.
- Provides 4 (2 USB-C and 2 USB-A) Downstream facing USB 3.1 Ports
- Supports 10Gbps(Super-Speed Plus), 5Gbps (Super-Speed), 480Mbps(High-Speed), 12Mbps(Full-Speed), and 1.5Mbps(Low-Speed) data rates
- Multi Transaction Translators (TT) per Hub
- Support USB Battery Charging: SDP, CDP and DCP modes
- Built with the VLI VL820-Q8 chip
- Item Dimensions: 152.04mm (L) x 62.45mm (W) x 30mm (H) - 152.04mm (L) x 67.67mm (W) with 2-pin connector x 34.25 (H) with mounting plate
Environmental Specifications
- Operating Temperature: 0°C to 70°C (32 to 158°F)
- Operating Humidity: 5 to 95% RH

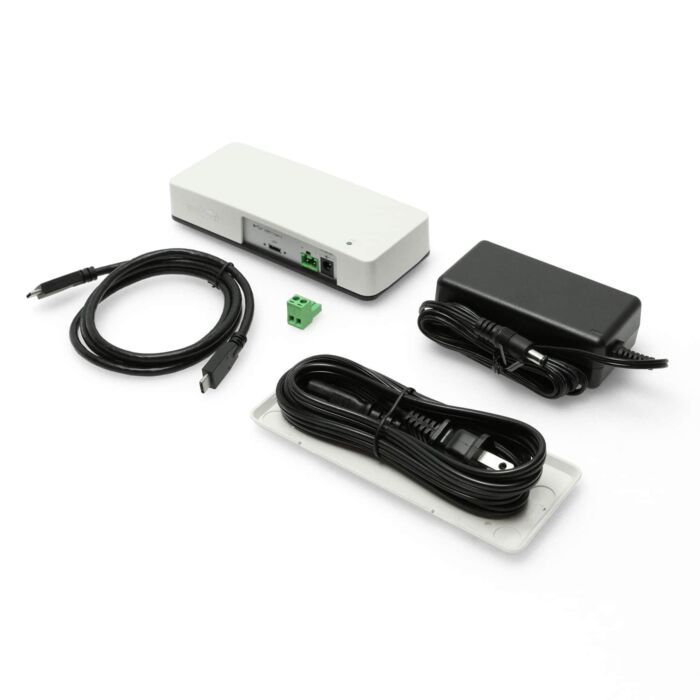

Package Contents
- 4-Port USB 3.1 Gen 2 Type-C Hub

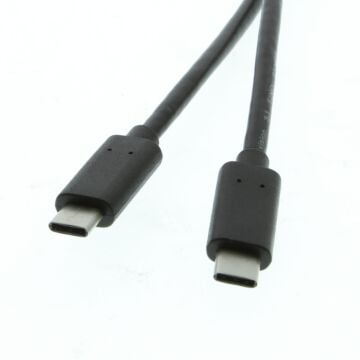

- 3ft. USB-C Male to Male Gen 2 Cable
- Wall and DIN Rail Mounting Plate
- Power Supply
- 4 rubber foot pads
- DIN Rail Mounting Kit
- Paper User Manual
*Surface Mounting screws not included
Technical Specifications
| UPC | 045079159402 |
|---|---|
| Country of Origin | Taiwan |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Item Length (in) | 5.99 |
| Item Width (in) | 2.46 |
| Item Height (in) | 1.18 |
| Item Weight (lbs) | 0.34 |
| Connector(s) | 2-Pin Terminal Block, DC Barrel, USB 3.2/3.x Dual Screw Lock Type A Female, USB 3.2/3.x Dual Screw Lock Type C Female |
| LED Indicators | Power |
| Downstream Port Count | 4 |
| Chip Model | VL820-Q8 |
| Input Voltage | 7 ~ 24V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Max Data Transfer Rate | 10Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type C Female |
