6-Port USB 3.0 Hub enclosed in a Rugged Metal Case
CG-6PU3DH-A is a robust, industrial-grade 6-port USB 3.0 hub. Expands one USB port into 6 USB3.0 Type-A ports.
Model Number: CG-6PU3DH-A
Documentation & Downloads
6-Port USB 3.0 Hub enclosed in a Rugged Metal Case
$88.99
Details
Introduction:
CG-6PU3DH-A is a robust, industrial-grade 6-port USB 3.2 Gen 1 hub. Expands one USB port into 6 USB 3.2 Gen 1 Type-A ports. The Hub fully supports USB 3.2 Gen 1 5Gbps (super-speed) USB2.0 480Mbps (high speed) 12Mbps (full speed) and USB1.1 1.5Mbps (low speed) data rates. Power the hub by connecting a 12V Power supply (not included) Provides up to 900mA current to downstream devices. There is no need for any driver or software installation. By plugging the cable from the USB hub to the host USB port of the PC and connecting your USB devices to the downstream port of the hub, the host PC immediately gains 6 USB ports.
Features:
- Expands one USB 3.2 Gen 1 port into 6 USB 3.2 Gen 1 ports
- Compliant with the USB 3.2 Gen 1 specification
- Each port provides 5V 900mA power to downstream device
- Supports USB 3.2 Gen 1 5Gbps(super-speed) USB2.0 480Mbps (high speed) 12Mbps (full speed) and USB1.1 1.5Mbps (low speed) data rate
- Multiple transaction translator (TT) architecture to each USB downstream (DS) port
- LEDs for power and USB status indication
- Reverse polarity protection to avoid damage to the device
- Power supply with latch locking to the hub preventing from accidental disconnection
- Individual port power management
- Overcurrent protection
- Industrial-grade USB 3.2 Gen 1 hub with metal case suitable for DIN rail mounting
- CE, FCC approval

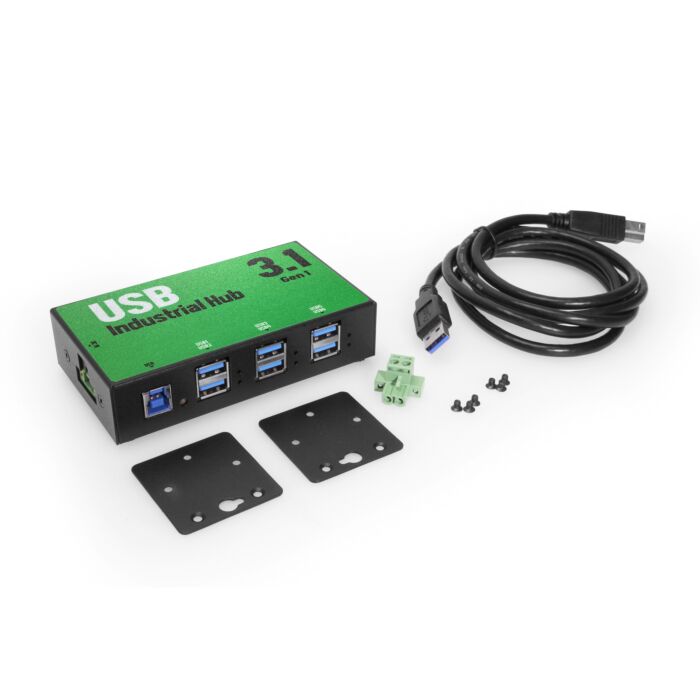

Package Contents:
- 6 Port USB 3.2 Gen 1 Hub
- 2-Pin Terminal Block
- USB Type-A to Type-B Cable
- Mounting Flanges
- Screw Pack
*Surface Mounting screws not included.
Technical Specifications
| UPC | 045079162815 |
|---|---|
| Country of Origin | Taiwan |
| Manufacturer | USBGear |
| Warranty | One Year |
| Item Length (in) | 4.84252 |
| Item Width (in) | 2.67717 |
| Item Height (in) | 1.1811 |
| Item Weight (lbs) | 0.64375 |
| Cable Length | 3 feet |
| Connector(s) | 2-Pin Terminal Block, USB 3.2/3.x Type A Female, USB 3.2/3.x Type B Female |
| LED Indicators | Port Status, Power |
| Downstream Port Count | 6 |
| Chip Model | GL3522 |
| Input Voltage | 9 ~ 30V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
