6-Port (4 Type A 2 Type C) USB 3.0 Hub Rugged Metal Case
The CG-6PU3DH-C is a robust, industrial-grade 6-port USB 3.0 hub. Expands one USB port into 6 USB3.0 ports (four type-A and two type-C ports).
Model Number: CG-6PU3DH-C
Documentation & Downloads
6-Port (4 Type A 2 Type C) USB 3.0 Hub Rugged Metal Case
$96.99
Details
Introduction:
The CG-6PU3DH-C is a robust, industrial-grade 6-port USB 3.0 hub. Expands one USB port into 6 USB3.0 ports (four type-A and two type-C ports). Supports USB3.0 5Gbps (super-speed) USB 2.0 480Mbps (high speed) and USB1.1/1.0 12Mbps (full speed) / 1.5Mbps (low speed) data rates. It is powered by a high-quality industrial-grade switching power supply and provides up to 900mA current to downstream devices. Plug and Play no drivers to install, Plug the cable from the USB hub to the host USB port of the PC, and connect your USB devices to the downstream ports on the hub.
Features:
- Expands one USB3.0 port into 6 USB3.0 ports (four type-A and two type-C connectors)
- Compliant with the USB3.0 specification
- Each port provides 5V 900mA power to downstream device
- Supports USB3.0 5Gbps(super-speed) USB2.0 480Mbps (high speed) 12Mbps (full speed) and USB1.1 1.5Mbps (low speed) data rate
- Multiple transaction translator (TT) architecture to each USB downstream (DS) port
- LEDs for power and USB status indication
- Reverse polarity protection to avoid damage to the device
- Power supply with latch locking to the hub preventing from accidental disconnection
- Individual port power management
- Overcurrent protection
- Industrial-grade USB3.0 hub with metal case suitable for DIN rail mounting
- CE, FCC approval

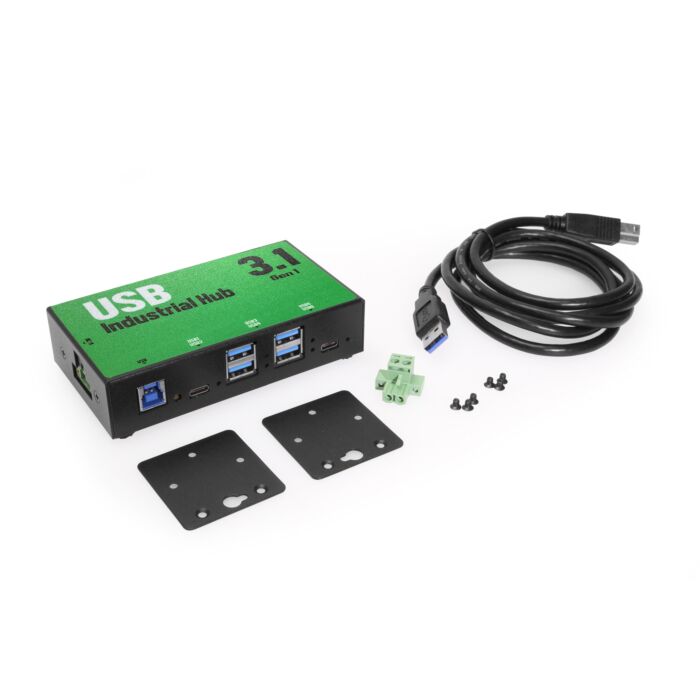

Package Contents:
- 6 Port USB 3.2 Gen 1 Type-C Hub
- 2-Pin Terminal Block
- USB Type-A to Type-B Cable
- Mounting Flanges
- Screw Pack
*Surface Mounting screws not included.
Technical Specifications
| UPC | 045079162808 |
|---|---|
| Country of Origin | Taiwan |
| Manufacturer | USBGear |
| Warranty | One Year |
| Item Length (in) | 4.84252 |
| Item Width (in) | 2.67717 |
| Item Height (in) | 1.1811 |
| Item Weight (lbs) | 0.64375 |
| Connector(s) | USB Type C Female, USB 3.2/3.x Type A Female |
| LED Indicators | Port Status, Power |
| Downstream Port Count | 6 |
| Chip Model | GL3522 |
| Input Voltage | 9 ~ 30V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type C, Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
