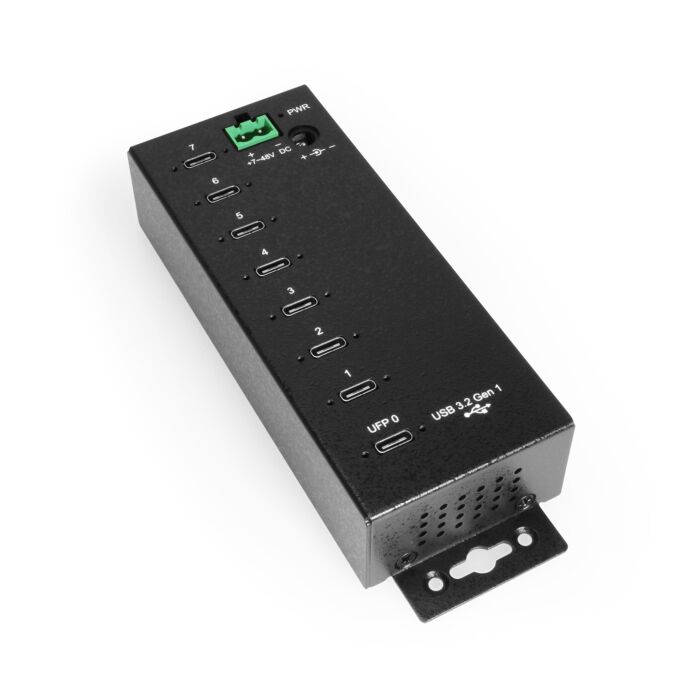

7-port USB-C 3.2 Hub w/ 15KV ESD Surge Protection DIN RAIL Mount
7-Port USB3.2 Gen 1 USB-C Hub, w/ all USB-C ports (UFP 7 DFPs), Metal Case with 15KV ESD Surge Protection, 7~48V DC power input, DIN RAIL Mounting Kit
Model Number: CG-7U3CML
Documentation & Downloads
7-port USB-C 3.2 Hub w/ 15KV ESD Surge Protection DIN RAIL Mount
$182.99
Details
Introduction:
The CG-7U3CML is a 7-port Type-C USB3.2 Gen 1 Metal Hub that complies with the Universal Serial Bus (USB) Specifications Revision 3.1 Gen 1 and works up to 5Gbps. It provides 1 USB-C upstream port and 7 USB-C downstream facing ports.
With the RISC-like USB3.2 controller, the CG-7U3CML is backward compatible with any USB3.2/2.0/1.1 devices which connected to its downstream ports.
The CG-7U3CML provides a unique self-powered mode working with a wide range (+7~48V DC) input DC power from its terminal blocks and DC jack connectors. It supports fast USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into a Charging Downstream Port (CDP) or a Dedicated Charging Port (DCP).
Since the USB is the most popular external port for the devices to connect to PCs and mobile devices, the CG-7U3CML provides an ideal solution to expand your USB ports immediately and save your investment.

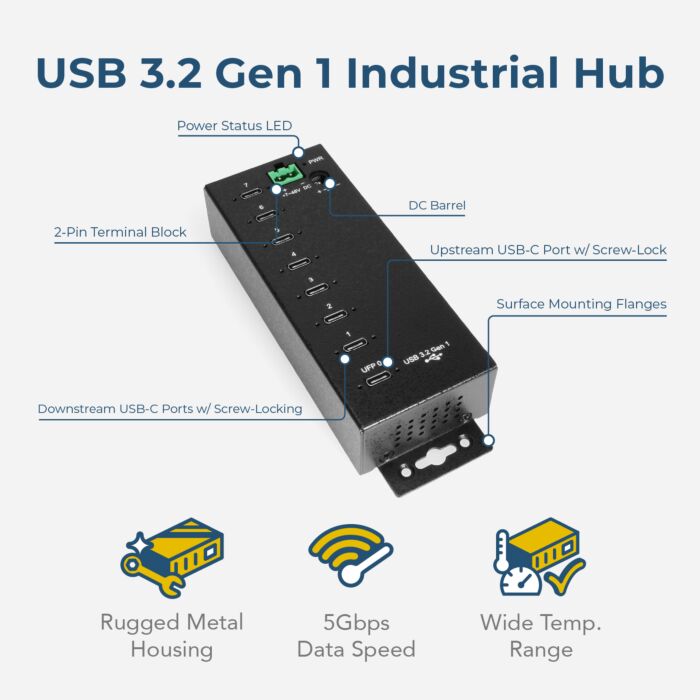

Features:
- Compliant with USB3.2 Gen 1 Specifications
- 1 upstream USB-C and 7 downstream USB-C connectors
- Power connectors: terminal blocks and DC jack
- +7~48V DC wide range power input
- Supports USB-C screw-lock cables
- Detects flip-able/reversible plugging
- Support speeds: 5Gbps (Super-speed), 480Mbps (High-speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed)
- Supports 15KV ESD surge protection for each port
- Multi Transaction Translators (TT) per Hub
- Supports fast USB Battery Charging: CDP and DCP modes
- Provides 0.9A each for all 7 USB downstream ports

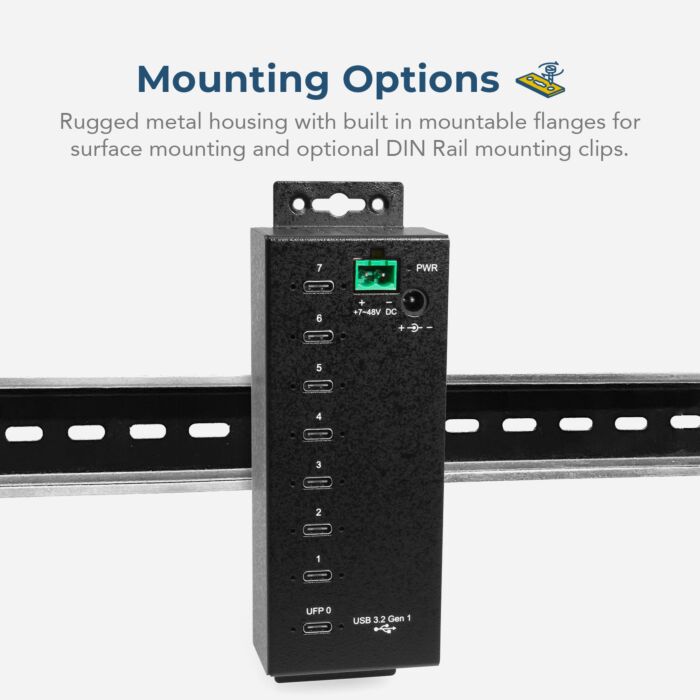

- Supports wall and DIN RAIL mounting options
Environmental:
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Storage Temperature: Standard Models: -20 to 75°C (-4 to 167°F)
- Ambient Relative Humidity: 5 to 95% (non-condensing)
- Altitude: Up to 2000 m
OS Support:
-
Windows, Mac, Linux
Form Factor:

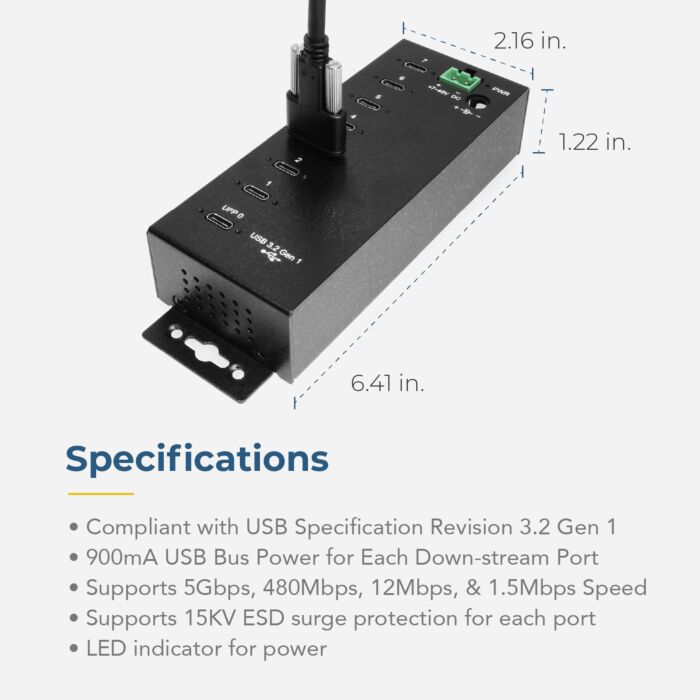

- Dimensions (LxWxH): 163 x 55.0x 31.2 mm (6.41 x 2.16 x 1.22 in)
- Weight: (product only) 300g (0.66 lb)

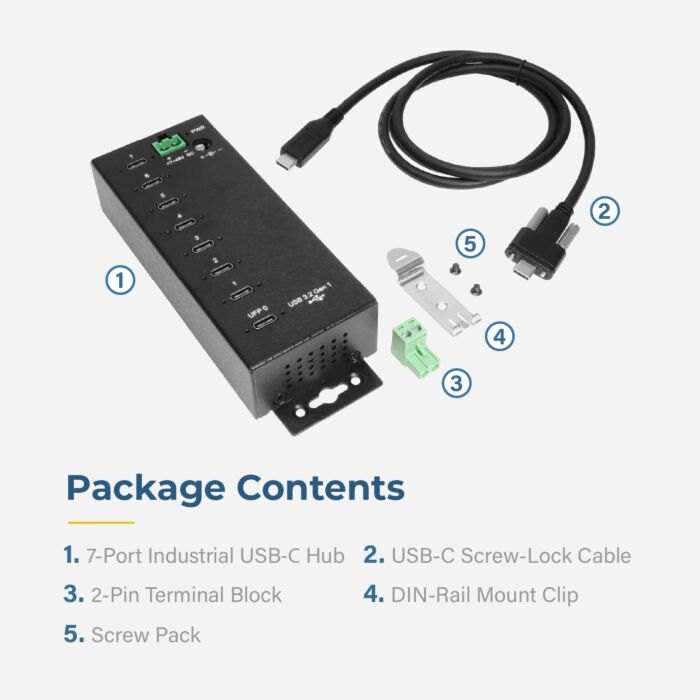

Package Contents:
- USB 3.2 Gen 1 Type-C Hub
- Product Manual
- Din rail clip and screws
- 2 Pin phoenix connector
- 3' Screw lock USB-C to USB-C cable
*Surface Mounting screws not included.
Technical Specifications
| UPC | 045079162495 |
|---|---|
| Country of Origin | Taiwan |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Item Length (in) | 6.5 |
| Item Width (in) | 2.25 |
| Item Height (in) | 1.25 |
| Item Weight (lbs) | 0.66 |
| Connector(s) | 2-Pin Terminal Block, DC Barrel, USB 3.2/3.x Dual Screw Lock Type C Female |
| LED Indicators | Power |
| Downstream Port Count | 7 |
| Chip Model | GL3523 |
| Input Voltage | 7 ~ 48V DC |
| OS Support / Compatibility | OS independent - No software or drivers required |
| ESD Protection | 15kV |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type C |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type C Female |
Reviews (1)
Customer rating
Based on 1 review
- 5 stars: 1 review
- 4 stars: 0 reviews
- 3 stars: 0 reviews
- 2 stars: 0 reviews
- 1 star: 0 reviews
Write Your Own Review
I highly recommend it if you want to go full USB-C. I could not find any alternatives that offered this many ports at gigabit speeds. The only issue I have is it is a bit pricey, but I am paying hoping that in the future that more vendors will offer things like this.I also like that this can be mounted on a rail. I don't use it that way, but if I ever decide I want to save more space on my table that would be great. I also love the screw-in USB-C cable. It is pretty cool and very secure. All the ports seem to have the ability to be secured in this way, but you only get one cable for this out of the box. I am sure that if this was used in an industrial setup or on the wall of a lab that this would be good to ensure nothing can come out or be stressed from the cable being pulled while on the wall. In any case, I recommend it, just note the price. It is well built. Just make sure if you want to power it that you bring your own DC power supply as it is not included.
