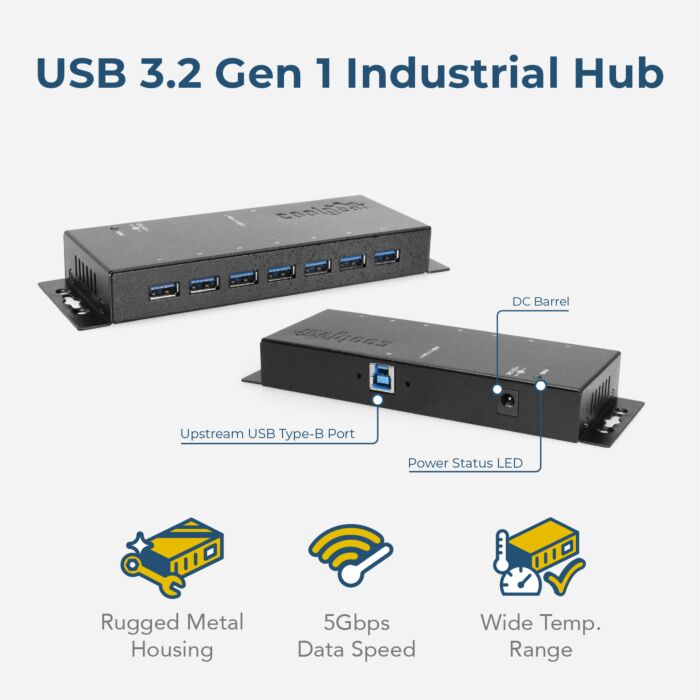

7-Port USB 3.0 Hub w/ Surge Protection, 36W AC Adapter

The CG-7U3DS is a 7-Port USB 3.0 Hub that complies with the Universal Serial Bus 3.0 (USB 3.0) Specifications Revision 1.0 and performs at up to 5Gbps Super-Speed. It provides 7 downstream facing ports with standard Type-A USB 3.0 connectors.

With built-in RISC-like USB 3.0 controller chips, it is backward compatible either when any one of the downstream port is connected to a USB 1.1 or USB 2.0 compliant device, or when the upstream port is connected to a USB 1.1 or USB 3.0 compliant host.

The CG-7U3DS also provides a unique feature to work in the bus-powered mode without an external AC power adapter. It’s very convenient for light power consumption USB devices to work in this mode without an extra power supply. The external DC jack is used for self-powered mode if you need more power on the 7 downstream ports.

USB Device Support

Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more.

7-Port USB 3.0 Hub Features

• Compliant with USB 3.0 Specification Revision 1.0
• Built-in RISC-like USB 3.0 Hub Controller Chips
• Metal Case, Ideal for Critical Applications
• One Up-stream Port (Type-B) Support Super-speed, High-speed and Full-Speed
• 7 Down-stream Ports (Type-A) Support Super-Speed, High-Speed, Full-speed and Low-speed Traffic
• Supports 5Gbps (Super-speed), 480Mbps (High-Speed), 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
• Supports 7 Concurrent Non-periodic Transactions
• Supports Self-powered and Bus-powered Mode
• Supports 900mA USB Bus Power for Each Port
• Support USB Battery Charging: DCP mode
• Supports 350-Watt Surge Protection for Each Port
• Supports DC-Jack for +12V DC Power Input
• Optional DIN RAIL Mounting Kit

• System Specifications
• Provides 7 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic
• 1 Upstream Port for Super-speed, High-speed and Full-speed traffic
• Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps speed
• Supports Self-powered and Bus-powered Mode
• Supports up to 900mA USB Bus DCP modes
• Built-in 350-Watt Surge Protection for each port.

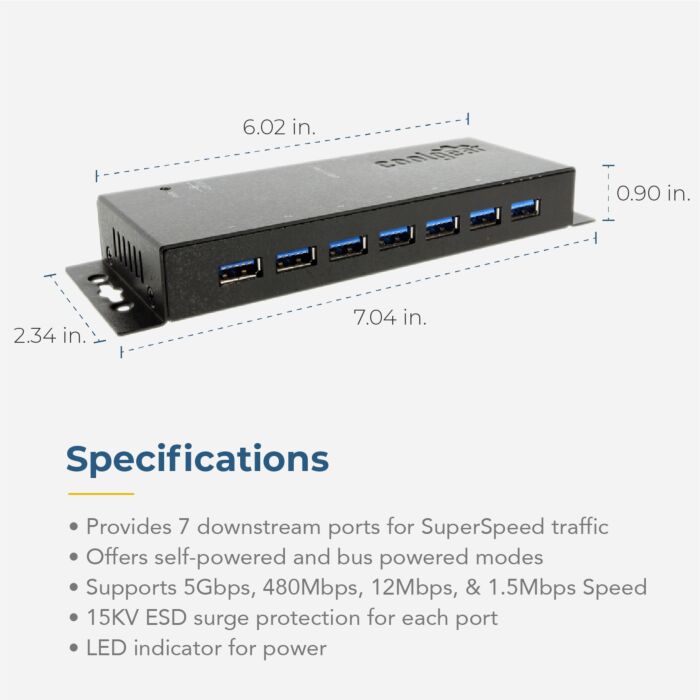

• Dimensions: 152.72mm(L) x 58.96mm(W) x 24.13mm(H) (length with ears 178.21mm)
• Hub Weight: .625 lbs.

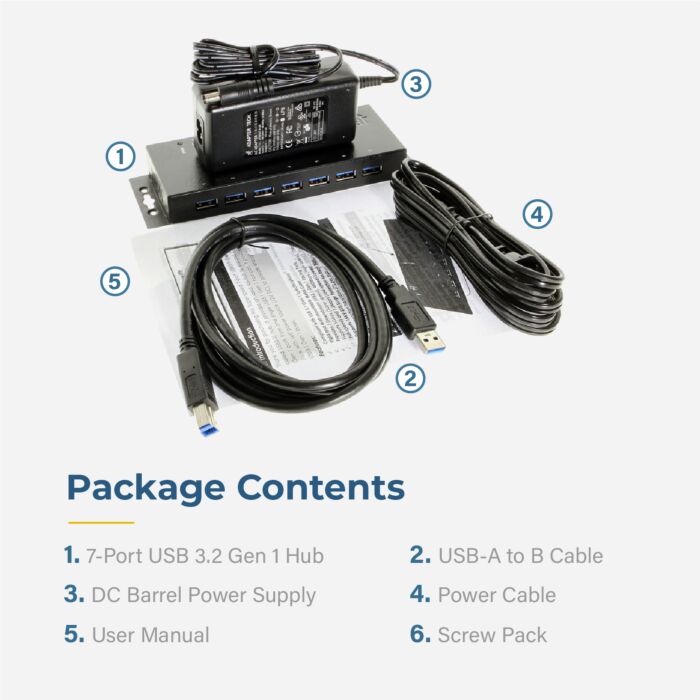

Package Contents:

• 7 Port USB 3.1 Gen1 Hub Industrial Grade
• 2m USB 3.1 A to B Cable
• 12V 3amp Power supply w/power cable (36 Watt total output)
• Product Manual

*Surface Mounting screws not included
