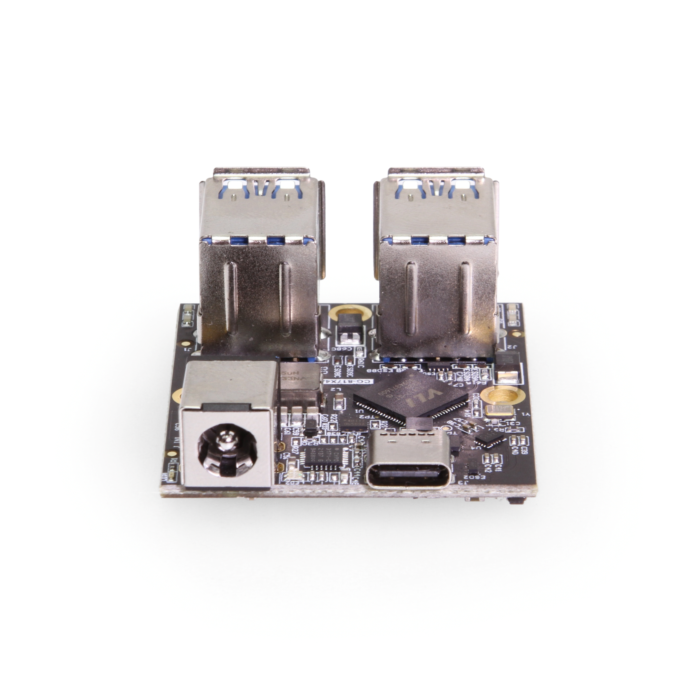

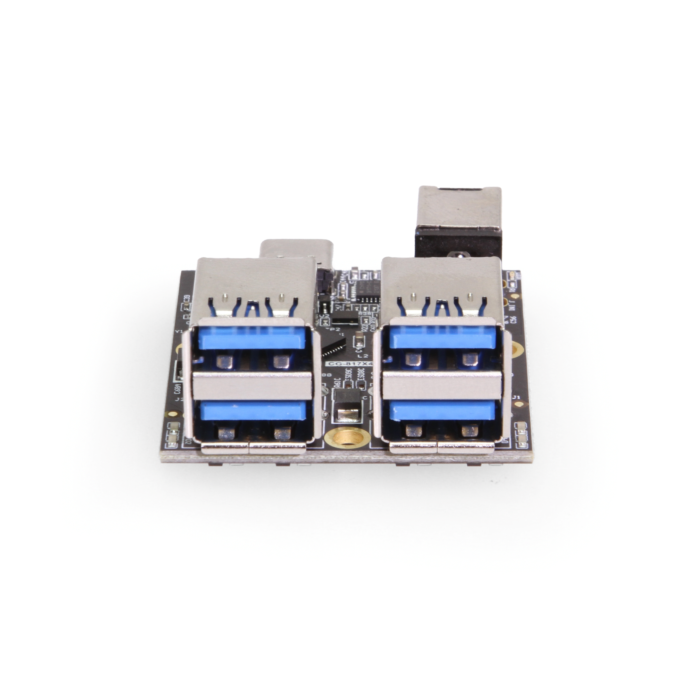

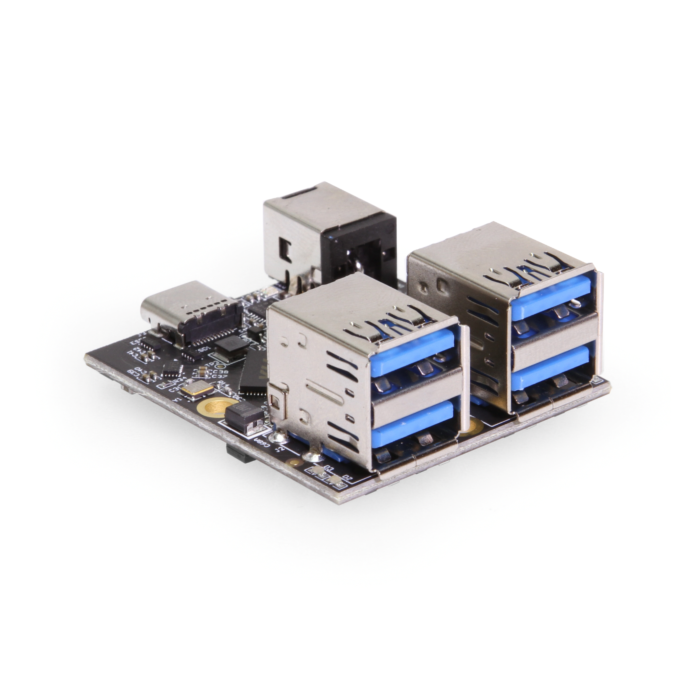

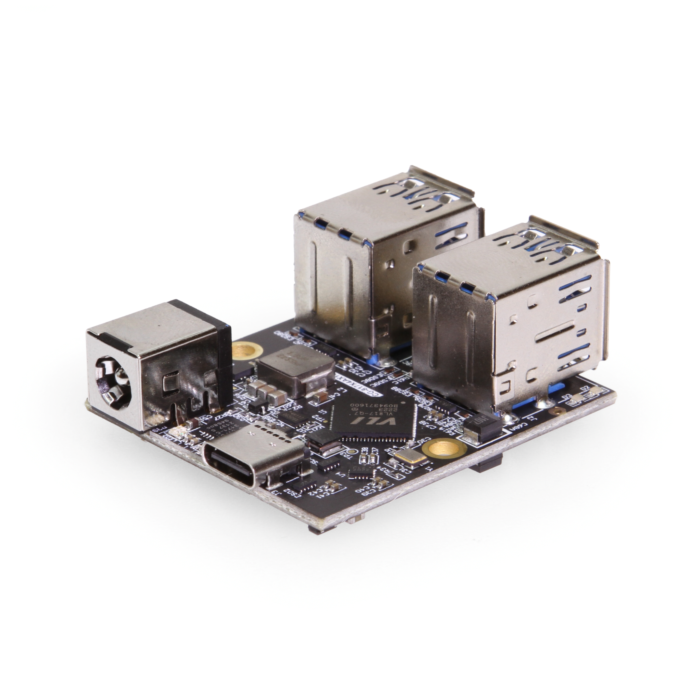

4 Port USB 3.2 Gen 1 Micro Powered Hub PCBA w/ ESD Surge Protection
$64.29
Regular Price
+7~14V DC Input | Surge Protection | 5 Gbps
- Protect Your Equipment: The 4-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
- Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.
- Upstream: 1 USB port, Type C connector
- Downstream: 4 USB ports, Type A connectors
- Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
Availability:
Out of stock
Model Number: CG-817X4AX1C-PD-PCBA
Contact our sales team for availability and lead time, or browse similar products.
Find similar productsDocumentation & Downloads
Details
Introduction:
USB 3.2 Gen 1 powered micro hub PCBA. The CG-U3MICRO4PH is a +7~14V DC input, USB 3.2 Gen 1 hub with ESD and Surge protection. Each port is protected individually to help keep your peripherals safe. This hub uses a CCG3 PD Cypress chip, each port is on an individual circuit to maintain high current and protection.
Features:
- USB PD 3.2 Gen 1 compliant hub capable of providing power to UFP and DFP ports
- CCG3 PD "Cypress" chip inside
- 4 Downstream ports supporting Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
- +7~14V DC variable voltage input
- PD compatible provides advertisement of Single PDO , 5V 3A output on UFP port so it can power low current Mobile devices (tablets/cellphones)
- Independent ESD protection for each port on all Data Lines for USB 2.0 and USB 3.0 (including input port)
- All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of ±15kV exceeding IEC 61000-4-2, level 4
- Independent Current/Over Voltage and Under voltage Protection for all 4 DFP A ports
- Input Power DC jack TVS protected to 16V
- Isolated GND for Shield Connectors
- Multi Color Status LED as well as individual port status LEDs for signal identification
- Tantalum and MLCC capacitors throughout design for extended temperature range and duty cycle
Package Contents:
- USB 3.2 Gen 1 4-Port Micro Hub PCBA
Technical Specifications
| UPC | 045079163973 |
|---|---|
| Manufacturer | Coolgear |
| Warranty | One Year |
| Country of Origin | China |
| Item Length (in) | 1.89 |
| Item Width (in) | 1.58 |
| Item Height (in) | 0.75 |
| Item Weight (lbs) | 0.7 |
| Upstream Port Type | Type C |
| Input Voltage | +7~14V DC |
| Downstream Port Count | 4 |
| Chip Model | VL817 |
| OS Support / Compatibility | Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV Surge Protection for Each Port |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | 4x Type A USB 3.2 G1 / 3.0 |
| Upstream Port Count | 1 |
