ChargeIT Mini 82W USB Type-C High Power PD Charger w/ EU, FCC, TCSA Compliance
$84.99
Regular Price
- USB Type-C PD with PD 3.0 support
- BC v1.2, Apple Charging, AFC, Qualcomm Charging 4.0, QC3.0, QC2.0
- Utilizes CCG3PA and SIC461 BUCK
- Input Voltage Range of 24 ~ 48V DC
- Extensive protection including ESD, over/under current, and short circuit protection
- Compatible with screw-lock USB-C cables to keep your connections secure.
- PD Profiles: 5V-3A, 9V-3A, 12V-3A, 15V-3A, 20V-4.2A
Availability:
In stock
Model Number: CG-PD82HVV
Documentation & Downloads
ChargeIT Mini 82W USB Type-C High Power PD Charger w/ EU, FCC, TCSA Compliance
$84.99
Details
ChargeIT Mini 82W USB Type-C PD Charger
Streamline high-powered charging with the ChargeIT Mini — a compact, industrial-grade USB Type-C PD charger built for demanding environments. Delivering up to 82W via a single USB-C port, it supports multiple charging standards including PD 3.0, QC 4.0, and more. Designed for integration in automotive, industrial, and mobile power applications, the ChargeIT Mini operates on a wide 24–48V DC input range, with robust protection and reliable performance in every setting.
Key Features and Benefits
- High Power Delivery Support: Provides up to 82W through a single USB Type-C port with PD 3.0 compliance for ultra-fast device charging.
- Wide Input Voltage Range: Accepts 24–48V DC input (momentary tolerance up to 60V), making it ideal for automotive, industrial, and mobile power setups.
- Multiple Charging Standards: Supports PD 3.0, QC 4.0/3.0/2.0, Apple Charging, BC v1.2, and AFC for universal compatibility across devices.
- Secure Connections: Compatible with screw-lock USB-C cables to ensure stable, secure connections even in vibration-prone environments.
- Advanced Power Components: Utilizes CCG3PA and SIC461 BUCK for efficient, high-reliability power conversion and delivery.
- Comprehensive Protection: Includes built-in safeguards for ESD, overcurrent, undervoltage, and short circuit protection, ensuring device and user safety.
- Compact Industrial Design: Small footprint and rugged build for easy integration in confined or demanding installation scenarios.
Package Contents
- ChargeIT Mini 82W USB Type-C PD Charger

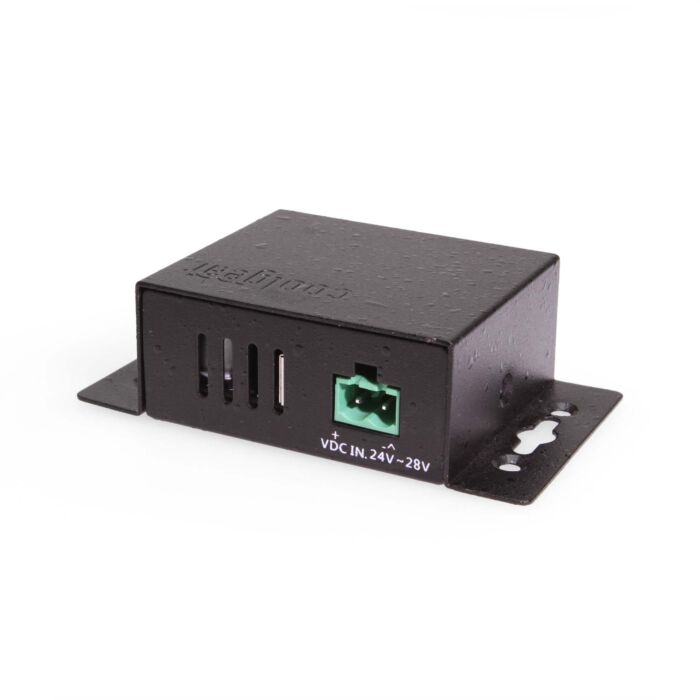

- 2-Pin Terminal Block connector (for DC input)

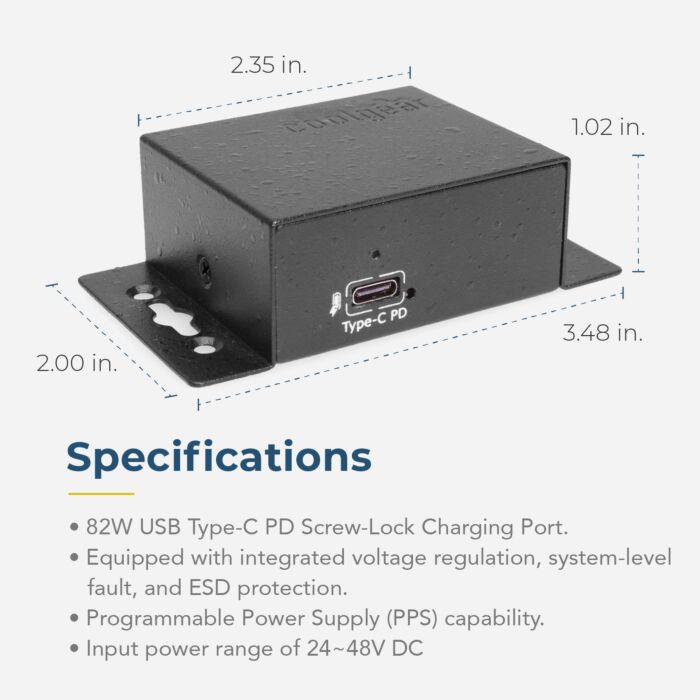

Technical Specifications
| UPC | 045079163751 |
|---|---|
| Country of Origin | China |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Item Length (in) | 3.48 |
| Item Width (in) | 1.99 |
| Item Height (in) | 1.03 |
| Item Weight (lbs) | 0.037 lbs |
| Connector(s) | 2-Pin Terminal Block, USB Single Screw Lock Type C Female, USB 3.2/3.x Single Screw Lock Type C Female |
| Downstream Port Count | 1 |
| Chip Model | Cypress CCG3PA |
| Input Voltage | 24~48V DC |
| OS Support / Compatibility | OS independent - No software or drivers required |
| ESD Protection | 15kV Surge Protection |
| Max Data Transfer Rate | N/A |
| Downstream Port Type | Type C (Charging Only) |
