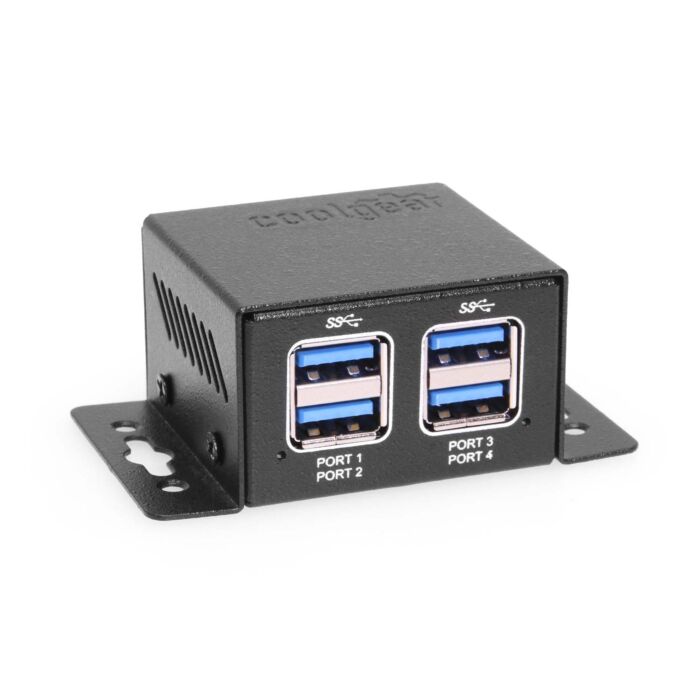

4 Port USB 3.2 Gen 1 Micro Powered Hub w/ ESD Surge Protection & Power Adapter

Be the first to review this product

$84.99

Industrial Grade | +7~14V DC Input | Surge Protection | Surface Mountable | 5 Gbps

Protect Your Equipment: The 4-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm.
Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1.

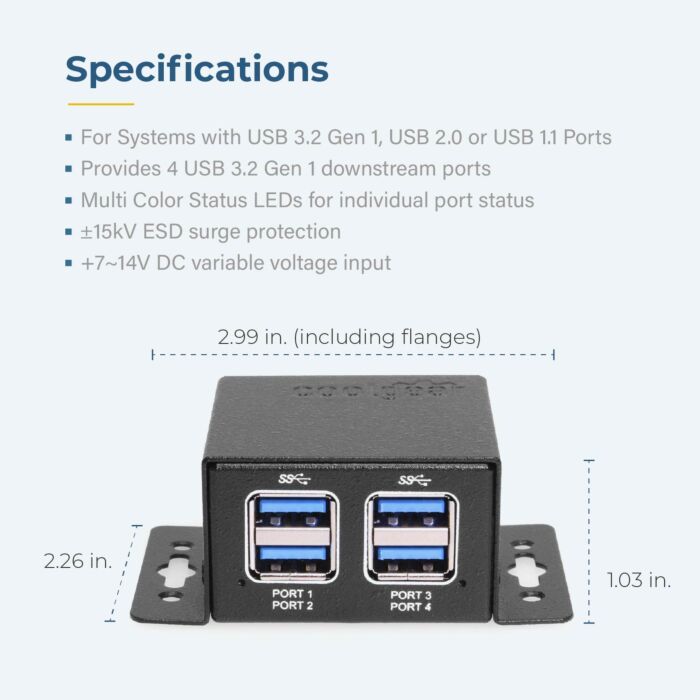

Small-Scale Quality: Housed in an extremely compact steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.

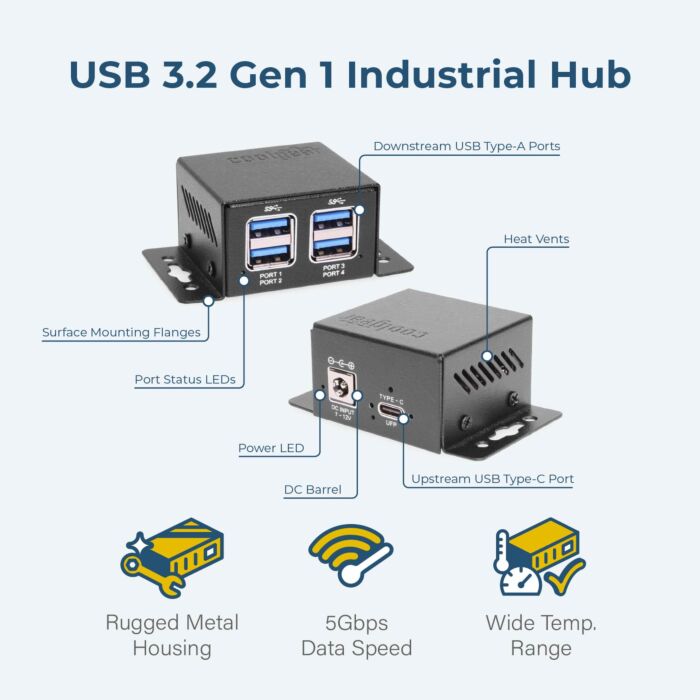

Upstream: 1 USB port, Type C connector, Screw-Lock Compatible
Downstream: 4 USB ports, Type A connectors

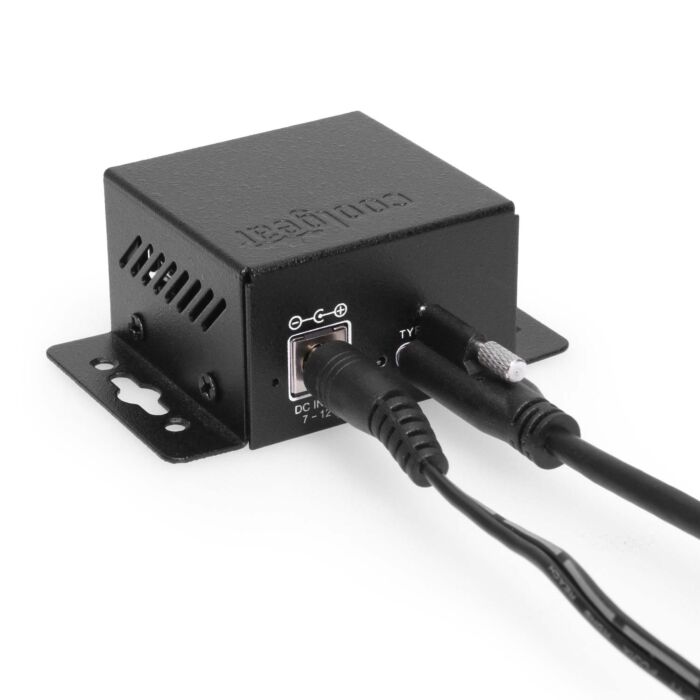

Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive
Chipset: VLI 817 Controller

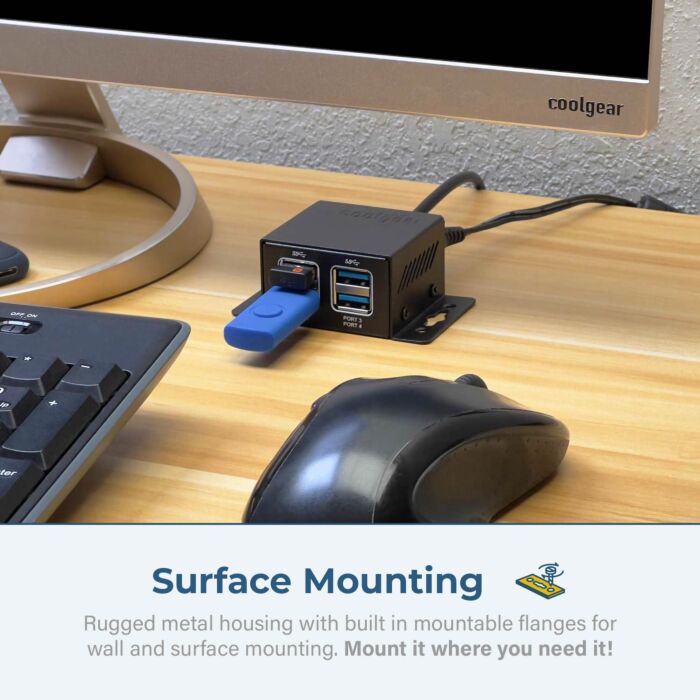

Mounting Options: Wall & Surface

Availability: Out of stock

Model Number

CG-U3MICRO4PH

Notify me when this product is in stock

Details

Introduction:

USB 3.2 Gen 1 powered micro hub with industrial-grade chassis and surface mounting flanges. The CG-U3MICRO4PH is a +7~14V DC input, USB 3.2 Gen 1 hub with ESD and Surge protection. Each port is protected individually to help keep your peripherals safe. This micro hub utilizes a VLI 817 Controller, featuring full compliance with USB 3.2 Gen 1 specifications.

Features:

USB 3.2 Gen 1 compliant hub capable of providing power to UFP and DFP ports
4 Downstream ports supporting Super-Speed (SS), High-Speed (HS) and Full-Speed (FS) traffic
Offers a screw-locking upstream port
+7~14V DC variable voltage input
Independent ESD protection for each port on all Data Lines for USB 2.0 and USB 3.0 (including input port)
All signal lines with integrated rail-to-rail clamping diodes for downstream ESD protection of
±15kV exceeding IEC 61000-4-2, level 4
Independent Current/Over Voltage and Under voltage Protection for all 4 DFP A ports
Input Power DC jack TVS protected to 16V
Isolated GND for Shield Connectors
Multi Color Status LED as well as individual port status LEDs for signal identification
Tantalum and MLCC capacitors throughout design for extended temperature range and duty cycle

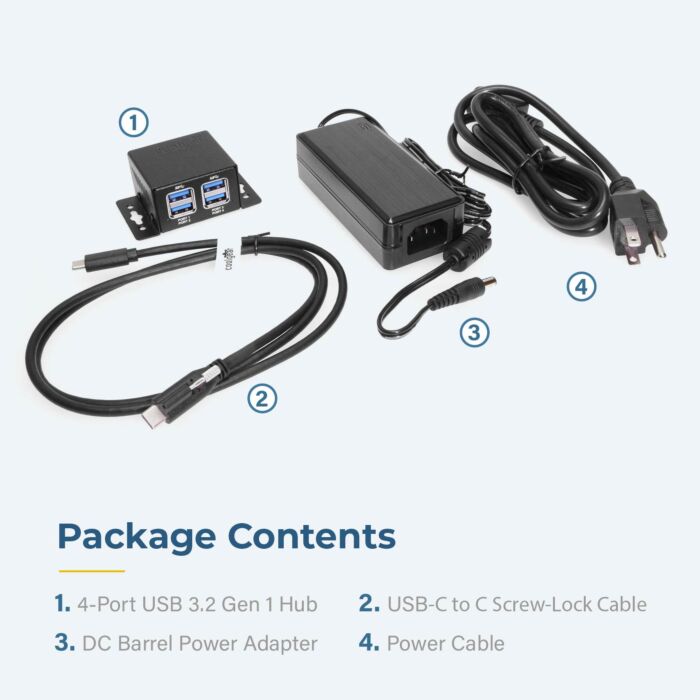

Package Contents:

USB 3.2 Gen 1 4-Port Micro Hub
12V DC Power Supply

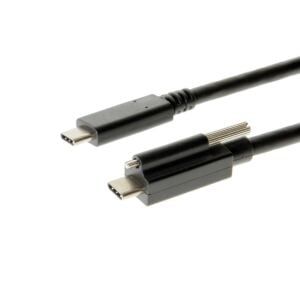

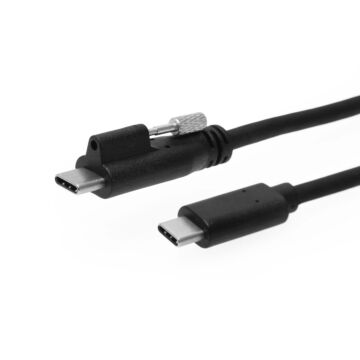

3ft. USB-C to C Single Screw-Locking Cable for Hub

*Surface Mounting screws not included.

More Information

More Information
Model Number	CG-U3MICRO4PH
UPC	045079163959
Color	Black
Manufacturer	Coolgear
Warranty	1 Year
OS Compatibility	OS independent - No software or drivers required
Country of Origin	China
Material	Steel
Short Description	Industrial Grade \| +7~14V DC Input \| Surge Protection \| Surface Mountable \| 5 Gbps Protect Your Equipment: The 4-port hub features 15kV ESD surge protection to keep your connected peripherals safe from harm. Super Fast Speeds: This USB hub is 3.2 Gen 1 compliant, ensuring super-fast 5Gbps data transfer speeds. It supports super speed, high speed and full speed which enables it to be compatible with USB 2.0 / 1.1. Small-Scale Quality: Housed in an extremely compact steel chassis, the 4-port hub is perfect for discreet installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications. Upstream: 1 USB port, Type C connector, Screw-Lock Compatible Downstream: 4 USB ports, Type A connectors Power Connector: DC Barrel 2.5mm ID × 5.5mm OD, Center Pin Positive Chipset: VLI 817 Controller Mounting Options: Wall & Surface
Upstream Port Count	1
Upstream Port Type	Type C
Downstream Port Count	4
Downstream Port Type	4x Type A USB 3.2 G1 / 3.0
Max Data Transfer Rate	5 Gbps
Input Voltage	7 ~ 14V DC
Chip Model	VL817-Q7
