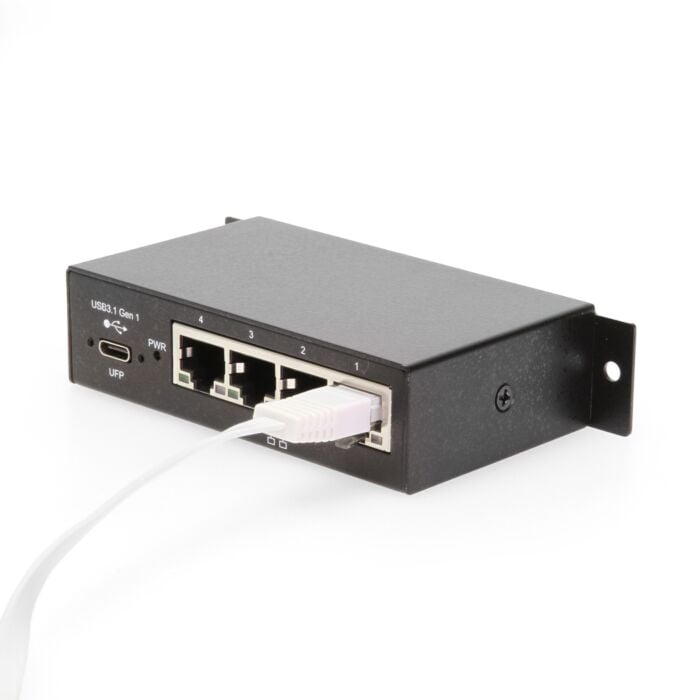

4-Port Industrial Gigabit Ethernet to USB 3.2 Gen 1 Type-C Adapter

Introduction:

The CG-UC4PGNET USB 3.2 Gen 1 to 4 Port Industrial Gigabit Ethernet Adapter provides 4 Gigabit Ethernet ports to your laptop, desktop, server, and Thin-Client computers. Each of the Gigabit Ethernet ports can be individually turned on or off via the built-in DIP Switches. Simply connect it to an available USB 3.2 Gen 1 port and you’re ready for gigabit network speeds.

With built-in Windows drivers on the adapter’s hardware, the installation is very simple, just plug and go! The system will install the Windows drivers automatically.

The Universal Serial Bus (USB) 3.2 Gen 1 Super-Speed specification works up to 5Gbps as it provides lightning-fast gigabit speeds. Upgrade your network’s bandwidth to accommodate large file transfers, data backups, or access your network storage. The CG-UC4PGNET provides an ideal solution to expand your Ethernet ports immediately and save your investment.

Features:

• Compliant with USB Specification 3.2 Gen 1

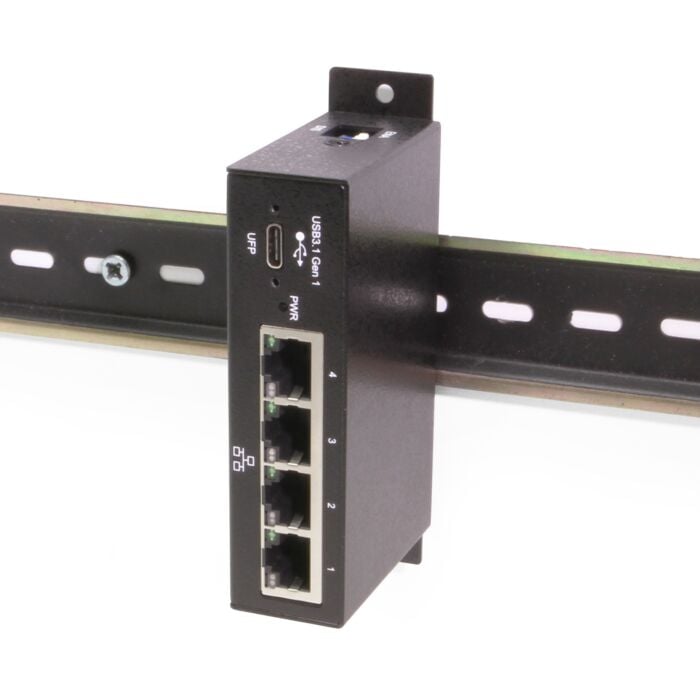

• Supports wall, surface, and optional DIN-Rail mounting for Industrial Critical Applications
• Adds 4 RJ45 Gigabit Ethernet ports (10/100/1000M)
• Features an upstream Type-C USB 3.2 Gen 1 (5 Gbps) port, backwards compatible with USB 2.0 and USB 1.1
• Easy installation for Windows, simply plug and play
• Supports all USB Power Saving Modes

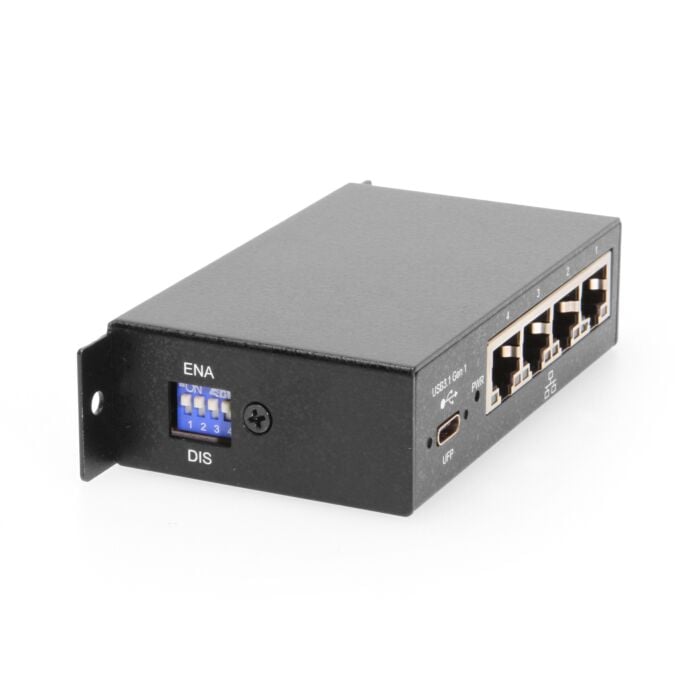

• A DIP Switch to instantly enable/disable each port
• Supports IEEE 802.3, 802.3u, and 802.3ab, 802.1Q
• Supports IEEE 802.3az-2010 (Energy Efficient Ethernet)
• Supports Jumbo Frames up to 9K Bytes
• Supports Microsoft AOAC (Always On Always Connected)
• LEDs for Ethernet Status and Data Transferring Speed
• Supports USB-C Dual Screw-Lock Cable Mechanism
• Supports Windows, Mac OS and Linux

USB 3.2 Gen 1 Port

• Compliant with USB Specifications 3.2 Gen 1
• Plug and Play and Hot-swappable, no additional hardware installation required
• Backward compatible with USB 2.0 and 1.1 Standards
• Supports USB Screw-Lock Features
• Supports USB Power Saving Features

Gigabit Ethernet Ports

• IEEE 802.3, 802.3u, and 802.3ab, 802.1Q Compatible
• Supports IEEE 802.3az-2010 (Energy Efficient Ethernet)
• Provides LINK/ACT and SPEED LED Indicators
• Provides a DIP Switch to Enable/Disable Each Port
• Supports NDIS5, NDIS6 Checksum Offload Engine (IPv4, IPv6, TCP, UDP)
• Supports 10/100/1000M Ethernet Speeds
• Supports suspend mode and remote wake-up
• Supports crossover detection and auto- correction
• Supports Jumbo frame up to 9K Bytes

Operating Systems

• Microsoft Windows 10, 8.x (x86, x64), 7 (x86, x64), Vista, XP
• Windows Embedded Compact 7 (CE 7.0), CE 6.0 and CE 5.0
• Linux
• Mac OS X

I/O Hardware

• Supports 1 Upstream USB 3.2 Gen 1 Type-C connector with Dual Screw Lock Mechanism.
• Supports 4 Gigabit RJ45 connectors with Speed and Link/Act LED Indicators.

Environmental

• Operating Temp.: 0 to 70°C (32 to 131°F)
• Storage Temp: -20 to 85°C (-4 to 185°F)
• Operating Humidity: 5 to 95% RH

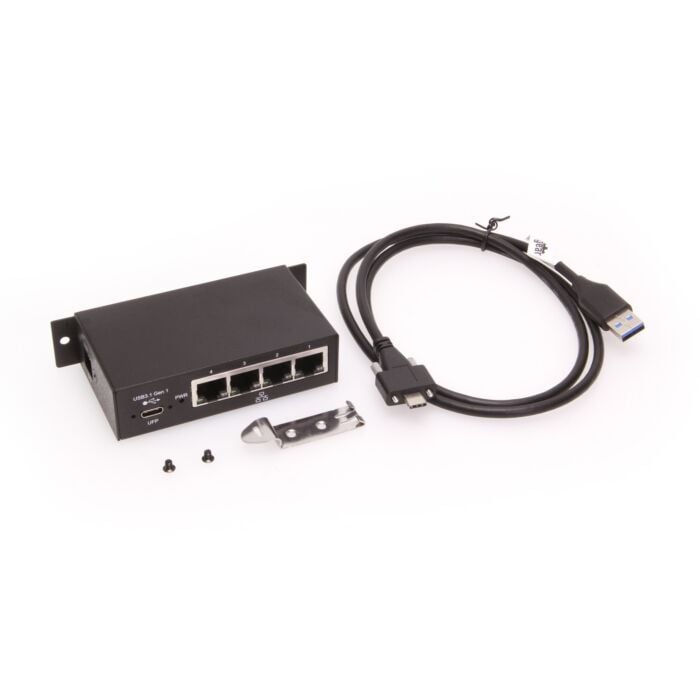

Package Contents:

• 4 Port Gigabit Ethernet Adapter

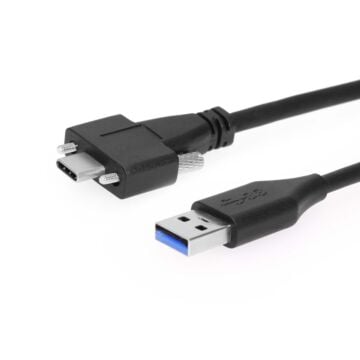

• USB-A to Screw Lock USB-C Cable

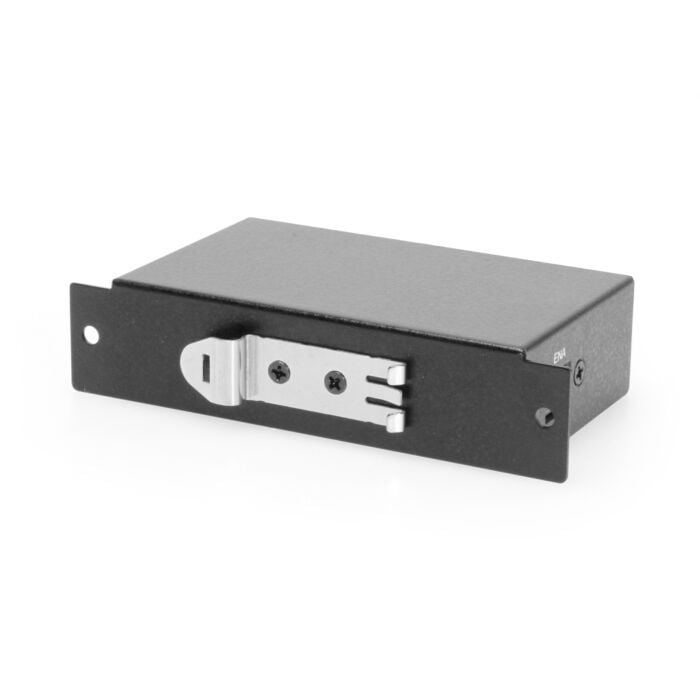

• DIN-Rail Clip
• Screw Pack
