DIN-RAIL-CLIP for all USBGear/SerialGear/Cablemax/CoolGear Adapters

DIN Rail Mounting Kit

Installation Guide

The DIN-RAIL-CLIP DIN rail mounting kit is designed to provide DIN rail mounting capabilities to the mounting devices of our industrial USB to Serial adapters, USB over IP adapter, Serial to Ethernet Servers, and all those models designed with DIN rail brackets. This mounting kit can support 3rd-party manufacturers’
mounting devices for the mounting onto standard 35mm DIN rail (7.5mm and 15mm depth).

The package includes a pair of DIN rail clips and 6 thread-forming screws. It contains all the necessary accessories for mounting. On the flat surface of the clip, there are 3 screw holes for affixing the clips to the mounting device.

Installation Steps

Complete the following steps to install the DIN rail clips to the device and mount onto the rail:

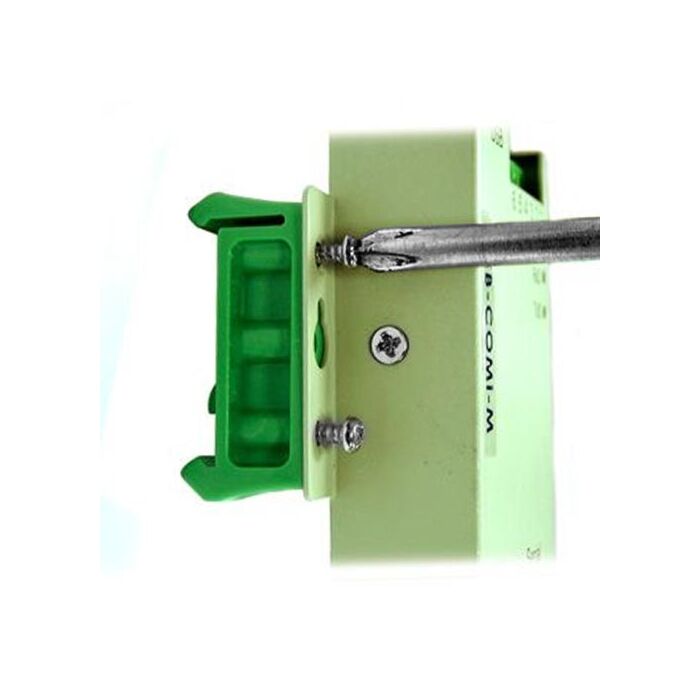

1. Put the flat surface of the DIN rail clip against the back of DIN rail bracket
2. Align the holes on the DIN clip with the holes on the DIN rail bracket
3. Insert the screws provided in the package into the holes on the DIN rail bracket, and tighten the screws to the clip (Fig.2)

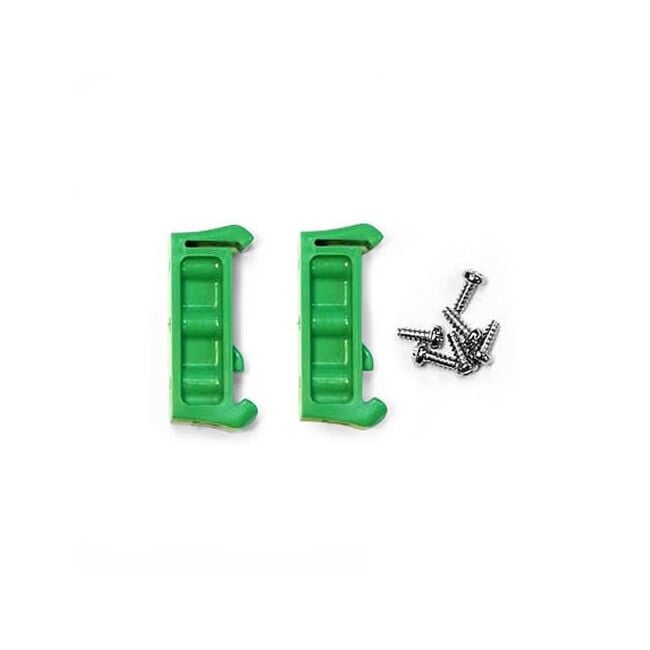

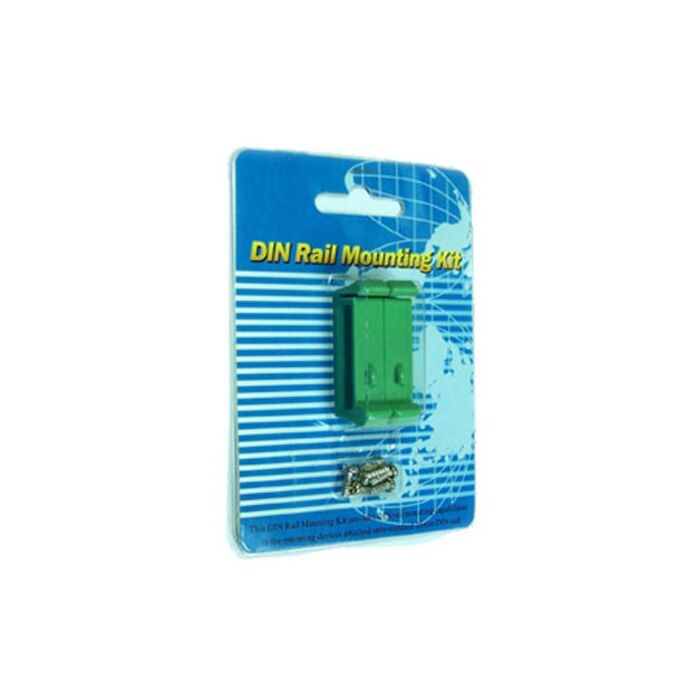

DIN-RAIL-CLIP Package content

1. Two DIN rail clips
2. Six thread-forming mounting screws
