12 inch eSATA DATA Cable Extension Male to Female

Part # ECX-12

Status: Available

eSATA DATA Cable Extension Male to Female

12 inch eSATA DATA Cable Extension Male to Female

Part # ECX-12
Product Image
  • Product Image Thumbnail

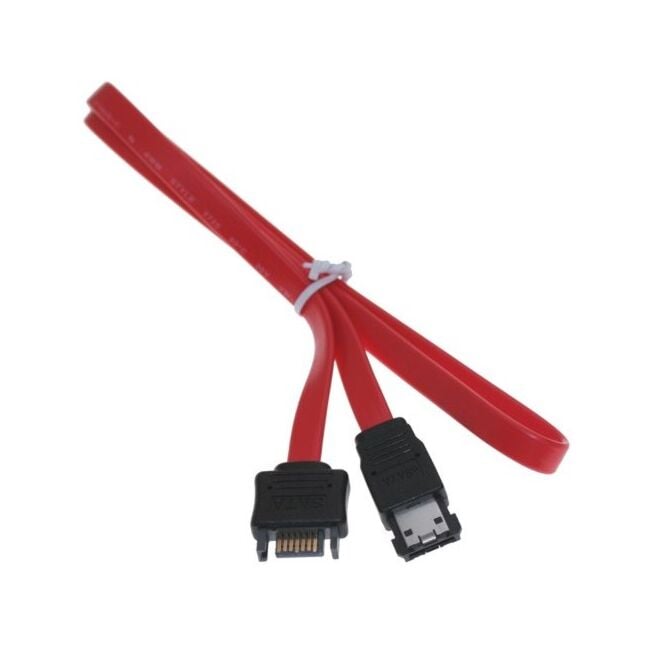

SATA signal cable extension sata cable extender available in 12 and 20 inch versions male to eSATA male cable

Male to Female eSATA Cable Extension

This cable provides a Male and Female Sata Port for Extending SATA I or SATA II Data Cables. A must have for all Tech Benches, Hard Drive Service Centers and anyone that need to Extend SATA Cables.

7-pin internal SATA extension cable, female to male Serial ATA 150 Cable for Serial ATA 150/300 hard drives

Features and Specs

  • Serial ATA interface 1 device
  • 12 or 20 inch Cable: [(26 AWG * 1P + A)+28AWG*2C]*2 , AWM STYLE 2725 80 Degrees Celcius 30V VW-1
  • Signal Pair Conductor: 26AWG Solid Tinned Copper
  • Isolator: Foam PE or Foam PP
  • Shielding: Hot Melt Aluminum Mylar Spirally Wrapped
  • Drain Wire: 28AWG Solid Tinned Copper
  • Jacket: 80 degree Celsius PVC OD 2.2mm*7.80mm +/- 0.2
  • Connector Material Housing: Temperature polyester & glass fiber , UL 94V-0
  • Terminal: Copper Alloy
  • Cover: ABS, UL 94V-0
  • Plating Contact area: 15u" gold plated over 50u" Nickel
  • High Frequency Character: Impedance: 100 +/- 15 ohms (Mated Connector)
  • Attenuation: 6 dB Max from 10MHz ~ 4500 MHz
  • Crosstalk(NEXT): -26dB Max from 10MHz~4500MHz
  • Intra Pair Skew: 10 ps
  • Max Rise Time: 85 ps Max

Sometimes you need a product in a flash and just want to verify an item is in stock. Other times you have a specific question regarding a product, shipping method, or your order. Use the form below and we will help. Please refrain from spam, we only log this information to our database for 24-hours and then it's gone.


Manufacturer: SATACablesWarranty: 1 YearAvailability: Available
Barcode: 736983903815Ship Weight: 0.04Condition: New
Part Number: ECX-12Color: RedLength/Size: 12 inches
Connector 1: SATA 7 PINConnector 2: Wire Guage: /


Manufacturer: SATACables
Barcode: 736983903815
Part Number: ECX-12
Warranty: 1 Year
Ship Weight: 0.04
Color: Red
Availability: Available
Condition: New
Conenctor 1: SATA 7 PIN
Conenctor 2:
Wire Gauge: /
