10-Port USB 3.2 Gen 2 Hub - 6 Type-A Ports, 4 Type-C Ports, & ESD Protection
$129.99
Regular Price
- Extensive Connections: Expand your host system’s peripheral capabilities with 4 USB Type-C ports and 6 additional USB Type-A ports.
- Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. Housed in a steel metal chassis, this hub is ready to tackle harsh industrial environments.
- Flexible Power: Power your way with a wide input voltage range of 9 ~24V DC. Power either via DC Barrel power supply or through a 3-Pin Terminal Block.
- Lightning Fast Data Transfers: Experience fast data transfer rates with USB Type-C ports offering 10Gbps and USB Type-A ports offering 5Gbps.
- Upstream: USB Type-C (Screw-Locking)
- Downstream: 6 USB Type-A, 4x USB Type-C (Screw-Locking)
- Power Input: 3-Pin Terminal Block, DC Barrel
- Mounting Styles: Surface, Wall, and DIN-Rail
Availability:
In stock
Model Number: GM-HU310CA
Documentation & Downloads
10-Port USB 3.2 Gen 2 Hub - 6 Type-A Ports, 4 Type-C Ports, & ESD Protection
$129.99
Details
The GM-HU310CA Gearmo USB 3.2 Gen 2 hub is an industrial metal hub with 4 downstream USB Type-C ports and 6 downstream USB Type-A port. All ports, both downstream and upstream are conveniently located on the front facing panel. The GM-HU310CA USB 3.2 Gen 2 hub includes mounting option hardware for both surface and DIN-Rail mounting. Compliant with USB 3.2 Gen 1 and Gen 2 standards, data speeds up to 10Gbps can be achieved and is backward compatible with USB 2.0 and 1.1.
Features:
- Adds 4 USB Type-C (USB 3.2 Gen 2 compliant) ports & 6 USB Type-A (USB 3.2 Gen 1 compliant) ports
- USB Type-A ports offer 5Gbps data transfer rate, USB Type-C ports offer 10Gbps data transfer rate
- Output: 3x USB-C with each 1A, 1x USB-C with 2.4A, 5x USB-A with each 1A, 1x USB-A with 2.4A, total 64W max

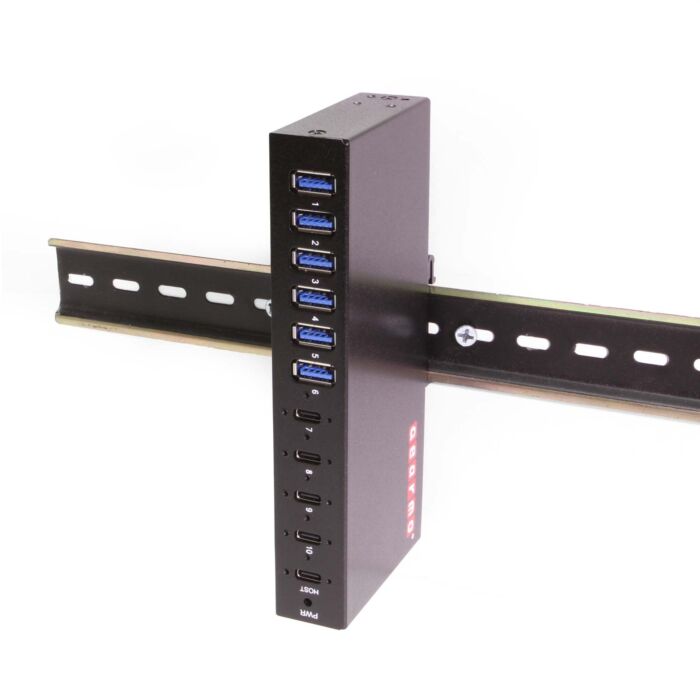

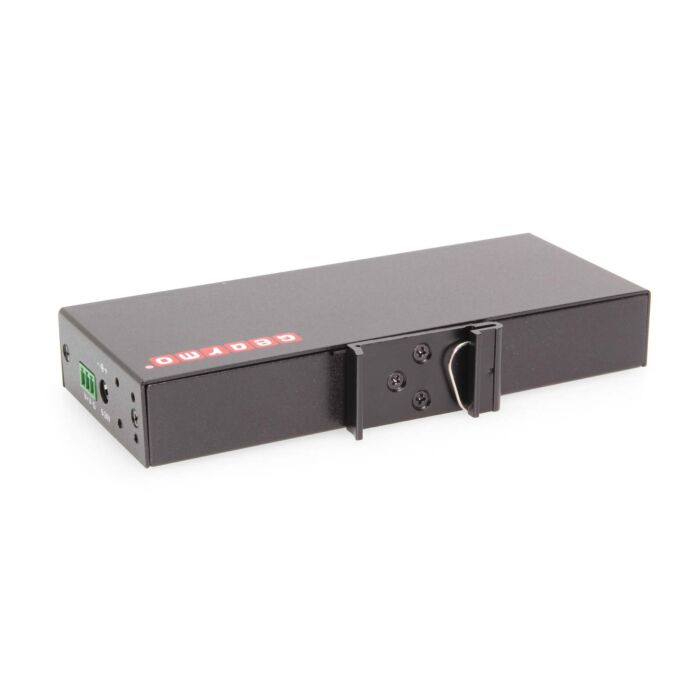

- Rugged metal chassis with surface & DIN Rail mount support

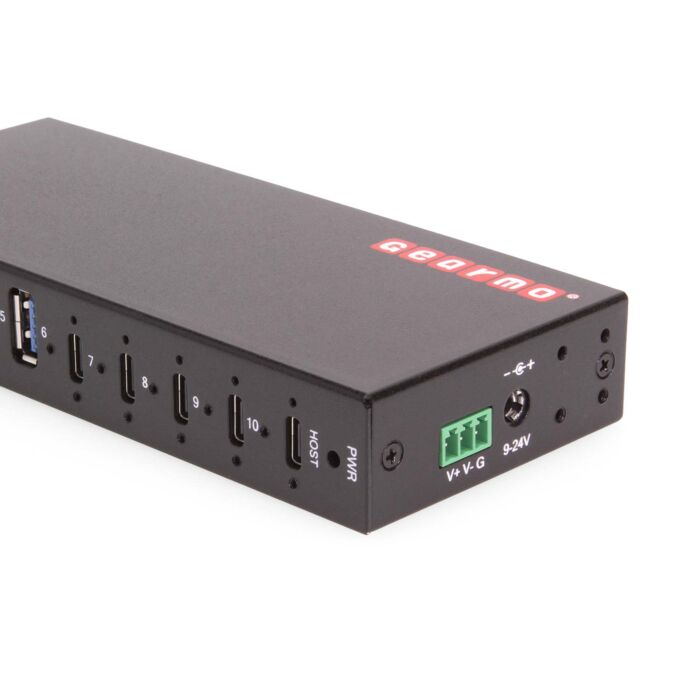

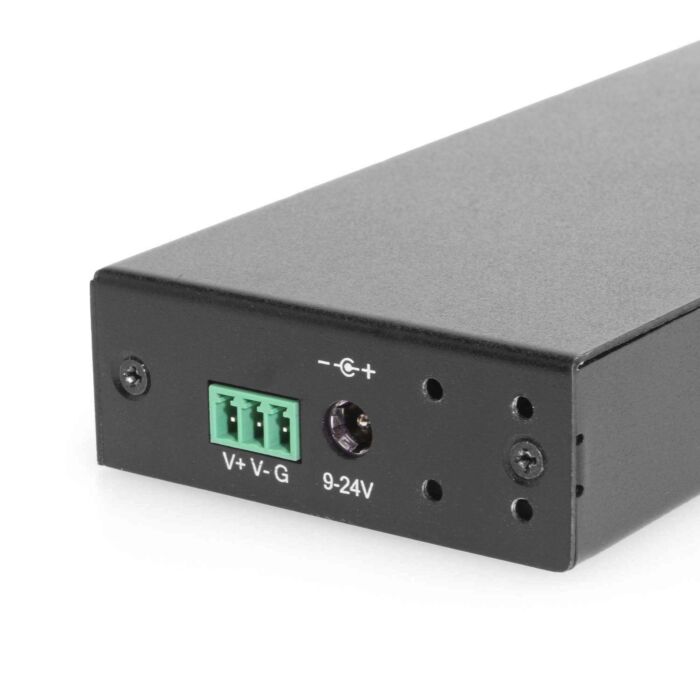

- 9~24V DC power input via DC Barrel power supply or 3-pin terminal block
- LED indicators for each port to show connection confirmation
- Screw-locking ports
- Upstream USB Type-C port
- 15kV ESD protection for all USB ports
OS Support:
- Windows Vista, 7, 8, 10, Windows 11
- Mac OS 10.X

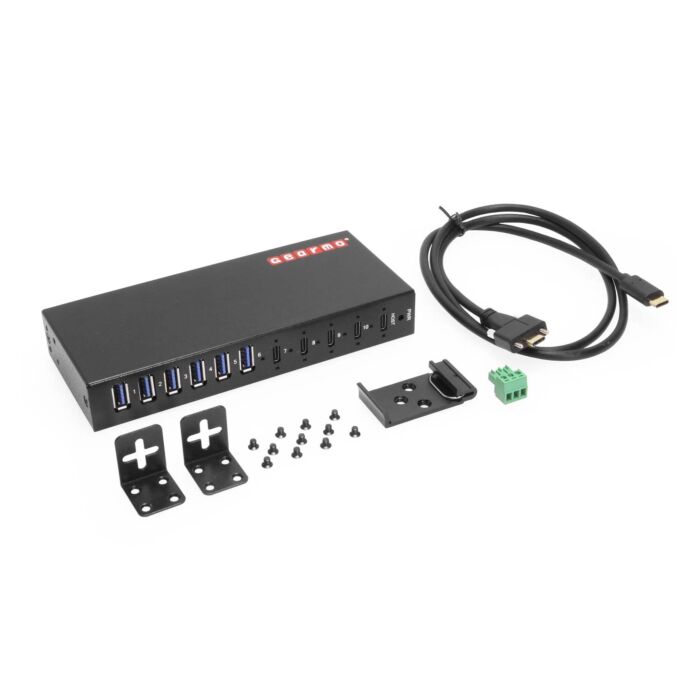

Package Contents:
- 10-Port USB 3.2 Gen 2 Type-C & A Industrial Hub
- 3-Pin Terminal Block
- USB Type-C to Dual Screw-Locking Type-C Cable
- DIN-Rail & Wall Mounting Kit
- Screw Package
- User Manual
Technical Specifications
| UPC | 045079164406 |
|---|---|
| Country of Origin | China |
| Manufacturer | Gearmo |
| Warranty | One Year |
| Item Length (in) | 6.34 |
| Item Width (in) | 2.68 |
| Item Height (in) | 0.98 |
| Item Weight (lbs) | 0.725 |
| Connector(s) | 3-Pin Terminal Block, DC Barrel, USB 3.2/3.x Type A Female, USB 3.2/3.x Single/Dual Screw Lock Type C Female |
| LED Indicators | Power |
| Downstream Port Count | 10 |
| Chip Model | VL817-Q7S, VL822-Q7 |
| Input Voltage | 9 ~ 24V DC |
| OS Support / Compatibility | Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Downstream Port Type | Type C, Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type C Female |
