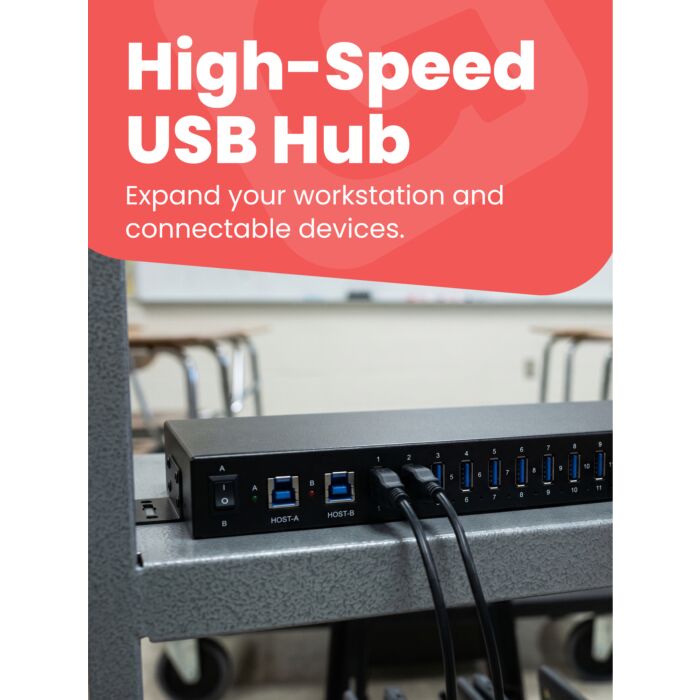

16-Port USB 3.2 Gen 1 Type-A Industrial Rack Mount Compatible Hub w/ ESD Surge Protection
Extensive Connections: Expand your host system’s peripheral capabilities with 16 USB Type-A 3.2 Gen 1 ports, offering transfer speeds of up to 5Gbps.
Reliable Protection: Keep your connections and peripherals safe with extensive ESD surge protection. 15kV ESD and 600W surge protection for all ports. Housed in a steel metal chassis with screw-locking ports, this hub is ready to tackle harsh industrial environments.

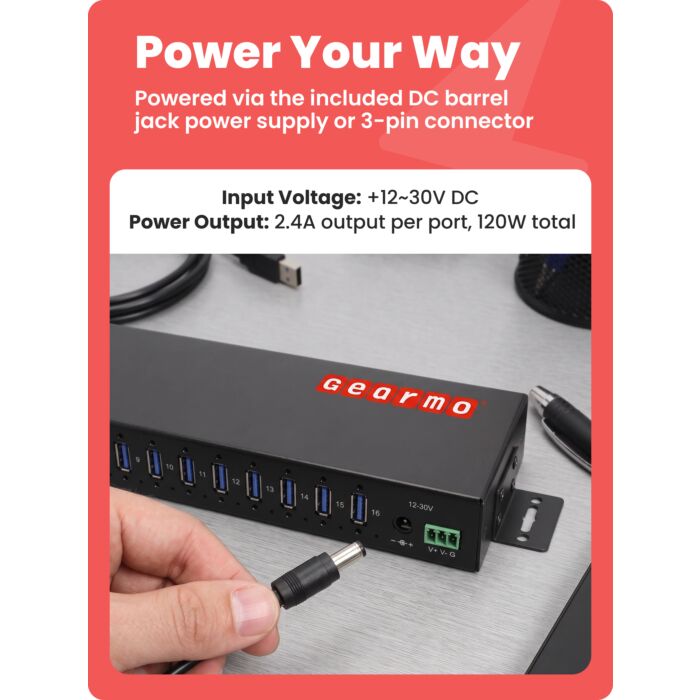

Flexible Power: Power your way with a wide input voltage range of 12~30V DC. Power either via the included DC Barrel power supply or through a 3-Pin Terminal Block.

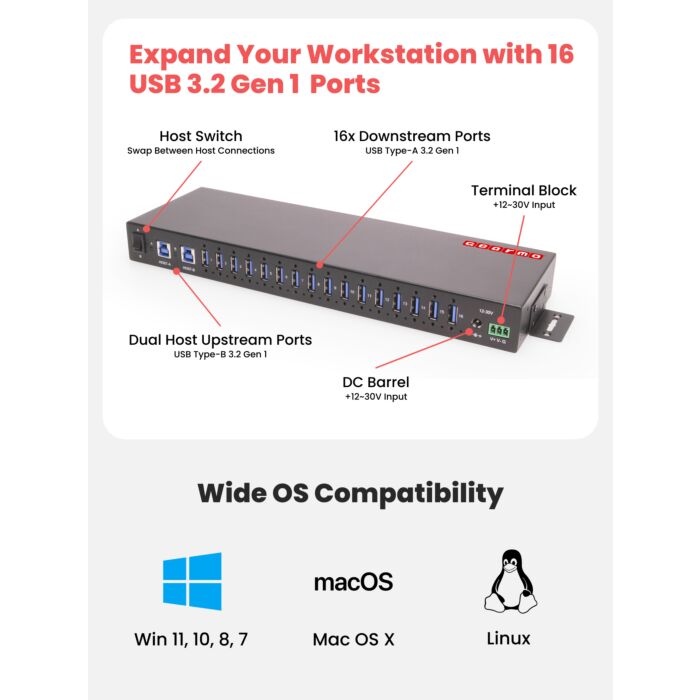

Upstream: 2x USB Type-B
Downstream: 16x USB Type-A
Power Input: 3-Pin Terminal Block, DC Barrel

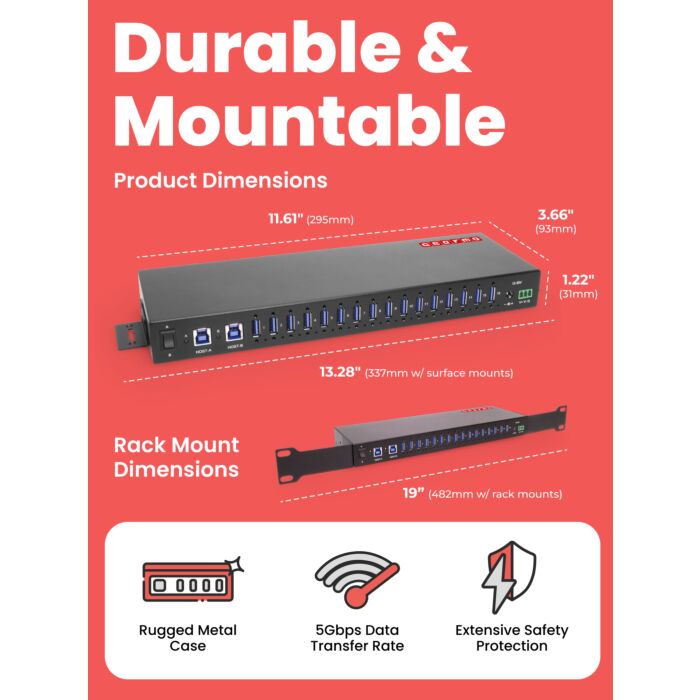

Mounting Styles: Rack, Surface/Wall, and DIN-Rail
Model Number: GM-HU316A2H-RM
Documentation & Downloads
16-Port USB 3.2 Gen 1 Type-A Industrial Rack Mount Compatible Hub w/ ESD Surge Protection
$229.99
Details
The GM-HU316A2H-RM is a high-performance rack-mountable USB hub designed for professionals, tech enthusiasts, and more. Featuring 16 USB 3.2 Gen 1 ports, it allows you to connect multiple devices seamlessly, offering data transfer speeds of up to 5 Gbps for fast and reliable performance. With robust mounting options and built-in protections, this hub is built to handle demanding environments.
Equipped with versatile power input options (12-30V DC) and independent over-current detection for each port, the GM-HU316A2H-RM ensures safe and consistent operation. LED indicators provide clear status updates for power and data activity, while its redundant power input design offers an extra layer of reliability.
This hub also delivers up to 2.4A per port and a total of 120W. Whether you're charging devices, transferring data, or expanding your workstation's connectivity, this hub provides unmatched efficiency and flexibility.
Features
- Adds 16 USB 3.2 Gen 1 ports with 5 Gbps data transfer speed

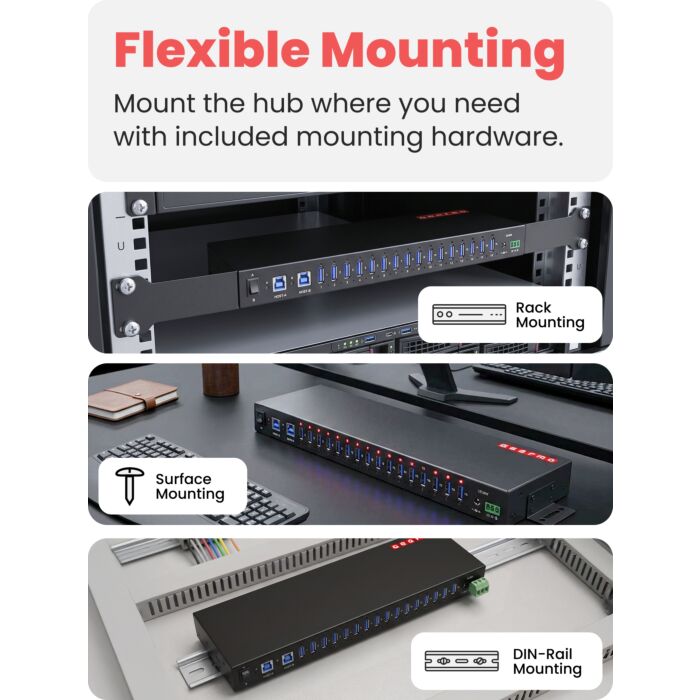

- Versatile mounting support for rack, wall, desk, and DIN rail installations

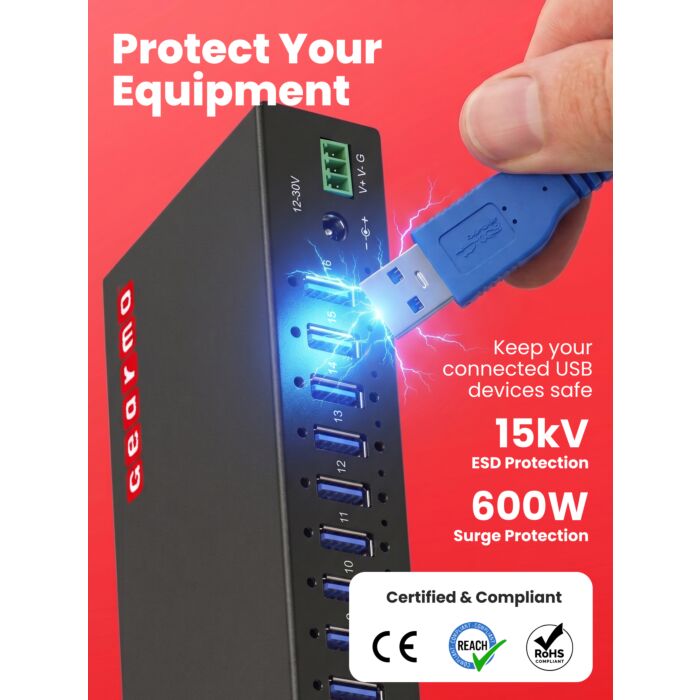

- Built-in 15kV ESD protection and 600W surge protection for all ports
- Independent over-current detection and protection circuit design
- Redundant 12-30V DC power input for reliable operation
- Supplies up to 2.4A output per port, 120W total
- Charges devices without requiring a host PC connection
OS Support:
- Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11
- Mac OS X
- Linux
Package Contents
- GM-HU316A2H-RM 16-Port USB 3.2 Gen 1 Rack-Mount Hub
- User Manual
- DC Power Adapter
- USB Type-C to Type-C Screw-Locking Cable
- Mounting Kit (Rack, Wall/Surface, and DIN Rail)
- Screw Package for Secure Installations
Technical Specifications
| UPC | 045079164727 |
|---|---|
| Country of Origin | China |
| Manufacturer | Gearmo |
| Warranty | One Year |
| Item Length (in) | 11 |
| Item Width (in) | 3.75 |
| Item Height (in) | 1 |
| Item Weight (lbs) | 1.61 |
| Connector(s) | 3-Pin Terminal Block, DC Barrel, USB 3.2/3.x Dual Screw Lock Type A Female, USB 3.2/3.x Type B Female |
| LED Indicators | Port Status, Power |
| Downstream Port Count | 16 |
| Chip Model | VL817-Q7S |
| Input Voltage | 12 ~ 30V DC |
| OS Support / Compatibility | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 2 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
