USB 3.0 7 Port Din Rail Mountable Hub Metal Chassis with Power Adapter
GearMo USB 3.0 7 port hub with a rugged metal chassis includes DIN-Rail clip, mounting brackets, and a power adapter. A great small form factor USB 3.0 Hub! Works with Windows 7, 8, 10 & 11 or Mac OS X or Linux.
Model Number: GM-HU37-PS
Documentation & Downloads
USB 3.0 7 Port Din Rail Mountable Hub Metal Chassis with Power Adapter
$91.99
Details

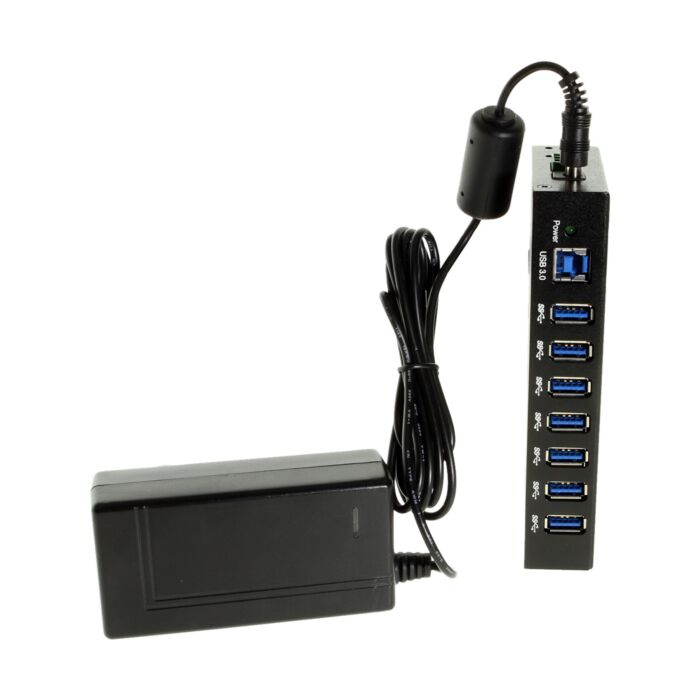

Gearmo USB 3.0 7 Port Rugged Hub with Power Adapter

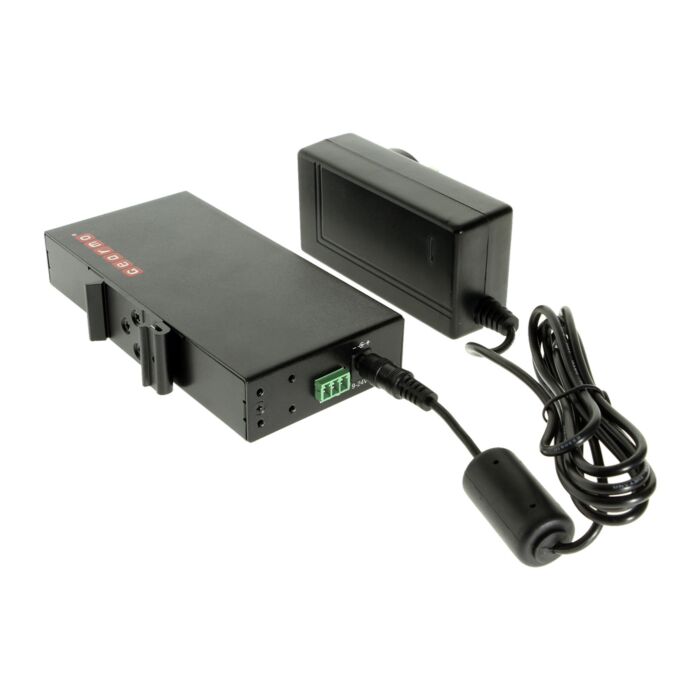

The (GM-HU37-PS) Super-Speed 7-Port USB 3.0 Hub is designed as a Super-Speed, rugged, industrial style hub with power adapter. Its mounting brackets and DIN-Rail mount hardware are included. GearMo’s USB 3.0 7 Port Super-Speed metal hub supports 7 USB 3.0 upstream port connections and 1 USB 2.0 Type “A” to “B” Downstream from the host computer. The GM-HU37-PS supports UASP function (with Windows 8 native USB 3.0 Host driver only) The USB 3.0 7-Port hub includes an optional 9-24V power jack receptacle for power consuming devices. It uses a separate 3-wire power connector for use with DIN-Rail mounted operations. The GearMo 7 port USB 3.0 industrial Hub includes independent over-current detection and, circuit protection, and Power input surge protection of 600W each port.

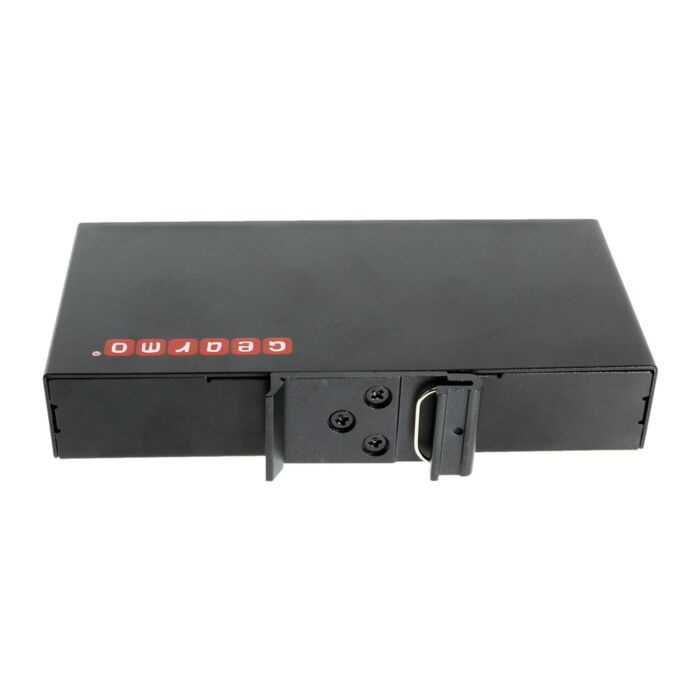

USB 3.0 7 Port Hub Mounting
The USB 3.0 7 port Hub has multiple mounting options available depending on its usage and can be mounted via mounting brackets or Din Rail clip included. The GM-HU37-PS USB 3.0 hub includes all necessary hardware to securely mount it where its applications are needed.
Hub Features
- Compliant with Universal Serial Bus 3.2 Gen 1 Specifications
- Industrial-grade, rugged metal housing design
- Adds 7 USB 3.2 Gen 1 super-speed ports
- Redundant 9-24V DC power input
- 15KV ESD USB Interface protection
- Power input surge protection to 600W for each port
- Over-current detection and protection circuit design
- Wall and DIN Rail mount support
- Item Dimensions: 139 (W) x 68.97 (D) x 24.95mm (H)
Technical Specifications
- Chipset: VL817-Q7S chipset
- Supports UASP function (with Windows 8 native USB 3.0 Host driver only)
- Compliant with Universal Serial Bus 3.0 Specification
- Maximum data transfer rate: 5Gbps
- Surge Protection: 600W (max)
- Metal housing with mounting mechanism
- Charging Protocols: SDP, CDP, DCP, Apple 2.4A
- Input Voltage: 9~24V DC
- Max Power: 42W
- Max Current: 2.4A
- Interfaces/Ports:
- Input: 1, 9-pin, USB 3.0, Type B, Female
- Input: 1, Terminal block (3-Wire), Power
- Input: 1, DC power adapter jack (power adapter not included)
- Output: 7, 9-pin, USB 3.0, Type A, Female
Operating system support
- Windows XP, 7, 8, 10, 11
- Mac OS X and Linux

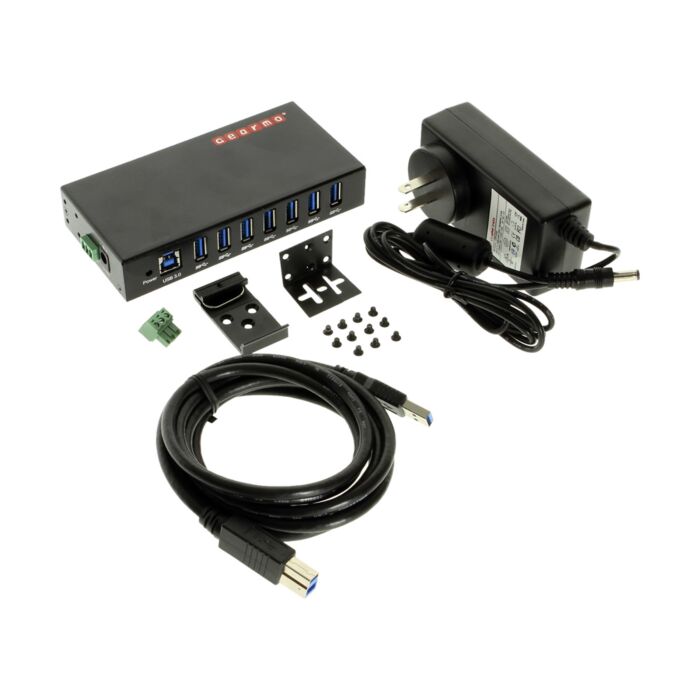

Package Contents
- Gearmo USB 3.2 Gen 1 industrial 7 Port Hub
- Power adapter and Cord
- DIN Rail Clip
- Surface Mounting Brackets
- Mounting screws
- 3-wire Terminal power connector
- 6ft. USB 3.2 Gen 1 A to B cable
Technical Specifications
| UPC | 045079158481 |
|---|---|
| Country of Origin | China |
| Manufacturer | Gearmo |
| Warranty | One Year |
| Item Length (in) | 5.5 |
| Item Width (in) | 2.72 |
| Item Height (in) | 0.98 |
| Item Weight (lbs) | 0.662 |
| LED Indicators | Power |
| Downstream Port Count | 7 |
| Chip Model | VL817-Q7S |
| Input Voltage | 9 ~ 24V DC |
| OS Support / Compatibility | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| ESD Protection | 15kV |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 2.0 Type B |
