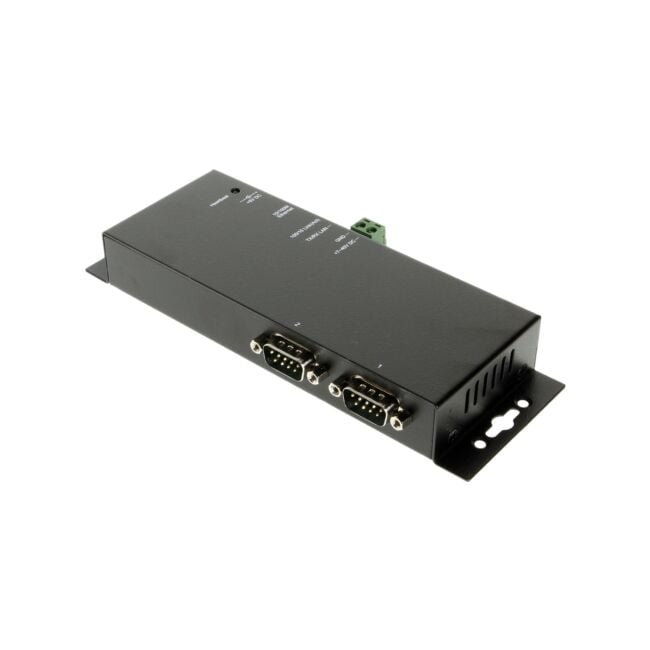

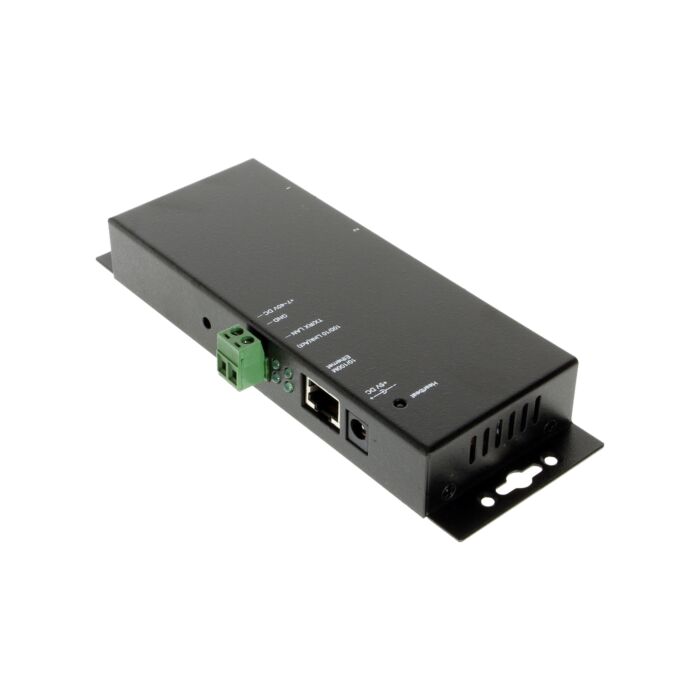

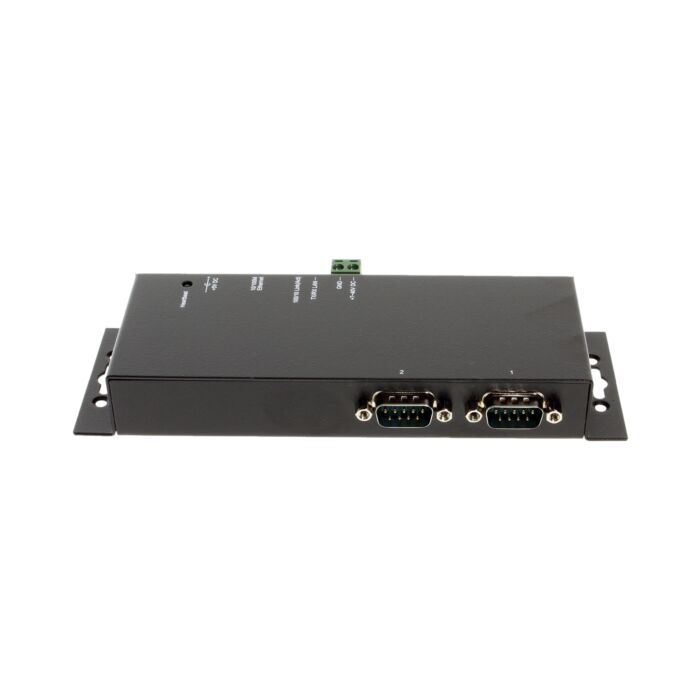

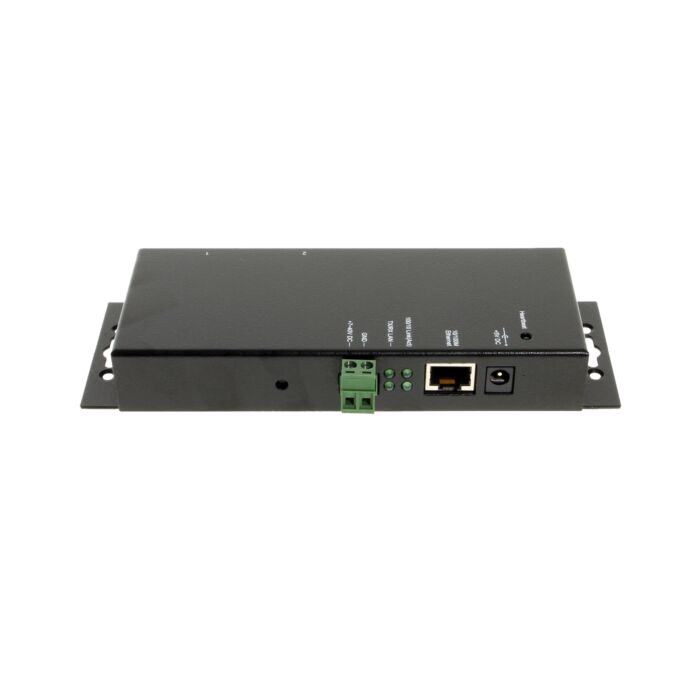

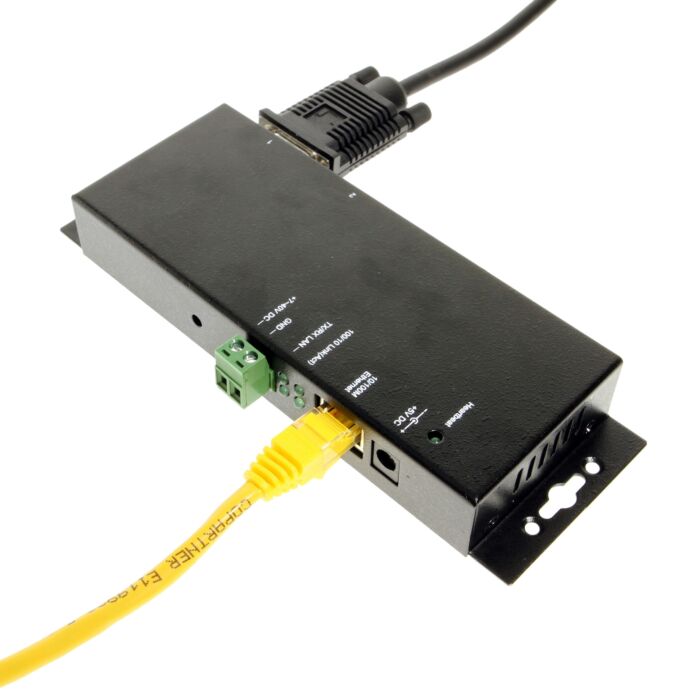

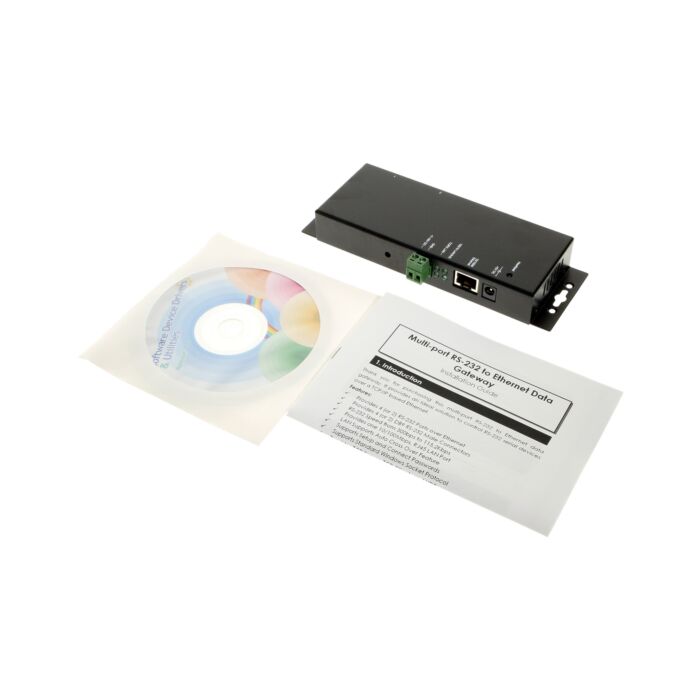

Industrial 2-Port RS-232 to Ethernet Data Gateway TCP/IP
Model Number: MSD-SRF2X
Documentation & Downloads
Industrial 2-Port RS-232 to Ethernet Data Gateway TCP/IP
$42.83
Details
2-Port RS232 to Ethernet Data Gateway with virtual com software.
Model: MSD-SRF2X FEATURES:
- Provides 2 RS-232C Ports over Ethernet
- Provides 2 DB9 RS-232C Male Connectors RS-232C
- Speed from 300bps to 115.2Kbps
- Provides one 10/100Mbps, RJ45 LAN Port
- Supports Setup and Connect Passwords
- Supports Standard Windows Socket Protocol
- Provides TCP Server, TCP Client, and UDP Built-in Watch Dog Feature
- +5VDC DC Jack Power Input Connector
- Includes Wall Mounting Kit
Multi-port RS-232 to Ethernet Data Gateway Installation Guide
The MSD-SRF2X 2-Port RS232 to Ethernet Data Gateway is designed to adopt your industrial serial devices to the Internet instantly. It delivers simple, reliable and cost-effective network connectivity for multiple serial devices.
It addresses the need to connect individual RS-232C devices, such as PLCs, meters, sensors, to an IP-based Ethernet LAN. It makes your application software to access serial devices anywhere on a local area network or the Internet. A built-in watch dog function is designed to reset the MSD-SRF2X when the hardware hang because some other unknown causes.
The MSD-SRF2X is easy to install or remotely through a variety IP addressing methods (UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping). It is ideal for applications requiring serial port environments and network device management.
SPECIFICATIONS
- LAN Port: Ethernet: 10/100 Mbps, RJ45 connector.
- Protocols: UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping.
- Serial Interface: The Serial interface provides 4 DB9 RS-232 connectors.
- The key benefits are: RS-232 Connector: DB9 male.
- Parity: None, Even, Odd.
- Data bits: 5,6,7,8.
- Speed: 300bps to 115.2Kbps.
- Provides wall mounting Kit.
- Watch Dog Function: A built-in watch dog function is designed to reset the MG-4232 when the hardware/software hang because some other unknown causes.
- Power Requirements: +5VDC from DC Jack Power Input Connector.
Other Available Models: Model # Descriptions # of DB9 MSD-SRF2X 2S to LAN 2
Environmental: Operating Temp.: 0 to 55C (32 to 131F).
Storage Temp: -20 to 85C (-4 to 185F).
Operating Humidity: 5 to 95% RH.
Form Factor: 5.90 (L) x 2.61 (W) x 1.02 in. (H) (15.00 x 6.65 x 2.60 cm)
Technical Specifications
| UPC | 729440691783 |
|---|---|
| Manufacturer | SerialGear |
| Warranty | One Year |
| Country of Origin | Taiwan |
| Item Length (in) | 5.9 |
| Item Width (in) | 2.61 |
| Item Height (in) | 1.02 |
| Input Voltage | +5V DC |
| Connector(s) | 2-Pin Terminal Block, DB9 Male w/ Nuts, DC Barrel, RJ-45 |
| Serial Modes | RS232 |
| OS Support / Compatibility | Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Downstream Port Type | Male DB9 /W Nuts |
| Upstream Port Count | 1 |
