Dual Port ExpressCard 34mm eSATA 3Gb/s 300Mbps SATA II Card RAID

Serial ATA Express Card 2 Port SATA II Speed 34mm.

The 2 Port eSATA ExpressCard and RAID 5/JBOD eSATA ExpressCard 34 enchances your laptop system with two eSATA II ports from a single Express Card slot. Each eSATA II port provides a maximum of 300 MB/sec data throughput through SATA II.

Product Features"

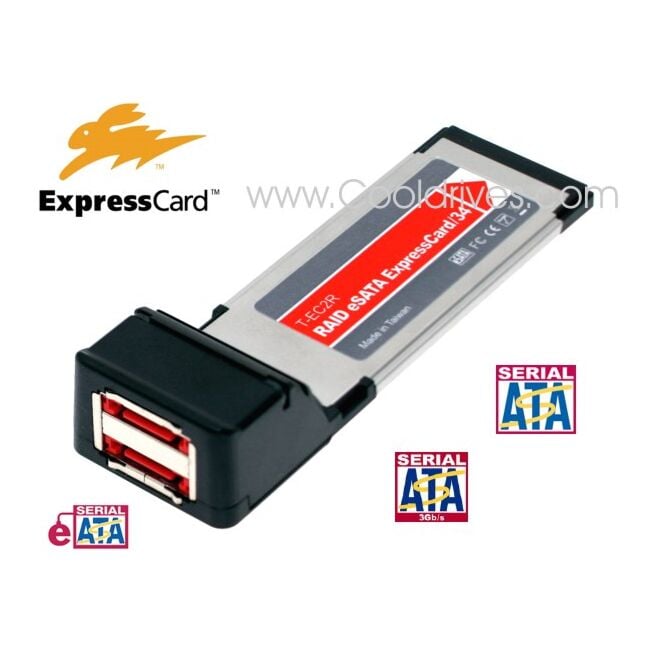

RAID5/JBOD eSATA ExpressCard 34"

• Two eSATA II Ports to Notebook PC via one Express Card slot
• Maximum 300 MB/sec. data throughput
• Port Multiplier compatible
• Hot-plug capability
• Comes with built in firmware RAID support for RAID 0, 1, 5, 10 and JBOD (JBOD can combine multiple hard drives into one large drive or set to run as individual drive with no RAID)
• Support hard drive of capacity 137 GB or higher in one big partition
• Silicon Image chip set SiLicon Image 3132
• eSATA connector for more secure connection, reliability and supports up to 2 meters cable length
• Drivers for Windows 2000, Windows Vista XP and Windows Server 2003

2 Port eSATA ExpressCard 34

• Two eSATA II Ports to Notebook PC via one Express Card slot
• Maximum 300 MB/sec. data throughput
• Port Multiplier compatible
• Hot-plug capability
• Connect drives as a pass through device
• Supports software RAID feature in Windows
• Support hard drive of capacity 137 GB or higher in one big partition
• Silicon Image chip set SiI 3132
• External Serial ATA interface cable
• eSATA connector for more secure connection, reliability and supports up to 2 meters cable length
• Drivers for Windows 2000, Windows XP and Windows Server 2003

---

---

USER GUIDE

---

• 2 eSATA ports
• 48 bits LBA to Support HDD larger than 137GB
• Supports 1-lane 2.5Gbps ExpressCard/34
• Compliant with PCI Express Specification, revision 1.0a
• PC Card 32-bit CardBus compliant
• Hot-plug capability
• Supports SATA II transfer rate of 3.0Gbps
• Fully compliant with Serial ATA 1.0 specifications
• Supports two independent Serial ATA channels
• Independent Link, Transport, and data FIFO
• Independent command fetch, scatter/gather, and command execution
• Supports Legacy Command Queuing (LCQ)
• Supports Native Command Queuing (NCQ)
• Supports Non-zero offsets NCQ
• Supports Out of order data delivery NCQ
• Supports FIS-based switching with Port Multipliers
• 31 Commands and Scatter/Gather Tables per Port
• Two LEDs indicate for HDD access
• Completely with drivers for Windows 2000, Windows XP and Windows Server 2003
• Dimension (W x D x H) - 53 x 119 x 14 mm / 2.08 x 4.68 x .55 inches.
• Weight - 45 grams
• 1 year warranty

You can also attach to each eSATA port as many as 5 hard drives in external drive enclosures that have built-in Port Multiplier technology, such as the ONNTO Storage Tower. Together with ONNTO\' family of eSATA cabling system, Notebook users can enjoy the fastest performance with any external storage devices, as much as 6 times the data transfer rate of the USB 2.0.
