FTDI Chip USB to RS-485/422 Industrial Isolated w/ DB-9/RJ45/Terminal Screw
Model Number: US-422i
Documentation & Downloads
FTDI Chip USB to RS-485/422 Industrial Isolated w/ DB-9/RJ45/Terminal Screw
$58.29
Details

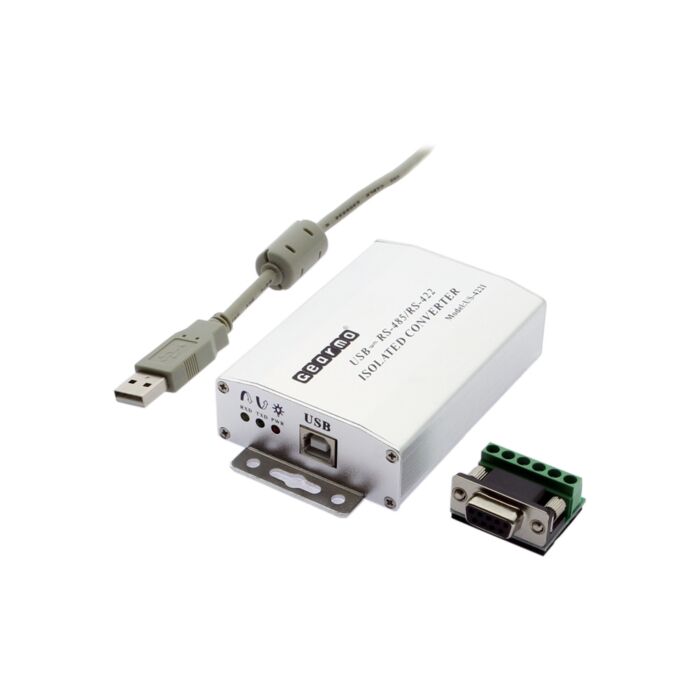

Optically Isolated USB RS485/422 Serial Adapter
Need to convert RS485 and RS422 signals? The US-422i is a Aluminum housed USB to RS485/422 optically isolated serial adapter that interfaces with DB-9 pin, RJ-45, and a screw terminal header that converts between USB and various serial signals such as RS-232. Backward compatible with USB 1.1 and USB 2.0 specifications.
This USB to RS485 serial adapter comes in handy for connecting to equipment such as scanners, printers, and scales while remaining versitile enough to support both commercial and industrial environments.
Newer model computers lack the serial technology and don't incorporate a serial port, the serial adapter will act as a new COM port to support your common and industrial environments, including labs, office and business.
USB to RS485/422 Features:
- Power 5VDC provided by USB cable
- Installation DIN mounts (not included) or screws

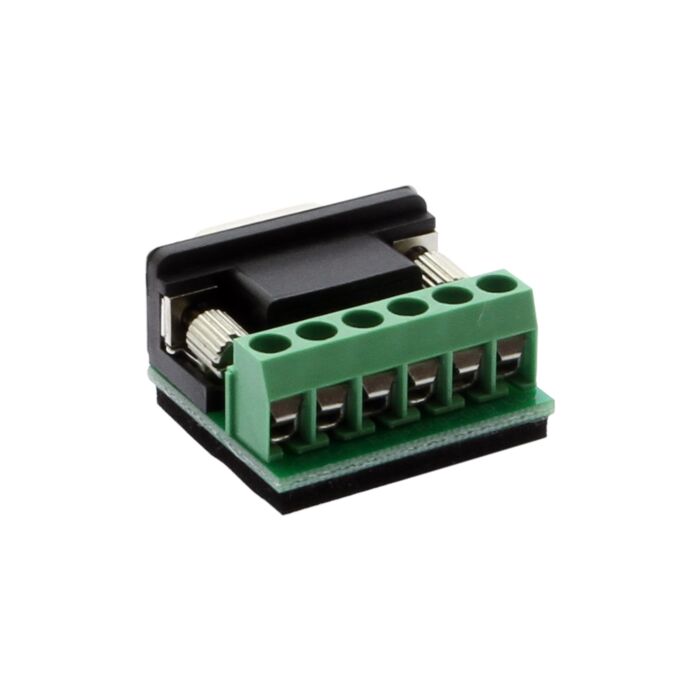

- Interfaces DB9, RJ45, screw terminal header
- Housing Aluminum
- Indication lights RX, TX and Power
- USB interface Compatible with USB1.1 and 2.0
- Baud rate 300bps - 1Mbps
- Optical Isolation 2500Vrms / 500VDC isolation
- ESD protection 15KV / 600W
- Operating Temp. -40 to 85C

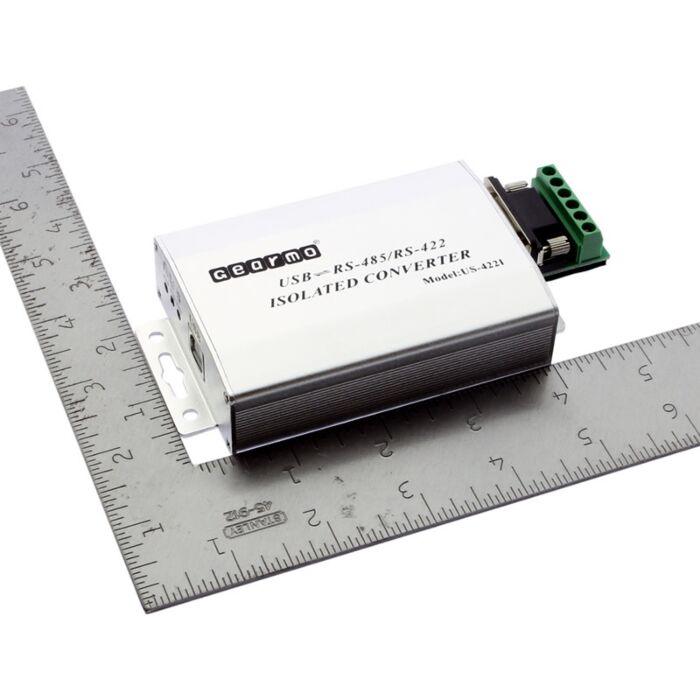

- Dimensions 97mm x 64mm x 26mm
OS Support
- Windows 7, 8, 10, and Windows 11
- Linux
- Mac OS 10.X

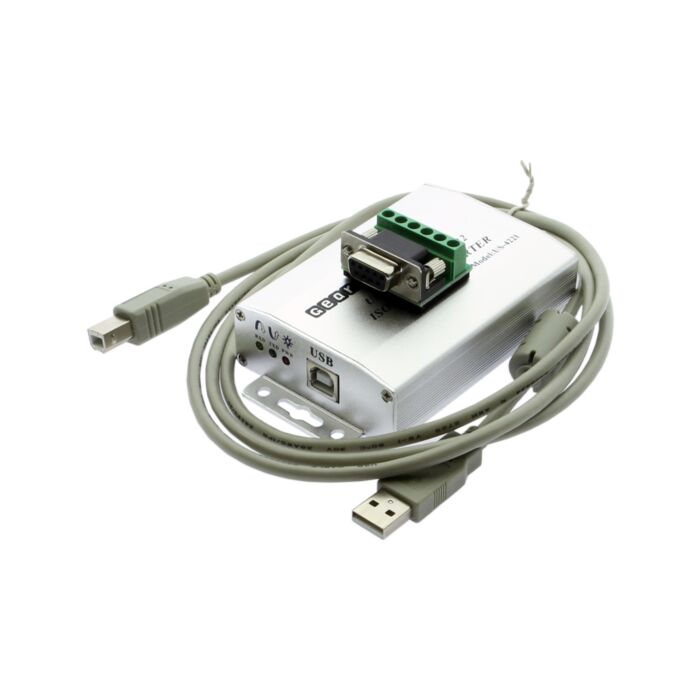

Package Contents
- USB isolator RS485 – RS422 Converter Unit
- USB 2.0 3ft. Type A to Type B Connection Cable
- Latest FTDI Driver (available for download)
- US-422i Product Manual (on Disc)
Technical Specifications
| UPC | 729440692377 |
|---|---|
| Manufacturer | Gearmo |
| Warranty | One Year |
| Country of Origin | China |
| LED Indicators | Power, TX/RX |
| Connector(s) | DB9 Male w/ Nuts, RJ-45, USB 2.0 Type B Female |
| Downstream Port Count | 1 |
| Serial Modes | RS422, RS485 |
| Chip Model | FTDI FT232RL |
| OS Support / Compatibility | OS independent - No software or drivers required, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Downstream Port Type | Male DB9 /W Nuts |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 2.0 Type B |
