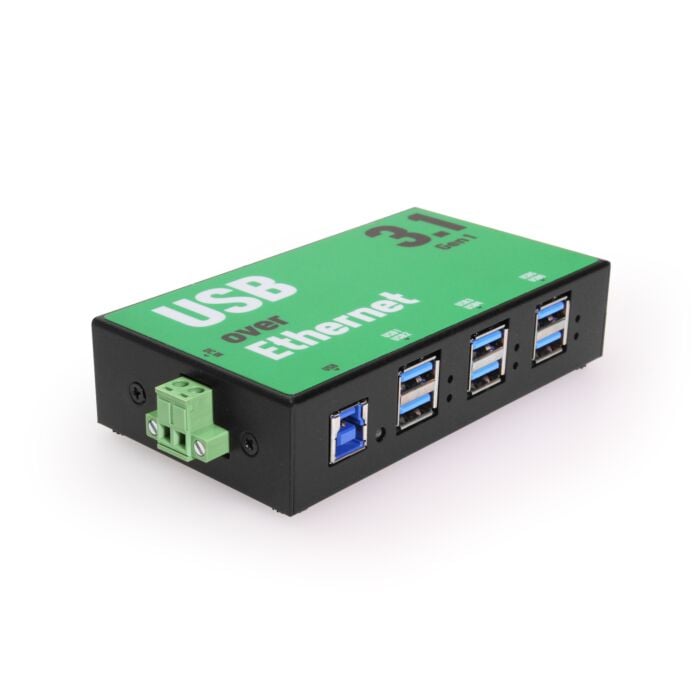

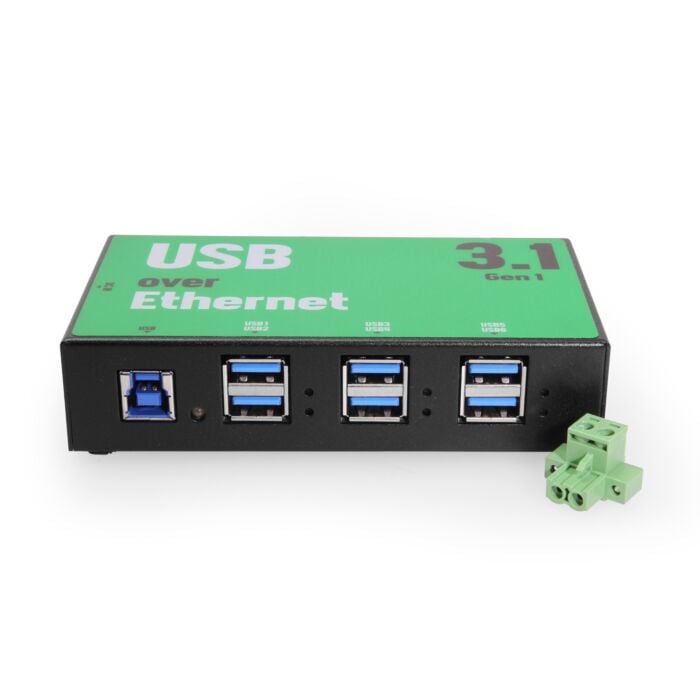

6 Port USB 3.2 Gen 1 Over IP Network Device Sharing Hub w/ Port Status LEDs

Introduction:

US-H6 Superspeed USB over IP Hub supports six USB 3.2 Gen. 1 ports. It is designed not only for USB ports expansion but also for extension. The Hub is featured with USB USB 3.2 Gen. 1 over network sharing functionality. The USB devices inserted to this Superspeed USB over IP Hub can be shared and accessed by network computers over wired or wireless network from anywhere in the world. Each USB 3.2 Gen. 1 port can transfer data and files at blazing speeds up to 5 Gbps – up to 10 times faster than USB 2.0. The USB 3.1 over IP Hub, when used in conjunction with the USB Device Server software, enables USB remote connection. The app makes all the USB ports on this Hub available to be accessed, shared and used over IP, LAN, WAN, VLAN, VPN and the Internet from any remote locations.

Features:

• US-H6 supports six USB 3.2 Gen. 1 Type-A connectors
• Empowers USB ports with USB device networking and sharing functionality
• USB 3.2 Gen. 1 over IP Device Hub allows USB devices to be accessed and shared by multiple client computers over network or across the internet
• Network-enables remote USB peripherals and devices as if they were connected directly to the local PC
• Supports wide variety of USB devices, i.e. printers, webcams, conference cams, cameras, fingerprint readers, scanners, barcode scanners, ID card scanners, security dongles, USB dongles, hard drives and flash drives, USB to RS-232/422/485 adapters, iPhones, iPads, Android devices and many more
• USB plug-and-play and hot-swap functions same as onboard USB ports
• USB ports compliant with the USB 3.2 Gen. 1 specification
• Provides six networked USB 3.2 Gen. 1 over IP device ports
• Data rates: USB 3.2 Gen. 1 5Gbps (super speed), USB 2.0 480Mbps (high speed), USB 2.0 12Mbps (full speed) and USB 1.1 1.5Mbps (low speed)
• User-friendly and convenient USB Device Server software program with both server and client functionality
• Shares your USB devices and connects remote shared USB devices over a network at the same time
• Password authorization and traffic encryption for data security and safety
• Any authorized users in an office next door or in another country may remotely access your USB devices through USB Device Server app client
• Supports standard USB webcam functions such as video transfer over a network (Internet/LAN/WAN)
• Supports high speed isochronous USB devices
• Able to share USB security software protection dongles conveniently using features of the USB Device Server software program
• Redirects USB devices to virtual machines such as VMWare, Virtual PC, Citrix Xen Desktop, Microsoft Hyper-V, QEMU (KMV), etc. On a virtual machine, easy to establish a passthrough for USB devices from host OS to a guest OS
• Multiple transaction translator (TT) architecture to each USB downstream (DS) port
• LEDs for power and USB status indication
• Individual port power management
• Overcurrent protection
• Industrial-grade Superspeed USB 3.2 Gen. 1 over IP device hub with SECC metal case
• CE, FCC approval

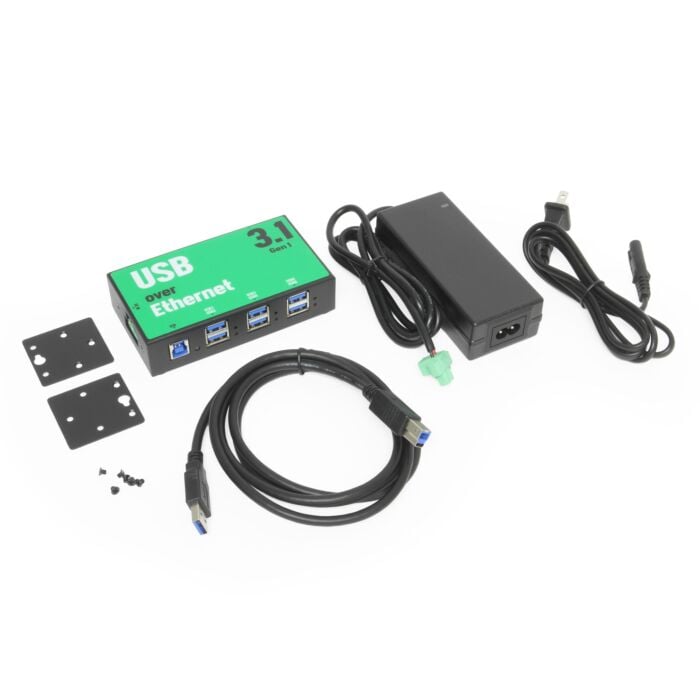

Package Contents:

• 6-port SuperSpeed USB 3.2 Gen 1 over IP Hub
• 12V/5A Power Supply & Cable
• USB-A to USB-B Cable
• Surface Mounting Plates
• Screw Pack

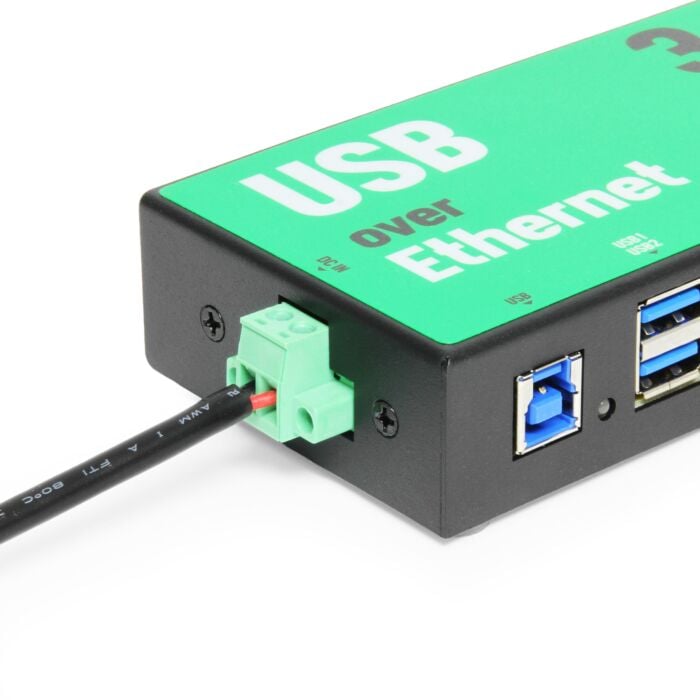

• 3-Pin Terminal Block
