2 Port USB 2.0 Over Ethernet USB Device Server
USB Over Network | +12V DC Input | Overcurrent Protection | Surface Mountable | 480 Mbps | LED Indicators
- USB Over IP: Connect your USB device to the USB over IP server and it can be shared and accessed by any computer over a wired or wireless network from anywhere in the world. Check port and network status with built in LED indicators.
- Data Encryption: The USB Device Server software program offers password authorization and traffic encryption for data security and safety.
- High Speeds: Share and access 2 USB 2.0 high-speed isochronous USB devices over IP, LAN, WAN, VLAN, VPN, and the Internet from any remote locations.
- Upstream: 1 RJ45 connector
- Downstream: 2 USB ports, Type A connectors
- Power Connector: AC Adapter Included
- Mounting Options: Wall & Surface
- Overcurrent Protection: 500mA
Model Number: US-S2
Documentation & Downloads
2 Port USB 2.0 Over Ethernet USB Device Server
$104.99
Details
Introduction:
US-S2 USB over IP server supports two USB 2.0 ports. The server supports USB over network sharing functionality. Connect your USB device to the USB over IP server and it can be shared and accessed by any computer over a wired or wireless network from anywhere in the world. The USB over IP server, when used in conjunction with the USB Device Server software, enables USB remote connection. The app makes the USB port available to be accessed, shared, and used over IP, LAN, WAN, VLAN, VPN, and the Internet from any remote locations.
Features:
- Provides two networked USB 2.0 over Ethernet device port.
- Password authorization and traffic encryption for data security and safety.
- Any authorized users in an office next door or in another country may remotely access your USB devices through USB Device Server app client.
- Over-current protection of 500mA
- Supports high-speed isochronous USB devices.
- Able to share USB security software protection dongles conveniently using features of USB Device Server software program.
- LEDs for USB status indication.
- CE, FCC approval.
OS Supported:
- Windows: 11, 10, 8, 7
- Linux: Kernel 2.6.18 ~ 5.0 Debian 32/64bit | RPM 32/64bit

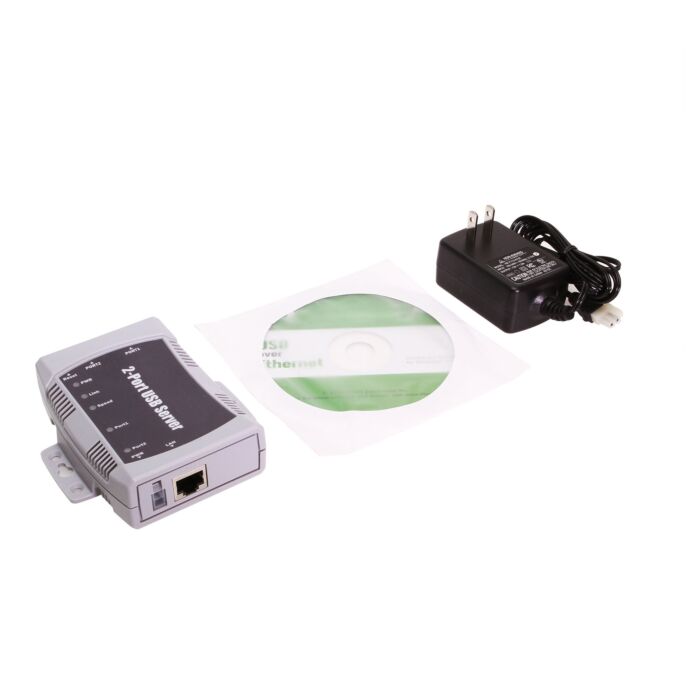

Package Contents:
- USB Device Server
- 12V-1A power supply
- CD with Drivers and Manual
*Surface Mounting screws not included.
Technical Specifications
| UPC | 045079165014 |
|---|---|
| Country of Origin | Taiwan |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Item Length (in) | 4 |
| Item Width (in) | 3.79 |
| Item Height (in) | 1.18 |
| Item Weight (lbs) | 0.206 |
| LED Indicators | Network, Port Status, Power, System Status |
| Downstream Port Count | 2 |
| Input Voltage | 12V DC |
| OS Support / Compatibility | Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Max Data Transfer Rate | 480Mbps |
| Downstream Port Type | Type A |
| Upstream Port Count | 1 |
| Upstream Port Type | RJ-45 |
