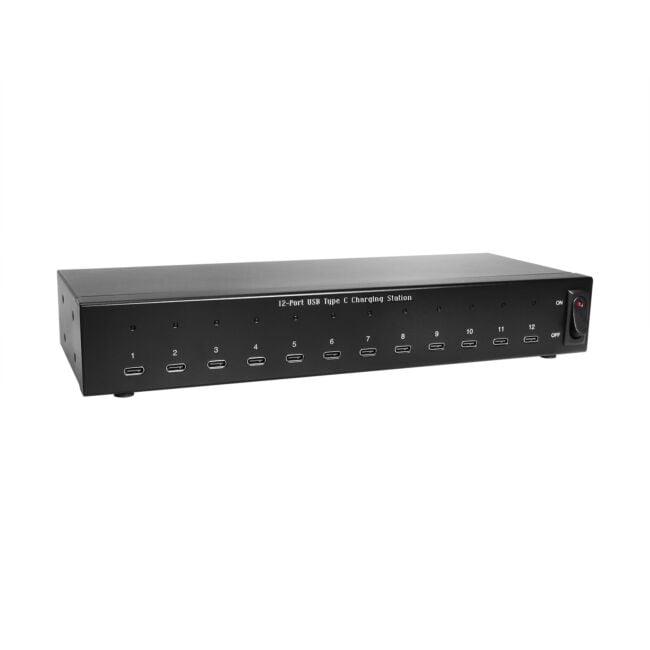

12 Port USB Type C Charging Station 3 Amp Per Port
$358.29
Regular Price
The 12-Port USB Type C Hi-Power Charging Hub is a solution for quick charging or sync up to 12 USB Type C devices.
Availability:
Discontinued
Model Number: USB-12XU1CC
Documentation & Downloads
Details
The 12-Port USB Type C Hi-Power Charging Station is a solution for quick charging up to 12 USB Type C devices. This is a perfect tool to effectively save energy and keep your items from overheating. Ideal for medium to large in-house Charge and Sync stations. Ideal places to be used such as business offices, classrooms, conference rooms, lobbies, etc.
Features
- Supports Downstream Facing Port (DFP).
- Compliant with USB Battery Charging Spec 1.2.
- Provides up to 5V 3A output current on each port; Supports iOS, Android devices.
- Enables Green Energy function (ECO Mode) automatically shutdown the hub when all devices are fully charged at Charge mode.
- Supports Over-Current Protection & Short Circuit Protection on each port.
- Over Temperature Protection: if the unit’s temperature exceeds safe operating conditions, it will cut off output current immediately. As a visual indicator, all 12 LED ports will start blinking.
- Supports ±15kV (air), ±8kV (contact) ESD protection on each port.
- Supports 40A (5/50ns) & Peak Pulse Power 250 W (8/20 us) Surge and Transient spikes protection on each port.
- The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours.
- Enables auto Start/Stop function for cooling fans. If the board’s temperature reaches high-temperature settings, the cooling fans will start up automatically. Once the board’s temperature has reduced below the threshold, the unit will turn off the fans automatically.
Package Contents:
- USB 12-Port Type C Hi-Power Charging Station
- Power supply with power cord
- Mounting brackets with screws
- User manual
Technical Specifications
| UPC | 045079162419 |
|---|---|
| Country of Origin | Taiwan |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Item Length (in) | 10.55 |
| Item Width (in) | 4.02 |
| Item Height (in) | 1.57 |
| Downstream Port Count | 12 |
| Input Voltage | 12V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Windows 7, Windows 10, Windows 11 |
| ESD Protection | 15kV (air), 8kV (contact) |
| Max Data Transfer Rate | 480Mbps |
| Downstream Port Type | Type C, Type C (Charging Only) |
| Upstream Port Count | 1 |
| Upstream Port Type | USB Type C Fixed Cable |
