20 Port USB-C 3.2 Gen 1 Industrial Charging Hub w/ Max 27W Per-Port Power Delivery

Connect your devices with high-capacity performance

The 20-Port USB-C 3.2 Gen 1 Industrial USB Charging Hub is designed for schools, businesses, and industrial environments that need to sync and charge multiple devices efficiently. This heavy-duty USB-C charging hub offers 20 USB-C ports, each delivering fast 5Gbps data and reliable power to laptops, tablets, Chromebooks, and more, making it an essential tool for educational institutions, conference rooms, and commercial setups.

The 20-port USB charger is a combination USB 3.2 Gen 1 hub and charger and a perfect tool to effectively perform Sync/Charge Mode switching. It's ideal to be used as a large capacity USB station working in-house that enables 20 Type-C ports to charge and sync at any time.

The high power USB charger hub power supply and port current range allows any school, business, or organization to take advantage of this charging hub as the go to tool for daily charge/sync functions for the classroom, conference room, or presenter. The USB charging hub incorporates an on/off switch and 3 color LED indication for fully charged, charging in progress, and syncing.

Features:

• Supports iOS, Android devices and MacBook Air, MacBook Pro or Chromebook etc.
• Supports USB PD 2.0 / USB PD 3.0 (PPS) / QC 2.0 / QC 3.0 / USB Battery Charging Spec 1.2 at Sync & Charge mode.
• Enables to deliver output current of each port up to 27W; supports 5V 3A / 9V 3A / 12V 2.25A / 15V 1.8A either at Sync mode or Charge mode on each port.
• Supports USB PD 3.0 (PPS) 3.3 ~ 5.9V 3A / 3.3 ~ 11V 2.25A either at SYNC mode or Charge mode on each port.
• The hub will shutdown in 60 seconds at Green Energy function (the button is pressed ON) if it idles without devices connected. Manually turns on the power switch either at single unit or cascade connecting and start charging again.
• Extends up to optimum 20 / 40 USB 3.2 Gen1 devices by connecting cascade port with another unit.
• Enables Sync/Charge mode switching upon manually connecting or disconnecting host port.
• Enables Green Energy function automatically shutdown the hub in 5 seconds when all devices are fully charged at Charge mode.
• Supports Over Current Protection and Short Circuit Protection on each port; Enables the specific LED to display Red blinking, meanwhile, cuts off its output power of that port.
• Supports Over Temperature Protection on each port; Enables the specific LED to display green blinking, meanwhile, cuts off output power of that port.
• Supports ±15kV (air), ±8kV (contact) ESD protection on each port.
• Supports 40A (5/50ns) & Peak Pulse Power 360W (8/20 us) Surge and Transient spikes protection on each port.

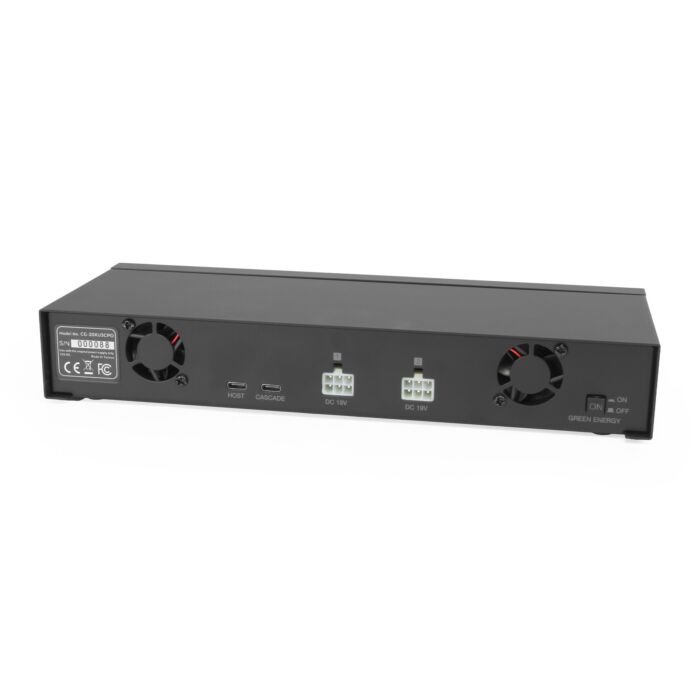

• 2 DC input ports enable to power on port 1~port 10 through DC input 1, and port 11~port 20 through DC input 2. (not allowable to plug in DC input 2 individually, for 20-port unit only)
• The rear fans spec: SUNON Vapo DC Fan; Life Expectancy: 60,000 hours.
• Enables to start/cut off the fans automatically according to the temperature’s setup. If the board’s temperature is higher than the setting, it would start the fans automatically. On the contrary, if the board’s temperature is lower from the setting, it would turn off the fans automatically as well.

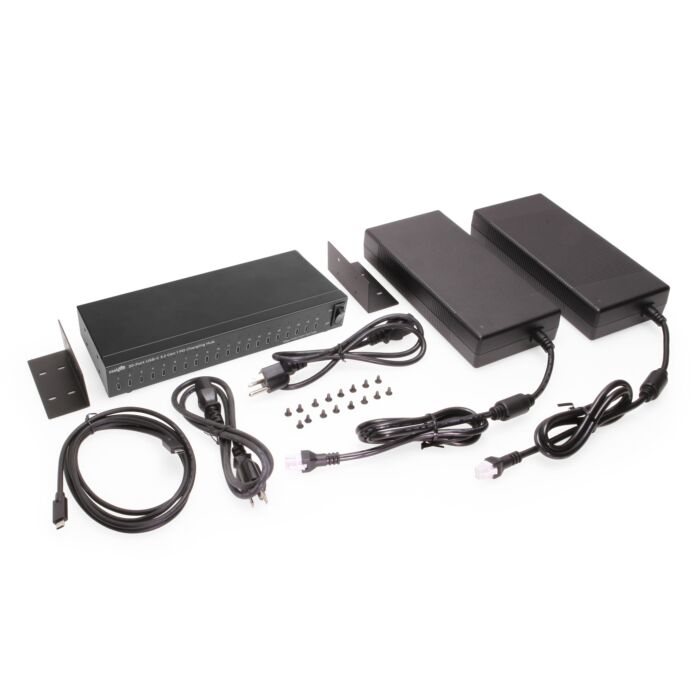

Package Contents:

• USB-C 3.2 Gen 1 charging hub
• 2x Power supplies with power cords
• USB C to C cable

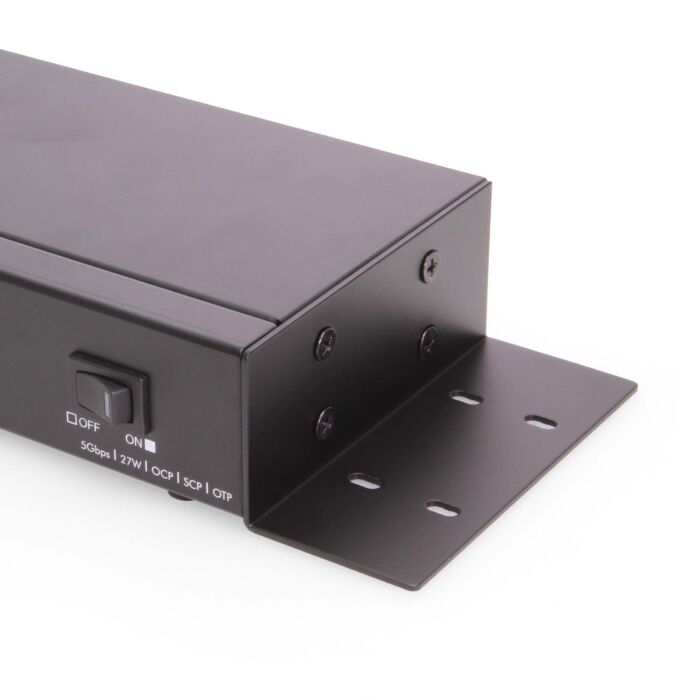

• Mounting brackets with screws

*Surface Mounting screws not included.
