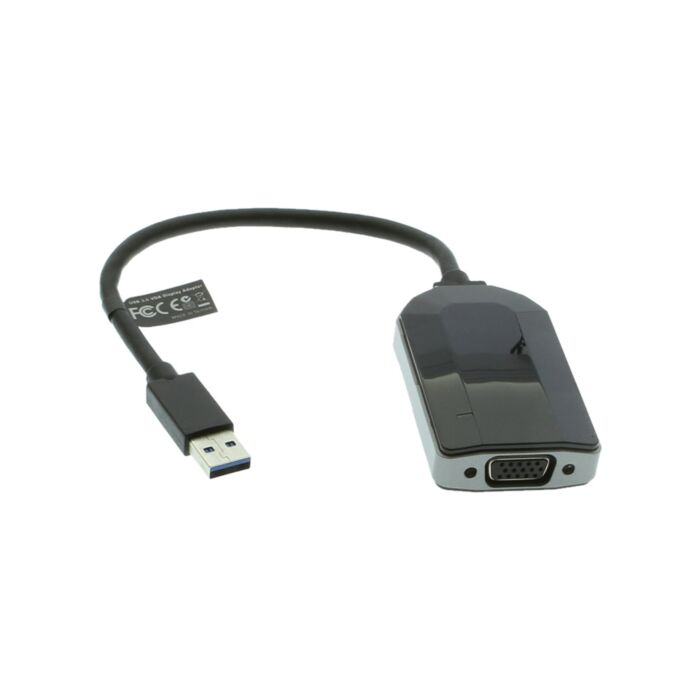

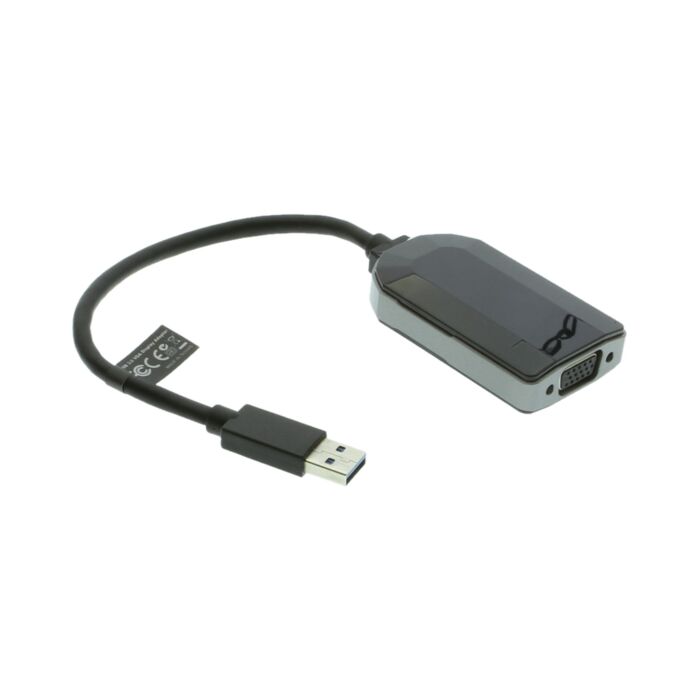

USB 3.0 to VGA External Video Card Multi Monitor Adapter - 2048x1152

Rating:
60% of 100
was $35.18 Special Price $10.55
Connect a VGA display through SuperSpeed USB 3.0, for an accelerated external multi-monitor solution at resolutions up to 2048x1152 USB 3.0 to VGA Adapter turns an available USB 3.0 port.
Availability: On Backorder
Model Number
USB3-SVGA

Connect a VGA display through SuperSpeed USB 3.0, for an accelerated external multi-monitor solution at resolutions up to 2048x1152

USB 3.0 to VGA Adapter turns an available USB 3.0 port into a VGA output with support for high resolution video (up to 2048x1152) - a convenient external video solution that makes it easy to add multi-monitor/dual display capability to a USB 3.0-enabled desktop or laptop computer (optimal performance from USB 3.0 connection, backward compatible with USB 2.0 connection).

  • USB Powered
  • SuperSpeed USB 3.0 (5 Gbps) Interface
  • Backwards Compatible with USB 2.0
  • Supports Resolutions up to 2048 x 1152
  • Quick and easy installation
  • Choose between mirrored, extended or primary display configurations
  • Driver software supports display rotation
  • Supports Windows Aero interface

Leveraging the high-bandwidth (up to 5 Gbps) SuperSpeed USB 3.0 interface, the adapter functions as an external graphics card to deliver smooth, high-resolution content to your VGA display; the adapter can be used to mirror your primary desktop, showing the same image on each display, or to extend your desktop to double your workspace and increase your productivity.

Recommended System Requirements:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher

  • SuperSpeed USB 3.0 to VGA conversion provides added bandwidth, for smooth high-resolution video content
  • External USB-Powered device provides the simplest way to add additional graphics capability to your system, without opening the case or voiding system warranties

Note: Connect a maximum of five adapters on a single PC - See manual for system requirements

Cable Length 6.3 in [160 mm]
Color Black
Connector A 1 USB 3.0 A (9 pin; SuperSpeed) Male
Connector B 1 VGA (15 pin; High Density D-Sub) Female
Industry Standards SuperSpeed USB 3.0, USB 2.0
Maximum Analog Resolutions 2048x1152
Memory 16MB DDR II
Power Adapter Included USB Powered
Product Height 0.61 in [15.5 mm]
Product Length 3.07 in [78 mm]
Product Weight 10.59 oz [300 g]
Product Width 1.71 in [43.5 mm]
Shipping (Package) Weight 0.88 lb [0.4 kg]



Supported Resolutions Widescreen(16/32 bit):
2048x1152, 1920x1080, 1680x1050, 1600x900, 1440x900, 1360x768, 1280x800, 1280x768, 1280x720

Standard(16/32 bit):
1600x1200, 1400x1050, 1280x1024, 1280x960, 1152x864, 1024x768, 800x600


System and Cable Requirements 1~2 USB Displays
Office Application:
CPU: i3 Dual core 2.8GHz
RAM: 2GB or higher

Full HD Video:
CPU: Quad Core 2.4GHz or Higher (i5 recommended)
RAM: 4GB or higher
Enclosure Type Plastic
Wide Screen Supported Yes
Humidity <85% RH Non-Condensing
Operating Temperature 0°C to 55°C (32°F to 131°F)
Storage Temperature -10°C to 75°C (14°F to 167°F)
Chipset ID MCT Trigger 5 T5-302A
OS Compatibility Windows® 7 (32/64bit) * Aero 3D interface supported  Windows 8 and Windows 10


More Information
Model NumberUSB3-SVGA
UPC729440690618
ColorBlack
ManufacturerCoolgear
WarrantyONE YEAR
OS CompatibilityWindows 10, Windows 8, Windows 7, Windows Vista, Windows XP
Country of OriginTaiwan
Connector(s)15-pin VGA, USB 3.2/3.x Type A Male
