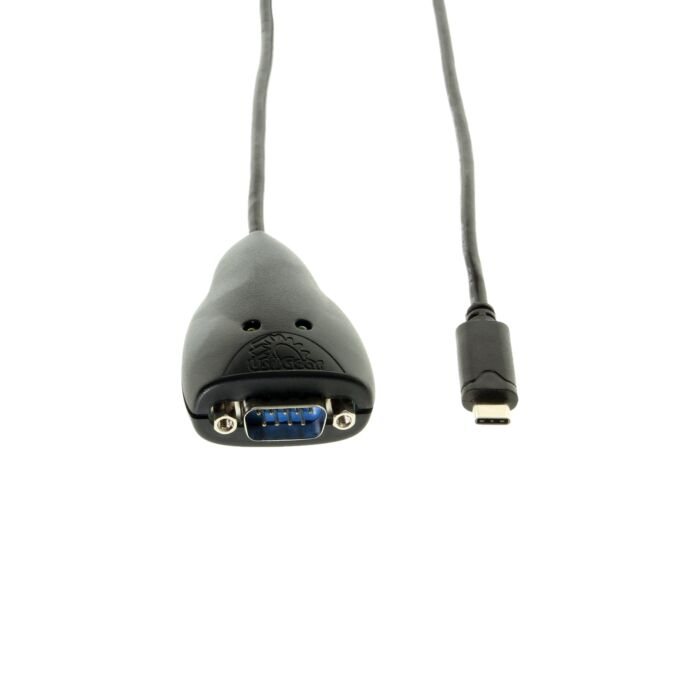

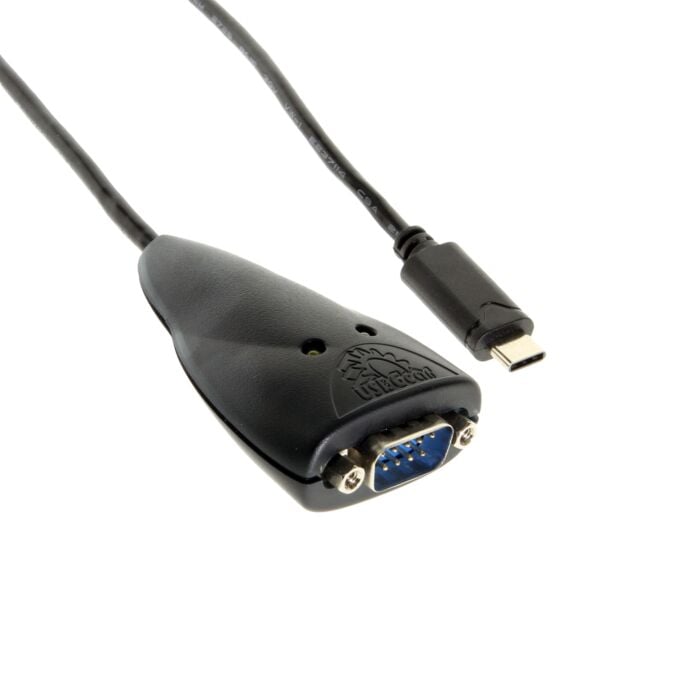

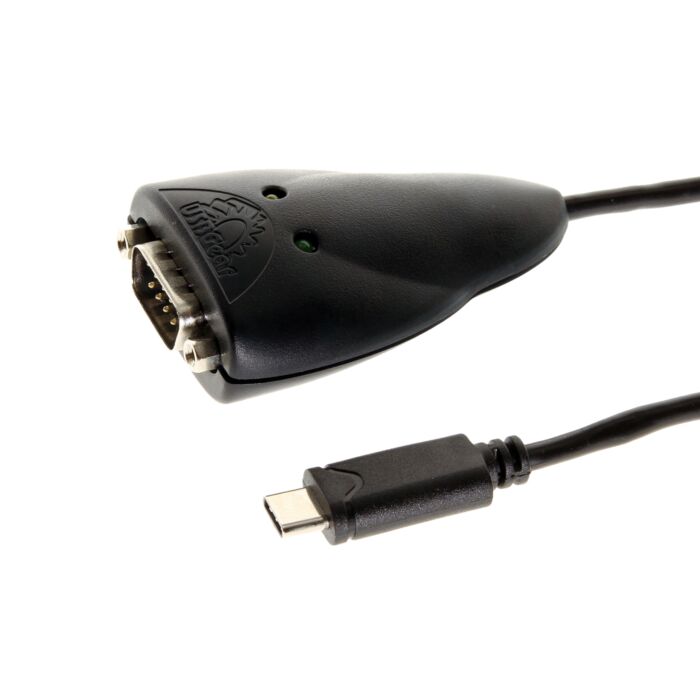

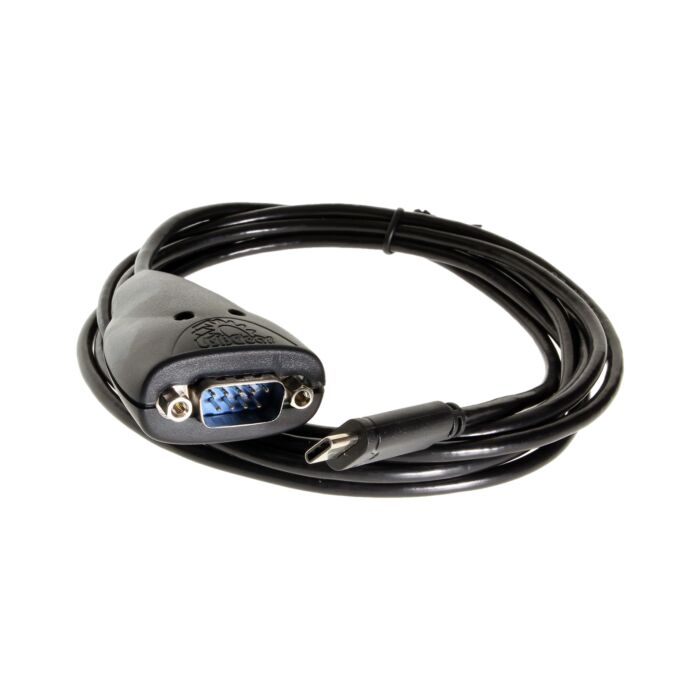

USB C to RS-232 6FT Serial Adapter Black w/FTDI Chipset DB9 male

$27.45
USBgear's new USB C to Serial Adapter an existing USB Type-C Port, the adapter can be utilized to work with your legacy serial connections. It’s great for newer Laptop and PC technologies with no serial port connections that incorporate USB Type-C ports.
Availability: In stock
Model Number
USBG-232MM-C
  • Buy 6 for $27.04 each and save 1%
  • Buy 12 for $26.83 each and save 2%
  • Buy 24 for $26.49 each and save 3%
  • Buy 48 for $26.28 each and save 4%
  • Buy 99 for $25.80 each and save 6%

Use new laptop computer USB technology to synchronize your new serial device or device currently using a serial port with this new USB C to RS-232 Serial Adapter. This USBG-232MM-C serial adapter adds a serial port to laptop, or supporting tablet PC via a hot plug compatible USB C connector.

Using an existing USB Type-C Port, the adapter can be utilized to work with your legacy serial connections. It’s great for newer Laptop and PC technologies with no serial port connections that incorporate USB Type-C ports.

The combination of RS-232 Serial Adapter communication protocol with USB C technology allows further use of existing devices through a universal host connection. The high-speed RS-232 serial port with 128 byte FIFO allows for high-speed communication, even in heavily loaded systems.

This serial adapter also allows unusual speed settings of up to 500.000bps. The USBG-232MM-C USB C to RS-232 Serial Adapter also features TxD and RxD LEDs that are located on the DB-9 Male end of the cable.

Additional Features:

  • Adds one RS-232 serial port by connecting to a USB C port.
  • Compact size cable type converter with cable length of 6 feet.
  • Installed as standard Windows COM port through your laptop or Type-C enabled device.
  • Full RS-232 modem control signals and hardware/software flow control
  • RS-232 data signals: TxD, RxD, RTS, CTS, DSR, DTR, DCD, RI, GND
  • High speed serial port with the baud rate up to 921.6K bps
  • Non-standard baudrates supported
  • LED status indicators for TxD and RxD for easy port monitoring and diagnostic
  • Serial port protected with surge protection of 10KV
  • Powered by USB port, no external power adapter required
  • Easy plug and play installation and RS-232 device connection
  • Uses FTDI Chipset FT231XQ
  • COM port number assigned can be changed to any COM port number required
  • Works with USB 1.1 & 2.0 host port

OS Support:

  • Windows 7, 8, and Windows 10
  • Linux and Mac OS 10.X

USBG-232MM-C Compatibility LIST GPS / Chartplotters / Fish Finders:

  • Magellan Sportrak GPS
  • Garmin GPS III Plus
  • Garmin eTrex Legend
  • Garmin 76S GPS
  • Garmin Rino 120
  • Garmin Etrex
  • Garmin GPS V
  • Peets weather station
  • Sky Caddie
  • SkyCaddie SG2 Golf GPS
  • Humminbird 767
  • Megellan MAP330

WEATHER STATION:

  • Oregon Scientific WMR-968
  • La Crosse WS-3610
  • Davis Vantage Pro II weather station

AMATEUR RADIO:

  • Yaseu FT-950 Amateur Radio
  • Kenwood TM-D710 ham radio
  • TenTec RX320 shortwave radio receiver
  • Kenwood TM-D710 dual band Amateur radio

Routers: (Connects to Cisco Console cable)

  • Cisco 871 Cisco 2900/3900 XL, Cisco ASA5505, Cisco 678 DSL, Cisco 2621XM

MODEMS:

  • US Robotics Courier dual standard V.34
  • Zoom 56k external fax modem

Embroidery Machines:

  • Bernina 180 embroidery machine

OBDII Data Analyers:

  • Innova 3140 / 3160 OBD2
  • Equus 3130 Innova Diagnostic Code Scanner
  • Autel MaxiDAS

Telescopes / Solar Controllers:

  • TS-60 Morningstar Solar Controller
  • Celestron 5SE Telescope
  • Celestron CGEM astronomy tracking mount

POLICE SCANNER RADIO:

  • Uniden BCD396XT programmable radio
  • Uniden 780XLT scanner
  • Uniden Bearcat BC346XT scanner

CNC Machines:

  • Strippit HECC80-3 CNC

PlusDeck Suunto X6HR watch Altec Digitizer Tablet Data Logging Digital Multi-meter Conext uninterrupted power supply Automation System SLC 500 Keile Micro Controller SEL-751A relays (needs null modem adapter & acselerator software ) URC remote controls MX-850 Summa Graphics D15 vinyl cutter AUDIO DEVICES:

  • Anthem MRX 300 A/V receiver
  • Anthem MRX 500 receiver
  • NuVo music system

INDUSTRIAL EQUIPMENT:

  • Brother wire EDM machine
  • Graphtec plotter

MegaSquirt car tuning SBC ALIX Firewall Lynx6 AL5B robot arm (Karmic RC) Matlab 2009b Pelouze scale DVDO iScan Duo Stenograph Writers:

  • Stentura 200SRT
  • Stentura 400SRT
  • Stentura 500
  • Stentura 6000
  • Stentura 6000LX
  • Stentura 8000
  • Stentura 8000LX
  • WAVE
  • DIAMANTE

APRS unit (Byonics RTG) iRobot Create FreeScale Codewarrior Technological Arts Adapt9S12C32 MCU X10 CM11A Crestron programmer Zebra Label Printers

More Information
Model Number USBG-232MM-C
UPC 736983909022
Color Black
Manufacturer USBGear
Warranty 1 Year
OS Compatibility Linux, OSX 10, Windows 10, Windows 8, Windows 7
Country of Origin Taiwan
Material Plastic
Short Description USBgear's new USB C to Serial Adapter an existing USB Type-C Port, the adapter can be utilized to work with your legacy serial connections. It’s great for newer Laptop and PC technologies with no serial port connections that incorporate USB Type-C ports.
Connector(s) DB9 Male w/ Nuts, USB 2.0 Type A Male
Downstream Port Count 1
LED Indicators RX / TX
Serial Modes RS232
Chip Model FTDI FT231XQ
