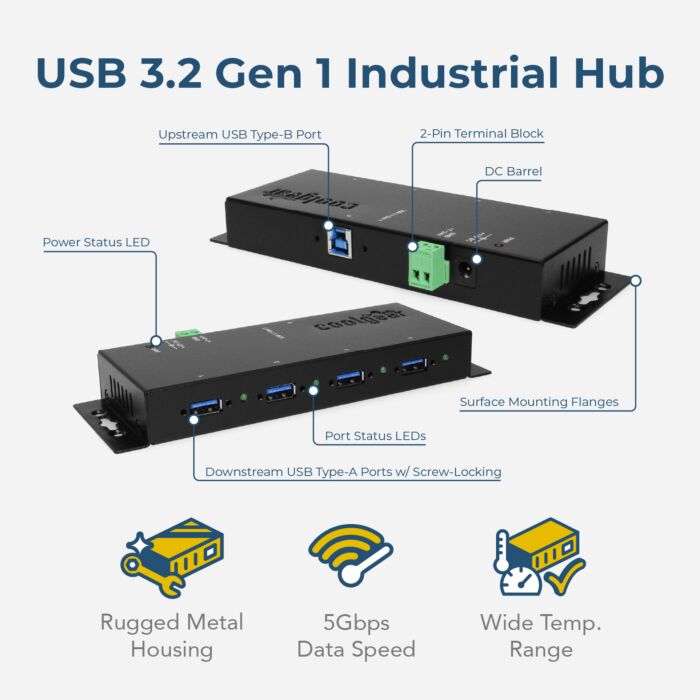

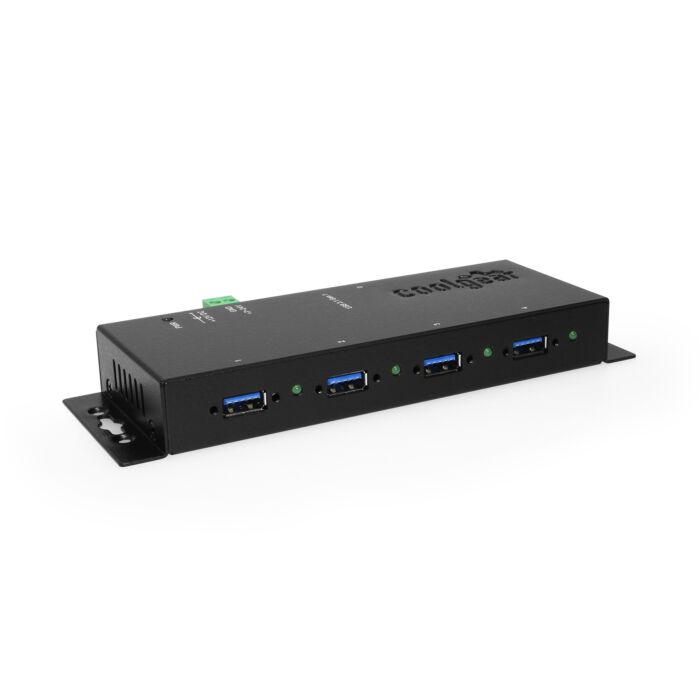

USB 3.2 Gen 1 4-Port Industrial Hub Metal Case with Screw Lock Cable Option
USB 3.0 4-Port Industrial Hub Metal Case with Screw Lock Cable Option
- SuperSpeed USB 3.0
- Industrial 4-Port USB 3.0 Metal Hub
- Compliant with USB3.0 Specification Revision 1.0
- Built-in Single Chip USB3.0 Hub Controller
- Metal Case, Ideal for Critical Applications
- Supports Screw Lock Features for both Upstream and Downstream USB Ports
- One Up-stream Port (Type-B) Support Super-speed, High-speed and Full-Speed
- 4 Down-stream Ports (Type-A) Support Super-Speed, High-speed , Full-speed and Low-speed Traffic
- Supports 4 Concurrent Non-periodic Transactions
- Supports Self-powered and Bus-powered Mode
- Supports 900mA USB Bus Power for Each Port

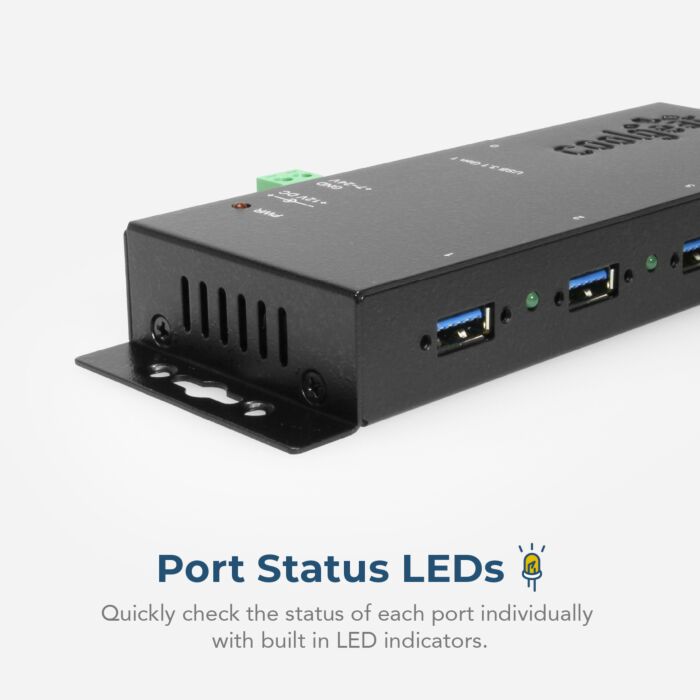

- Supports Downstream Port Status with LED
- Optional DIN RAIL Mounting Kit
INTRODUCTION
The USBG-3X4M is an USB 3.0 Hub that comply with the Universal Serial Bus 3.0 (USB3.0) Specifications Revision 1.0 and work up to 5Gbps. It provides 4 downstream facing ports with standard Type-A USB3.0 connectors. It supports screw lock features for both upstream (USB type B) and downstream (USB type A) connectors with the screw lock USB cables. It prevents from disconnecting the USB cables accidently.
With built-in single chip USB3.0 controller, it works backward compatible either when any one of downstream port is connected to an USB1.1 or USB2.0 compliant device, or when the upstream port is connected to a USB1.1 or USB3.0 compliant host.
The USBG-3X4M also provides an unique feature to work in the bus-powered mode without an external AC power adapter. It’s very convenient for light power consumption USB devices to work in this mode without an extra power supply. Only plug then go ahead. Besides, the external DC jack is used for self-powered mode if you need more power on the 4 downstream ports.
Since the USB is the most popular external port for the devices to connect to PCs, the USBG-3X4M provides an ideal solution to expand your USB ports immediately and save your investment.
SPECIFICATIONS
System
For Systems with USB 3.0, USB 2.0 or USB1.1 Ports
USB3.0 ports
Provides 4 USB3.0 downstream ports which managing up to 5Gbps:
- Compliant with USB3.0 Specifications Revision 1.0
- Provides 4 Downstream Facing Ports for Super-speed, High-speed, Full-speed and Low-speed traffic
- 1 Upstream Port for Super-speed, High-speed and Full-speed traffic
- Supports 5Gbps, 480Mbps, 12Mbps and 1.5Mbps Speed
- Supports USB Screw-lock Mechanism for Secure Cable Connection
- Supports Self-powered and Bus-powered Mode
- Supports up to 900mA USB Bus Power for Each Down-stream Port
- Supports Downstream Port Status with LED
USB Devices
Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, Pen-drives, SATA enclosures, joystick, virtual reality helmet, modem, PBX and many more
I/O Hardware
- Supports 4 external USB3.0 Type-A connectors and 1 Type-B Upstream connector, supports screw lock features with screw lock type cables
- Supports 1 DC Jack and 1 2-pin Terminal Blocks for external power input
Form Factor
5.98"(L)x2.35"(W)x0.93"(H) (15.20 x 5.96 x 2.35 cm)
NOTE: SCREW-LOCK CABLES NOT INCLUDED, please see our cable category for Screw Lock USB Cables

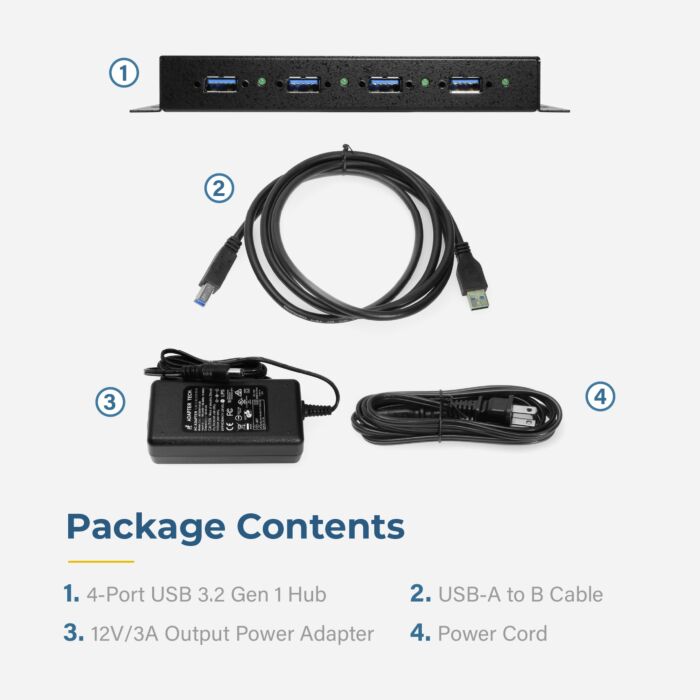

Package Contents
- Super-Speed USB 3.0 Hub
- 1x USB 3.0 A to B cable (non-Screw Lock)
- 1x 12VDC 3A Power Supply
- 1x User Guide

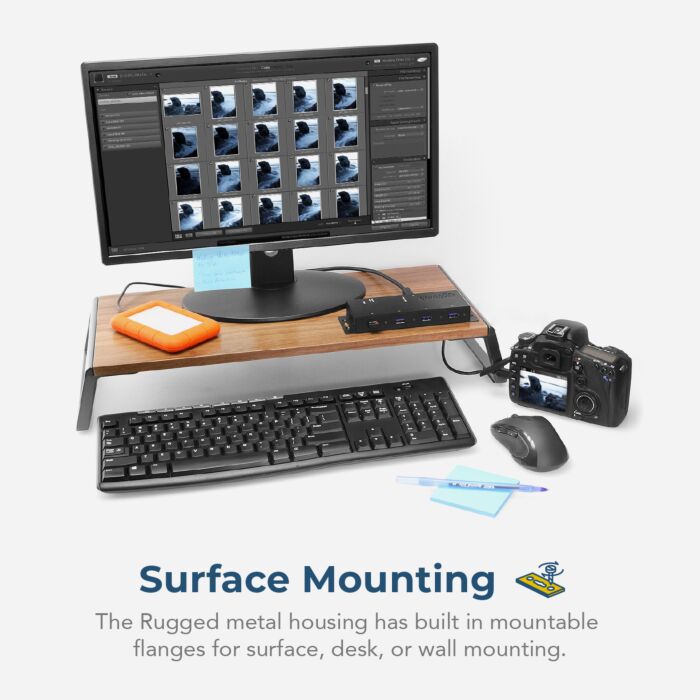

*Surface Mounting screws not included
Model Number | USBG-3X4M |
---|---|
UPC | 729440625191 |
Color | Black |
Manufacturer | Coolgear |
Warranty | 1 Year |
OS Compatibility | OS independent - No software or drivers required |
Item Length (in) | 6.01 |
Item Width (in) | 2.35 |
Item Height (in) | 1.96 |
Item Weight (lbs) | 0.65 |
Country of Origin | Taiwan |
Upstream Port Count | 1 |
Upstream Port Type | USB 3.2G1 / 3.0 Type-B Female |
Downstream Port Count | 4 |
Downstream Port Type | 4x Type A USB 3.2 G1 / 3.0 |
Max Data Transfer Rate | 5 Gbps |
LED Indicators | Power |
Input Voltage | 7 ~ 24V DC |
Chip Model | VL811-Q8P |
