USB 3.2 G1 4-Port Industrial Hub w/ Power Supply, GL 3520 Chipset

The USBG-3X4MR2 is an USB 3.0 Hub that comply with the Universal Serial Bus (USB) Specifications Revision 3.0 and work up to 5Gbps. It provides 4 downstream facing ports with standard A-type USB3.0 screw-lock connectors. With the RISC-like USB3.0 controller, it works backward compatible either when any one of downstream port is connected to an USB2.0/1.1 compliant device, or when the upstream port is connected to a USB 2.0/1.1 compliant host. The USBG-3X4MR2 provides a unique self-power mode to work with wide range (+7~24V) input DC power from its terminal blocks. It supports USB charging specifications by turning its downstream ports from a Standard Downstream Port (SDP) into Charging Downstream Port (CDP) or Dedicated Charging Ports (DCP). Since the USB is the most popular external port for the devices to connect to PCs, the USBG-3X4MR2 provides an ideal solution to expand your USB ports immediately and save your investment

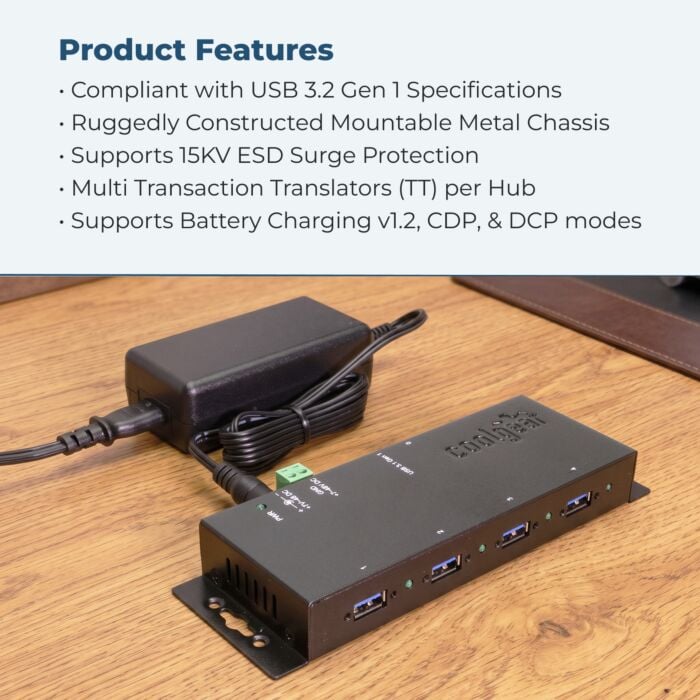

Features & Specifications:

• Compliant with USB Specification Revision 3.0

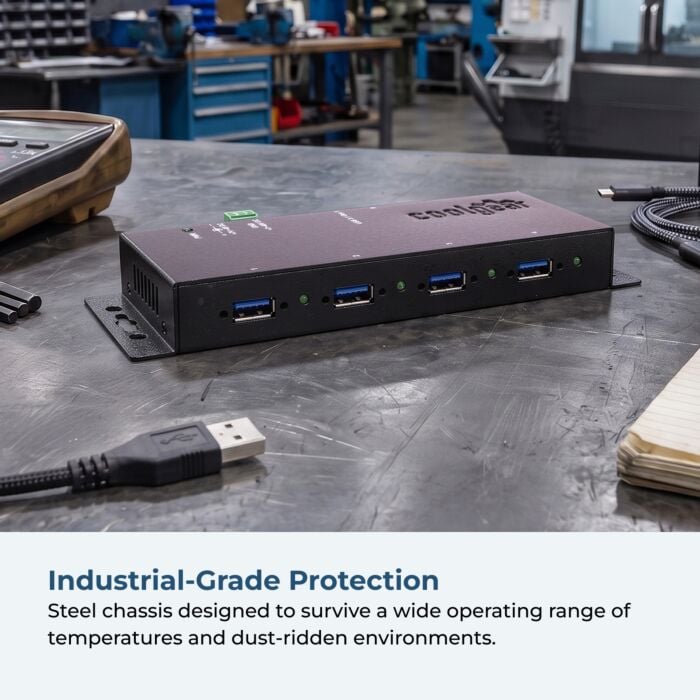

• Metal Case with DIN RAIL Mounting Kit for Industrial Critical Applications

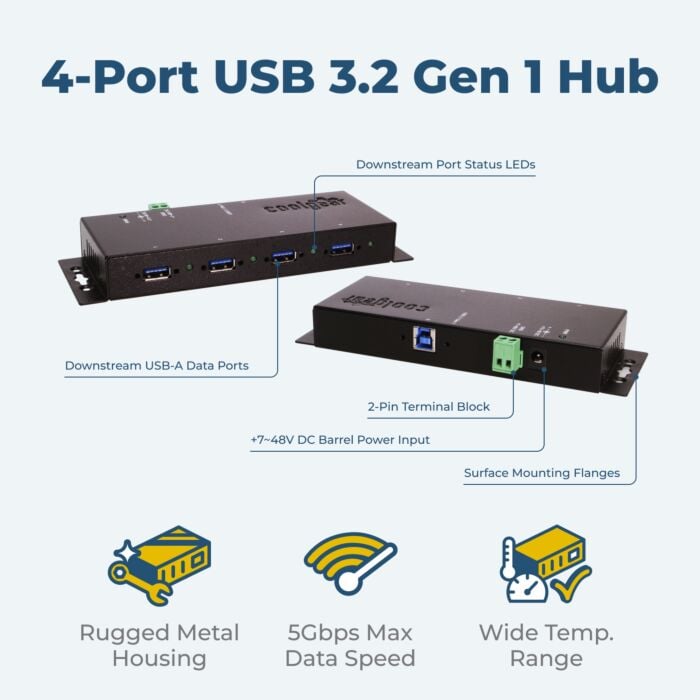

• Provides 4 Downstream USB3.0 Facing Ports
• Provides 4 LEDs Indicating Data Transferring for each Port
• Supports 5Gbps (Super-speed), 480Mbps (High-speed)
• 12Mbps (Full-speed) and 1.5Mbps (Low-speed) Speed
• Supports 15KV ESD Surge Protection for Each Port
• Multi Transaction Translators (TT) per Hub
• Supports +7~48V DC Wide Range Self-power Input
• Supports USB Battery Charging v1.2 : CDP, DCP modes
• Charges all 4 USB Ports up to1.5A Each Simultaneously

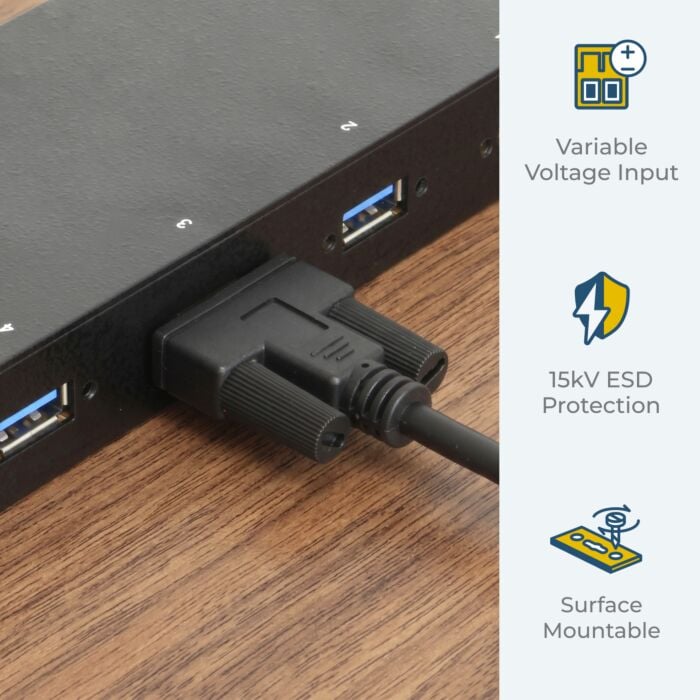

• Supports USB Screw-Lock Cable Mechanism

OS Support:

• Windows 7 & Windows 10

Environmental

• Operating Temp.: 0 to 70C (32 to 158F)
• Storage Temp: -20 to 85C (-4 to 185F)
• Operating Humidity: 5 to 95% RH

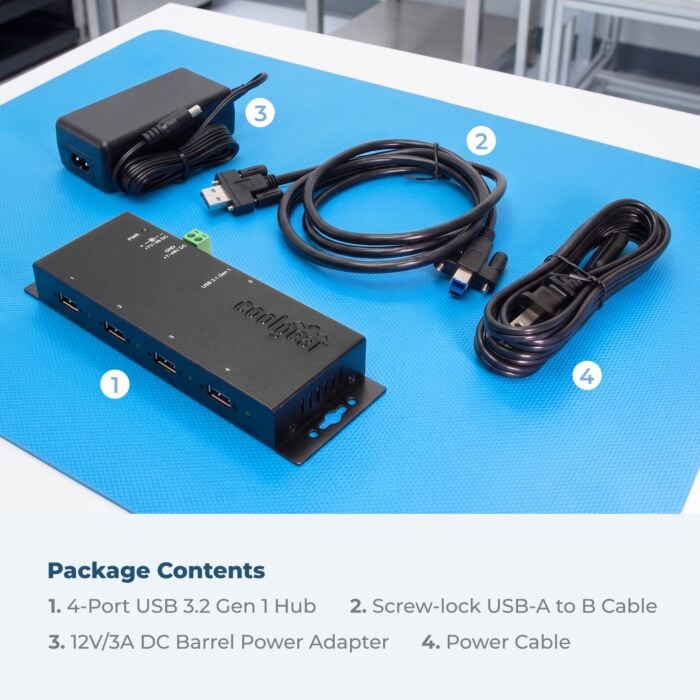

Package Contents:

• USB hub
• Power supply
• Screw Lock USB-A to Screw lock USB-B USB 3.0 cable
• Product Manual

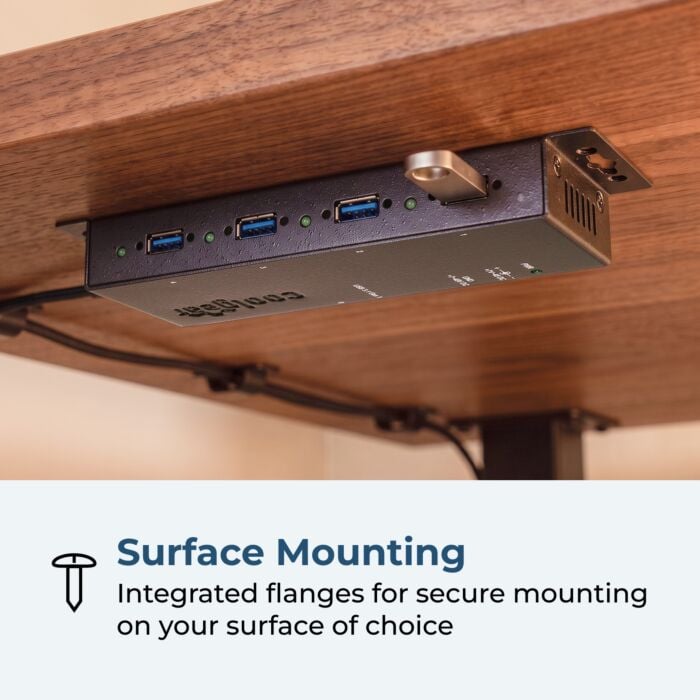

*Surface Mounting screws not included.
