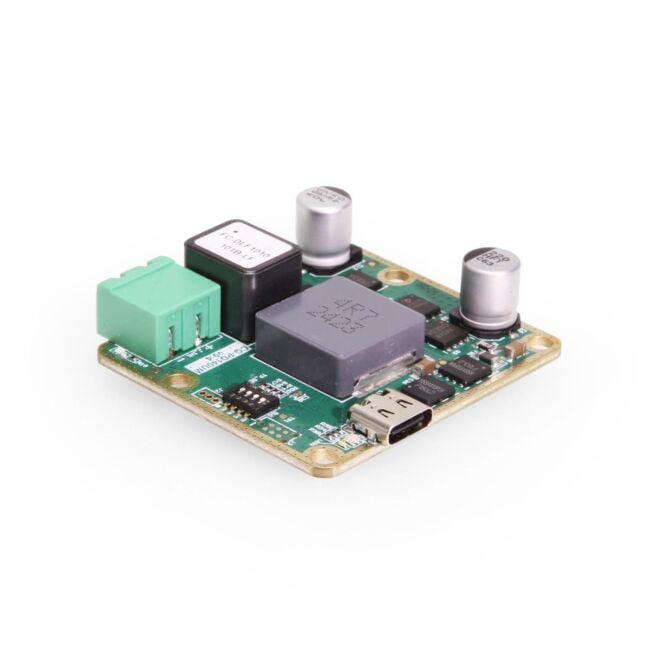

140W EPR USB-C PD Charger Board w/ 11.6V Shutoff & Dip Switch Configuration for 45/60/100/140
This High Power Single Port USB Type-C Power Delivery (PD) PCBA complies with the latest USB-C and PD standards. Designed for integration into PC power adapters, mobile chargers, car chargers, and power bank applications, this compact yet powerful module delivers exceptional charging capabilities. Featuring one 140W USB Type-C PD port with EPR support, it is a reliable and versatile solution for high-power applications.
Key Features:
- 140W USB PD 3.1 Output: Supports up to 28V5A with EPR for demanding devices.
- Wide Input Range: Operates with 12–24V DC input, ensuring flexibility in power configurations.
- Versatile Output Options: SPR modes (5V3A, 9V3A, 12V3A, 15V3A, 20V5A) and EPR mode (28V5A).
- Broad Protocol Support: Compatible with PD3.1, PPS, QC4.0+, BC1.2, and more.
(Note: USB-C to MagSafe 3 Cable required for 140W PD output is NOT included.)
This PCBA offers a reliable and customizable solution for OEMs and integrators looking to embed high-power USB Type-C PD functionality into their designs.
Features:
This 140W USB PD 3.1 Single Port Type-C PCBA provides high-efficiency charging capabilities in a compact, customizable form. It features an advanced buck-boost DC adapter capable of delivering up to 140W of power with EPR (Extended Power Range) support, ensuring compatibility with the latest USB Power Delivery standards.
- High Power Output: Supports SPR modes (5V3A, 9V3A, 12V3A, 15V3A, 20V5A) and EPR mode (28V5A) for a range of device requirements.
- Advanced PD Protocols: Compatible with PD3.1, PPS, QC4.0+, BC1.2, and other key standards for universal functionality.
- Comprehensive System Protections: Built-in protections include Over Voltage Protection (OVP), Over Current Protection (OCP), Short Circuit Protection (SCP), and open loop safeguards.
- Flexible Input Range: Operates with a variable 12–24V DC input, suitable for diverse integration scenarios.
- Configurable Power Options: Equipped with an 11.6V shutoff jumper and DIP switches, allowing configuration for 45W, 60W, 100W, or 140W output depending on your input requirements.
- Optimized for Fast Charging: Delivers the fastest possible charging speed for high-demand devices like the MacBook Pro 16” (2021).
(Note: USB-C to MagSafe 3 Cable required for 140W PD output is NOT included.)
This compact PCBA is perfect for integration into custom power solutions, including PC power adapters, mobile chargers, car chargers, and power banks, offering advanced charging features and extensive configurability.
| Model Number | CG-PD140UM-PCBA |
|---|---|
| UPC | 045079164895 |
| Color | Green |
| Manufacturer | Coolgear |
| Warranty | 1 Year |
| OS Compatibility | OS independent - No software or drivers required |
| Item Length (in) | 1.935 |
| Item Width (in) | 1.775 |
| Item Height (in) | 0.605 |
| Item Weight (lbs) | 0.0375 |
| Country of Origin | China |
| Material | N/A |
| Downstream Port Type | 1x Type C (Charging) |
| Max Data Transfer Rate | N/A |
| Input Voltage | +12~24V DC |
| ESD Protection | 15kV |
| Connector(s) | USB Type C Female |
| Chip Model | UM3506 |
