DB9 RS-232 5 Bits Optoelectronic Isolated Converter 2,500Vrms
Adopts advanced optoelectronic isolation technology, prevents RS-232 serial interface device damage from a bad environment, such as ground loop circuit voltage, surge, lightning, ESD, hot-plug and electromagnetic interference, etc.
- Transmission mode: asynchronous, full-duplex, full transparent
- Isolated voltage: 2,500Vrms impulse or 500VDC
- Buy 6 for $15.16 each and save 1%
- Buy 12 for $15.04 each and save 2%
- Buy 24 for $14.85 each and save 4%
- Buy 48 for $14.74 each and save 4%
- Buy 99 for $14.47 each and save 6%

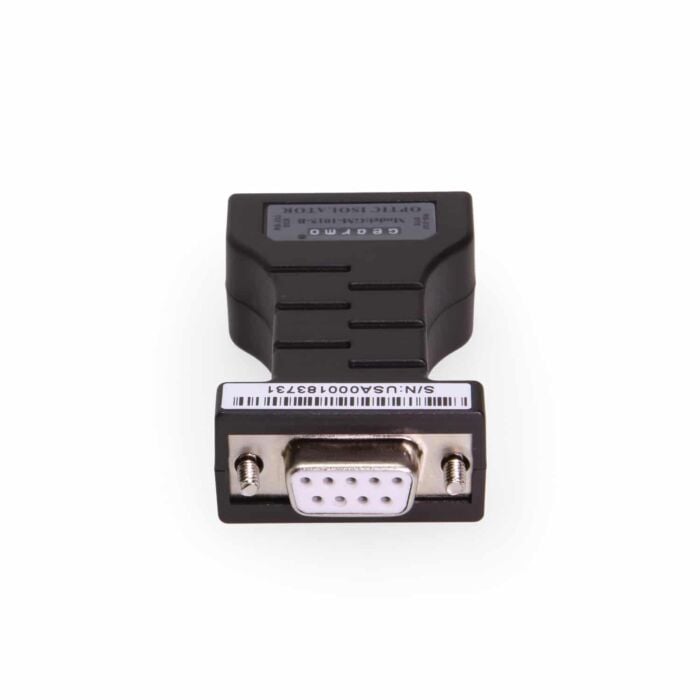

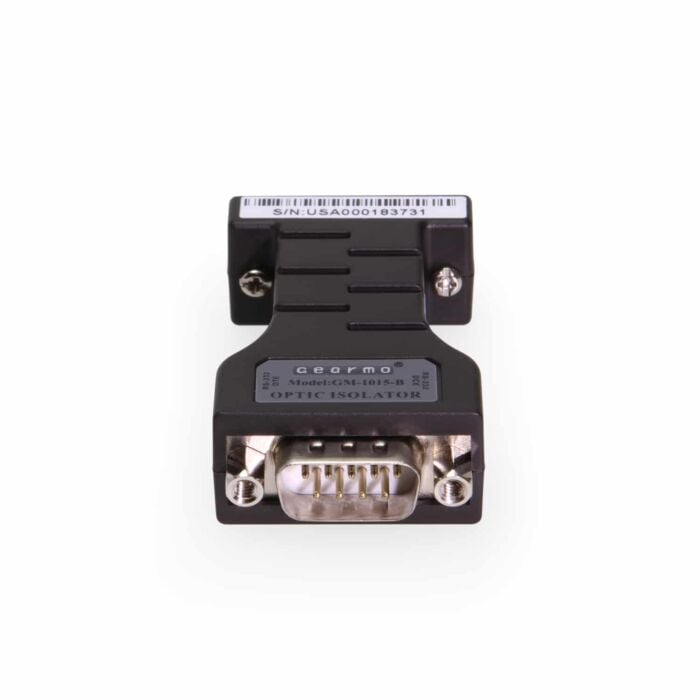

The GM-1015-B is an RS-232 serial port optoelectronic isolator. It adopts advanced optoelectronic isolation technology, prevents RS-232 serial interface device damage from a bad environment, such as ground loop circuit voltage, surge, lightning, ESD, hot-plug and electromagnetic interference, etc. The damage of the RS-232 port is related to communication hardware. For example, device A connects device B with an RS-232 port, if the voltage difference of ground line between A and B is up to 50V (usually up to 80V), RS-232 port will not work normally; the isolated voltage of RS-232 port will reach 2,500Vrms instantly, together with 500VDC continuous peak voltage difference; it also absorbs in ESD and electromagnetic interference, so as to protect RS-232 port. The optoelectronic isolation technology is fully isolating the electrical devices and ground loop circuit on both ends; it converts the electrical signal to optic signal, then transmits the signal to another end, finally converts it back to an electrical signal. This protects the communication device from a ground loop circuit and any surge interference, which greatly improves the reliability and stability of the communication system.
The GM-1015-B finds application in point to point RS-232 communication systems, UNIX multi-user systems, monitoring systems, and ATMs for power, insurance, telecommunications, railway, post office, finance, banking, securities and program control, etc.
Features:
- Standards: RS-232 EIA & CCITTV.24 asynchronous protocol
- Connector: Two DB9 on both sides
- Transmission mode: asynchronous, full-duplex, full transparent
- Isolated voltage: 2,500Vrms impulse or 500VDC
- Baud rate: 300bps-19,200bps
- Power: from RS-232(TXD, RTS or DTR)
- Operating temperature: -40℃ to 85℃
- Relative humidity: 5% to 95%
| Model Number | GM-1015-B |
|---|---|
| UPC | 045079162600 |
| Color | Black |
| Manufacturer | Gearmo |
| Warranty | 1 Year |
| OS Compatibility | OS independent - No software or drivers required |
| Item Length (in) | 2.48 |
| Item Width (in) | 1.30 |
| Item Height (in) | 0.67 |
| Item Weight (lbs) | 0.06875 |
| Country of Origin | China |
| Material | Plastic |
| Short Description | Adopts advanced optoelectronic isolation technology, prevents RS-232 serial interface device damage from a bad environment, such as ground loop circuit voltage, surge, lightning, ESD, hot-plug and electromagnetic interference, etc.
|
| Connector(s) | DB9 Female w/ Screws, DB9 Male w/ Nuts |
| Serial Modes | RS232 |
