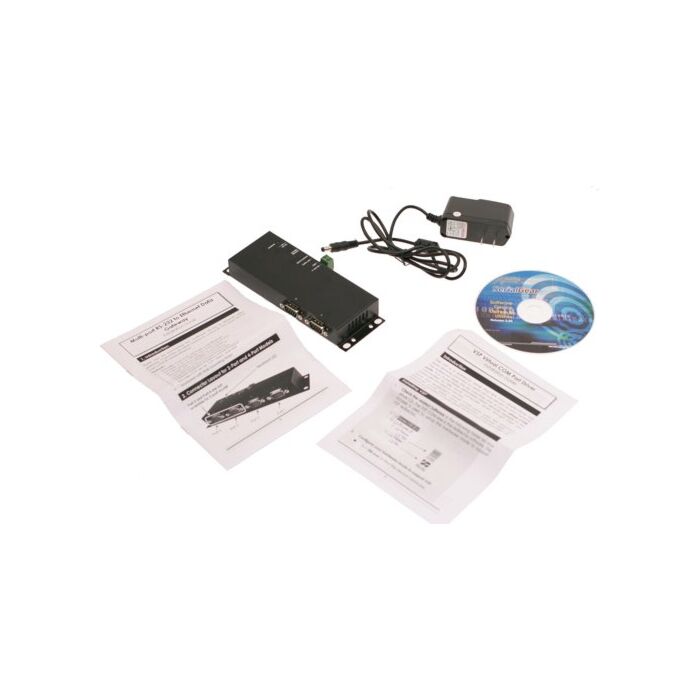

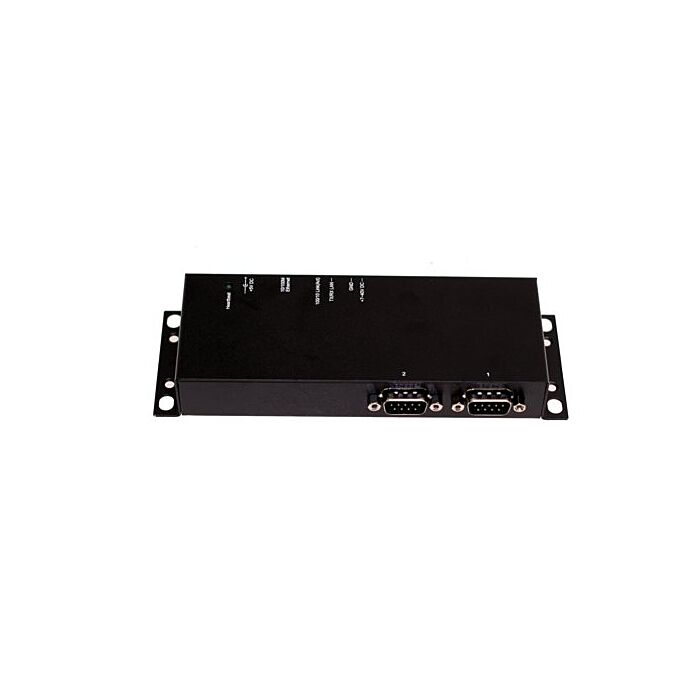

2-Port RS-232 to Ethernet Data Gateway TCP/IP Industrial Metal Case
2-Port RS-232 to Ethernet Data Gateway
All New SerialGear(TM) Virtual Comport software included
- Provides 2-Port Serial RS-232C over Ethernet
- Provides 2 DB9 RS-232C Male Connectors
- RS-232C Speed from 300bps to 115.2Kbps
- Provides one 10/100Mbps, RJ45 LAN Port
- Supports Setup and Connect Passwords
- Supports Standard Windows Socket Protocol
- Provides TCP Server, TCP Client, and UDP
- Built-in Watch Dog Feature
- +12VDC DC Jack Power Input Connector
- Includes Wall Mounting Kit
Multi-port RS-232 to Ethernet Data Gateway Installation Guide
INTRODUCTION
The MSD-SRF2XM 2-Port RS-232C to Ethernet data gateways is designed to adopt your industrial serial devices to the Internet instantly. It delivers simple, reliable and cost-effective network connectivity for multiple serial devices. It addresses the need to connect individual RS-232C devices, such as PLCs, meters, sensors, to an IP-based Ethernet LAN. It makes your application software to access serial devices anywhere on a local area network or the Internet.
A built-in watch dog function is designed to reset the MSD-SRF2XM when the hardware hang because some other unknown causes.
The MSD-SRF2XM is easy to install or remotely through a variety IP addressing methods (UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping). It is ideal for applications requiring serial port environments and network device management.
SPECIFICATIONS
- LAN Port:
- Ethernet: 10/100 Mbps, RJ45 connector
- Protocols: UDP, IP, TCP, ICMP, HTTP, DHCP, ARP-Ping
Serial Interface
The Serial interface provides 2 DB9 RS-232 connectors. The key benefits are:
- RS-232 Connector: DB9 male
- Parity: None, Even, Odd
- Data bits: 5,6,7,8
- Speed: 300bps to 115.2Kbps
- Provides wall mounting Kit
- Watch Dog Function
- A built-in watch dog function is designed to reset the MSD-SRF2XM when a hardware/software hang occures.
- Power Requirements
- +5VDC from DC Jack Power Input
- +7-40VDC "Din-Rail" Style Power Input
- NO power supply included
- Environmental:
- Operating Temp.: 0 to 55°C (32 to 131°F)
- Storage Temp: -20 to 85°C (-4 to 185°F)
- Operating Humidity: 5 to 95% RH
| Model Number | MSD-SRF2XM |
|---|---|
| Manufacturer | Cablemax |
| Country of Origin | Taiwan |
| Color | Black |
| Warranty | 1 Year |
| OS Compatibility | Windows 11, Windows 10, Windows 8, Windows 7, Windows Vista, Windows XP |
| Downstream Port Count | 2 |
| Input Voltage | 5V DC |
| Serial Modes | RS232 |
| Chip Model | EM636165TS, S3C4510B01 |
