USB 3.0 to PATA and SATA 3.5 and 2.5 inch hard drive adapter
$38.99
Regular Price

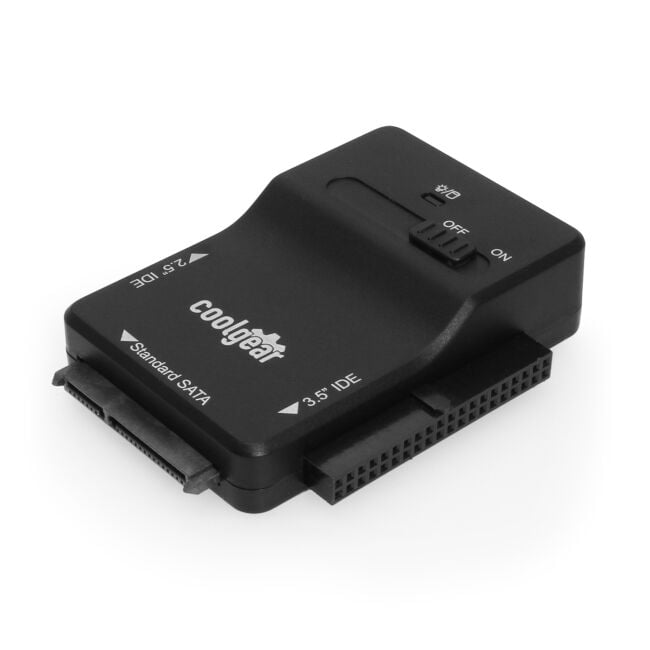

The SS-128ASD USB 3.0 to SATA or PATA adapter features a new ultra fast chip (JMS551 and JMD330 IDE and SATA to USB chips.) and a UL and FCC approved HIGH-Output Power Adapter.
Contact our sales team for availability and lead time, or browse similar products.
Find similar productsDocumentation & Downloads
Details
The SS-128ASD USB 3.0 to SATA or PATA adapter features a new ultra fast chip (JMS551 and JMD330 IDE and SATA to USB chips.) and a UL and FCC approved HIGH-Output Power Adapter. This USB 3.0 to SATA adapter allows you to convert 2.5″/3.5″ Serial ATA, HDD, and other Serial ATA Devices into USB 3.0 interface Fully backward Compatible with USB 2.0. The maximum transfer speed that it will reach is 5Gbps.
The SS-128ASD USB 3.0 to SATA or PATA adapter supports the following hard drive types:
- IDE Hard Drives from 20GB up to 4000GB (4TB)
- SATA or SATA II SATA III Hard Drives from 80GB up to 4,000GB (currently tested only up to 4,000 GB)
- IDE/PATA or SATA I II or III Drives SSD or Magnetic Storage
- One USB 3.0 to IDE+SATA Cable Adapter for 40pin IDE Drives &44 Pin IDE Drives and 22 Pin SATA Power + Signal Connector.
Additional Features:
- USB 3.0 To IDE/ Serial ATA Multifunctional External Cable . Interface. Serial ATA ; IDE ; USB 3.0. Data Transfer Rate.
- Transfer rate available for 5Gbs. Suitability. 2.5″, 3.5″ ,5.25″ Devices.
- Plug-play and Hot-plug
- Power/Adapter (AC 100~240V, 50~60Hz ; DC 12V 4Amp)
- Power adapter for 3.5″/ Bus-Power for 2.5″ HDD
OS Support:
- Windows XP, Vista, 7, 8, 10, and Windows 11
- Linux
- Mac OSX
Technical Specifications
| UPC | 729440691387 |
|---|---|
| Country of Origin | China |
| Manufacturer | Coolgear |
| Warranty | One Year |
| Downstream Port Count | 3 |
| Input Voltage | 5 ~ 12V DC |
| OS Support / Compatibility | OS independent - No software or drivers required, Linux, Windows 7, Windows 8, Windows 10, Windows 11, Mac OS |
| Max Data Transfer Rate | 5Gbps |
| Downstream Port Type | IDE 40-pin Connector, IDE mini 44-pin Connector, SATA 22-pin Connector |
| Upstream Port Count | 1 |
| Upstream Port Type | USB 3.2 Gen 1 Type B |
Reviews (195)
Customer rating
Based on 195 reviews
- 5 stars: 150 reviews
- 4 stars: 28 reviews
- 3 stars: 16 reviews
- 2 stars: 1 review
- 1 star: 0 reviews
Write Your Own Review
Quality
5
Ok
Review by
Eric T
????
Quality
5
Great product for old Hard Drives and such
Review by
Adam J.
No problems from the product. Worked well once I figured it out.
Quality
5
Everything worked the first time I tried it. PATA
Review by
OneGalsOpinion
I have no complaints about the adapter. I panicked when I saw that my old hard drive was not IDE or SATA but PATA and did not appear to fit the adapter. I did some googling and found that PATA is the same as IDE. The PATA drive does fit the IDE connector. There is a divider in the pin connector that automatically aligns every thing as its plugged in. There is a small space on either side but the pins are properly connected. I had an old PC with bulging caps in the power supply. I needed files from that hard drive. No one wanted to replace just those capacitors but the entire power supply. They wanted me to upgrade from Windows 7 to 10 before even considering removing the files from the hard drive. A friend told me I needed a hard drive adapter. I didn't even know there is such a thing. If I had known, I could have solved this problem years ago.
Quality
3
Won't fit every Hard Drive
Review by
H. Hanford
I got this to transfer information off my old Hard Drive. Unfortunately, it wouldn't fit my drive, and I tried ALL the settings and pins. The pins just wouldn't line up.I had to return it, but it seemed well made and I wish it would've worked. I'm sure it would've worked it I could've gotten it to fit my HD.
Quality
4
A bit clumsy but it did work.
Review by
Greg D
Trying to clean up some old hard drives. This allowed me to connect PATA and SATA drives without installing in the computer.
Quality
5
Cool gear
Review by
FAHAD NAJI ALHOULI
Good Quality and Prices
Quality
5
Easy and quick.
Review by
Susan Phillips
Once I plugged it in with my laptop hard drive, it immediately began transferring all my files into my desk top. Worked very well and was so easy.
Quality
5
Very easy to use.
Review by
Doug Jorissen
Very easy to use and works on both SATA and PATA hard drives. Highly recommend. Good price.
Quality
5
Works great with every drive I tried, even some from the 1990's.
Review by
MasterS
Ok as far as i used this it worked perfectly and accessed some very old drives, now here is the tricky part that many don't know.To get some of these old drives to work you need to set them them to different settings with jumpers, most the time cable select works, sometimes master works and i found one that had to be set as slave.So my point is you can probably get any drive to work that will plug into this it just has to be set right on the jumper.Note: that you will only encounter these problems if you are trying to access old drives.First try it fresh out of the computer then if it doesn't work unplug and try a different jumper setting on the drive.
Quality
3
connector very easily falls out of drive
Review by
sjprg
connector very easily falls out of drive
