Industrial 12-Port USB 2.0 Powered Hub for PC-MAC DIN-RAIL Mount
As of August 2023 this product is End of Life (EOL). It is replaced by PN# USBG-12U3ML.
Industrial Grade | +7~24V DC Input | Surface Mountable | 480 Mbps | LED Indicators
- High Speeds: This USB hub is 2.0 compliant, ensuring fast 480Mbps data transfer speeds. It supports high speed and full speed which enables it to be compatible with USB 1.1.
- Superior Build Quality: Housed in a rugged steel chassis with built in mountable flanges, the 12-port hub is perfect for installations in offices, labs, warehouses, heavy machinery, automation equipment, and other industrial applications.
- Check Your Ports’ Status: Quickly check the status of each port individually with built in LED indicators.
- Upstream: 1 USB port, Type B connector
- Downstream: 12 USB ports, Type A connectors
- Power Connector: 3-Pin Terminal Block
- Mounting Options: Wall & Surface
As of August 2023 this product is End of Life (EOL). It is replaced by PN# USBG-12U3ML.
Introduction:

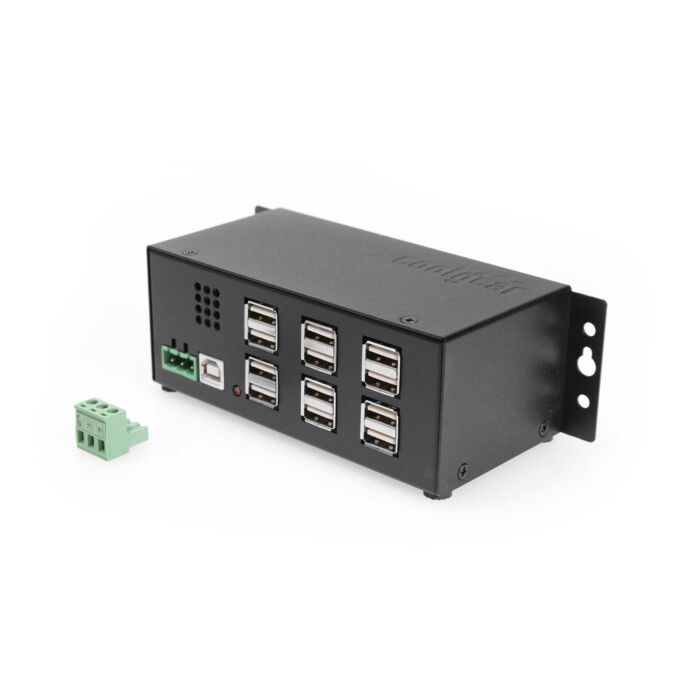

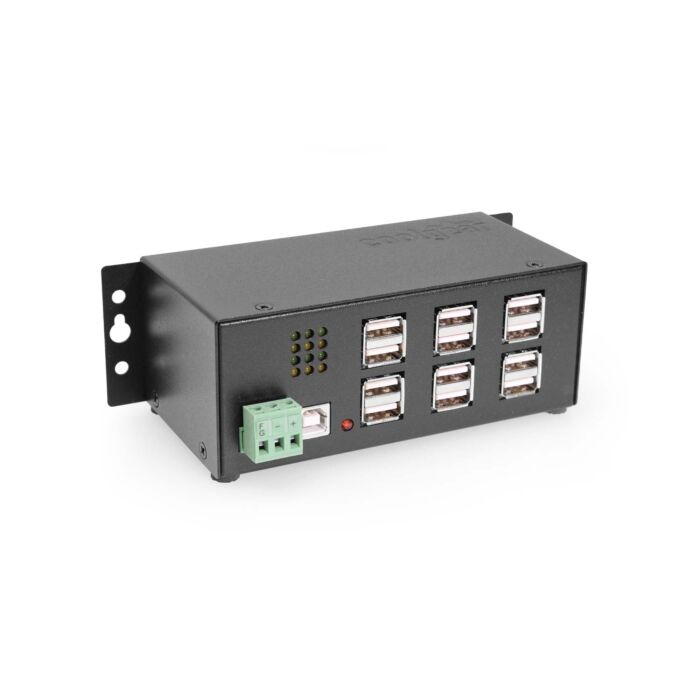

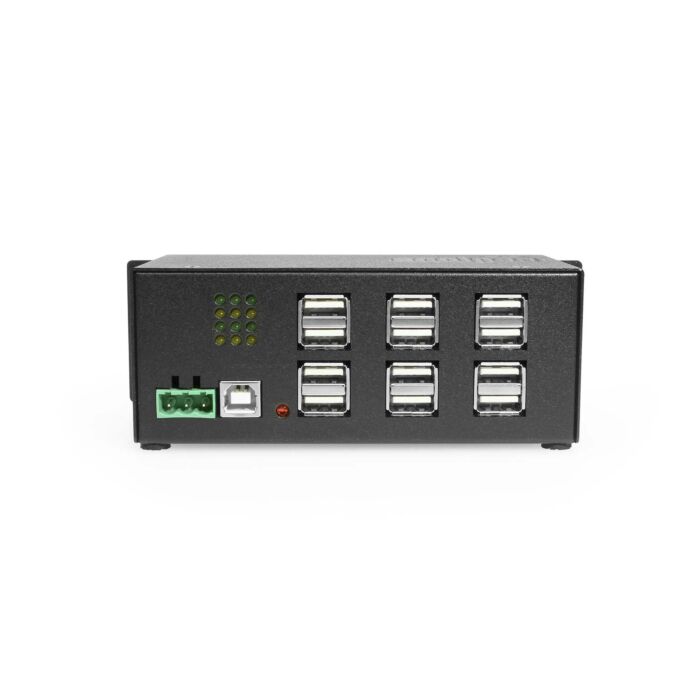

The USBG-12U2ML is a High-Speed 12-Port USB 2.0 powered hub that is backward compatible with USB 1.0 and 1.1. It provides an out of the box industry standard that allows connection of up to twelve USB peripherals or devices to your USB ready PC or Mac.
The 12-Port USB 2.0 Powered Hub (USBG-12U2ML) is targeted at PC and Mac Industrial Application users that are expanding the number of USB ports on their system. The rugged metal chassis provides the USB 2.0 hub with a stable and durable construction. The USBG-12U2ML can be wall-mounted or installed onto a DIN rail for convenient access to the ports. This 12-port hub can be powered with a three pin terminal block connector (7-36V) AC Adapter Required, which is sold separately (pictured below).
Click here to purchase the External Power supply for this product. Or, go to the “Optional Accessories” tab above for easy access to the exact item you need!
The USBG-12U2ML provides twelve type “A” downstream ports for connecting USB peripherals, devices, or other USB hubs, it is designed to provide quick and easy access for industrial use. A single type “B” upstream port connects the USBG-12U2ML hub to the host computer port or another USB hub. The 12-Port USB 2.0 Hub enables up to 127 devices to be connected by cascading multiple hubs. Configured directly by the operating system, the USBG-12U2ML operates seamlessly with both Microsoft Windows and Apple Macintosh Operating Systems. As a standard USB hub, the USBG-12U2ML buffers USB data from any attached peripheral in compliance with USB specifications to provide an invisible extension of the USB bus. Supporting both low speed (1.5Mbps and 12Mbps) and Hi-Speed (480Mbps) devices, each port creates a bridge between the peripheral and host computer.
Features:
- LEDs provide port status for each port and power status.
- Includes a Quick Install Guide, a 3-foot Hi-Speed USB 2.0 certified A to B cable, and a power plug for the optional 110/220 AC power supply.
- Compliant with USB Specification Revision 2.0

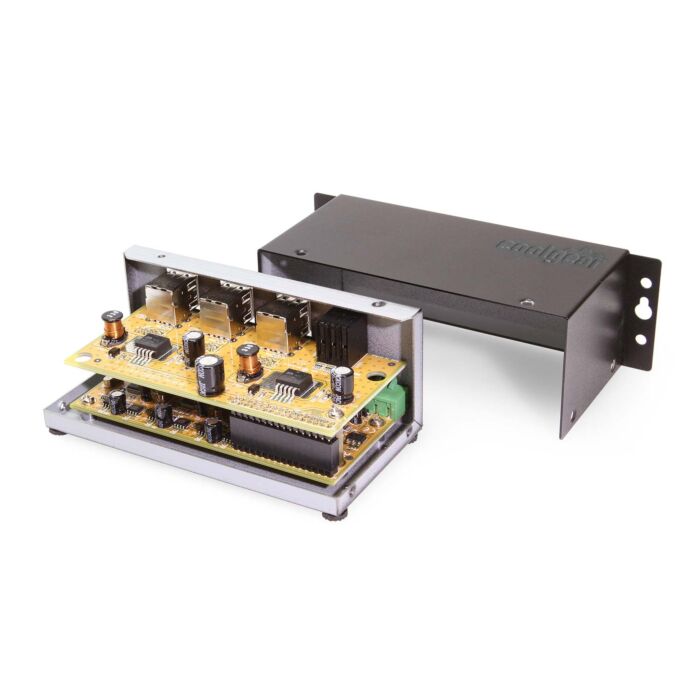

- Built-in 4X GL-852 Multi-TT Chip USB2.0 Hub Controller
- Supports High-speed and or Full-speed Packet
- Protocol Sequencer for Endpoint 0/1
- Provides 12 Downstream Facing USB 2.0 Ports
- Supports 480Mbps, 12Mbps and 1.5Mbps Speed
- Multi Transaction Translator per Hub and Supports 12 Concurrent Non-periodic Transactions
- Supports Self-powered Mode
- Supports Downstream Port Status with LED
- Compliant with USB Specifications 2.0
- High-speed or Full-speed Packet Protocol Sequencer for Endpoint 0/1
Device Support:
- Supports Downstream Port Status with LED USB Devices Supports keyboard, mouse, monitor, scanner, printer, PC Camera, telephone, CD-ROM drive, joystick, virtual reality helmet, modem, PBX and many more USB devices I/O Hardware
- Supports 12 external USB2.0 Type-A connectors and 1 Type-B Upstream connector.
- Supports a 3-pin Terminal Block Connector for external power input from AC adapter
OS Support:
- Windows XP, 2000, 2003, CE, Vista, Windows 7, 8, Windows 10
- Linux and Mac OS 10.X
Environmental:
- Operating Temp.: 0 to 55C (32 to 131 F)
- Storage Temp: -20C to 85C (-4 to 185 F)
- Operating Humidity: 5 to 95% RH
Product Dimensions & Weight:
- 6.250 in. (w/flange) 5.250 in. (w/o flange)(L) x 2.6 in. (W) x 2.0 in. (H)
- Hub Weight: .843 lbs.

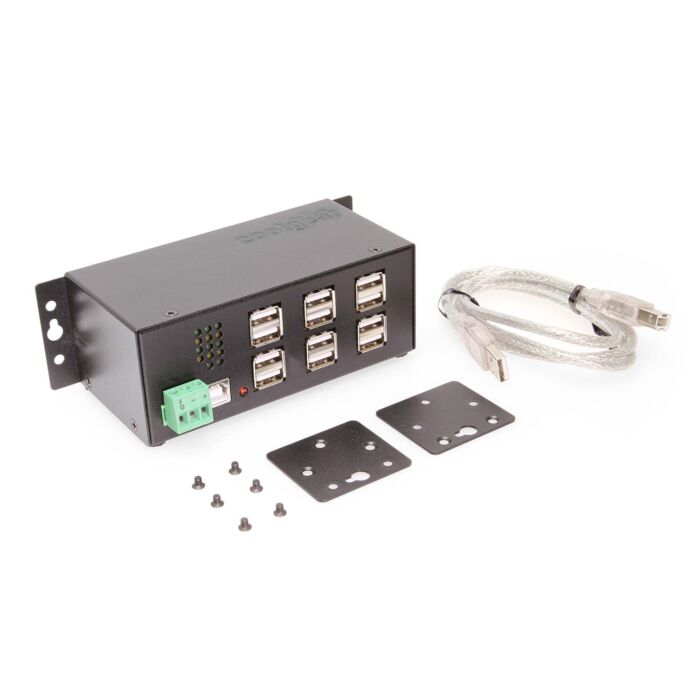

Package Contents:
- USBG-12U2ML USB 2.0 Hub
- USB 2.0 A-Male to B-Male USB cable

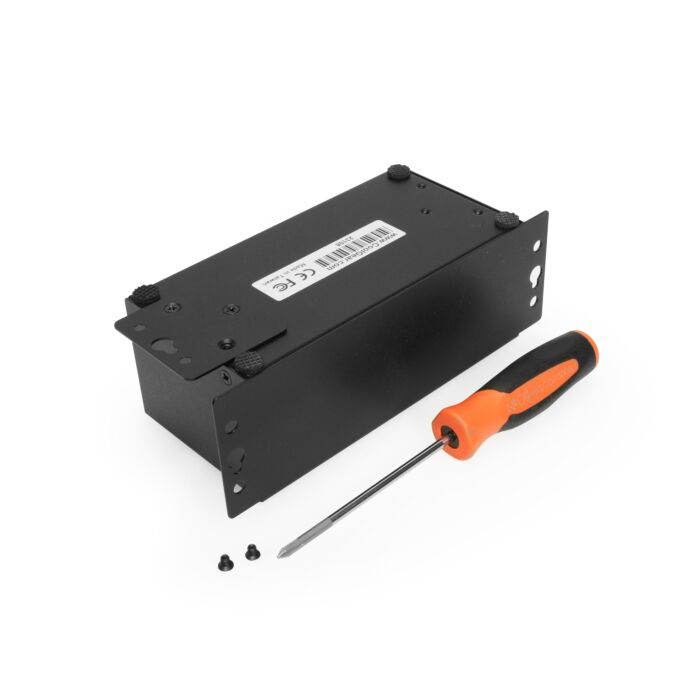

- 2x Mounting plates and screws
- 3 pin Phoenix power connector
- *Power Supply not included; available as an optional accessory: Model# 12V7A3P-B
Model Number | USBG-12U2ML |
---|---|
UPC | 729440625146 |
Color | Black |
Manufacturer | Coolgear |
Warranty | 1 Year |
OS Compatibility | OS independent - No software or drivers required |
Item Length (in) | 5.25 |
Item Width (in) | 2.6 |
Item Height (in) | 2 |
Item Weight (lbs) | 0.843 |
Country of Origin | Taiwan |
Material | Steel |
Upstream Port Count | 1 |
Upstream Port Type | USB 2.0 Type-B Female |
Downstream Port Count | 12 |
Downstream Port Type | 12x Type A USB 2.0 |
Max Data Transfer Rate | 480 Mbps |
LED Indicators | Port Status, Power |
Input Voltage | 7 ~ 36V DC |
Connector(s) | USB 2.0 Type A Female, USB 2.0 Type B Female |
Chip Model | GL852G |
